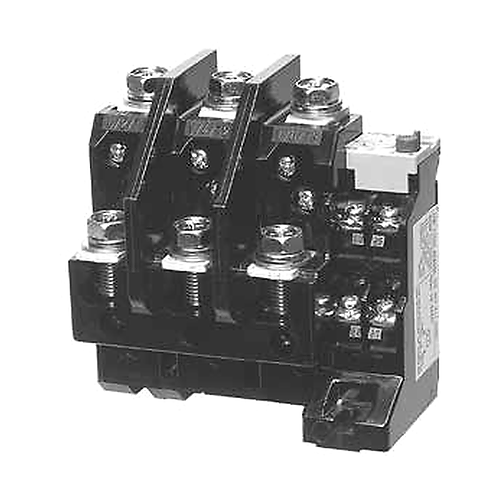

Mitsubishi Electric TH-T65 / TH-T65KP Thermal Overload Relay (15-54A, T65 Frame)

Mitsubishi Electric TH-T65 / TH-T65KP Thermal Overload Relay (15-54A, T65 Frame)

Mitsubishi Electric TH-T65 / TH-T65KP thermal overload relay for MS-T/N series magnetic contactors and starters, t65 frame, heater designations 15-54A. 2-element type for overload protection, KP 3-element (2E) type for combined overload and open-phase protection.

Key features

  • Manual reset standard (auto-reset AR type available to order); auxiliary contact 1a1b
  • Compliant with JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4

Specifications

Frame T65
Type Thermal Overload Relay
Mounting For magnetic starter combination
Reset Manual (standard)
Aux Contact 1a1b
Standards JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 15A TH-T65 thermal relay, 15A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 15A (adjustable 12-18A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 22A TH-T65 thermal relay, 22A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 22A (adjustable 18-26A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 29A TH-T65 thermal relay, 29A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 35A TH-T65 thermal relay, 35A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 42A TH-T65 thermal relay, 42A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 54A TH-T65 thermal relay, 54A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 15A TH-T65KP thermal relay, 15A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 15A (adjustable 12-18A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 22A TH-T65KP thermal relay, 22A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 22A (adjustable 18-26A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 29A TH-T65KP thermal relay, 29A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 35A TH-T65KP thermal relay, 35A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 42A TH-T65KP thermal relay, 42A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 54A TH-T65KP thermal relay, 54A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
Thermal Overload RelaysMitsubishi Electric
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric TH-T65 / TH-T65KP Thermal Overload Relay (15-54A, T65 Frame)

Brand Mitsubishi Electric·Thermal Overload Relays

Available part numbers (12)

TH-T65 15A, TH-T65 22A, TH-T65 29A, TH-T65 35A, TH-T65 42A, TH-T65 54A, TH-T65KP 15A, TH-T65KP 22A, TH-T65KP 29A, TH-T65KP 35A + 2 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TH-T65 15ATH-T65 thermal relay, 15A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 15A (adjustable 12-18A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 22ATH-T65 thermal relay, 22A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 22A (adjustable 18-26A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 29ATH-T65 thermal relay, 29A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 35ATH-T65 thermal relay, 35A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 42ATH-T65 thermal relay, 42A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65 54ATH-T65 thermal relay, 54A heater, 2-element | Frame: T65 | Type: Thermal Overload Relay | Elements: 2-element | Protection: Overload | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 15ATH-T65KP thermal relay, 15A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 15A (adjustable 12-18A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 22ATH-T65KP thermal relay, 22A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 22A (adjustable 18-26A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 29ATH-T65KP thermal relay, 29A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 29A (adjustable 24-34A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 35ATH-T65KP thermal relay, 35A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 35A (adjustable 30-40A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 42ATH-T65KP thermal relay, 42A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65KP 54ATH-T65KP thermal relay, 54A heater, 3-element 2E | Frame: T65 | Type: Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
