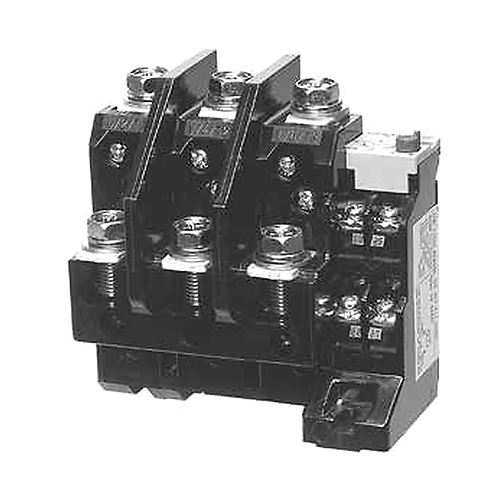

Mitsubishi Electric TH-T65FS / TH-T65FSKP Quick-Response Thermal Overload Relay (42-54A, T65 Frame)

Mitsubishi Electric TH-T65FS / TH-T65FSKP Quick-Response Thermal Overload Relay (42-54A, T65 Frame)

Mitsubishi Electric TH-T65FS / TH-T65FSKP quick-response thermal overload relay, t65 frame, heater designations 42-54A, trip class 5.

Key features

  • Faster operating time than standard TH types for motors with short locked-rotor withstand time such as submersible motors; usable from DC to 400Hz. 2-element type for overload protection, FSKP 3-element (2E) type for combined overload and open-phase protection
  • Manual reset standard; auxiliary contact 1a1b
  • Compliant with JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4

Specifications

Frame T65
Type Quick-Response Thermal Overload Relay
Trip Class 5
Mounting For magnetic starter combination
Reset Manual (standard)
Aux Contact 1a1b
Frequency DC to 400Hz
Standards JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65FS 42A TH-T65FS quick-response thermal relay, 42A heater, 2-element | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65FS 54A TH-T65FS quick-response thermal relay, 54A heater, 2-element | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65FSKP 42A TH-T65FSKP quick-response thermal relay, 42A heater, 3-element 2E | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65FSKP 54A TH-T65FSKP quick-response thermal relay, 54A heater, 3-element 2E | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
Thermal Overload RelaysMitsubishi Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric TH-T65FS / TH-T65FSKP Quick-Response Thermal Overload Relay (42-54A, T65 Frame)

Brand Mitsubishi Electric·Thermal Overload Relays

Available part numbers (4)

TH-T65FS 42A, TH-T65FS 54A, TH-T65FSKP 42A, TH-T65FSKP 54A

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TH-T65FS 42ATH-T65FS quick-response thermal relay, 42A heater, 2-element | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65FS 54ATH-T65FS quick-response thermal relay, 54A heater, 2-element | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 2-element | Protection: Overload | Trip Class: 5 | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65FSKP 42ATH-T65FSKP quick-response thermal relay, 42A heater, 3-element 2E | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 42A (adjustable 34-50A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
TH-T65FSKP 54ATH-T65FSKP quick-response thermal relay, 54A heater, 3-element 2E | Frame: T65 | Type: Quick-Response Thermal Overload Relay | Elements: 3-element (2E) | Protection: Overload + Open-phase | Trip Class: 5 | Heater: 54A (adjustable 43-65A) | Mounting: For magnetic starter combination | Reset: Manual (standard) | Aux Contact: 1a1b | Frequency: DC to 400Hz | Standards: JIS C8201-4-1, IEC 60947-4-1, EN 60947-4-1, GB 14048.4
