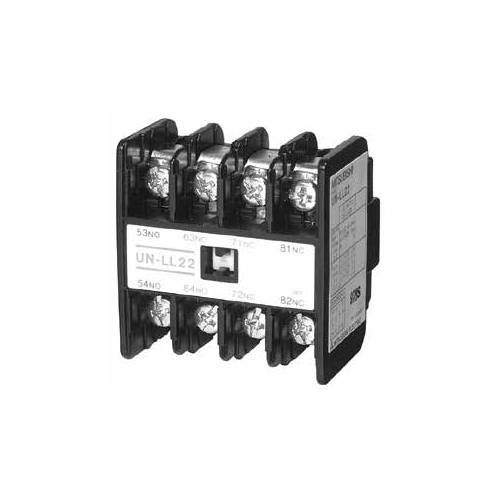

Mitsubishi Electric UN-LL22 Low-Level Signal Auxiliary Contact Unit

Mitsubishi Electric UN-LL22 Low-Level Signal Auxiliary Contact Unit

Mitsubishi Electric UN-LL22 auxiliary contact unit with low-level signal contacts, 4-pole structure combining low-level 1a1b (rated 5V 5mA) and standard twin 1a1b (20V 5mA) contacts.

Key features

  • Head ON mounting for S-T65/T80 and DU-N30 frame contactors (AC and DC operated)
  • UN-LL22CX has CAN terminals
  • UL and CSA certified
  • Conforms to JIS C8201-5-1, IEC 60947-5-1, EN 60947-5-1, GB14048.5

Specifications

Contacts 1a1b low-level (5V 5mA) + 1a1b standard (20V 5mA)
Mounting Head ON
Applicable S-T65, T80, DU-N30 / SD-T65, T80, DUD-N30
UN-LL22 Low-level signal aux contact unit UN-LL22, 1a1b low-level + 1a1b standard | Contacts: 1a1b low-level (5V 5mA) + 1a1b standard (20V 5mA) | Mounting: Head ON | Terminal: Screw | Applicable: S-T65, T80, DU-N30 / SD-T65, T80, DUD-N30
UN-LL22CX Low-level signal aux contact unit UN-LL22CX, 1a1b low-level + 1a1b standard | Contacts: 1a1b low-level (5V 5mA) + 1a1b standard (20V 5mA) | Mounting: Head ON | Terminal: CAN (CX) | Applicable: S-T65, T80, DU-N30 / SD-T65, T80, DUD-N30
AccessoriesMitsubishi Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric UN-LL22 Low-Level Signal Auxiliary Contact Unit

Brand Mitsubishi Electric·Accessories

Available part numbers (2)

UN-LL22, UN-LL22CX

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UN-LL22Low-level signal aux contact unit UN-LL22, 1a1b low-level + 1a1b standard | Contacts: 1a1b low-level (5V 5mA) + 1a1b standard (20V 5mA) | Mounting: Head ON | Terminal: Screw | Applicable: S-T65, T80, DU-N30 / SD-T65, T80, DUD-N30
UN-LL22CXLow-level signal aux contact unit UN-LL22CX, 1a1b low-level + 1a1b standard | Contacts: 1a1b low-level (5V 5mA) + 1a1b standard (20V 5mA) | Mounting: Head ON | Terminal: CAN (CX) | Applicable: S-T65, T80, DU-N30 / SD-T65, T80, DUD-N30
