Mitsubishi Electric UT/UN-SD, SG Main Circuit Conductor Kits (Reversing and Jumper)

Mitsubishi Electric UT/UN-SD, SG Main Circuit Conductor Kits (Reversing and Jumper)

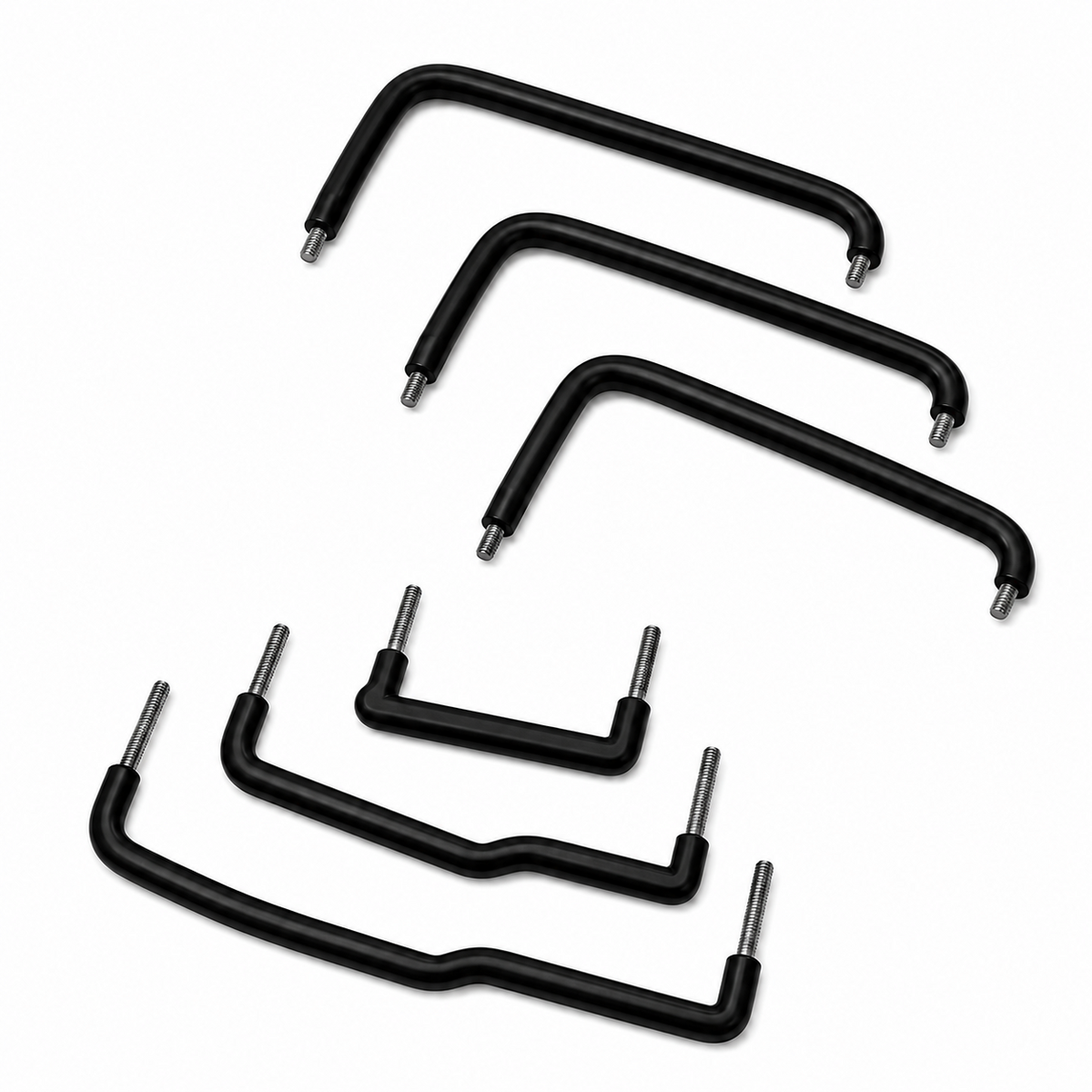

Mitsubishi Electric UT/UN-SD reversing conductor kits (6 conductors per set) and UT/UN-SG jumper conductor kits (3 conductors per set) rationalize main circuit wiring of reversing magnetic contactors, power-source transfer switches, and star-delta starters across MS-T/N frames T10 to N800.

Key features

  • Combine with UT/UN-ML mechanical interlock units and electrical interlocking when forming reversing configurations
  • UN-SD/SG CX types use ring crimp terminals with insulation tube
UT-SD10 Reversing conductor kit UT-SD10, frame T10 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T10
UT-SG10 Jumper conductor kit UT-SG10, frame T10 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T10
UT-SD20 Reversing conductor kit UT-SD20, frame T12, T20 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T12, T20
UT-SG20 Jumper conductor kit UT-SG20, frame T12, T20 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T12, T20
UT-SD25 Reversing conductor kit UT-SD25, frame T21, T25 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T21, T25
UT-SG25 Jumper conductor kit UT-SG25, frame T21, T25 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T21, T25
UN-SD18CX Reversing conductor kit UN-SD18CX, frame T32 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T32
UN-SG18CX Jumper conductor kit UN-SG18CX, frame T32 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T32
UN-SD25CX Reversing conductor kit UN-SD25CX, frame T35, T50 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T35, T50
UN-SG25CX Jumper conductor kit UN-SG25CX, frame T35, T50 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T35, T50
UN-SD50 Reversing conductor kit UN-SD50, frame T65, T80 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T65, T80
UN-SG50 Jumper conductor kit UN-SG50, frame T65, T80 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T65, T80
UN-SD80 Reversing conductor kit UN-SD80, frame T100 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T100
UN-SG80 Jumper conductor kit UN-SG80, frame T100 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T100
UN-SD125 Reversing conductor kit UN-SD125, frame N125 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N125
UN-SG125 Jumper conductor kit UN-SG125, frame N125 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N125
UN-SD150 Reversing conductor kit UN-SD150, frame N150 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N150
UN-SG150 Jumper conductor kit UN-SG150, frame N150 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N150
UN-SD220 Reversing conductor kit UN-SD220, frame N180, N220 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N180, N220
UN-SG220 Jumper conductor kit UN-SG220, frame N180, N220 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N180, N220
UN-SD300 Reversing conductor kit UN-SD300, frame N300, N400 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N300, N400
UN-SG300 Jumper conductor kit UN-SG300, frame N300, N400 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N300, N400
UN-SD600 Reversing conductor kit UN-SD600, frame N600, N800 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N600, N800
UN-SG600 Jumper conductor kit UN-SG600, frame N600, N800 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N600, N800
AccessoriesMitsubishi Electric
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Mitsubishi Electric UT/UN-SD, SG Main Circuit Conductor Kits (Reversing and Jumper)

Brand Mitsubishi Electric·Accessories

Available part numbers (24)

UT-SD10, UT-SG10, UT-SD20, UT-SG20, UT-SD25, UT-SG25, UN-SD18CX, UN-SG18CX, UN-SD25CX, UN-SG25CX + 14 more — see full table ↓

How to order

Send the Mitsubishi Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UT-SD10Reversing conductor kit UT-SD10, frame T10 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T10
UT-SG10Jumper conductor kit UT-SG10, frame T10 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T10
UT-SD20Reversing conductor kit UT-SD20, frame T12, T20 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T12, T20
UT-SG20Jumper conductor kit UT-SG20, frame T12, T20 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T12, T20
UT-SD25Reversing conductor kit UT-SD25, frame T21, T25 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T21, T25
UT-SG25Jumper conductor kit UT-SG25, frame T21, T25 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T21, T25
UN-SD18CXReversing conductor kit UN-SD18CX, frame T32 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T32
UN-SG18CXJumper conductor kit UN-SG18CX, frame T32 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T32
UN-SD25CXReversing conductor kit UN-SD25CX, frame T35, T50 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T35, T50
UN-SG25CXJumper conductor kit UN-SG25CX, frame T35, T50 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T35, T50
UN-SD50Reversing conductor kit UN-SD50, frame T65, T80 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T65, T80
UN-SG50Jumper conductor kit UN-SG50, frame T65, T80 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T65, T80
UN-SD80Reversing conductor kit UN-SD80, frame T100 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: T100
UN-SG80Jumper conductor kit UN-SG80, frame T100 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: T100
UN-SD125Reversing conductor kit UN-SD125, frame N125 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N125
UN-SG125Jumper conductor kit UN-SG125, frame N125 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N125
UN-SD150Reversing conductor kit UN-SD150, frame N150 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N150
UN-SG150Jumper conductor kit UN-SG150, frame N150 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N150
UN-SD220Reversing conductor kit UN-SD220, frame N180, N220 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N180, N220
UN-SG220Jumper conductor kit UN-SG220, frame N180, N220 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N180, N220
UN-SD300Reversing conductor kit UN-SD300, frame N300, N400 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N300, N400
UN-SG300Jumper conductor kit UN-SG300, frame N300, N400 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N300, N400
UN-SD600Reversing conductor kit UN-SD600, frame N600, N800 | Kit Type: Reversing (6 conductors per set) | Applicable Frame: N600, N800
UN-SG600Jumper conductor kit UN-SG600, frame N600, N800 | Kit Type: Jumper (3 conductors per set) | Applicable Frame: N600, N800
