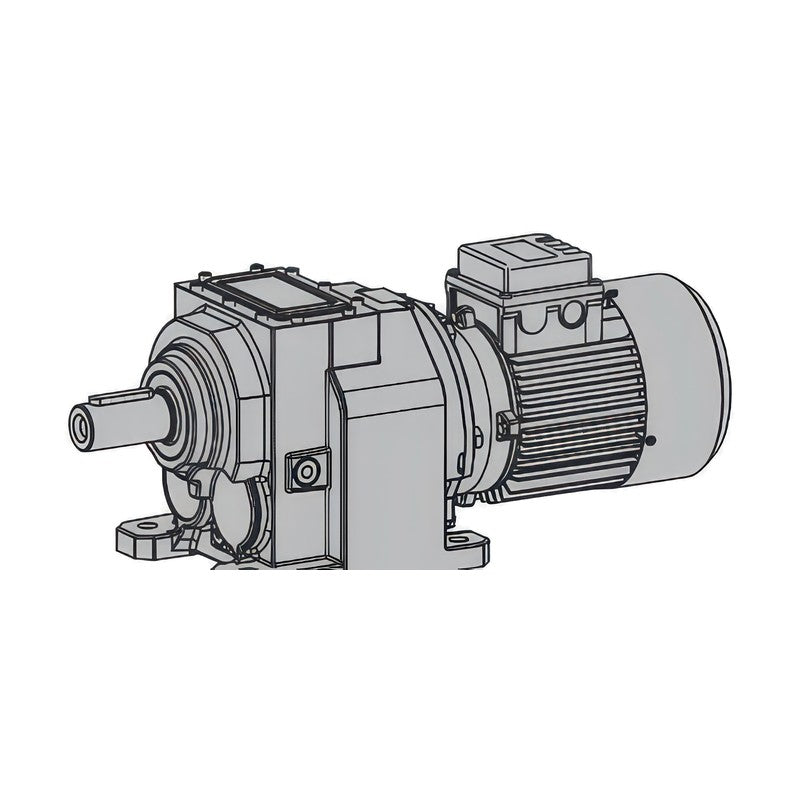

Motovario HA Helical Inline Gearmotors (HA31-HA43, 0.09-2.2 kW)

Motovario HA helical inline gearmotors in HA30/HA40 frame sizes (HA31-HA43), with die-cast aluminium alloy housings in 1, 2 and 3 reduction stages and a fitted IEC motor, covering every unit, ratio and motor combination in the current H Series performance tables.

Key features

Die-cast aluminium alloy housing, sizes HA31, HA32, HA33, HA41, HA42, HA43
1, 2 or 3 helical reduction stages, ratios 1.45 to 193.3
Fitted IEC motors 63-90 frame (2, 4, 6 poles), 0.09 to 2.2 kW
Output speeds 4.4-1961 rpm, output torque up to 196 Nm
Lubricated for life with mineral oil (LAND OIL GEAR POWER 220), no oil plugs, maintenance-free
Foot or flange versions, output flanges FA-FC, mounting positions B3-V3 selected at order

Specifications

Brand	Motovario (Italy)
Series	HA (aluminium alloy) helical inline
Sizes	HA31, HA32, HA33, HA41, HA42, HA43
Reduction stages	1 (HAx1), 2 (HAx2), 3 (HAx3)
Housing	Die-cast aluminium alloy, RAL 5010 blue
Average efficiency	0.97 / 0.96 / 0.94 (1 / 2 / 3 stages)
Motor supply	50 Hz IEC motors, B5 or compact B10 flange
Mounting positions	B3, B5, B8, B6, B7, V5, V1, V6, V3
Code format	HA<size> <ratio i> <motor size><poles>
Source	Motovario H Series Technical Catalogue IEC STD, p. 77-150

HA31 6,30 63A6		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 136.5 rpm \| Output torque M2: 6 Nm
HA31 7,88 63A6		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 8 Nm
HA41 7,88 63A6		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 8 Nm
HA31 10,83 63A6		Unit: HA31 \| Ratio i: 10.83 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 11 Nm
HA41 10,83 63A6		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 11 Nm
HA32 24,55 63A6		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 24 Nm
HA32 30,55 63A6		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 28.2 rpm \| Output torque M2: 30 Nm
HA32 35,44 63A6		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 34 Nm
HA32 44,10 63A6		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 43 Nm
HA42 44,10 63A6		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 43 Nm
HA33 51,32 63A6		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 49 Nm
HA43 51,32 63A6		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 49 Nm
HA33 59,65 63A6		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 57 Nm
HA43 59,65 63A6		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 57 Nm
HA33 72,27 63A6		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 69 Nm
HA43 72,27 63A6		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 69 Nm
HA33 89,94 63A6		Unit: HA33 \| Ratio i: 89.94 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 85 Nm
HA43 89,94 63A6		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 85 Nm
HA33 110,51 63A6		Unit: HA33 \| Ratio i: 110.51 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 105 Nm
HA43 110,51 63A6		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 105 Nm
HA33 133,88 63A6		Unit: HA33 \| Ratio i: 133.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 127 Nm
HA43 133,88 63A6		Unit: HA43 \| Ratio i: 133.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 127 Nm
HA43 166,61 63A6		Unit: HA43 \| Ratio i: 166.61 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 158 Nm
HA43 193,30 63A6		Unit: HA43 \| Ratio i: 193.30 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 183 Nm
HA31 4,75 63B6		Unit: HA31 \| Ratio i: 4.75 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 181.1 rpm \| Output torque M2: 6 Nm
HA31 7,88 63A4		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 170.2 rpm \| Output torque M2: 7 Nm
HA41 7,88 63A4		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 170.2 rpm \| Output torque M2: 7 Nm
HA31 5,10 63B6		Unit: HA31 \| Ratio i: 5.10 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 168.6 rpm \| Output torque M2: 7 Nm
HA31 5,45 63B6		Unit: HA31 \| Ratio i: 5.45 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 7 Nm
HA31 6,30 63B6		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 136.5 rpm \| Output torque M2: 8 Nm
HA31 10,83 63A4		Unit: HA31 \| Ratio i: 10.83 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 123.7 rpm \| Output torque M2: 9 Nm
HA41 10,83 63A4		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 123.7 rpm \| Output torque M2: 9 Nm
HA31 7,88 63B6		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 10 Nm
HA41 7,88 63B6		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 10 Nm
HA31 10,83 63B6		Unit: HA31 \| Ratio i: 10.83 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 14 Nm
HA41 10,83 63B6		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 14 Nm
HA32 16,49 63B6		Unit: HA32 \| Ratio i: 16.49 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 52.2 rpm \| Output torque M2: 21 Nm
HA32 30,55 63A4		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 25 Nm
HA32 20,26 63B6		Unit: HA32 \| Ratio i: 20.26 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 26 Nm
HA32 35,44 63A4		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 37.8 rpm \| Output torque M2: 29 Nm
HA32 24,55 63B6		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 32 Nm
HA32 44,10 63A4		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 30.4 rpm \| Output torque M2: 36 Nm
HA42 44,10 63A4		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 30.4 rpm \| Output torque M2: 36 Nm
HA32 30,55 63B6		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 28.2 rpm \| Output torque M2: 39 Nm
HA42 30,55 63B6		Unit: HA42 \| Ratio i: 30.55 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 28.2 rpm \| Output torque M2: 39 Nm
HA33 51,32 63A4		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 41 Nm
HA43 51,32 63A4		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 41 Nm
HA32 35,44 63B6		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 46 Nm
HA42 35,44 63B6		Unit: HA42 \| Ratio i: 35.44 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 46 Nm
HA33 59,65 63A4		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 48 Nm
HA43 59,65 63A4		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 48 Nm
HA32 44,10 63B6		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 57 Nm
HA42 44,10 63B6		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 57 Nm
HA33 72,27 63A4		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 58 Nm
HA43 72,27 63A4		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 58 Nm
HA33 51,32 63B6		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 65 Nm
HA43 51,32 63B6		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 65 Nm
HA33 89,94 63A4		Unit: HA33 \| Ratio i: 89.94 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 72 Nm
HA43 89,94 63A4		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 72 Nm
HA33 59,65 63B6		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 75 Nm
HA43 59,65 63B6		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 75 Nm
HA33 110,51 63A4		Unit: HA33 \| Ratio i: 110.51 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 89 Nm
HA43 110,51 63A4		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 89 Nm
HA33 72,27 63B6		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 91 Nm
HA43 72,27 63B6		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 91 Nm
HA33 133,88 63A4		Unit: HA33 \| Ratio i: 133.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 108 Nm
HA43 133,88 63A4		Unit: HA43 \| Ratio i: 133.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 108 Nm
HA33 89,94 63B6		Unit: HA33 \| Ratio i: 89.94 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 114 Nm
HA43 89,94 63B6		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 114 Nm
HA43 166,61 63A4		Unit: HA43 \| Ratio i: 166.61 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 134 Nm
HA43 110,51 63B6		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 140 Nm
HA43 193,30 63A4		Unit: HA43 \| Ratio i: 193.30 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 155 Nm
HA43 133,88 63B6		Unit: HA43 \| Ratio i: 133.88 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 169 Nm
HA31 3,18 63C6		Unit: HA31 \| Ratio i: 3.18 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 255.0 rpm \| Output torque M2: 6 Nm
HA31 3,36 63C6		Unit: HA31 \| Ratio i: 3.36 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 241.3 rpm \| Output torque M2: 6 Nm
HA31 3,87 63C6		Unit: HA31 \| Ratio i: 3.87 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 209.5 rpm \| Output torque M2: 7 Nm
HA31 4,21 63C6		Unit: HA31 \| Ratio i: 4.21 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 192.2 rpm \| Output torque M2: 7 Nm
HA31 4,75 63C6		Unit: HA31 \| Ratio i: 4.75 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 170.5 rpm \| Output torque M2: 8 Nm
HA41 4,75 63C6		Unit: HA41 \| Ratio i: 4.75 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 170.5 rpm \| Output torque M2: 8 Nm
HA31 5,10 63C6		Unit: HA31 \| Ratio i: 5.10 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 158.8 rpm \| Output torque M2: 9 Nm
HA31 5,45 63C6		Unit: HA31 \| Ratio i: 5.45 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 148.5 rpm \| Output torque M2: 9 Nm
HA41 5,45 63C6		Unit: HA41 \| Ratio i: 5.45 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 148.5 rpm \| Output torque M2: 9 Nm
HA31 6,30 63C6		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 128.6 rpm \| Output torque M2: 11 Nm
HA31 7,88 63C6		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 14 Nm
HA41 7,88 63C6		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 14 Nm
HA41 10,83 63C6		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 19 Nm
HA32 13,25 63C6		Unit: HA32 \| Ratio i: 13.25 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 61.1 rpm \| Output torque M2: 23 Nm
HA32 16,49 63C6		Unit: HA32 \| Ratio i: 16.49 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 49.1 rpm \| Output torque M2: 28 Nm
HA32 20,26 63C6		Unit: HA32 \| Ratio i: 20.26 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 35 Nm
HA32 24,55 63C6		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 42 Nm
HA42 24,55 63C6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 42 Nm
HA32 30,55 63C6		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 52 Nm
HA42 30,55 63C6		Unit: HA42 \| Ratio i: 30.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 52 Nm
HA32 35,44 63C6		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 61 Nm
HA42 35,44 63C6		Unit: HA42 \| Ratio i: 35.44 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 61 Nm
HA32 44,10 63C6		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 76 Nm
HA42 44,10 63C6		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 76 Nm
HA33 51,32 63C6		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 86 Nm
HA43 51,32 63C6		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 86 Nm
HA33 59,65 63C6		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 100 Nm
HA43 59,65 63C6		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 100 Nm
HA33 72,27 63C6		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 121 Nm
HA43 72,27 63C6		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 121 Nm
HA43 89,94 63C6		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 151 Nm
HA43 110,51 63C6		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 186 Nm
HA31 7,88 63A2		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 355.6 rpm \| Output torque M2: 5 Nm
HA31 4,21 63B4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 315.6 rpm \| Output torque M2: 5 Nm
HA31 2,94 71A6		Unit: HA31 \| Ratio i: 2.94 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 305.7 rpm \| Output torque M2: 6 Nm
HA31 3,18 71A6		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 283.3 rpm \| Output torque M2: 6 Nm
HA31 4,75 63B4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 280.0 rpm \| Output torque M2: 6 Nm
HA31 3,36 71A6		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 268.1 rpm \| Output torque M2: 6 Nm
HA31 5,10 63B4		Unit: HA31 \| Ratio i: 5.10 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 260.8 rpm \| Output torque M2: 6 Nm
HA31 10,83 63A2		Unit: HA31 \| Ratio i: 10.83 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 6 Nm
HA41 10,83 63A2		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 6 Nm
HA31 5,45 63B4		Unit: HA31 \| Ratio i: 5.45 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 243.8 rpm \| Output torque M2: 7 Nm
HA31 3,87 71A6		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 232.8 rpm \| Output torque M2: 7 Nm
HA31 4,21 71A6		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 8 Nm
HA31 6,30 63B4		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 211.1 rpm \| Output torque M2: 8 Nm
HA31 4,75 71A6		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 9 Nm
HA41 4,75 71A6		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 9 Nm
HA31 5,10 71A6		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 176.5 rpm \| Output torque M2: 10 Nm
HA31 7,88 63B4		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 10 Nm
HA41 7,88 63B4		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 10 Nm
HA31 5,45 71A6		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 10 Nm
HA41 5,45 71A6		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 10 Nm
HA31 6,30 71A6		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 142.9 rpm \| Output torque M2: 12 Nm
HA31 10,83 63B4		Unit: HA31 \| Ratio i: 10.83 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 14 Nm
HA41 10,83 63B4		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 14 Nm
HA31 7,88 71A6		Unit: HA31 \| Ratio i: 7.88 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 15 Nm
HA41 7,88 71A6		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 15 Nm
HA32 30,55 63A2		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 17 Nm
HA41 10,83 71A6		Unit: HA41 \| Ratio i: 10.83 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 20 Nm
HA32 16,49 63B4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 80.7 rpm \| Output torque M2: 20 Nm
HA32 35,44 63A2		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 79.0 rpm \| Output torque M2: 20 Nm
HA32 13,25 71A6		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 67.9 rpm \| Output torque M2: 25 Nm
HA32 20,26 63B4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 65.6 rpm \| Output torque M2: 25 Nm
HA32 44,10 63A2		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 25 Nm
HA32 16,49 71A6		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 31 Nm
HA33 51,32 63A2		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 29 Nm
HA43 51,32 63A2		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 29 Nm
HA32 24,55 63B4		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 30 Nm
HA33 59,65 63A2		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 33 Nm
HA43 59,65 63A2		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 33 Nm
HA32 20,26 71A6		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 38 Nm
HA32 30,55 63B4		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 38 Nm
HA42 30,55 63B4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 38 Nm
HA33 72,27 63A2		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 40 Nm
HA43 72,27 63A2		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 40 Nm
HA32 35,44 63B4		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 44 Nm
HA42 35,44 63B4		Unit: HA42 \| Ratio i: 35.44 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 44 Nm
HA32 24,55 71A6		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 45 Nm
HA42 24,55 71A6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 45 Nm
HA33 89,94 63A2		Unit: HA33 \| Ratio i: 89.94 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 50 Nm
HA43 89,94 63A2		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 50 Nm
HA32 44,10 63B4		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 55 Nm
HA42 44,10 63B4		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 55 Nm
HA32 30,55 71A6		Unit: HA32 \| Ratio i: 30.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 57 Nm
HA42 30,55 71A6		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 57 Nm
HA33 51,32 63B4		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 62 Nm
HA43 51,32 63B4		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 62 Nm
HA32 35,44 71A6		Unit: HA32 \| Ratio i: 35.44 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 66 Nm
HA42 35,44 71A6		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 66 Nm
HA33 110,51 63A2		Unit: HA33 \| Ratio i: 110.51 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 62 Nm
HA43 110,51 63A2		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 62 Nm
HA33 59,65 63B4		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 72 Nm
HA43 59,65 63B4		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 72 Nm
HA33 133,88 63A2		Unit: HA33 \| Ratio i: 133.88 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 75 Nm
HA43 133,88 63A2		Unit: HA43 \| Ratio i: 133.88 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 75 Nm
HA32 44,10 71A6		Unit: HA32 \| Ratio i: 44.10 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 82 Nm
HA42 44,10 71A6		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 82 Nm
HA33 72,27 63B4		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 88 Nm
HA43 72,27 63B4		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 88 Nm
HA33 51,32 71A6		Unit: HA33 \| Ratio i: 51.32 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 93 Nm
HA43 51,32 71A6		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 93 Nm
HA43 166,61 63A2		Unit: HA43 \| Ratio i: 166.61 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 93 Nm
HA33 59,65 71A6		Unit: HA33 \| Ratio i: 59.65 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 108 Nm
HA43 59,65 71A6		Unit: HA43 \| Ratio i: 59.65 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 108 Nm
HA33 89,94 63B4		Unit: HA33 \| Ratio i: 89.94 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 109 Nm
HA43 89,94 63B4		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 109 Nm
HA43 193,30 63A2		Unit: HA43 \| Ratio i: 193.30 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 108 Nm
HA33 72,27 71A6		Unit: HA33 \| Ratio i: 72.27 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 131 Nm
HA43 72,27 71A6		Unit: HA43 \| Ratio i: 72.27 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 131 Nm
HA43 110,51 63B4		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 134 Nm
HA43 89,94 71A6		Unit: HA43 \| Ratio i: 89.94 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 163 Nm
HA43 133,88 63B4		Unit: HA43 \| Ratio i: 133.88 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 163 Nm
HA31 3,36 63C4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 396.2 rpm \| Output torque M2: 5 Nm
HA31 3,87 63C4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 344.0 rpm \| Output torque M2: 6 Nm
HA31 4,21 63C4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 315.6 rpm \| Output torque M2: 6 Nm
HA31 4,75 63C4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 280.0 rpm \| Output torque M2: 7 Nm
HA31 5,10 63C4		Unit: HA31 \| Ratio i: 5.10 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 260.8 rpm \| Output torque M2: 8 Nm
HA31 5,45 63C4		Unit: HA31 \| Ratio i: 5.45 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 243.8 rpm \| Output torque M2: 8 Nm
HA41 5,45 63C4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 243.8 rpm \| Output torque M2: 8 Nm
HA31 6,30 63C4		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 211.1 rpm \| Output torque M2: 10 Nm
HA31 7,88 63C4		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 12 Nm
HA41 7,88 63C4		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 12 Nm
HA31 10,83 63C4		Unit: HA31 \| Ratio i: 10.83 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 17 Nm
HA41 10,83 63C4		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 17 Nm
HA32 13,25 63C4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 100.4 rpm \| Output torque M2: 20 Nm
HA32 16,49 63C4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 80.7 rpm \| Output torque M2: 25 Nm
HA32 20,26 63C4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 65.6 rpm \| Output torque M2: 31 Nm
HA32 24,55 63C4		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 37 Nm
HA32 30,55 63C4		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 46 Nm
HA42 30,55 63C4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 46 Nm
HA32 35,44 63C4		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 54 Nm
HA42 35,44 63C4		Unit: HA42 \| Ratio i: 35.44 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 54 Nm
HA32 44,10 63C4		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 67 Nm
HA42 44,10 63C4		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 67 Nm
HA33 51,32 63C4		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 76 Nm
HA43 51,32 63C4		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 76 Nm
HA33 59,65 63C4		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 89 Nm
HA43 59,65 63C4		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 89 Nm
HA33 72,27 63C4		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 107 Nm
HA43 72,27 63C4		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 107 Nm
HA43 89,94 63C4		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 134 Nm
HA43 110,51 63C4		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 164 Nm
HA31 5,45 63B2		Unit: HA31 \| Ratio i: 5.45 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 4 Nm
HA31 2,94 63D4		Unit: HA31 \| Ratio i: 2.94 \| Motor: 63D4 \| Power P1: 0.25 kW \| Output speed n2: 448.3 rpm \| Output torque M2: 5 Nm
HA31 6,30 63B2		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 444.4 rpm \| Output torque M2: 5 Nm
HA31 3,18 63D4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 415.6 rpm \| Output torque M2: 6 Nm
HA31 3,18 71A4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 415.6 rpm \| Output torque M2: 6 Nm
HA31 3,36 63D4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 393.2 rpm \| Output torque M2: 6 Nm
HA31 3,36 71A4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 393.2 rpm \| Output torque M2: 6 Nm
HA31 7,88 63B2		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 355.6 rpm \| Output torque M2: 6 Nm
HA41 7,88 63B2		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 355.6 rpm \| Output torque M2: 6 Nm
HA31 2,55 71B6		Unit: HA31 \| Ratio i: 2.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 352.9 rpm \| Output torque M2: 7 Nm
HA31 3,87 63D4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 341.4 rpm \| Output torque M2: 7 Nm
HA31 3,87 71A4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 341.4 rpm \| Output torque M2: 7 Nm
HA31 4,21 63D4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 313.2 rpm \| Output torque M2: 7 Nm
HA31 4,21 71A4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 313.2 rpm \| Output torque M2: 7 Nm
HA31 2,94 71B6		Unit: HA31 \| Ratio i: 2.94 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 305.7 rpm \| Output torque M2: 8 Nm
HA41 2,94 71B6		Unit: HA41 \| Ratio i: 2.94 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 305.7 rpm \| Output torque M2: 8 Nm
HA31 3,18 71B6		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 283.3 rpm \| Output torque M2: 8 Nm
HA31 4,75 63D4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
HA31 4,75 71A4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
HA41 4,75 63D4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
HA41 4,75 71A4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
HA31 3,36 71B6		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 268.1 rpm \| Output torque M2: 9 Nm
HA31 5,10 63D4		Unit: HA31 \| Ratio i: 5.10 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 9 Nm
HA31 5,10 71A4		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 9 Nm
HA31 10,83 63B2		Unit: HA31 \| Ratio i: 10.83 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 9 Nm
HA41 10,83 63B2		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 9 Nm
HA31 5,45 63D4		Unit: HA31 \| Ratio i: 5.45 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
HA31 5,45 71A4		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
HA41 5,45 63D4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
HA41 5,45 71A4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
HA31 3,87 71B6		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 232.8 rpm \| Output torque M2: 10 Nm
HA31 4,21 71B6		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 11 Nm
HA31 6,30 63D4		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 209.5 rpm \| Output torque M2: 11 Nm
HA31 6,30 71A4		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 209.5 rpm \| Output torque M2: 11 Nm
HA31 4,75 71B6		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 12 Nm
HA41 4,75 71B6		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 12 Nm
HA31 5,10 71B6		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 176.5 rpm \| Output torque M2: 13 Nm
HA31 7,88 63D4		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
HA31 7,88 71A4		Unit: HA31 \| Ratio i: 7.88 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
HA41 7,88 63D4		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
HA41 7,88 71A4		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
HA31 5,45 71B6		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 14 Nm
HA41 5,45 71B6		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 14 Nm
HA31 6,30 71B6		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 142.9 rpm \| Output torque M2: 16 Nm
HA41 10,83 63D4		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 121.8 rpm \| Output torque M2: 19 Nm
HA41 10,83 71A4		Unit: HA41 \| Ratio i: 10.83 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 121.8 rpm \| Output torque M2: 19 Nm
HA31 7,88 71B6		Unit: HA31 \| Ratio i: 7.88 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 20 Nm
HA41 7,88 71B6		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 20 Nm
HA32 24,55 63B2		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 19 Nm
HA32 8,11 71B6		Unit: HA32 \| Ratio i: 8.11 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 111.0 rpm \| Output torque M2: 21 Nm
HA32 13,25 63D4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 99.6 rpm \| Output torque M2: 23 Nm
HA32 13,25 71A4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 99.6 rpm \| Output torque M2: 23 Nm
HA32 30,55 63B2		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 24 Nm
HA32 10,94 71B6		Unit: HA32 \| Ratio i: 10.94 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 82.3 rpm \| Output torque M2: 28 Nm
HA32 16,49 63D4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 80.1 rpm \| Output torque M2: 29 Nm
HA32 16,49 71A4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 80.1 rpm \| Output torque M2: 29 Nm
HA32 35,44 63B2		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 79.0 rpm \| Output torque M2: 28 Nm
HA32 13,25 71B6		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 67.9 rpm \| Output torque M2: 34 Nm
HA32 20,26 63D4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 65.2 rpm \| Output torque M2: 35 Nm
HA32 20,26 71A4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 65.2 rpm \| Output torque M2: 35 Nm
HA32 44,10 63B2		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 35 Nm
HA42 44,10 63B2		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 35 Nm
HA32 16,49 71B6		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 42 Nm
HA33 51,32 63B2		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 40 Nm
HA42 16,49 71B6		Unit: HA42 \| Ratio i: 16.49 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 42 Nm
HA43 51,32 63B2		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 40 Nm
HA32 24,55 63D4		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
HA32 24,55 71A4		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
HA42 24,55 63D4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
HA42 24,55 71A4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
HA33 59,65 63B2		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 46 Nm
HA43 59,65 63B2		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 46 Nm
HA32 20,26 71B6		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 52 Nm
HA42 20,26 71B6		Unit: HA42 \| Ratio i: 20.26 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 52 Nm
HA32 30,55 63D4		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
HA32 30,55 71A4		Unit: HA32 \| Ratio i: 30.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
HA42 30,55 63D4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
HA42 30,55 71A4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
HA33 72,27 63B2		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 56 Nm
HA43 72,27 63B2		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 56 Nm
HA32 35,44 63D4		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
HA32 35,44 71A4		Unit: HA32 \| Ratio i: 35.44 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
HA42 35,44 63D4		Unit: HA42 \| Ratio i: 35.44 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
HA42 35,44 71A4		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
HA32 24,55 71B6		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 63 Nm
HA42 24,55 71B6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 63 Nm
HA33 89,94 63B2		Unit: HA33 \| Ratio i: 89.94 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 70 Nm
HA43 89,94 63B2		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 70 Nm
HA32 44,10 63D4		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
HA32 44,10 71A4		Unit: HA32 \| Ratio i: 44.10 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
HA42 44,10 63D4		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
HA42 44,10 71A4		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
HA32 30,55 71B6		Unit: HA32 \| Ratio i: 30.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 79 Nm
HA42 30,55 71B6		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 79 Nm
HA33 51,32 63D4		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
HA33 51,32 71A4		Unit: HA33 \| Ratio i: 51.32 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
HA43 51,32 63D4		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
HA43 51,32 71A4		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
HA32 35,44 71B6		Unit: HA32 \| Ratio i: 35.44 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 91 Nm
HA42 35,44 71B6		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 91 Nm
HA43 110,51 63B2		Unit: HA43 \| Ratio i: 110.51 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 85 Nm
HA33 59,65 63D4		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
HA33 59,65 71A4		Unit: HA33 \| Ratio i: 59.65 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
HA43 59,65 63D4		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
HA43 59,65 71A4		Unit: HA43 \| Ratio i: 59.65 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
HA43 133,88 63B2		Unit: HA43 \| Ratio i: 133.88 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 104 Nm
HA32 44,10 71B6		Unit: HA32 \| Ratio i: 44.10 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 113 Nm
HA42 44,10 71B6		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 113 Nm
HA33 72,27 63D4		Unit: HA33 \| Ratio i: 72.27 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
HA33 72,27 71A4		Unit: HA33 \| Ratio i: 72.27 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
HA43 72,27 63D4		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
HA43 72,27 71A4		Unit: HA43 \| Ratio i: 72.27 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
HA33 51,32 71B6		Unit: HA33 \| Ratio i: 51.32 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 129 Nm
HA43 51,32 71B6		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 129 Nm
HA43 59,65 71B6		Unit: HA43 \| Ratio i: 59.65 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 150 Nm
HA43 89,94 63D4		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 153 Nm
HA43 89,94 71A4		Unit: HA43 \| Ratio i: 89.94 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 153 Nm
HA43 110,51 71A4		Unit: HA43 \| Ratio i: 110.51 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 178 Nm
HA43 72,27 71B6		Unit: HA43 \| Ratio i: 72.27 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 182 Nm
HA31 3,18 63C2		Unit: HA31 \| Ratio i: 3.18 \| Motor: 63C2 \| Power P1: 0.37 kW \| Output speed n2: 878.3 rpm \| Output torque M2: 4 Nm
HA31 3,36 63C2		Unit: HA31 \| Ratio i: 3.36 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 831.1 rpm \| Output torque M2: 4 Nm
HA31 3,36 71A2		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 831.1 rpm \| Output torque M2: 4 Nm
HA31 3,87 63C2		Unit: HA31 \| Ratio i: 3.87 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 721.6 rpm \| Output torque M2: 5 Nm
HA31 3,87 71A2		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 721.6 rpm \| Output torque M2: 5 Nm
HA31 4,21 63C2		Unit: HA31 \| Ratio i: 4.21 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 662.0 rpm \| Output torque M2: 5 Nm
HA31 4,21 71A2		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 662.0 rpm \| Output torque M2: 5 Nm
HA31 4,75 63C2		Unit: HA31 \| Ratio i: 4.75 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 587.4 rpm \| Output torque M2: 6 Nm
HA31 4,75 71A2		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 587.4 rpm \| Output torque M2: 6 Nm
HA41 4,75 63C2		Unit: HA41 \| Ratio i: 4.75 \| Motor: 63C2 \| Power P1: 0.37 kW \| Output speed n2: 587.4 rpm \| Output torque M2: 6 Nm
HA31 5,10 63C2		Unit: HA31 \| Ratio i: 5.10 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 547.1 rpm \| Output torque M2: 6 Nm
HA31 5,10 71A2		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 547.1 rpm \| Output torque M2: 6 Nm
HA31 2,55 71B4		Unit: HA31 \| Ratio i: 2.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 541.2 rpm \| Output torque M2: 6 Nm
HA31 5,45 63C2		Unit: HA31 \| Ratio i: 5.45 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
HA31 5,45 71A2		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
HA41 5,45 63C2		Unit: HA41 \| Ratio i: 5.45 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
HA41 5,45 71A2		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
HA31 2,94 71B4		Unit: HA31 \| Ratio i: 2.94 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 468.7 rpm \| Output torque M2: 7 Nm
HA41 2,94 71B4		Unit: HA41 \| Ratio i: 2.94 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 468.7 rpm \| Output torque M2: 7 Nm
HA31 6,30 63C2		Unit: HA31 \| Ratio i: 6.30 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 442.9 rpm \| Output torque M2: 7 Nm
HA31 6,30 71A2		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 442.9 rpm \| Output torque M2: 7 Nm
HA31 3,18 71B4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 434.4 rpm \| Output torque M2: 8 Nm
HA31 3,36 71B4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 411.1 rpm \| Output torque M2: 8 Nm
HA31 3,87 71B4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 356.9 rpm \| Output torque M2: 10 Nm
HA31 7,88 63C2		Unit: HA31 \| Ratio i: 7.88 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
HA31 7,88 71A2		Unit: HA31 \| Ratio i: 7.88 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
HA41 7,88 63C2		Unit: HA41 \| Ratio i: 7.88 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
HA41 7,88 71A2		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
HA31 2,55 71C6		Unit: HA31 \| Ratio i: 2.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 345.1 rpm \| Output torque M2: 10 Nm
HA31 2,55 80A6		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 345.1 rpm \| Output torque M2: 10 Nm
HA31 4,21 71B4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 327.5 rpm \| Output torque M2: 10 Nm
HA31 2,94 71C6		Unit: HA31 \| Ratio i: 2.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
HA31 2,94 80A6		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
HA41 2,94 71C6		Unit: HA41 \| Ratio i: 2.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
HA41 2,94 80A6		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
HA31 4,75 71B4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 290.5 rpm \| Output torque M2: 12 Nm
HA41 4,75 71B4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 290.5 rpm \| Output torque M2: 12 Nm
HA31 3,18 71C6		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 277.0 rpm \| Output torque M2: 12 Nm
HA31 3,18 80A6		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 277.0 rpm \| Output torque M2: 12 Nm
HA31 5,10 71B4		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 270.6 rpm \| Output torque M2: 13 Nm
HA31 3,36 71C6		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 262.1 rpm \| Output torque M2: 13 Nm
HA31 3,36 80A6		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 262.1 rpm \| Output torque M2: 13 Nm
HA41 10,83 63C2		Unit: HA41 \| Ratio i: 10.83 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 257.5 rpm \| Output torque M2: 13 Nm
HA41 10,83 71A2		Unit: HA41 \| Ratio i: 10.83 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 257.5 rpm \| Output torque M2: 13 Nm
HA31 5,45 71B4		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 253.0 rpm \| Output torque M2: 14 Nm
HA41 5,45 71B4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 253.0 rpm \| Output torque M2: 14 Nm
HA31 3,87 71C6		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 227.6 rpm \| Output torque M2: 15 Nm
HA31 3,87 80A6		Unit: HA31 \| Ratio i: 3.87 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 227.6 rpm \| Output torque M2: 15 Nm
HA31 6,30 71B4		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 219.0 rpm \| Output torque M2: 16 Nm
HA32 13,25 63C2		Unit: HA32 \| Ratio i: 13.25 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 210.6 rpm \| Output torque M2: 16 Nm
HA32 13,25 71A2		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 210.6 rpm \| Output torque M2: 16 Nm
HA31 4,21 71C6		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 208.8 rpm \| Output torque M2: 17 Nm
HA31 4,21 80A6		Unit: HA31 \| Ratio i: 4.21 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 208.8 rpm \| Output torque M2: 17 Nm
HA31 4,75 71C6		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
HA31 4,75 80A6		Unit: HA31 \| Ratio i: 4.75 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
HA41 4,75 71C6		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
HA41 4,75 80A6		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
HA31 7,88 71B4		Unit: HA31 \| Ratio i: 7.88 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 175.2 rpm \| Output torque M2: 20 Nm
HA41 7,88 71B4		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 175.2 rpm \| Output torque M2: 20 Nm
HA31 5,10 71C6		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 172.5 rpm \| Output torque M2: 20 Nm
HA32 8,11 71B4		Unit: HA32 \| Ratio i: 8.11 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 170.2 rpm \| Output torque M2: 20 Nm
HA32 16,49 63C2		Unit: HA32 \| Ratio i: 16.49 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 169.2 rpm \| Output torque M2: 19 Nm
HA32 16,49 71A2		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 169.2 rpm \| Output torque M2: 19 Nm
HA31 5,45 71C6		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 161.3 rpm \| Output torque M2: 21 Nm
HA41 5,45 71C6		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 161.3 rpm \| Output torque M2: 21 Nm
HA41 5,45 80A6		Unit: HA41 \| Ratio i: 5.45 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 161.3 rpm \| Output torque M2: 21 Nm
HA31 6,30 71C6		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 139.7 rpm \| Output torque M2: 25 Nm
HA32 20,26 63C2		Unit: HA32 \| Ratio i: 20.26 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 137.7 rpm \| Output torque M2: 24 Nm
HA32 20,26 71A2		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 137.7 rpm \| Output torque M2: 24 Nm
HA32 6,52 71C6		Unit: HA32 \| Ratio i: 6.52 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 135.0 rpm \| Output torque M2: 25 Nm
HA32 6,52 80A6		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 135.0 rpm \| Output torque M2: 25 Nm
HA32 10,94 71B4		Unit: HA32 \| Ratio i: 10.94 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 126.2 rpm \| Output torque M2: 27 Nm
HA32 24,55 63C2		Unit: HA32 \| Ratio i: 24.55 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 29 Nm
HA32 24,55 71A2		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 29 Nm
HA41 7,88 71C6		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 111.7 rpm \| Output torque M2: 31 Nm
HA32 8,11 71C6		Unit: HA32 \| Ratio i: 8.11 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 32 Nm
HA32 8,11 80A6		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 32 Nm
HA32 13,25 71B4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 104.2 rpm \| Output torque M2: 33 Nm
HA32 30,55 63C2		Unit: HA32 \| Ratio i: 30.55 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
HA32 30,55 71A2		Unit: HA32 \| Ratio i: 30.55 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
HA42 30,55 63C2		Unit: HA42 \| Ratio i: 30.55 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
HA42 30,55 71A2		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
HA32 16,49 71B4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 83.7 rpm \| Output torque M2: 41 Nm
HA42 16,49 71B4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 83.7 rpm \| Output torque M2: 41 Nm
HA32 10,94 71C6		Unit: HA32 \| Ratio i: 10.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
HA32 10,94 80A6		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
HA42 10,94 71C6		Unit: HA42 \| Ratio i: 10.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
HA42 10,94 80A6		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
HA32 35,44 63C2		Unit: HA32 \| Ratio i: 35.44 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
HA32 35,44 71A2		Unit: HA32 \| Ratio i: 35.44 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
HA42 35,44 63C2		Unit: HA42 \| Ratio i: 35.44 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
HA42 35,44 71A2		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
HA32 20,26 71B4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 50 Nm
HA42 20,26 71B4		Unit: HA42 \| Ratio i: 20.26 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 50 Nm
HA32 13,25 71C6		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
HA32 13,25 80A6		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
HA42 13,25 71C6		Unit: HA42 \| Ratio i: 13.25 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
HA42 13,25 80A6		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
HA32 44,10 63C2		Unit: HA32 \| Ratio i: 44.10 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
HA32 44,10 71A2		Unit: HA32 \| Ratio i: 44.10 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
HA42 44,10 63C2		Unit: HA42 \| Ratio i: 44.10 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
HA42 44,10 71A2		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
HA32 24,55 71B4		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 60 Nm
HA42 24,55 71B4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 60 Nm
HA33 51,32 63C2		Unit: HA33 \| Ratio i: 51.32 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
HA33 51,32 71A2		Unit: HA33 \| Ratio i: 51.32 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
HA43 51,32 63C2		Unit: HA43 \| Ratio i: 51.32 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
HA43 51,32 71A2		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
HA32 16,49 71C6		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
HA32 16,49 80A6		Unit: HA32 \| Ratio i: 16.49 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
HA42 16,49 71C6		Unit: HA42 \| Ratio i: 16.49 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
HA42 16,49 80A6		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
HA33 59,65 63C2		Unit: HA33 \| Ratio i: 59.65 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
HA33 59,65 71A2		Unit: HA33 \| Ratio i: 59.65 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
HA43 59,65 63C2		Unit: HA43 \| Ratio i: 59.65 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
HA43 59,65 71A2		Unit: HA43 \| Ratio i: 59.65 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
HA32 30,55 71B4		Unit: HA32 \| Ratio i: 30.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 45.2 rpm \| Output torque M2: 75 Nm
HA42 30,55 71B4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 45.2 rpm \| Output torque M2: 75 Nm
HA32 20,26 71C6		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
HA32 20,26 80A6		Unit: HA32 \| Ratio i: 20.26 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
HA42 20,26 71C6		Unit: HA42 \| Ratio i: 20.26 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
HA42 20,26 80A6		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
HA32 35,44 71B4		Unit: HA32 \| Ratio i: 35.44 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 38.9 rpm \| Output torque M2: 87 Nm
HA42 35,44 71B4		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 38.9 rpm \| Output torque M2: 87 Nm
HA43 72,27 63C2		Unit: HA43 \| Ratio i: 72.27 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 83 Nm
HA43 72,27 71A2		Unit: HA43 \| Ratio i: 72.27 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 83 Nm
HA32 24,55 71C6		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
HA32 24,55 80A6		Unit: HA32 \| Ratio i: 24.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
HA42 24,55 71C6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
HA42 24,55 80A6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
HA32 44,10 71B4		Unit: HA32 \| Ratio i: 44.10 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 31.3 rpm \| Output torque M2: 108 Nm
HA42 44,10 71B4		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 31.3 rpm \| Output torque M2: 108 Nm
HA43 89,94 63C2		Unit: HA43 \| Ratio i: 89.94 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 31.0 rpm \| Output torque M2: 103 Nm
HA43 89,94 71A2		Unit: HA43 \| Ratio i: 89.94 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 31.0 rpm \| Output torque M2: 103 Nm
HA42 30,55 71C6		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 119 Nm
HA42 30,55 80A6		Unit: HA42 \| Ratio i: 30.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 119 Nm
HA33 51,32 71B4		Unit: HA33 \| Ratio i: 51.32 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 124 Nm
HA43 51,32 71B4		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 124 Nm
HA42 35,44 71C6		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 138 Nm
HA43 59,65 71B4		Unit: HA43 \| Ratio i: 59.65 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 144 Nm
HA42 44,10 71C6		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 172 Nm
HA43 72,27 71B4		Unit: HA43 \| Ratio i: 72.27 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 174 Nm
HA43 51,32 71C6		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 17.1 rpm \| Output torque M2: 196 Nm
HA31 2,55 71B2		Unit: HA31 \| Ratio i: 2.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 1102.0 rpm \| Output torque M2: 4 Nm
HA31 2,94 71B2		Unit: HA31 \| Ratio i: 2.94 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 5 Nm
HA41 2,94 71B2		Unit: HA41 \| Ratio i: 2.94 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 5 Nm
HA31 3,18 71B2		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 884.6 rpm \| Output torque M2: 6 Nm
HA31 3,36 71B2		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 837.0 rpm \| Output torque M2: 6 Nm
HA31 3,87 71B2		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 726.7 rpm \| Output torque M2: 7 Nm
HA31 4,21 71B2		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 666.8 rpm \| Output torque M2: 7 Nm
HA41 1,45 80B6		Unit: HA41 \| Ratio i: 1.45 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 642.1 rpm \| Output torque M2: 8 Nm
HA31 4,75 71B2		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 591.6 rpm \| Output torque M2: 8 Nm
HA41 4,75 71B2		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 591.6 rpm \| Output torque M2: 8 Nm
HA31 5,10 71B2		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 551.0 rpm \| Output torque M2: 9 Nm
HA31 2,55 71C4		Unit: HA31 \| Ratio i: 2.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 537.3 rpm \| Output torque M2: 9 Nm
HA31 2,55 80A4		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 537.3 rpm \| Output torque M2: 9 Nm
HA31 5,45 71B2		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 515.2 rpm \| Output torque M2: 10 Nm
HA41 5,45 71B2		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 515.2 rpm \| Output torque M2: 10 Nm
HA31 2,94 71C4		Unit: HA31 \| Ratio i: 2.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
HA31 2,94 80A4		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
HA41 2,94 71C4		Unit: HA41 \| Ratio i: 2.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
HA41 2,94 80A4		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
HA31 6,30 71B2		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 446.0 rpm \| Output torque M2: 11 Nm
HA31 3,18 71C4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 431.3 rpm \| Output torque M2: 12 Nm
HA31 3,18 80A4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 431.3 rpm \| Output torque M2: 12 Nm
HA31 3,36 71C4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 408.1 rpm \| Output torque M2: 12 Nm
HA31 3,36 80A4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 408.1 rpm \| Output torque M2: 12 Nm
HA31 2,55 80B6		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 364.7 rpm \| Output torque M2: 14 Nm
HA31 7,88 71B2		Unit: HA31 \| Ratio i: 7.88 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 356.8 rpm \| Output torque M2: 14 Nm
HA41 7,88 71B2		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 356.8 rpm \| Output torque M2: 14 Nm
HA31 3,87 71C4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 14 Nm
HA31 3,87 80A4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 14 Nm
HA31 4,21 71C4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 325.1 rpm \| Output torque M2: 16 Nm
HA31 4,21 80A4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 325.1 rpm \| Output torque M2: 16 Nm
HA31 2,94 80B6		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 315.8 rpm \| Output torque M2: 16 Nm
HA41 2,94 80B6		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 315.8 rpm \| Output torque M2: 16 Nm
HA31 3,18 80B6		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 292.8 rpm \| Output torque M2: 18 Nm
HA31 4,75 71C4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
HA31 4,75 80A4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
HA41 4,75 71C4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
HA41 4,75 80A4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
HA31 3,36 80B6		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 277.0 rpm \| Output torque M2: 19 Nm
HA31 5,10 71C4		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 268.6 rpm \| Output torque M2: 19 Nm
HA32 10,94 71B2		Unit: HA32 \| Ratio i: 10.94 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 19 Nm
HA31 5,45 71C4		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 251.2 rpm \| Output torque M2: 20 Nm
HA41 5,45 71C4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 251.2 rpm \| Output torque M2: 20 Nm
HA41 5,45 80A4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 251.2 rpm \| Output torque M2: 20 Nm
HA31 3,87 80B6		Unit: HA31 \| Ratio i: 3.87 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 240.5 rpm \| Output torque M2: 21 Nm
HA31 4,21 80B6		Unit: HA31 \| Ratio i: 4.21 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 220.7 rpm \| Output torque M2: 23 Nm
HA31 6,30 71C4		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 217.5 rpm \| Output torque M2: 23 Nm
HA32 13,25 71B2		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 212.1 rpm \| Output torque M2: 23 Nm
HA32 6,52 71C4		Unit: HA32 \| Ratio i: 6.52 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 210.2 rpm \| Output torque M2: 24 Nm
HA32 6,52 80A4		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 210.2 rpm \| Output torque M2: 24 Nm
HA31 4,75 80B6		Unit: HA31 \| Ratio i: 4.75 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 195.8 rpm \| Output torque M2: 26 Nm
HA41 4,75 80B6		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 195.8 rpm \| Output torque M2: 26 Nm
HA41 7,88 71C4		Unit: HA41 \| Ratio i: 7.88 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 174.0 rpm \| Output torque M2: 29 Nm
HA32 5,38 80B6		Unit: HA32 \| Ratio i: 5.38 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 172.9 rpm \| Output torque M2: 29 Nm
HA41 5,45 80B6		Unit: HA41 \| Ratio i: 5.45 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 170.5 rpm \| Output torque M2: 30 Nm
HA32 16,49 71B2		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 29 Nm
HA42 16,49 71B2		Unit: HA42 \| Ratio i: 16.49 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 29 Nm
HA32 8,11 71C4		Unit: HA32 \| Ratio i: 8.11 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 30 Nm
HA32 8,11 80A4		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 30 Nm
HA32 6,52 80B6		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 142.7 rpm \| Output torque M2: 36 Nm
HA32 20,26 71B2		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 35 Nm
HA42 20,26 71B2		Unit: HA42 \| Ratio i: 20.26 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 35 Nm
HA32 10,94 71C4		Unit: HA32 \| Ratio i: 10.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
HA32 10,94 80A4		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
HA42 10,94 71C4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
HA42 10,94 80A4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
HA32 8,11 80B6		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 44 Nm
HA42 8,11 80B6		Unit: HA42 \| Ratio i: 8.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 44 Nm
HA32 24,55 71B2		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 43 Nm
HA42 24,55 71B2		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 43 Nm
HA32 13,25 71C4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
HA32 13,25 80A4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
HA42 13,25 71C4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
HA42 13,25 80A4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
HA32 30,55 71B2		Unit: HA32 \| Ratio i: 30.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 92.0 rpm \| Output torque M2: 53 Nm
HA42 30,55 71B2		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 92.0 rpm \| Output torque M2: 53 Nm
HA32 10,94 80B6		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 60 Nm
HA42 10,94 80B6		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 60 Nm
HA32 16,49 71C4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
HA32 16,49 80A4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
HA42 16,49 71C4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
HA42 16,49 80A4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
HA32 35,44 71B2		Unit: HA32 \| Ratio i: 35.44 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 79.3 rpm \| Output torque M2: 61 Nm
HA42 35,44 71B2		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 79.3 rpm \| Output torque M2: 61 Nm
HA32 13,25 80B6		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 70.2 rpm \| Output torque M2: 73 Nm
HA42 13,25 80B6		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 70.2 rpm \| Output torque M2: 73 Nm
HA32 20,26 71C4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
HA32 20,26 80A4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
HA42 20,26 71C4		Unit: HA42 \| Ratio i: 20.26 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
HA42 20,26 80A4		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
HA42 44,10 71B2		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 63.7 rpm \| Output torque M2: 76 Nm
HA32 16,49 80B6		Unit: HA32 \| Ratio i: 16.49 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 90 Nm
HA42 16,49 80B6		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 90 Nm
HA32 24,55 71C4		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
HA32 24,55 80A4		Unit: HA32 \| Ratio i: 24.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
HA42 24,55 71C4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
HA42 24,55 80A4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
HA43 51,32 71B2		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 54.8 rpm \| Output torque M2: 87 Nm
HA43 59,65 71B2		Unit: HA43 \| Ratio i: 59.65 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 47.1 rpm \| Output torque M2: 101 Nm
HA32 20,26 80B6		Unit: HA32 \| Ratio i: 20.26 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 111 Nm
HA42 20,26 80B6		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 111 Nm
HA42 30,55 71C4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 112 Nm
HA42 30,55 80A4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 112 Nm
HA42 35,44 71C4		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 130 Nm
HA42 24,55 80B6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 37.9 rpm \| Output torque M2: 134 Nm
HA42 44,10 71C4		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 162 Nm
HA42 30,55 80B6		Unit: HA42 \| Ratio i: 30.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 30.4 rpm \| Output torque M2: 167 Nm
HA43 51,32 71C4		Unit: HA43 \| Ratio i: 51.32 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 26.7 rpm \| Output torque M2: 185 Nm
HA31 2,55 71C2		Unit: HA31 \| Ratio i: 2.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 1098.0 rpm \| Output torque M2: 6 Nm
HA31 2,55 80A2		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 1098.0 rpm \| Output torque M2: 6 Nm
HA41 1,45 80B4		Unit: HA41 \| Ratio i: 1.45 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 987.4 rpm \| Output torque M2: 7 Nm
HA31 2,94 71C2		Unit: HA31 \| Ratio i: 2.94 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
HA31 2,94 80A2		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
HA41 2,94 71C2		Unit: HA41 \| Ratio i: 2.94 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
HA41 2,94 80A2		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
HA31 3,18 71C2		Unit: HA31 \| Ratio i: 3.18 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 881.5 rpm \| Output torque M2: 8 Nm
HA31 3,18 80A2		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 881.5 rpm \| Output torque M2: 8 Nm
HA31 3,36 71C2		Unit: HA31 \| Ratio i: 3.36 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 834.0 rpm \| Output torque M2: 8 Nm
HA31 3,36 80A2		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 834.0 rpm \| Output torque M2: 8 Nm
HA31 3,87 71C2		Unit: HA31 \| Ratio i: 3.87 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 724.1 rpm \| Output torque M2: 9 Nm
HA31 3,87 80A2		Unit: HA31 \| Ratio i: 3.87 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 724.1 rpm \| Output torque M2: 9 Nm
HA31 4,21 71C2		Unit: HA31 \| Ratio i: 4.21 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 664.4 rpm \| Output torque M2: 10 Nm
HA31 4,21 80A2		Unit: HA31 \| Ratio i: 4.21 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 664.4 rpm \| Output torque M2: 10 Nm
HA41 1,45 80C6		Unit: HA41 \| Ratio i: 1.45 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 635.2 rpm \| Output torque M2: 11 Nm
HA31 4,75 71C2		Unit: HA31 \| Ratio i: 4.75 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
HA31 4,75 80A2		Unit: HA31 \| Ratio i: 4.75 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
HA41 4,75 71C2		Unit: HA41 \| Ratio i: 4.75 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
HA41 4,75 80A2		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
HA31 2,55 80B4		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 549.0 rpm \| Output torque M2: 13 Nm
HA31 5,10 71C2		Unit: HA31 \| Ratio i: 5.10 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 549.0 rpm \| Output torque M2: 12 Nm
HA31 5,45 71C2		Unit: HA31 \| Ratio i: 5.45 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 13 Nm
HA41 5,45 71C2		Unit: HA41 \| Ratio i: 5.45 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 13 Nm
HA41 5,45 80A2		Unit: HA41 \| Ratio i: 5.45 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 13 Nm
HA31 2,94 80B4		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 15 Nm
HA41 2,94 80B4		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 15 Nm
HA31 6,30 71C2		Unit: HA31 \| Ratio i: 6.30 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 444.4 rpm \| Output torque M2: 15 Nm
HA31 3,18 80B4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 440.7 rpm \| Output torque M2: 16 Nm
HA32 6,52 71C2		Unit: HA32 \| Ratio i: 6.52 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 429.6 rpm \| Output torque M2: 15 Nm
HA32 6,52 80A2		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 429.6 rpm \| Output torque M2: 15 Nm
HA31 3,36 80B4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 417.0 rpm \| Output torque M2: 17 Nm
HA31 3,87 80B4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 369.8 rpm \| Output torque M2: 19 Nm
HA31 2,55 80C6		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 360.8 rpm \| Output torque M2: 19 Nm
HA32 8,11 71C2		Unit: HA32 \| Ratio i: 8.11 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 345.2 rpm \| Output torque M2: 19 Nm
HA32 8,11 80A2		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 345.2 rpm \| Output torque M2: 19 Nm
HA31 4,21 80B4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 332.2 rpm \| Output torque M2: 21 Nm
HA31 2,94 80C6		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 312.5 rpm \| Output torque M2: 22 Nm
HA41 2,94 80C6		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 312.5 rpm \| Output torque M2: 22 Nm
HA31 4,75 80B4		Unit: HA31 \| Ratio i: 4.75 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 294.7 rpm \| Output torque M2: 24 Nm
HA41 4,75 80B4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 294.7 rpm \| Output torque M2: 24 Nm
HA31 3,18 80C6		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 289.6 rpm \| Output torque M2: 24 Nm
HA31 3,36 80C6		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 274.0 rpm \| Output torque M2: 26 Nm
HA32 5,38 80B4		Unit: HA32 \| Ratio i: 5.38 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 265.8 rpm \| Output torque M2: 26 Nm
HA41 5,45 80B4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 262.2 rpm \| Output torque M2: 27 Nm
HA32 10,94 71C2		Unit: HA32 \| Ratio i: 10.94 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 256.0 rpm \| Output torque M2: 26 Nm
HA32 10,94 80A2		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 256.0 rpm \| Output torque M2: 26 Nm
HA32 6,52 80B4		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 32 Nm
HA32 13,25 71C2		Unit: HA32 \| Ratio i: 13.25 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
HA32 13,25 80A2		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
HA42 13,25 71C2		Unit: HA42 \| Ratio i: 13.25 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
HA42 13,25 80A2		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
HA41 4,75 80C6		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 193.7 rpm \| Output torque M2: 36 Nm
HA32 8,11 80B4		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 40 Nm
HA42 8,11 80B4		Unit: HA42 \| Ratio i: 8.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 40 Nm
HA32 5,38 80C6		Unit: HA32 \| Ratio i: 5.38 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 171.0 rpm \| Output torque M2: 41 Nm
HA42 5,38 80C6		Unit: HA42 \| Ratio i: 5.38 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 171.0 rpm \| Output torque M2: 41 Nm
HA42 5,38 90S6		Unit: HA42 \| Ratio i: 5.38 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 171.0 rpm \| Output torque M2: 41 Nm
HA32 16,49 71C2		Unit: HA32 \| Ratio i: 16.49 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
HA32 16,49 80A2		Unit: HA32 \| Ratio i: 16.49 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
HA42 16,49 71C2		Unit: HA42 \| Ratio i: 16.49 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
HA42 16,49 80A2		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
HA32 6,52 80C6		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 141.2 rpm \| Output torque M2: 49 Nm
HA42 6,52 80C6		Unit: HA42 \| Ratio i: 6.52 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 141.2 rpm \| Output torque M2: 49 Nm
HA42 6,52 90S6		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 141.2 rpm \| Output torque M2: 49 Nm
HA32 20,26 71C2		Unit: HA32 \| Ratio i: 20.26 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
HA32 20,26 80A2		Unit: HA32 \| Ratio i: 20.26 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
HA42 20,26 71C2		Unit: HA42 \| Ratio i: 20.26 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
HA42 20,26 80A2		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
HA32 10,94 80B4		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 54 Nm
HA42 10,94 80B4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 54 Nm
HA32 24,55 71C2		Unit: HA32 \| Ratio i: 24.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
HA32 24,55 80A2		Unit: HA32 \| Ratio i: 24.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
HA42 24,55 71C2		Unit: HA42 \| Ratio i: 24.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
HA42 24,55 80A2		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
HA32 8,11 80C6		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 113.4 rpm \| Output torque M2: 61 Nm
HA42 8,11 80C6		Unit: HA42 \| Ratio i: 8.11 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 113.4 rpm \| Output torque M2: 61 Nm
HA42 8,11 90S6		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 113.4 rpm \| Output torque M2: 61 Nm
HA32 13,25 80B4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 65 Nm
HA42 13,25 80B4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 65 Nm
HA42 30,55 71C2		Unit: HA42 \| Ratio i: 30.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 72 Nm
HA42 30,55 80A2		Unit: HA42 \| Ratio i: 30.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 72 Nm
HA32 16,49 80B4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 81 Nm
HA42 16,49 80B4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 81 Nm
HA32 10,94 80C6		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 84.1 rpm \| Output torque M2: 83 Nm
HA42 10,94 80C6		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 84.1 rpm \| Output torque M2: 83 Nm
HA42 10,94 90S6		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 84.1 rpm \| Output torque M2: 83 Nm
HA42 35,44 71C2		Unit: HA42 \| Ratio i: 35.44 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 79.0 rpm \| Output torque M2: 84 Nm
HA32 13,25 80C6		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 100 Nm
HA42 13,25 80C6		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 100 Nm
HA42 13,25 90S6		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 100 Nm
HA32 20,26 80B4		Unit: HA32 \| Ratio i: 20.26 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 100 Nm
HA42 20,26 80B4		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 100 Nm
HA42 44,10 71C2		Unit: HA42 \| Ratio i: 44.10 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 105 Nm
HA42 24,55 80B4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 121 Nm
HA42 16,49 80C6		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 124 Nm
HA42 16,49 90S6		Unit: HA42 \| Ratio i: 16.49 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 124 Nm
HA42 30,55 80B4		Unit: HA42 \| Ratio i: 30.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 45.8 rpm \| Output torque M2: 150 Nm
HA42 20,26 80C6		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 153 Nm
HA42 20,26 90S6		Unit: HA42 \| Ratio i: 20.26 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 153 Nm
HA42 24,55 80C6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 185 Nm
HA42 24,55 90S6		Unit: HA42 \| Ratio i: 24.55 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 185 Nm
HA41 1,45 80C4		Unit: HA41 \| Ratio i: 1.45 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 966.7 rpm \| Output torque M2: 9 Nm
HA31 2,55 80C4		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 549.0 rpm \| Output torque M2: 16 Nm
HA31 2,94 80C4		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 18 Nm
HA41 2,94 80C4		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 18 Nm
HA31 3,18 80C4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 440.7 rpm \| Output torque M2: 19 Nm
HA31 3,36 80C4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 417.0 rpm \| Output torque M2: 20 Nm
HA31 3,87 80C4		Unit: HA31 \| Ratio i: 3.87 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 362.1 rpm \| Output torque M2: 24 Nm
HA31 4,21 80C4		Unit: HA31 \| Ratio i: 4.21 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 332.2 rpm \| Output torque M2: 26 Nm
HA41 4,75 80C4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 294.7 rpm \| Output torque M2: 29 Nm
HA32 5,38 80C4		Unit: HA32 \| Ratio i: 5.38 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 32 Nm
HA41 5,45 80C4		Unit: HA41 \| Ratio i: 5.45 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 256.7 rpm \| Output torque M2: 33 Nm
HA32 6,52 80C4		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 39 Nm
HA42 6,52 80C4		Unit: HA42 \| Ratio i: 6.52 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 39 Nm
HA32 8,11 80C4		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 49 Nm
HA42 8,11 80C4		Unit: HA42 \| Ratio i: 8.11 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 49 Nm
HA32 10,94 80C4		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 66 Nm
HA42 10,94 80C4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 66 Nm
HA32 13,25 80C4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 80 Nm
HA42 13,25 80C4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 80 Nm
HA32 16,49 80C4		Unit: HA32 \| Ratio i: 16.49 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 99 Nm
HA42 16,49 80C4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 99 Nm
HA42 20,26 80C4		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 122 Nm
HA42 24,55 80C4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 148 Nm
HA41 1,45 80B2		Unit: HA41 \| Ratio i: 1.45 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 1961.0 rpm \| Output torque M2: 5 Nm
HA31 2,55 80B2		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 1113.7 rpm \| Output torque M2: 9 Nm
HA41 1,45 80D4		Unit: HA41 \| Ratio i: 1.45 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 973.6 rpm \| Output torque M2: 10 Nm
HA31 2,94 80B2		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 964.5 rpm \| Output torque M2: 10 Nm
HA41 2,94 80B2		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 964.5 rpm \| Output torque M2: 10 Nm
HA31 3,18 80B2		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 894.1 rpm \| Output torque M2: 11 Nm
HA31 3,36 80B2		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 846.0 rpm \| Output torque M2: 12 Nm
HA31 3,87 80B2		Unit: HA31 \| Ratio i: 3.87 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 734.5 rpm \| Output torque M2: 13 Nm
HA31 4,21 80B2		Unit: HA31 \| Ratio i: 4.21 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 673.9 rpm \| Output torque M2: 15 Nm
HA31 4,75 80B2		Unit: HA31 \| Ratio i: 4.75 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 597.9 rpm \| Output torque M2: 16 Nm
HA41 4,75 80B2		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 595.8 rpm \| Output torque M2: 17 Nm
HA31 2,55 80D4		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 552.9 rpm \| Output torque M2: 18 Nm
HA32 5,38 80B2		Unit: HA32 \| Ratio i: 5.38 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 527.9 rpm \| Output torque M2: 18 Nm
HA41 5,45 80B2		Unit: HA41 \| Ratio i: 5.45 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 520.7 rpm \| Output torque M2: 19 Nm
HA31 2,94 80D4		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 478.9 rpm \| Output torque M2: 21 Nm
HA41 2,94 80D4		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 478.9 rpm \| Output torque M2: 21 Nm
HA31 3,18 80D4		Unit: HA31 \| Ratio i: 3.18 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 443.9 rpm \| Output torque M2: 23 Nm
HA32 6,52 80B2		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 435.8 rpm \| Output torque M2: 22 Nm
HA31 3,36 80D4		Unit: HA31 \| Ratio i: 3.36 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 420.0 rpm \| Output torque M2: 24 Nm
HA32 8,11 80B2		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 350.2 rpm \| Output torque M2: 28 Nm
HA42 8,11 80B2		Unit: HA42 \| Ratio i: 8.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 350.2 rpm \| Output torque M2: 28 Nm
HA41 4,75 80D4		Unit: HA41 \| Ratio i: 4.75 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 296.8 rpm \| Output torque M2: 34 Nm
HA32 5,38 80D4		Unit: HA32 \| Ratio i: 5.38 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 262.1 rpm \| Output torque M2: 38 Nm
HA42 5,38 80D4		Unit: HA42 \| Ratio i: 5.38 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 39 Nm
HA42 5,38 90S4		Unit: HA42 \| Ratio i: 5.38 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 39 Nm
HA32 10,94 80B2		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 38 Nm
HA42 10,94 80B2		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 38 Nm
HA32 6,52 80D4		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 216.3 rpm \| Output torque M2: 47 Nm
HA42 6,52 80D4		Unit: HA42 \| Ratio i: 6.52 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 216.3 rpm \| Output torque M2: 47 Nm
HA42 6,52 90S4		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 216.3 rpm \| Output torque M2: 47 Nm
HA32 13,25 80B2		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 46 Nm
HA42 13,25 80B2		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 46 Nm
HA32 8,11 80D4		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 58 Nm
HA42 8,11 80D4		Unit: HA42 \| Ratio i: 8.11 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 58 Nm
HA42 8,11 90S4		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 58 Nm
HA42 5,38 90L6		Unit: HA42 \| Ratio i: 5.38 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 172.9 rpm \| Output torque M2: 59 Nm
HA32 16,49 80B2		Unit: HA32 \| Ratio i: 16.49 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 172.2 rpm \| Output torque M2: 57 Nm
HA42 16,49 80B2		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 172.2 rpm \| Output torque M2: 57 Nm
HA42 6,52 90L6		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 144.2 rpm \| Output torque M2: 71 Nm
HA42 20,26 80B2		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 139.7 rpm \| Output torque M2: 70 Nm
HA32 10,94 80D4		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 128.9 rpm \| Output torque M2: 78 Nm
HA42 10,94 80D4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 79 Nm
HA42 10,94 90S4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 79 Nm
HA42 24,55 80B2		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 115.7 rpm \| Output torque M2: 84 Nm
HA42 8,11 90L6		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 89 Nm
HA32 13,25 80D4		Unit: HA32 \| Ratio i: 13.25 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 106.4 rpm \| Output torque M2: 95 Nm
HA42 13,25 80D4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 106.4 rpm \| Output torque M2: 95 Nm
HA42 13,25 90S4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 106.4 rpm \| Output torque M2: 95 Nm
HA42 30,55 80B2		Unit: HA42 \| Ratio i: 30.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 93.0 rpm \| Output torque M2: 105 Nm
HA42 10,94 90L6		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 120 Nm
HA42 16,49 80D4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 119 Nm
HA42 16,49 90S4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 119 Nm
HA42 13,25 90L6		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 70.2 rpm \| Output torque M2: 145 Nm
HA42 20,26 80D4		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 146 Nm
HA42 20,26 90S4		Unit: HA42 \| Ratio i: 20.26 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 146 Nm
HA42 24,55 80D4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 177 Nm
HA42 24,55 90S4		Unit: HA42 \| Ratio i: 24.55 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 177 Nm
HA42 16,49 90L6		Unit: HA42 \| Ratio i: 16.49 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 181 Nm
HA41 1,45 80C2		Unit: HA41 \| Ratio i: 1.45 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 1940.2 rpm \| Output torque M2: 7 Nm
HA31 2,55 80C2		Unit: HA31 \| Ratio i: 2.55 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 1102.0 rpm \| Output torque M2: 12 Nm
HA31 2,94 80C2		Unit: HA31 \| Ratio i: 2.94 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 14 Nm
HA41 2,94 80C2		Unit: HA41 \| Ratio i: 2.94 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 14 Nm
HA32 5,38 80C2		Unit: HA32 \| Ratio i: 5.38 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 522.4 rpm \| Output torque M2: 25 Nm
HA32 6,52 80C2		Unit: HA32 \| Ratio i: 6.52 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 431.2 rpm \| Output torque M2: 31 Nm
HA42 6,52 80C2		Unit: HA42 \| Ratio i: 6.52 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 431.2 rpm \| Output torque M2: 31 Nm
HA42 6,52 90S2		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 431.2 rpm \| Output torque M2: 31 Nm
HA32 8,11 80C2		Unit: HA32 \| Ratio i: 8.11 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 346.5 rpm \| Output torque M2: 38 Nm
HA42 8,11 80C2		Unit: HA42 \| Ratio i: 8.11 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 346.5 rpm \| Output torque M2: 38 Nm
HA42 8,11 90S2		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 346.5 rpm \| Output torque M2: 38 Nm
HA42 5,38 90L4		Unit: HA42 \| Ratio i: 5.38 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 53 Nm
HA42 5,38 90LA4		Unit: HA42 \| Ratio i: 5.38 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 53 Nm
HA32 10,94 80C2		Unit: HA32 \| Ratio i: 10.94 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 52 Nm
HA42 10,94 80C2		Unit: HA42 \| Ratio i: 10.94 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 52 Nm
HA42 10,94 90S2		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 52 Nm
HA42 6,52 90L4		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 64 Nm
HA42 6,52 90LA4		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 64 Nm
HA42 13,25 80C2		Unit: HA42 \| Ratio i: 13.25 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 212.1 rpm \| Output torque M2: 63 Nm
HA42 13,25 90S2		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 212.1 rpm \| Output torque M2: 63 Nm
HA42 8,11 90L4		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 80 Nm
HA42 8,11 90LA4		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 80 Nm
HA42 16,49 80C2		Unit: HA42 \| Ratio i: 16.49 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 78 Nm
HA42 16,49 90S2		Unit: HA42 \| Ratio i: 16.49 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 78 Nm
HA42 20,26 80C2		Unit: HA42 \| Ratio i: 20.26 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 96 Nm
HA42 20,26 90S2		Unit: HA42 \| Ratio i: 20.26 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 96 Nm
HA42 10,94 90L4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 107 Nm
HA42 10,94 90LA4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 107 Nm
HA42 24,55 80C2		Unit: HA42 \| Ratio i: 24.55 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 116 Nm
HA42 24,55 90S2		Unit: HA42 \| Ratio i: 24.55 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 116 Nm
HA42 13,25 90L4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 130 Nm
HA42 13,25 90LA4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 130 Nm
HA42 16,49 90L4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 162 Nm
HA42 16,49 90LA4		Unit: HA42 \| Ratio i: 16.49 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 162 Nm
HA42 5,38 90LB4		Unit: HA42 \| Ratio i: 5.38 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 65 Nm
HA42 6,52 90LB4		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 79 Nm
HA42 8,11 90LB4		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 98 Nm
HA42 10,94 90LB4		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 132 Nm
HA42 13,25 90LB4		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 161 Nm
HA42 5,38 90L2		Unit: HA42 \| Ratio i: 5.38 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 531.7 rpm \| Output torque M2: 37 Nm
HA42 6,52 90L2		Unit: HA42 \| Ratio i: 6.52 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 441.9 rpm \| Output torque M2: 44 Nm
HA42 8,11 90L2		Unit: HA42 \| Ratio i: 8.11 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 355.1 rpm \| Output torque M2: 55 Nm
HA42 10,94 90L2		Unit: HA42 \| Ratio i: 10.94 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 263.3 rpm \| Output torque M2: 74 Nm
HA42 13,25 90L2		Unit: HA42 \| Ratio i: 13.25 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 217.4 rpm \| Output torque M2: 90 Nm
HA32 5.38 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 63A4
HA32 6.52 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 63A4
HA32 8.11 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 8.11 \| Motor: 63A4
HA32 10.94 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 10.94 \| Motor: 63A4
HA32 13.25 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 13.25 \| Motor: 63A4
HA32 16.49 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 16.49 \| Motor: 63A4
HA32 20.26 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 20.26 \| Motor: 63A4
HA32 24.55 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 24.55 \| Motor: 63A4
HA32 48.75 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 63A4
HA32 60.67 63A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 63A4
HA32 48.75 63B6		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 63B6
HA32 60.67 63B6		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 63B6
HA32 5.38 63B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 63B4
HA32 6.52 63B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 63B4
HA32 8.11 63B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 8.11 \| Motor: 63B4
HA32 10.94 63B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 10.94 \| Motor: 63B4
HA32 13.25 63B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 13.25 \| Motor: 63B4
HA32 48.75 63B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 63B4
HA32 60.67 63B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 63B4
HA32 48.75 71A6		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 71A6
HA32 60.67 71A6		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 71A6
HA32 5.38 71A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 71A4
HA32 6.52 71A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 71A4
HA32 8.11 71A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 8.11 \| Motor: 71A4
HA32 10.94 71A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 10.94 \| Motor: 71A4
HA32 48.75 71A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 71A4
HA32 60.67 71A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 71A4
HA32 5.38 71B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 71B4
HA32 6.52 71B4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 71B4
HA32 5.38 80A4		Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 80A4
HA33 166.61 63A4		Legacy code (older catalogue edition) \| Unit: HA33 \| Ratio i: 166.61 \| Motor: 63A4
HA33 110.51 63B4		Legacy code (older catalogue edition) \| Unit: HA33 \| Ratio i: 110.51 \| Motor: 63B4
HA41 1.45 71A4		Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 1.45 \| Motor: 71A4
HA41 2.94 71A4		Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 2.94 \| Motor: 71A4
HA41 1.45 71B4		Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 1.45 \| Motor: 71B4
HA41 1.45 80A4		Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 1.45 \| Motor: 80A4
HA42 48.75 63B4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 63B4
HA42 60.67 63B4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 63B4
HA42 48.75 71A6		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71A6
HA42 60.67 71A6		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71A6
HA42 48.75 71A4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71A4
HA42 60.67 71A4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71A4
HA42 48.75 71B6		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71B6
HA42 60.67 71B6		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71B6
HA42 48.75 71B4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71B4
HA42 60.67 71B4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71B4
HA42 5.38 90LL4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 5.38 \| Motor: 90LL4
HA42 6.52 90LL4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 6.52 \| Motor: 90LL4
HA42 8.11 90LL4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 8.11 \| Motor: 90LL4
HA42 10.94 90LL4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 10.94 \| Motor: 90LL4
HA42 13.25 90LL4		Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 13.25 \| Motor: 90LL4
HA43 240.55 63A4		Legacy code (older catalogue edition) \| Unit: HA43 \| Ratio i: 240.55 \| Motor: 63A4
HA43 166.61 63B4		Legacy code (older catalogue edition) \| Unit: HA43 \| Ratio i: 166.61 \| Motor: 63B4
HA32		Legacy code (older catalogue edition) \| Unit: HA32
HA33		Legacy code (older catalogue edition) \| Unit: HA33
HA41		Legacy code (older catalogue edition) \| Unit: HA41
HA43		Legacy code (older catalogue edition) \| Unit: HA43
HA42		Legacy code (older catalogue edition) \| Unit: HA42

Helical Gear ReducersMotovario

870 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario HA Helical Inline Gearmotors (HA31-HA43, 0.09-2.2 kW)

Brand Motovario·Helical Gear Reducers

Available part numbers (870)

HA31 6,30 63A6, HA31 7,88 63A6, HA41 7,88 63A6, HA31 10,83 63A6, HA41 10,83 63A6, HA32 24,55 63A6, HA32 30,55 63A6, HA32 35,44 63A6, HA32 44,10 63A6, HA42 44,10 63A6 + 860 more — see full table ↓

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HA31 6,30 63A6	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 136.5 rpm \| Output torque M2: 6 Nm
	HA31 7,88 63A6	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 8 Nm
	HA41 7,88 63A6	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 8 Nm
	HA31 10,83 63A6	Unit: HA31 \| Ratio i: 10.83 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 11 Nm
	HA41 10,83 63A6	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 11 Nm
	HA32 24,55 63A6	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 24 Nm
	HA32 30,55 63A6	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 28.2 rpm \| Output torque M2: 30 Nm
	HA32 35,44 63A6	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 34 Nm
	HA32 44,10 63A6	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 43 Nm
	HA42 44,10 63A6	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 43 Nm
	HA33 51,32 63A6	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 49 Nm
	HA43 51,32 63A6	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 49 Nm
	HA33 59,65 63A6	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 57 Nm
	HA43 59,65 63A6	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 57 Nm
	HA33 72,27 63A6	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 69 Nm
	HA43 72,27 63A6	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 69 Nm
	HA33 89,94 63A6	Unit: HA33 \| Ratio i: 89.94 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 85 Nm
	HA43 89,94 63A6	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 85 Nm
	HA33 110,51 63A6	Unit: HA33 \| Ratio i: 110.51 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 105 Nm
	HA43 110,51 63A6	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 105 Nm
	HA33 133,88 63A6	Unit: HA33 \| Ratio i: 133.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 127 Nm
	HA43 133,88 63A6	Unit: HA43 \| Ratio i: 133.88 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 127 Nm
	HA43 166,61 63A6	Unit: HA43 \| Ratio i: 166.61 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 5.2 rpm \| Output torque M2: 158 Nm
	HA43 193,30 63A6	Unit: HA43 \| Ratio i: 193.30 \| Motor: 63A6 \| Power P1: 0.09 kW \| Output speed n2: 4.4 rpm \| Output torque M2: 183 Nm
	HA31 4,75 63B6	Unit: HA31 \| Ratio i: 4.75 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 181.1 rpm \| Output torque M2: 6 Nm
	HA31 7,88 63A4	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 170.2 rpm \| Output torque M2: 7 Nm
	HA41 7,88 63A4	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 170.2 rpm \| Output torque M2: 7 Nm
	HA31 5,10 63B6	Unit: HA31 \| Ratio i: 5.10 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 168.6 rpm \| Output torque M2: 7 Nm
	HA31 5,45 63B6	Unit: HA31 \| Ratio i: 5.45 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 157.7 rpm \| Output torque M2: 7 Nm
	HA31 6,30 63B6	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 136.5 rpm \| Output torque M2: 8 Nm
	HA31 10,83 63A4	Unit: HA31 \| Ratio i: 10.83 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 123.7 rpm \| Output torque M2: 9 Nm
	HA41 10,83 63A4	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 123.7 rpm \| Output torque M2: 9 Nm
	HA31 7,88 63B6	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 10 Nm
	HA41 7,88 63B6	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 109.2 rpm \| Output torque M2: 10 Nm
	HA31 10,83 63B6	Unit: HA31 \| Ratio i: 10.83 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 14 Nm
	HA41 10,83 63B6	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 79.4 rpm \| Output torque M2: 14 Nm
	HA32 16,49 63B6	Unit: HA32 \| Ratio i: 16.49 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 52.2 rpm \| Output torque M2: 21 Nm
	HA32 30,55 63A4	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 43.9 rpm \| Output torque M2: 25 Nm
	HA32 20,26 63B6	Unit: HA32 \| Ratio i: 20.26 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 42.4 rpm \| Output torque M2: 26 Nm
	HA32 35,44 63A4	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 37.8 rpm \| Output torque M2: 29 Nm
	HA32 24,55 63B6	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 35.0 rpm \| Output torque M2: 32 Nm
	HA32 44,10 63A4	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 30.4 rpm \| Output torque M2: 36 Nm
	HA42 44,10 63A4	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 30.4 rpm \| Output torque M2: 36 Nm
	HA32 30,55 63B6	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 28.2 rpm \| Output torque M2: 39 Nm
	HA42 30,55 63B6	Unit: HA42 \| Ratio i: 30.55 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 28.2 rpm \| Output torque M2: 39 Nm
	HA33 51,32 63A4	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 41 Nm
	HA43 51,32 63A4	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 26.1 rpm \| Output torque M2: 41 Nm
	HA32 35,44 63B6	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 46 Nm
	HA42 35,44 63B6	Unit: HA42 \| Ratio i: 35.44 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 24.3 rpm \| Output torque M2: 46 Nm
	HA33 59,65 63A4	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 48 Nm
	HA43 59,65 63A4	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 22.5 rpm \| Output torque M2: 48 Nm
	HA32 44,10 63B6	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 57 Nm
	HA42 44,10 63B6	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 19.5 rpm \| Output torque M2: 57 Nm
	HA33 72,27 63A4	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 58 Nm
	HA43 72,27 63A4	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 18.5 rpm \| Output torque M2: 58 Nm
	HA33 51,32 63B6	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 65 Nm
	HA43 51,32 63B6	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 65 Nm
	HA33 89,94 63A4	Unit: HA33 \| Ratio i: 89.94 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 72 Nm
	HA43 89,94 63A4	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 14.9 rpm \| Output torque M2: 72 Nm
	HA33 59,65 63B6	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 75 Nm
	HA43 59,65 63B6	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 14.4 rpm \| Output torque M2: 75 Nm
	HA33 110,51 63A4	Unit: HA33 \| Ratio i: 110.51 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 89 Nm
	HA43 110,51 63A4	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 12.1 rpm \| Output torque M2: 89 Nm
	HA33 72,27 63B6	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 91 Nm
	HA43 72,27 63B6	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 11.9 rpm \| Output torque M2: 91 Nm
	HA33 133,88 63A4	Unit: HA33 \| Ratio i: 133.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 108 Nm
	HA43 133,88 63A4	Unit: HA43 \| Ratio i: 133.88 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 108 Nm
	HA33 89,94 63B6	Unit: HA33 \| Ratio i: 89.94 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 114 Nm
	HA43 89,94 63B6	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 9.6 rpm \| Output torque M2: 114 Nm
	HA43 166,61 63A4	Unit: HA43 \| Ratio i: 166.61 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 8.0 rpm \| Output torque M2: 134 Nm
	HA43 110,51 63B6	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 7.8 rpm \| Output torque M2: 140 Nm
	HA43 193,30 63A4	Unit: HA43 \| Ratio i: 193.30 \| Motor: 63A4 \| Power P1: 0.12 kW \| Output speed n2: 6.9 rpm \| Output torque M2: 155 Nm
	HA43 133,88 63B6	Unit: HA43 \| Ratio i: 133.88 \| Motor: 63B6 \| Power P1: 0.12 kW \| Output speed n2: 6.4 rpm \| Output torque M2: 169 Nm
	HA31 3,18 63C6	Unit: HA31 \| Ratio i: 3.18 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 255.0 rpm \| Output torque M2: 6 Nm
	HA31 3,36 63C6	Unit: HA31 \| Ratio i: 3.36 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 241.3 rpm \| Output torque M2: 6 Nm
	HA31 3,87 63C6	Unit: HA31 \| Ratio i: 3.87 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 209.5 rpm \| Output torque M2: 7 Nm
	HA31 4,21 63C6	Unit: HA31 \| Ratio i: 4.21 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 192.2 rpm \| Output torque M2: 7 Nm
	HA31 4,75 63C6	Unit: HA31 \| Ratio i: 4.75 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 170.5 rpm \| Output torque M2: 8 Nm
	HA41 4,75 63C6	Unit: HA41 \| Ratio i: 4.75 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 170.5 rpm \| Output torque M2: 8 Nm
	HA31 5,10 63C6	Unit: HA31 \| Ratio i: 5.10 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 158.8 rpm \| Output torque M2: 9 Nm
	HA31 5,45 63C6	Unit: HA31 \| Ratio i: 5.45 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 148.5 rpm \| Output torque M2: 9 Nm
	HA41 5,45 63C6	Unit: HA41 \| Ratio i: 5.45 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 148.5 rpm \| Output torque M2: 9 Nm
	HA31 6,30 63C6	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 128.6 rpm \| Output torque M2: 11 Nm
	HA31 7,88 63C6	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 14 Nm
	HA41 7,88 63C6	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 102.9 rpm \| Output torque M2: 14 Nm
	HA41 10,83 63C6	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 74.8 rpm \| Output torque M2: 19 Nm
	HA32 13,25 63C6	Unit: HA32 \| Ratio i: 13.25 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 61.1 rpm \| Output torque M2: 23 Nm
	HA32 16,49 63C6	Unit: HA32 \| Ratio i: 16.49 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 49.1 rpm \| Output torque M2: 28 Nm
	HA32 20,26 63C6	Unit: HA32 \| Ratio i: 20.26 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 40.0 rpm \| Output torque M2: 35 Nm
	HA32 24,55 63C6	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 42 Nm
	HA42 24,55 63C6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 33.0 rpm \| Output torque M2: 42 Nm
	HA32 30,55 63C6	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 52 Nm
	HA42 30,55 63C6	Unit: HA42 \| Ratio i: 30.55 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 26.5 rpm \| Output torque M2: 52 Nm
	HA32 35,44 63C6	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 61 Nm
	HA42 35,44 63C6	Unit: HA42 \| Ratio i: 35.44 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 22.9 rpm \| Output torque M2: 61 Nm
	HA32 44,10 63C6	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 76 Nm
	HA42 44,10 63C6	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 76 Nm
	HA33 51,32 63C6	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 86 Nm
	HA43 51,32 63C6	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 15.8 rpm \| Output torque M2: 86 Nm
	HA33 59,65 63C6	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 100 Nm
	HA43 59,65 63C6	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 13.6 rpm \| Output torque M2: 100 Nm
	HA33 72,27 63C6	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 121 Nm
	HA43 72,27 63C6	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 11.2 rpm \| Output torque M2: 121 Nm
	HA43 89,94 63C6	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 9.0 rpm \| Output torque M2: 151 Nm
	HA43 110,51 63C6	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63C6 \| Power P1: 0.15 kW \| Output speed n2: 7.3 rpm \| Output torque M2: 186 Nm
	HA31 7,88 63A2	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 355.6 rpm \| Output torque M2: 5 Nm
	HA31 4,21 63B4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 315.6 rpm \| Output torque M2: 5 Nm
	HA31 2,94 71A6	Unit: HA31 \| Ratio i: 2.94 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 305.7 rpm \| Output torque M2: 6 Nm
	HA31 3,18 71A6	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 283.3 rpm \| Output torque M2: 6 Nm
	HA31 4,75 63B4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 280.0 rpm \| Output torque M2: 6 Nm
	HA31 3,36 71A6	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 268.1 rpm \| Output torque M2: 6 Nm
	HA31 5,10 63B4	Unit: HA31 \| Ratio i: 5.10 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 260.8 rpm \| Output torque M2: 6 Nm
	HA31 10,83 63A2	Unit: HA31 \| Ratio i: 10.83 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 6 Nm
	HA41 10,83 63A2	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 6 Nm
	HA31 5,45 63B4	Unit: HA31 \| Ratio i: 5.45 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 243.8 rpm \| Output torque M2: 7 Nm
	HA31 3,87 71A6	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 232.8 rpm \| Output torque M2: 7 Nm
	HA31 4,21 71A6	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 8 Nm
	HA31 6,30 63B4	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 211.1 rpm \| Output torque M2: 8 Nm
	HA31 4,75 71A6	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 9 Nm
	HA41 4,75 71A6	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 9 Nm
	HA31 5,10 71A6	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 176.5 rpm \| Output torque M2: 10 Nm
	HA31 7,88 63B4	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 10 Nm
	HA41 7,88 63B4	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 10 Nm
	HA31 5,45 71A6	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 10 Nm
	HA41 5,45 71A6	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 10 Nm
	HA31 6,30 71A6	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 142.9 rpm \| Output torque M2: 12 Nm
	HA31 10,83 63B4	Unit: HA31 \| Ratio i: 10.83 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 14 Nm
	HA41 10,83 63B4	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 14 Nm
	HA31 7,88 71A6	Unit: HA31 \| Ratio i: 7.88 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 15 Nm
	HA41 7,88 71A6	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 15 Nm
	HA32 30,55 63A2	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 17 Nm
	HA41 10,83 71A6	Unit: HA41 \| Ratio i: 10.83 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 20 Nm
	HA32 16,49 63B4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 80.7 rpm \| Output torque M2: 20 Nm
	HA32 35,44 63A2	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 79.0 rpm \| Output torque M2: 20 Nm
	HA32 13,25 71A6	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 67.9 rpm \| Output torque M2: 25 Nm
	HA32 20,26 63B4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 65.6 rpm \| Output torque M2: 25 Nm
	HA32 44,10 63A2	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 25 Nm
	HA32 16,49 71A6	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 31 Nm
	HA33 51,32 63A2	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 29 Nm
	HA43 51,32 63A2	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 29 Nm
	HA32 24,55 63B4	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 30 Nm
	HA33 59,65 63A2	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 33 Nm
	HA43 59,65 63A2	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 33 Nm
	HA32 20,26 71A6	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 38 Nm
	HA32 30,55 63B4	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 38 Nm
	HA42 30,55 63B4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 38 Nm
	HA33 72,27 63A2	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 40 Nm
	HA43 72,27 63A2	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 40 Nm
	HA32 35,44 63B4	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 44 Nm
	HA42 35,44 63B4	Unit: HA42 \| Ratio i: 35.44 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 44 Nm
	HA32 24,55 71A6	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 45 Nm
	HA42 24,55 71A6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 45 Nm
	HA33 89,94 63A2	Unit: HA33 \| Ratio i: 89.94 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 50 Nm
	HA43 89,94 63A2	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 50 Nm
	HA32 44,10 63B4	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 55 Nm
	HA42 44,10 63B4	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 55 Nm
	HA32 30,55 71A6	Unit: HA32 \| Ratio i: 30.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 57 Nm
	HA42 30,55 71A6	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 57 Nm
	HA33 51,32 63B4	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 62 Nm
	HA43 51,32 63B4	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 62 Nm
	HA32 35,44 71A6	Unit: HA32 \| Ratio i: 35.44 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 66 Nm
	HA42 35,44 71A6	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 66 Nm
	HA33 110,51 63A2	Unit: HA33 \| Ratio i: 110.51 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 62 Nm
	HA43 110,51 63A2	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 62 Nm
	HA33 59,65 63B4	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 72 Nm
	HA43 59,65 63B4	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 72 Nm
	HA33 133,88 63A2	Unit: HA33 \| Ratio i: 133.88 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 75 Nm
	HA43 133,88 63A2	Unit: HA43 \| Ratio i: 133.88 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 75 Nm
	HA32 44,10 71A6	Unit: HA32 \| Ratio i: 44.10 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 82 Nm
	HA42 44,10 71A6	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 82 Nm
	HA33 72,27 63B4	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 88 Nm
	HA43 72,27 63B4	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 88 Nm
	HA33 51,32 71A6	Unit: HA33 \| Ratio i: 51.32 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 93 Nm
	HA43 51,32 71A6	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 93 Nm
	HA43 166,61 63A2	Unit: HA43 \| Ratio i: 166.61 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 16.8 rpm \| Output torque M2: 93 Nm
	HA33 59,65 71A6	Unit: HA33 \| Ratio i: 59.65 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 108 Nm
	HA43 59,65 71A6	Unit: HA43 \| Ratio i: 59.65 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 108 Nm
	HA33 89,94 63B4	Unit: HA33 \| Ratio i: 89.94 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 109 Nm
	HA43 89,94 63B4	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 109 Nm
	HA43 193,30 63A2	Unit: HA43 \| Ratio i: 193.30 \| Motor: 63A2 \| Power P1: 0.18 kW \| Output speed n2: 14.5 rpm \| Output torque M2: 108 Nm
	HA33 72,27 71A6	Unit: HA33 \| Ratio i: 72.27 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 131 Nm
	HA43 72,27 71A6	Unit: HA43 \| Ratio i: 72.27 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 131 Nm
	HA43 110,51 63B4	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 134 Nm
	HA43 89,94 71A6	Unit: HA43 \| Ratio i: 89.94 \| Motor: 71A6 \| Power P1: 0.18 kW \| Output speed n2: 10.0 rpm \| Output torque M2: 163 Nm
	HA43 133,88 63B4	Unit: HA43 \| Ratio i: 133.88 \| Motor: 63B4 \| Power P1: 0.18 kW \| Output speed n2: 9.9 rpm \| Output torque M2: 163 Nm
	HA31 3,36 63C4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 396.2 rpm \| Output torque M2: 5 Nm
	HA31 3,87 63C4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 344.0 rpm \| Output torque M2: 6 Nm
	HA31 4,21 63C4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 315.6 rpm \| Output torque M2: 6 Nm
	HA31 4,75 63C4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 280.0 rpm \| Output torque M2: 7 Nm
	HA31 5,10 63C4	Unit: HA31 \| Ratio i: 5.10 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 260.8 rpm \| Output torque M2: 8 Nm
	HA31 5,45 63C4	Unit: HA31 \| Ratio i: 5.45 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 243.8 rpm \| Output torque M2: 8 Nm
	HA41 5,45 63C4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 243.8 rpm \| Output torque M2: 8 Nm
	HA31 6,30 63C4	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 211.1 rpm \| Output torque M2: 10 Nm
	HA31 7,88 63C4	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 12 Nm
	HA41 7,88 63C4	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 12 Nm
	HA31 10,83 63C4	Unit: HA31 \| Ratio i: 10.83 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 17 Nm
	HA41 10,83 63C4	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 122.8 rpm \| Output torque M2: 17 Nm
	HA32 13,25 63C4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 100.4 rpm \| Output torque M2: 20 Nm
	HA32 16,49 63C4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 80.7 rpm \| Output torque M2: 25 Nm
	HA32 20,26 63C4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 65.6 rpm \| Output torque M2: 31 Nm
	HA32 24,55 63C4	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 54.2 rpm \| Output torque M2: 37 Nm
	HA32 30,55 63C4	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 46 Nm
	HA42 30,55 63C4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 43.5 rpm \| Output torque M2: 46 Nm
	HA32 35,44 63C4	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 54 Nm
	HA42 35,44 63C4	Unit: HA42 \| Ratio i: 35.44 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 54 Nm
	HA32 44,10 63C4	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 67 Nm
	HA42 44,10 63C4	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 30.2 rpm \| Output torque M2: 67 Nm
	HA33 51,32 63C4	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 76 Nm
	HA43 51,32 63C4	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 25.9 rpm \| Output torque M2: 76 Nm
	HA33 59,65 63C4	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 89 Nm
	HA43 59,65 63C4	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 22.3 rpm \| Output torque M2: 89 Nm
	HA33 72,27 63C4	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 107 Nm
	HA43 72,27 63C4	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 18.4 rpm \| Output torque M2: 107 Nm
	HA43 89,94 63C4	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 14.8 rpm \| Output torque M2: 134 Nm
	HA43 110,51 63C4	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63C4 \| Power P1: 0.22 kW \| Output speed n2: 12.0 rpm \| Output torque M2: 164 Nm
	HA31 5,45 63B2	Unit: HA31 \| Ratio i: 5.45 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 4 Nm
	HA31 2,94 63D4	Unit: HA31 \| Ratio i: 2.94 \| Motor: 63D4 \| Power P1: 0.25 kW \| Output speed n2: 448.3 rpm \| Output torque M2: 5 Nm
	HA31 6,30 63B2	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 444.4 rpm \| Output torque M2: 5 Nm
	HA31 3,18 63D4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 415.6 rpm \| Output torque M2: 6 Nm
	HA31 3,18 71A4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 415.6 rpm \| Output torque M2: 6 Nm
	HA31 3,36 63D4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 393.2 rpm \| Output torque M2: 6 Nm
	HA31 3,36 71A4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 393.2 rpm \| Output torque M2: 6 Nm
	HA31 7,88 63B2	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 355.6 rpm \| Output torque M2: 6 Nm
	HA41 7,88 63B2	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 355.6 rpm \| Output torque M2: 6 Nm
	HA31 2,55 71B6	Unit: HA31 \| Ratio i: 2.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 352.9 rpm \| Output torque M2: 7 Nm
	HA31 3,87 63D4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 341.4 rpm \| Output torque M2: 7 Nm
	HA31 3,87 71A4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 341.4 rpm \| Output torque M2: 7 Nm
	HA31 4,21 63D4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 313.2 rpm \| Output torque M2: 7 Nm
	HA31 4,21 71A4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 313.2 rpm \| Output torque M2: 7 Nm
	HA31 2,94 71B6	Unit: HA31 \| Ratio i: 2.94 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 305.7 rpm \| Output torque M2: 8 Nm
	HA41 2,94 71B6	Unit: HA41 \| Ratio i: 2.94 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 305.7 rpm \| Output torque M2: 8 Nm
	HA31 3,18 71B6	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 283.3 rpm \| Output torque M2: 8 Nm
	HA31 4,75 63D4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
	HA31 4,75 71A4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
	HA41 4,75 63D4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
	HA41 4,75 71A4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 277.9 rpm \| Output torque M2: 8 Nm
	HA31 3,36 71B6	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 268.1 rpm \| Output torque M2: 9 Nm
	HA31 5,10 63D4	Unit: HA31 \| Ratio i: 5.10 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 9 Nm
	HA31 5,10 71A4	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 9 Nm
	HA31 10,83 63B2	Unit: HA31 \| Ratio i: 10.83 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 9 Nm
	HA41 10,83 63B2	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 258.5 rpm \| Output torque M2: 9 Nm
	HA31 5,45 63D4	Unit: HA31 \| Ratio i: 5.45 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
	HA31 5,45 71A4	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
	HA41 5,45 63D4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
	HA41 5,45 71A4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 242.0 rpm \| Output torque M2: 10 Nm
	HA31 3,87 71B6	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 232.8 rpm \| Output torque M2: 10 Nm
	HA31 4,21 71B6	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 11 Nm
	HA31 6,30 63D4	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 209.5 rpm \| Output torque M2: 11 Nm
	HA31 6,30 71A4	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 209.5 rpm \| Output torque M2: 11 Nm
	HA31 4,75 71B6	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 12 Nm
	HA41 4,75 71B6	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 189.5 rpm \| Output torque M2: 12 Nm
	HA31 5,10 71B6	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 176.5 rpm \| Output torque M2: 13 Nm
	HA31 7,88 63D4	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
	HA31 7,88 71A4	Unit: HA31 \| Ratio i: 7.88 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
	HA41 7,88 63D4	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
	HA41 7,88 71A4	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 167.6 rpm \| Output torque M2: 14 Nm
	HA31 5,45 71B6	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 14 Nm
	HA41 5,45 71B6	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 165.0 rpm \| Output torque M2: 14 Nm
	HA31 6,30 71B6	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 142.9 rpm \| Output torque M2: 16 Nm
	HA41 10,83 63D4	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 121.8 rpm \| Output torque M2: 19 Nm
	HA41 10,83 71A4	Unit: HA41 \| Ratio i: 10.83 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 121.8 rpm \| Output torque M2: 19 Nm
	HA31 7,88 71B6	Unit: HA31 \| Ratio i: 7.88 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 20 Nm
	HA41 7,88 71B6	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 114.3 rpm \| Output torque M2: 20 Nm
	HA32 24,55 63B2	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 19 Nm
	HA32 8,11 71B6	Unit: HA32 \| Ratio i: 8.11 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 111.0 rpm \| Output torque M2: 21 Nm
	HA32 13,25 63D4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 99.6 rpm \| Output torque M2: 23 Nm
	HA32 13,25 71A4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 99.6 rpm \| Output torque M2: 23 Nm
	HA32 30,55 63B2	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 24 Nm
	HA32 10,94 71B6	Unit: HA32 \| Ratio i: 10.94 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 82.3 rpm \| Output torque M2: 28 Nm
	HA32 16,49 63D4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 80.1 rpm \| Output torque M2: 29 Nm
	HA32 16,49 71A4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 80.1 rpm \| Output torque M2: 29 Nm
	HA32 35,44 63B2	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 79.0 rpm \| Output torque M2: 28 Nm
	HA32 13,25 71B6	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 67.9 rpm \| Output torque M2: 34 Nm
	HA32 20,26 63D4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 65.2 rpm \| Output torque M2: 35 Nm
	HA32 20,26 71A4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 65.2 rpm \| Output torque M2: 35 Nm
	HA32 44,10 63B2	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 35 Nm
	HA42 44,10 63B2	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 35 Nm
	HA32 16,49 71B6	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 42 Nm
	HA33 51,32 63B2	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 40 Nm
	HA42 16,49 71B6	Unit: HA42 \| Ratio i: 16.49 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 42 Nm
	HA43 51,32 63B2	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 54.6 rpm \| Output torque M2: 40 Nm
	HA32 24,55 63D4	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
	HA32 24,55 71A4	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
	HA42 24,55 63D4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
	HA42 24,55 71A4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 53.8 rpm \| Output torque M2: 43 Nm
	HA33 59,65 63B2	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 46 Nm
	HA43 59,65 63B2	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 46.9 rpm \| Output torque M2: 46 Nm
	HA32 20,26 71B6	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 52 Nm
	HA42 20,26 71B6	Unit: HA42 \| Ratio i: 20.26 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 44.4 rpm \| Output torque M2: 52 Nm
	HA32 30,55 63D4	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
	HA32 30,55 71A4	Unit: HA32 \| Ratio i: 30.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
	HA42 30,55 63D4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
	HA42 30,55 71A4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 43.2 rpm \| Output torque M2: 53 Nm
	HA33 72,27 63B2	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 56 Nm
	HA43 72,27 63B2	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 56 Nm
	HA32 35,44 63D4	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
	HA32 35,44 71A4	Unit: HA32 \| Ratio i: 35.44 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
	HA42 35,44 63D4	Unit: HA42 \| Ratio i: 35.44 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
	HA42 35,44 71A4	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 37.2 rpm \| Output torque M2: 62 Nm
	HA32 24,55 71B6	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 63 Nm
	HA42 24,55 71B6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 36.7 rpm \| Output torque M2: 63 Nm
	HA33 89,94 63B2	Unit: HA33 \| Ratio i: 89.94 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 70 Nm
	HA43 89,94 63B2	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 70 Nm
	HA32 44,10 63D4	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
	HA32 44,10 71A4	Unit: HA32 \| Ratio i: 44.10 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
	HA42 44,10 63D4	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
	HA42 44,10 71A4	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 29.9 rpm \| Output torque M2: 77 Nm
	HA32 30,55 71B6	Unit: HA32 \| Ratio i: 30.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 79 Nm
	HA42 30,55 71B6	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 29.5 rpm \| Output torque M2: 79 Nm
	HA33 51,32 63D4	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
	HA33 51,32 71A4	Unit: HA33 \| Ratio i: 51.32 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
	HA43 51,32 63D4	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
	HA43 51,32 71A4	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 25.7 rpm \| Output torque M2: 87 Nm
	HA32 35,44 71B6	Unit: HA32 \| Ratio i: 35.44 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 91 Nm
	HA42 35,44 71B6	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 25.4 rpm \| Output torque M2: 91 Nm
	HA43 110,51 63B2	Unit: HA43 \| Ratio i: 110.51 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 25.3 rpm \| Output torque M2: 85 Nm
	HA33 59,65 63D4	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
	HA33 59,65 71A4	Unit: HA33 \| Ratio i: 59.65 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
	HA43 59,65 63D4	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
	HA43 59,65 71A4	Unit: HA43 \| Ratio i: 59.65 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 22.1 rpm \| Output torque M2: 101 Nm
	HA43 133,88 63B2	Unit: HA43 \| Ratio i: 133.88 \| Motor: 63B2 \| Power P1: 0.25 kW \| Output speed n2: 20.9 rpm \| Output torque M2: 104 Nm
	HA32 44,10 71B6	Unit: HA32 \| Ratio i: 44.10 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 113 Nm
	HA42 44,10 71B6	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 20.4 rpm \| Output torque M2: 113 Nm
	HA33 72,27 63D4	Unit: HA33 \| Ratio i: 72.27 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
	HA33 72,27 71A4	Unit: HA33 \| Ratio i: 72.27 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
	HA43 72,27 63D4	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
	HA43 72,27 71A4	Unit: HA43 \| Ratio i: 72.27 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 18.3 rpm \| Output torque M2: 123 Nm
	HA33 51,32 71B6	Unit: HA33 \| Ratio i: 51.32 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 129 Nm
	HA43 51,32 71B6	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 17.5 rpm \| Output torque M2: 129 Nm
	HA43 59,65 71B6	Unit: HA43 \| Ratio i: 59.65 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 15.1 rpm \| Output torque M2: 150 Nm
	HA43 89,94 63D4	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63D4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 153 Nm
	HA43 89,94 71A4	Unit: HA43 \| Ratio i: 89.94 \| Motor: 71A4 (frame printed 63D/71A) \| Power P1: 0.25 kW \| Output speed n2: 14.7 rpm \| Output torque M2: 153 Nm
	HA43 110,51 71A4	Unit: HA43 \| Ratio i: 110.51 \| Motor: 71A4 \| Power P1: 0.25 kW \| Output speed n2: 12.6 rpm \| Output torque M2: 178 Nm
	HA43 72,27 71B6	Unit: HA43 \| Ratio i: 72.27 \| Motor: 71B6 \| Power P1: 0.25 kW \| Output speed n2: 12.5 rpm \| Output torque M2: 182 Nm
	HA31 3,18 63C2	Unit: HA31 \| Ratio i: 3.18 \| Motor: 63C2 \| Power P1: 0.37 kW \| Output speed n2: 878.3 rpm \| Output torque M2: 4 Nm
	HA31 3,36 63C2	Unit: HA31 \| Ratio i: 3.36 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 831.1 rpm \| Output torque M2: 4 Nm
	HA31 3,36 71A2	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 831.1 rpm \| Output torque M2: 4 Nm
	HA31 3,87 63C2	Unit: HA31 \| Ratio i: 3.87 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 721.6 rpm \| Output torque M2: 5 Nm
	HA31 3,87 71A2	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 721.6 rpm \| Output torque M2: 5 Nm
	HA31 4,21 63C2	Unit: HA31 \| Ratio i: 4.21 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 662.0 rpm \| Output torque M2: 5 Nm
	HA31 4,21 71A2	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 662.0 rpm \| Output torque M2: 5 Nm
	HA31 4,75 63C2	Unit: HA31 \| Ratio i: 4.75 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 587.4 rpm \| Output torque M2: 6 Nm
	HA31 4,75 71A2	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 587.4 rpm \| Output torque M2: 6 Nm
	HA41 4,75 63C2	Unit: HA41 \| Ratio i: 4.75 \| Motor: 63C2 \| Power P1: 0.37 kW \| Output speed n2: 587.4 rpm \| Output torque M2: 6 Nm
	HA31 5,10 63C2	Unit: HA31 \| Ratio i: 5.10 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 547.1 rpm \| Output torque M2: 6 Nm
	HA31 5,10 71A2	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 547.1 rpm \| Output torque M2: 6 Nm
	HA31 2,55 71B4	Unit: HA31 \| Ratio i: 2.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 541.2 rpm \| Output torque M2: 6 Nm
	HA31 5,45 63C2	Unit: HA31 \| Ratio i: 5.45 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
	HA31 5,45 71A2	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
	HA41 5,45 63C2	Unit: HA41 \| Ratio i: 5.45 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
	HA41 5,45 71A2	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 511.5 rpm \| Output torque M2: 6 Nm
	HA31 2,94 71B4	Unit: HA31 \| Ratio i: 2.94 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 468.7 rpm \| Output torque M2: 7 Nm
	HA41 2,94 71B4	Unit: HA41 \| Ratio i: 2.94 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 468.7 rpm \| Output torque M2: 7 Nm
	HA31 6,30 63C2	Unit: HA31 \| Ratio i: 6.30 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 442.9 rpm \| Output torque M2: 7 Nm
	HA31 6,30 71A2	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 442.9 rpm \| Output torque M2: 7 Nm
	HA31 3,18 71B4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 434.4 rpm \| Output torque M2: 8 Nm
	HA31 3,36 71B4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 411.1 rpm \| Output torque M2: 8 Nm
	HA31 3,87 71B4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 356.9 rpm \| Output torque M2: 10 Nm
	HA31 7,88 63C2	Unit: HA31 \| Ratio i: 7.88 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
	HA31 7,88 71A2	Unit: HA31 \| Ratio i: 7.88 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
	HA41 7,88 63C2	Unit: HA41 \| Ratio i: 7.88 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
	HA41 7,88 71A2	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 9 Nm
	HA31 2,55 71C6	Unit: HA31 \| Ratio i: 2.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 345.1 rpm \| Output torque M2: 10 Nm
	HA31 2,55 80A6	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 345.1 rpm \| Output torque M2: 10 Nm
	HA31 4,21 71B4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 327.5 rpm \| Output torque M2: 10 Nm
	HA31 2,94 71C6	Unit: HA31 \| Ratio i: 2.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
	HA31 2,94 80A6	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
	HA41 2,94 71C6	Unit: HA41 \| Ratio i: 2.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
	HA41 2,94 80A6	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 298.9 rpm \| Output torque M2: 12 Nm
	HA31 4,75 71B4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 290.5 rpm \| Output torque M2: 12 Nm
	HA41 4,75 71B4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 290.5 rpm \| Output torque M2: 12 Nm
	HA31 3,18 71C6	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 277.0 rpm \| Output torque M2: 12 Nm
	HA31 3,18 80A6	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 277.0 rpm \| Output torque M2: 12 Nm
	HA31 5,10 71B4	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 270.6 rpm \| Output torque M2: 13 Nm
	HA31 3,36 71C6	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 262.1 rpm \| Output torque M2: 13 Nm
	HA31 3,36 80A6	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 262.1 rpm \| Output torque M2: 13 Nm
	HA41 10,83 63C2	Unit: HA41 \| Ratio i: 10.83 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 257.5 rpm \| Output torque M2: 13 Nm
	HA41 10,83 71A2	Unit: HA41 \| Ratio i: 10.83 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 257.5 rpm \| Output torque M2: 13 Nm
	HA31 5,45 71B4	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 253.0 rpm \| Output torque M2: 14 Nm
	HA41 5,45 71B4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 253.0 rpm \| Output torque M2: 14 Nm
	HA31 3,87 71C6	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 227.6 rpm \| Output torque M2: 15 Nm
	HA31 3,87 80A6	Unit: HA31 \| Ratio i: 3.87 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 227.6 rpm \| Output torque M2: 15 Nm
	HA31 6,30 71B4	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 219.0 rpm \| Output torque M2: 16 Nm
	HA32 13,25 63C2	Unit: HA32 \| Ratio i: 13.25 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 210.6 rpm \| Output torque M2: 16 Nm
	HA32 13,25 71A2	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 210.6 rpm \| Output torque M2: 16 Nm
	HA31 4,21 71C6	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 208.8 rpm \| Output torque M2: 17 Nm
	HA31 4,21 80A6	Unit: HA31 \| Ratio i: 4.21 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 208.8 rpm \| Output torque M2: 17 Nm
	HA31 4,75 71C6	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
	HA31 4,75 80A6	Unit: HA31 \| Ratio i: 4.75 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
	HA41 4,75 71C6	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
	HA41 4,75 80A6	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 185.3 rpm \| Output torque M2: 19 Nm
	HA31 7,88 71B4	Unit: HA31 \| Ratio i: 7.88 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 175.2 rpm \| Output torque M2: 20 Nm
	HA41 7,88 71B4	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 175.2 rpm \| Output torque M2: 20 Nm
	HA31 5,10 71C6	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 172.5 rpm \| Output torque M2: 20 Nm
	HA32 8,11 71B4	Unit: HA32 \| Ratio i: 8.11 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 170.2 rpm \| Output torque M2: 20 Nm
	HA32 16,49 63C2	Unit: HA32 \| Ratio i: 16.49 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 169.2 rpm \| Output torque M2: 19 Nm
	HA32 16,49 71A2	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 169.2 rpm \| Output torque M2: 19 Nm
	HA31 5,45 71C6	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 161.3 rpm \| Output torque M2: 21 Nm
	HA41 5,45 71C6	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 161.3 rpm \| Output torque M2: 21 Nm
	HA41 5,45 80A6	Unit: HA41 \| Ratio i: 5.45 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 161.3 rpm \| Output torque M2: 21 Nm
	HA31 6,30 71C6	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 139.7 rpm \| Output torque M2: 25 Nm
	HA32 20,26 63C2	Unit: HA32 \| Ratio i: 20.26 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 137.7 rpm \| Output torque M2: 24 Nm
	HA32 20,26 71A2	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 137.7 rpm \| Output torque M2: 24 Nm
	HA32 6,52 71C6	Unit: HA32 \| Ratio i: 6.52 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 135.0 rpm \| Output torque M2: 25 Nm
	HA32 6,52 80A6	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 135.0 rpm \| Output torque M2: 25 Nm
	HA32 10,94 71B4	Unit: HA32 \| Ratio i: 10.94 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 126.2 rpm \| Output torque M2: 27 Nm
	HA32 24,55 63C2	Unit: HA32 \| Ratio i: 24.55 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 29 Nm
	HA32 24,55 71A2	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 113.7 rpm \| Output torque M2: 29 Nm
	HA41 7,88 71C6	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 111.7 rpm \| Output torque M2: 31 Nm
	HA32 8,11 71C6	Unit: HA32 \| Ratio i: 8.11 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 32 Nm
	HA32 8,11 80A6	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 108.5 rpm \| Output torque M2: 32 Nm
	HA32 13,25 71B4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 104.2 rpm \| Output torque M2: 33 Nm
	HA32 30,55 63C2	Unit: HA32 \| Ratio i: 30.55 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
	HA32 30,55 71A2	Unit: HA32 \| Ratio i: 30.55 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
	HA42 30,55 63C2	Unit: HA42 \| Ratio i: 30.55 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
	HA42 30,55 71A2	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 91.3 rpm \| Output torque M2: 36 Nm
	HA32 16,49 71B4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 83.7 rpm \| Output torque M2: 41 Nm
	HA42 16,49 71B4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 83.7 rpm \| Output torque M2: 41 Nm
	HA32 10,94 71C6	Unit: HA32 \| Ratio i: 10.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
	HA32 10,94 80A6	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
	HA42 10,94 71C6	Unit: HA42 \| Ratio i: 10.94 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
	HA42 10,94 80A6	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 80.5 rpm \| Output torque M2: 43 Nm
	HA32 35,44 63C2	Unit: HA32 \| Ratio i: 35.44 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
	HA32 35,44 71A2	Unit: HA32 \| Ratio i: 35.44 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
	HA42 35,44 63C2	Unit: HA42 \| Ratio i: 35.44 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
	HA42 35,44 71A2	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 78.7 rpm \| Output torque M2: 42 Nm
	HA32 20,26 71B4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 50 Nm
	HA42 20,26 71B4	Unit: HA42 \| Ratio i: 20.26 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 68.1 rpm \| Output torque M2: 50 Nm
	HA32 13,25 71C6	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
	HA32 13,25 80A6	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
	HA42 13,25 71C6	Unit: HA42 \| Ratio i: 13.25 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
	HA42 13,25 80A6	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 66.4 rpm \| Output torque M2: 52 Nm
	HA32 44,10 63C2	Unit: HA32 \| Ratio i: 44.10 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
	HA32 44,10 71A2	Unit: HA32 \| Ratio i: 44.10 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
	HA42 44,10 63C2	Unit: HA42 \| Ratio i: 44.10 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
	HA42 44,10 71A2	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 63.3 rpm \| Output torque M2: 52 Nm
	HA32 24,55 71B4	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 60 Nm
	HA42 24,55 71B4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 56.2 rpm \| Output torque M2: 60 Nm
	HA33 51,32 63C2	Unit: HA33 \| Ratio i: 51.32 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
	HA33 51,32 71A2	Unit: HA33 \| Ratio i: 51.32 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
	HA43 51,32 63C2	Unit: HA43 \| Ratio i: 51.32 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
	HA43 51,32 71A2	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 54.4 rpm \| Output torque M2: 59 Nm
	HA32 16,49 71C6	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
	HA32 16,49 80A6	Unit: HA32 \| Ratio i: 16.49 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
	HA42 16,49 71C6	Unit: HA42 \| Ratio i: 16.49 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
	HA42 16,49 80A6	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 53.4 rpm \| Output torque M2: 64 Nm
	HA33 59,65 63C2	Unit: HA33 \| Ratio i: 59.65 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
	HA33 59,65 71A2	Unit: HA33 \| Ratio i: 59.65 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
	HA43 59,65 63C2	Unit: HA43 \| Ratio i: 59.65 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
	HA43 59,65 71A2	Unit: HA43 \| Ratio i: 59.65 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 46.8 rpm \| Output torque M2: 69 Nm
	HA32 30,55 71B4	Unit: HA32 \| Ratio i: 30.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 45.2 rpm \| Output torque M2: 75 Nm
	HA42 30,55 71B4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 45.2 rpm \| Output torque M2: 75 Nm
	HA32 20,26 71C6	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
	HA32 20,26 80A6	Unit: HA32 \| Ratio i: 20.26 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
	HA42 20,26 71C6	Unit: HA42 \| Ratio i: 20.26 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
	HA42 20,26 80A6	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 43.4 rpm \| Output torque M2: 79 Nm
	HA32 35,44 71B4	Unit: HA32 \| Ratio i: 35.44 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 38.9 rpm \| Output torque M2: 87 Nm
	HA42 35,44 71B4	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 38.9 rpm \| Output torque M2: 87 Nm
	HA43 72,27 63C2	Unit: HA43 \| Ratio i: 72.27 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 83 Nm
	HA43 72,27 71A2	Unit: HA43 \| Ratio i: 72.27 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 38.6 rpm \| Output torque M2: 83 Nm
	HA32 24,55 71C6	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
	HA32 24,55 80A6	Unit: HA32 \| Ratio i: 24.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
	HA42 24,55 71C6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
	HA42 24,55 80A6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 35.9 rpm \| Output torque M2: 96 Nm
	HA32 44,10 71B4	Unit: HA32 \| Ratio i: 44.10 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 31.3 rpm \| Output torque M2: 108 Nm
	HA42 44,10 71B4	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 31.3 rpm \| Output torque M2: 108 Nm
	HA43 89,94 63C2	Unit: HA43 \| Ratio i: 89.94 \| Motor: 63C2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 31.0 rpm \| Output torque M2: 103 Nm
	HA43 89,94 71A2	Unit: HA43 \| Ratio i: 89.94 \| Motor: 71A2 (frame printed 63C/71A) \| Power P1: 0.37 kW \| Output speed n2: 31.0 rpm \| Output torque M2: 103 Nm
	HA42 30,55 71C6	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71C6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 119 Nm
	HA42 30,55 80A6	Unit: HA42 \| Ratio i: 30.55 \| Motor: 80A6 (frame printed 71C/80A) \| Power P1: 0.37 kW \| Output speed n2: 28.8 rpm \| Output torque M2: 119 Nm
	HA33 51,32 71B4	Unit: HA33 \| Ratio i: 51.32 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 124 Nm
	HA43 51,32 71B4	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 26.9 rpm \| Output torque M2: 124 Nm
	HA42 35,44 71C6	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 24.8 rpm \| Output torque M2: 138 Nm
	HA43 59,65 71B4	Unit: HA43 \| Ratio i: 59.65 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 23.1 rpm \| Output torque M2: 144 Nm
	HA42 44,10 71C6	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 20.0 rpm \| Output torque M2: 172 Nm
	HA43 72,27 71B4	Unit: HA43 \| Ratio i: 72.27 \| Motor: 71B4 \| Power P1: 0.37 kW \| Output speed n2: 19.1 rpm \| Output torque M2: 174 Nm
	HA43 51,32 71C6	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71C6 \| Power P1: 0.37 kW \| Output speed n2: 17.1 rpm \| Output torque M2: 196 Nm
	HA31 2,55 71B2	Unit: HA31 \| Ratio i: 2.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 1102.0 rpm \| Output torque M2: 4 Nm
	HA31 2,94 71B2	Unit: HA31 \| Ratio i: 2.94 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 5 Nm
	HA41 2,94 71B2	Unit: HA41 \| Ratio i: 2.94 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 5 Nm
	HA31 3,18 71B2	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 884.6 rpm \| Output torque M2: 6 Nm
	HA31 3,36 71B2	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 837.0 rpm \| Output torque M2: 6 Nm
	HA31 3,87 71B2	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 726.7 rpm \| Output torque M2: 7 Nm
	HA31 4,21 71B2	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 666.8 rpm \| Output torque M2: 7 Nm
	HA41 1,45 80B6	Unit: HA41 \| Ratio i: 1.45 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 642.1 rpm \| Output torque M2: 8 Nm
	HA31 4,75 71B2	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 591.6 rpm \| Output torque M2: 8 Nm
	HA41 4,75 71B2	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 591.6 rpm \| Output torque M2: 8 Nm
	HA31 5,10 71B2	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 551.0 rpm \| Output torque M2: 9 Nm
	HA31 2,55 71C4	Unit: HA31 \| Ratio i: 2.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 537.3 rpm \| Output torque M2: 9 Nm
	HA31 2,55 80A4	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 537.3 rpm \| Output torque M2: 9 Nm
	HA31 5,45 71B2	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 515.2 rpm \| Output torque M2: 10 Nm
	HA41 5,45 71B2	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 515.2 rpm \| Output torque M2: 10 Nm
	HA31 2,94 71C4	Unit: HA31 \| Ratio i: 2.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
	HA31 2,94 80A4	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
	HA41 2,94 71C4	Unit: HA41 \| Ratio i: 2.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
	HA41 2,94 80A4	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 465.3 rpm \| Output torque M2: 11 Nm
	HA31 6,30 71B2	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 446.0 rpm \| Output torque M2: 11 Nm
	HA31 3,18 71C4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 431.3 rpm \| Output torque M2: 12 Nm
	HA31 3,18 80A4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 431.3 rpm \| Output torque M2: 12 Nm
	HA31 3,36 71C4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 408.1 rpm \| Output torque M2: 12 Nm
	HA31 3,36 80A4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 408.1 rpm \| Output torque M2: 12 Nm
	HA31 2,55 80B6	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 364.7 rpm \| Output torque M2: 14 Nm
	HA31 7,88 71B2	Unit: HA31 \| Ratio i: 7.88 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 356.8 rpm \| Output torque M2: 14 Nm
	HA41 7,88 71B2	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 356.8 rpm \| Output torque M2: 14 Nm
	HA31 3,87 71C4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 14 Nm
	HA31 3,87 80A4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 354.3 rpm \| Output torque M2: 14 Nm
	HA31 4,21 71C4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 325.1 rpm \| Output torque M2: 16 Nm
	HA31 4,21 80A4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 325.1 rpm \| Output torque M2: 16 Nm
	HA31 2,94 80B6	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 315.8 rpm \| Output torque M2: 16 Nm
	HA41 2,94 80B6	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 315.8 rpm \| Output torque M2: 16 Nm
	HA31 3,18 80B6	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 292.8 rpm \| Output torque M2: 18 Nm
	HA31 4,75 71C4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
	HA31 4,75 80A4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
	HA41 4,75 71C4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
	HA41 4,75 80A4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 288.4 rpm \| Output torque M2: 18 Nm
	HA31 3,36 80B6	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 277.0 rpm \| Output torque M2: 19 Nm
	HA31 5,10 71C4	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 268.6 rpm \| Output torque M2: 19 Nm
	HA32 10,94 71B2	Unit: HA32 \| Ratio i: 10.94 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 19 Nm
	HA31 5,45 71C4	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 251.2 rpm \| Output torque M2: 20 Nm
	HA41 5,45 71C4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 251.2 rpm \| Output torque M2: 20 Nm
	HA41 5,45 80A4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 251.2 rpm \| Output torque M2: 20 Nm
	HA31 3,87 80B6	Unit: HA31 \| Ratio i: 3.87 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 240.5 rpm \| Output torque M2: 21 Nm
	HA31 4,21 80B6	Unit: HA31 \| Ratio i: 4.21 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 220.7 rpm \| Output torque M2: 23 Nm
	HA31 6,30 71C4	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 217.5 rpm \| Output torque M2: 23 Nm
	HA32 13,25 71B2	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 212.1 rpm \| Output torque M2: 23 Nm
	HA32 6,52 71C4	Unit: HA32 \| Ratio i: 6.52 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 210.2 rpm \| Output torque M2: 24 Nm
	HA32 6,52 80A4	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 210.2 rpm \| Output torque M2: 24 Nm
	HA31 4,75 80B6	Unit: HA31 \| Ratio i: 4.75 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 195.8 rpm \| Output torque M2: 26 Nm
	HA41 4,75 80B6	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 195.8 rpm \| Output torque M2: 26 Nm
	HA41 7,88 71C4	Unit: HA41 \| Ratio i: 7.88 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 174.0 rpm \| Output torque M2: 29 Nm
	HA32 5,38 80B6	Unit: HA32 \| Ratio i: 5.38 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 172.9 rpm \| Output torque M2: 29 Nm
	HA41 5,45 80B6	Unit: HA41 \| Ratio i: 5.45 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 170.5 rpm \| Output torque M2: 30 Nm
	HA32 16,49 71B2	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 29 Nm
	HA42 16,49 71B2	Unit: HA42 \| Ratio i: 16.49 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 29 Nm
	HA32 8,11 71C4	Unit: HA32 \| Ratio i: 8.11 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 30 Nm
	HA32 8,11 80A4	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 168.9 rpm \| Output torque M2: 30 Nm
	HA32 6,52 80B6	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 142.7 rpm \| Output torque M2: 36 Nm
	HA32 20,26 71B2	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 35 Nm
	HA42 20,26 71B2	Unit: HA42 \| Ratio i: 20.26 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 35 Nm
	HA32 10,94 71C4	Unit: HA32 \| Ratio i: 10.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
	HA32 10,94 80A4	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
	HA42 10,94 71C4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
	HA42 10,94 80A4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 125.3 rpm \| Output torque M2: 40 Nm
	HA32 8,11 80B6	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 44 Nm
	HA42 8,11 80B6	Unit: HA42 \| Ratio i: 8.11 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 44 Nm
	HA32 24,55 71B2	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 43 Nm
	HA42 24,55 71B2	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 43 Nm
	HA32 13,25 71C4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
	HA32 13,25 80A4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
	HA42 13,25 71C4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
	HA42 13,25 80A4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 103.4 rpm \| Output torque M2: 49 Nm
	HA32 30,55 71B2	Unit: HA32 \| Ratio i: 30.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 92.0 rpm \| Output torque M2: 53 Nm
	HA42 30,55 71B2	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 92.0 rpm \| Output torque M2: 53 Nm
	HA32 10,94 80B6	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 60 Nm
	HA42 10,94 80B6	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 60 Nm
	HA32 16,49 71C4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
	HA32 16,49 80A4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
	HA42 16,49 71C4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
	HA42 16,49 80A4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 83.1 rpm \| Output torque M2: 61 Nm
	HA32 35,44 71B2	Unit: HA32 \| Ratio i: 35.44 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 79.3 rpm \| Output torque M2: 61 Nm
	HA42 35,44 71B2	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 79.3 rpm \| Output torque M2: 61 Nm
	HA32 13,25 80B6	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 70.2 rpm \| Output torque M2: 73 Nm
	HA42 13,25 80B6	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 70.2 rpm \| Output torque M2: 73 Nm
	HA32 20,26 71C4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
	HA32 20,26 80A4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
	HA42 20,26 71C4	Unit: HA42 \| Ratio i: 20.26 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
	HA42 20,26 80A4	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 67.6 rpm \| Output torque M2: 75 Nm
	HA42 44,10 71B2	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 63.7 rpm \| Output torque M2: 76 Nm
	HA32 16,49 80B6	Unit: HA32 \| Ratio i: 16.49 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 90 Nm
	HA42 16,49 80B6	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 90 Nm
	HA32 24,55 71C4	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
	HA32 24,55 80A4	Unit: HA32 \| Ratio i: 24.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
	HA42 24,55 71C4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
	HA42 24,55 80A4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 90 Nm
	HA43 51,32 71B2	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 54.8 rpm \| Output torque M2: 87 Nm
	HA43 59,65 71B2	Unit: HA43 \| Ratio i: 59.65 \| Motor: 71B2 \| Power P1: 0.55 kW \| Output speed n2: 47.1 rpm \| Output torque M2: 101 Nm
	HA32 20,26 80B6	Unit: HA32 \| Ratio i: 20.26 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 111 Nm
	HA42 20,26 80B6	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 45.9 rpm \| Output torque M2: 111 Nm
	HA42 30,55 71C4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71C4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 112 Nm
	HA42 30,55 80A4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 80A4 (frame printed 71C/80A) \| Power P1: 0.55 kW \| Output speed n2: 44.9 rpm \| Output torque M2: 112 Nm
	HA42 35,44 71C4	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 38.7 rpm \| Output torque M2: 130 Nm
	HA42 24,55 80B6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 37.9 rpm \| Output torque M2: 134 Nm
	HA42 44,10 71C4	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 31.1 rpm \| Output torque M2: 162 Nm
	HA42 30,55 80B6	Unit: HA42 \| Ratio i: 30.55 \| Motor: 80B6 \| Power P1: 0.55 kW \| Output speed n2: 30.4 rpm \| Output torque M2: 167 Nm
	HA43 51,32 71C4	Unit: HA43 \| Ratio i: 51.32 \| Motor: 71C4 \| Power P1: 0.55 kW \| Output speed n2: 26.7 rpm \| Output torque M2: 185 Nm
	HA31 2,55 71C2	Unit: HA31 \| Ratio i: 2.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 1098.0 rpm \| Output torque M2: 6 Nm
	HA31 2,55 80A2	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 1098.0 rpm \| Output torque M2: 6 Nm
	HA41 1,45 80B4	Unit: HA41 \| Ratio i: 1.45 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 987.4 rpm \| Output torque M2: 7 Nm
	HA31 2,94 71C2	Unit: HA31 \| Ratio i: 2.94 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
	HA31 2,94 80A2	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
	HA41 2,94 71C2	Unit: HA41 \| Ratio i: 2.94 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
	HA41 2,94 80A2	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 950.9 rpm \| Output torque M2: 7 Nm
	HA31 3,18 71C2	Unit: HA31 \| Ratio i: 3.18 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 881.5 rpm \| Output torque M2: 8 Nm
	HA31 3,18 80A2	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 881.5 rpm \| Output torque M2: 8 Nm
	HA31 3,36 71C2	Unit: HA31 \| Ratio i: 3.36 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 834.0 rpm \| Output torque M2: 8 Nm
	HA31 3,36 80A2	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 834.0 rpm \| Output torque M2: 8 Nm
	HA31 3,87 71C2	Unit: HA31 \| Ratio i: 3.87 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 724.1 rpm \| Output torque M2: 9 Nm
	HA31 3,87 80A2	Unit: HA31 \| Ratio i: 3.87 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 724.1 rpm \| Output torque M2: 9 Nm
	HA31 4,21 71C2	Unit: HA31 \| Ratio i: 4.21 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 664.4 rpm \| Output torque M2: 10 Nm
	HA31 4,21 80A2	Unit: HA31 \| Ratio i: 4.21 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 664.4 rpm \| Output torque M2: 10 Nm
	HA41 1,45 80C6	Unit: HA41 \| Ratio i: 1.45 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 635.2 rpm \| Output torque M2: 11 Nm
	HA31 4,75 71C2	Unit: HA31 \| Ratio i: 4.75 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
	HA31 4,75 80A2	Unit: HA31 \| Ratio i: 4.75 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
	HA41 4,75 71C2	Unit: HA41 \| Ratio i: 4.75 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
	HA41 4,75 80A2	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 589.5 rpm \| Output torque M2: 11 Nm
	HA31 2,55 80B4	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 549.0 rpm \| Output torque M2: 13 Nm
	HA31 5,10 71C2	Unit: HA31 \| Ratio i: 5.10 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 549.0 rpm \| Output torque M2: 12 Nm
	HA31 5,45 71C2	Unit: HA31 \| Ratio i: 5.45 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 13 Nm
	HA41 5,45 71C2	Unit: HA41 \| Ratio i: 5.45 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 13 Nm
	HA41 5,45 80A2	Unit: HA41 \| Ratio i: 5.45 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 513.3 rpm \| Output torque M2: 13 Nm
	HA31 2,94 80B4	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 15 Nm
	HA41 2,94 80B4	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 15 Nm
	HA31 6,30 71C2	Unit: HA31 \| Ratio i: 6.30 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 444.4 rpm \| Output torque M2: 15 Nm
	HA31 3,18 80B4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 440.7 rpm \| Output torque M2: 16 Nm
	HA32 6,52 71C2	Unit: HA32 \| Ratio i: 6.52 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 429.6 rpm \| Output torque M2: 15 Nm
	HA32 6,52 80A2	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 429.6 rpm \| Output torque M2: 15 Nm
	HA31 3,36 80B4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 417.0 rpm \| Output torque M2: 17 Nm
	HA31 3,87 80B4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 369.8 rpm \| Output torque M2: 19 Nm
	HA31 2,55 80C6	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 360.8 rpm \| Output torque M2: 19 Nm
	HA32 8,11 71C2	Unit: HA32 \| Ratio i: 8.11 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 345.2 rpm \| Output torque M2: 19 Nm
	HA32 8,11 80A2	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 345.2 rpm \| Output torque M2: 19 Nm
	HA31 4,21 80B4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 332.2 rpm \| Output torque M2: 21 Nm
	HA31 2,94 80C6	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 312.5 rpm \| Output torque M2: 22 Nm
	HA41 2,94 80C6	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 312.5 rpm \| Output torque M2: 22 Nm
	HA31 4,75 80B4	Unit: HA31 \| Ratio i: 4.75 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 294.7 rpm \| Output torque M2: 24 Nm
	HA41 4,75 80B4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 294.7 rpm \| Output torque M2: 24 Nm
	HA31 3,18 80C6	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 289.6 rpm \| Output torque M2: 24 Nm
	HA31 3,36 80C6	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 274.0 rpm \| Output torque M2: 26 Nm
	HA32 5,38 80B4	Unit: HA32 \| Ratio i: 5.38 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 265.8 rpm \| Output torque M2: 26 Nm
	HA41 5,45 80B4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 262.2 rpm \| Output torque M2: 27 Nm
	HA32 10,94 71C2	Unit: HA32 \| Ratio i: 10.94 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 256.0 rpm \| Output torque M2: 26 Nm
	HA32 10,94 80A2	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 256.0 rpm \| Output torque M2: 26 Nm
	HA32 6,52 80B4	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 32 Nm
	HA32 13,25 71C2	Unit: HA32 \| Ratio i: 13.25 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
	HA32 13,25 80A2	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
	HA42 13,25 71C2	Unit: HA42 \| Ratio i: 13.25 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
	HA42 13,25 80A2	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 211.3 rpm \| Output torque M2: 31 Nm
	HA41 4,75 80C6	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 193.7 rpm \| Output torque M2: 36 Nm
	HA32 8,11 80B4	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 40 Nm
	HA42 8,11 80B4	Unit: HA42 \| Ratio i: 8.11 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 40 Nm
	HA32 5,38 80C6	Unit: HA32 \| Ratio i: 5.38 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 171.0 rpm \| Output torque M2: 41 Nm
	HA42 5,38 80C6	Unit: HA42 \| Ratio i: 5.38 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 171.0 rpm \| Output torque M2: 41 Nm
	HA42 5,38 90S6	Unit: HA42 \| Ratio i: 5.38 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 171.0 rpm \| Output torque M2: 41 Nm
	HA32 16,49 71C2	Unit: HA32 \| Ratio i: 16.49 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
	HA32 16,49 80A2	Unit: HA32 \| Ratio i: 16.49 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
	HA42 16,49 71C2	Unit: HA42 \| Ratio i: 16.49 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
	HA42 16,49 80A2	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 169.8 rpm \| Output torque M2: 39 Nm
	HA32 6,52 80C6	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 141.2 rpm \| Output torque M2: 49 Nm
	HA42 6,52 80C6	Unit: HA42 \| Ratio i: 6.52 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 141.2 rpm \| Output torque M2: 49 Nm
	HA42 6,52 90S6	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 141.2 rpm \| Output torque M2: 49 Nm
	HA32 20,26 71C2	Unit: HA32 \| Ratio i: 20.26 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
	HA32 20,26 80A2	Unit: HA32 \| Ratio i: 20.26 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
	HA42 20,26 71C2	Unit: HA42 \| Ratio i: 20.26 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
	HA42 20,26 80A2	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 138.2 rpm \| Output torque M2: 48 Nm
	HA32 10,94 80B4	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 54 Nm
	HA42 10,94 80B4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 54 Nm
	HA32 24,55 71C2	Unit: HA32 \| Ratio i: 24.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
	HA32 24,55 80A2	Unit: HA32 \| Ratio i: 24.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
	HA42 24,55 71C2	Unit: HA42 \| Ratio i: 24.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
	HA42 24,55 80A2	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 114.1 rpm \| Output torque M2: 58 Nm
	HA32 8,11 80C6	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 113.4 rpm \| Output torque M2: 61 Nm
	HA42 8,11 80C6	Unit: HA42 \| Ratio i: 8.11 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 113.4 rpm \| Output torque M2: 61 Nm
	HA42 8,11 90S6	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 113.4 rpm \| Output torque M2: 61 Nm
	HA32 13,25 80B4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 65 Nm
	HA42 13,25 80B4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 65 Nm
	HA42 30,55 71C2	Unit: HA42 \| Ratio i: 30.55 \| Motor: 71C2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 72 Nm
	HA42 30,55 80A2	Unit: HA42 \| Ratio i: 30.55 \| Motor: 80A2 (frame printed 71C/80A) \| Power P1: 0.75 kW \| Output speed n2: 91.7 rpm \| Output torque M2: 72 Nm
	HA32 16,49 80B4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 81 Nm
	HA42 16,49 80B4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 81 Nm
	HA32 10,94 80C6	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 84.1 rpm \| Output torque M2: 83 Nm
	HA42 10,94 80C6	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 84.1 rpm \| Output torque M2: 83 Nm
	HA42 10,94 90S6	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 84.1 rpm \| Output torque M2: 83 Nm
	HA42 35,44 71C2	Unit: HA42 \| Ratio i: 35.44 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 79.0 rpm \| Output torque M2: 84 Nm
	HA32 13,25 80C6	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80C6 \| Power P1: 0.75 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 100 Nm
	HA42 13,25 80C6	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 100 Nm
	HA42 13,25 90S6	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 69.4 rpm \| Output torque M2: 100 Nm
	HA32 20,26 80B4	Unit: HA32 \| Ratio i: 20.26 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 100 Nm
	HA42 20,26 80B4	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 100 Nm
	HA42 44,10 71C2	Unit: HA42 \| Ratio i: 44.10 \| Motor: 71C2 (brake TBS only) \| Power P1: 0.75 kW \| Output speed n2: 63.5 rpm \| Output torque M2: 105 Nm
	HA42 24,55 80B4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 121 Nm
	HA42 16,49 80C6	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 124 Nm
	HA42 16,49 90S6	Unit: HA42 \| Ratio i: 16.49 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 55.8 rpm \| Output torque M2: 124 Nm
	HA42 30,55 80B4	Unit: HA42 \| Ratio i: 30.55 \| Motor: 80B4 \| Power P1: 0.75 kW \| Output speed n2: 45.8 rpm \| Output torque M2: 150 Nm
	HA42 20,26 80C6	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 153 Nm
	HA42 20,26 90S6	Unit: HA42 \| Ratio i: 20.26 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 45.4 rpm \| Output torque M2: 153 Nm
	HA42 24,55 80C6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80C6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 185 Nm
	HA42 24,55 90S6	Unit: HA42 \| Ratio i: 24.55 \| Motor: 90S6 (frame printed 80C/90S) \| Power P1: 0.75 kW \| Output speed n2: 37.5 rpm \| Output torque M2: 185 Nm
	HA41 1,45 80C4	Unit: HA41 \| Ratio i: 1.45 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 966.7 rpm \| Output torque M2: 9 Nm
	HA31 2,55 80C4	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 549.0 rpm \| Output torque M2: 16 Nm
	HA31 2,94 80C4	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 18 Nm
	HA41 2,94 80C4	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 475.5 rpm \| Output torque M2: 18 Nm
	HA31 3,18 80C4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 440.7 rpm \| Output torque M2: 19 Nm
	HA31 3,36 80C4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 417.0 rpm \| Output torque M2: 20 Nm
	HA31 3,87 80C4	Unit: HA31 \| Ratio i: 3.87 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 362.1 rpm \| Output torque M2: 24 Nm
	HA31 4,21 80C4	Unit: HA31 \| Ratio i: 4.21 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 332.2 rpm \| Output torque M2: 26 Nm
	HA41 4,75 80C4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 294.7 rpm \| Output torque M2: 29 Nm
	HA32 5,38 80C4	Unit: HA32 \| Ratio i: 5.38 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 32 Nm
	HA41 5,45 80C4	Unit: HA41 \| Ratio i: 5.45 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 256.7 rpm \| Output torque M2: 33 Nm
	HA32 6,52 80C4	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 39 Nm
	HA42 6,52 80C4	Unit: HA42 \| Ratio i: 6.52 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 39 Nm
	HA32 8,11 80C4	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 49 Nm
	HA42 8,11 80C4	Unit: HA42 \| Ratio i: 8.11 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 49 Nm
	HA32 10,94 80C4	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 66 Nm
	HA42 10,94 80C4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 66 Nm
	HA32 13,25 80C4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 80 Nm
	HA42 13,25 80C4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 80 Nm
	HA32 16,49 80C4	Unit: HA32 \| Ratio i: 16.49 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 99 Nm
	HA42 16,49 80C4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 99 Nm
	HA42 20,26 80C4	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 122 Nm
	HA42 24,55 80C4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80C4 (brake TBS only) \| Power P1: 0.92 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 148 Nm
	HA41 1,45 80B2	Unit: HA41 \| Ratio i: 1.45 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 1961.0 rpm \| Output torque M2: 5 Nm
	HA31 2,55 80B2	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 1113.7 rpm \| Output torque M2: 9 Nm
	HA41 1,45 80D4	Unit: HA41 \| Ratio i: 1.45 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 973.6 rpm \| Output torque M2: 10 Nm
	HA31 2,94 80B2	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 964.5 rpm \| Output torque M2: 10 Nm
	HA41 2,94 80B2	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 964.5 rpm \| Output torque M2: 10 Nm
	HA31 3,18 80B2	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 894.1 rpm \| Output torque M2: 11 Nm
	HA31 3,36 80B2	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 846.0 rpm \| Output torque M2: 12 Nm
	HA31 3,87 80B2	Unit: HA31 \| Ratio i: 3.87 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 734.5 rpm \| Output torque M2: 13 Nm
	HA31 4,21 80B2	Unit: HA31 \| Ratio i: 4.21 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 673.9 rpm \| Output torque M2: 15 Nm
	HA31 4,75 80B2	Unit: HA31 \| Ratio i: 4.75 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 597.9 rpm \| Output torque M2: 16 Nm
	HA41 4,75 80B2	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 595.8 rpm \| Output torque M2: 17 Nm
	HA31 2,55 80D4	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 552.9 rpm \| Output torque M2: 18 Nm
	HA32 5,38 80B2	Unit: HA32 \| Ratio i: 5.38 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 527.9 rpm \| Output torque M2: 18 Nm
	HA41 5,45 80B2	Unit: HA41 \| Ratio i: 5.45 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 520.7 rpm \| Output torque M2: 19 Nm
	HA31 2,94 80D4	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 478.9 rpm \| Output torque M2: 21 Nm
	HA41 2,94 80D4	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 478.9 rpm \| Output torque M2: 21 Nm
	HA31 3,18 80D4	Unit: HA31 \| Ratio i: 3.18 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 443.9 rpm \| Output torque M2: 23 Nm
	HA32 6,52 80B2	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 435.8 rpm \| Output torque M2: 22 Nm
	HA31 3,36 80D4	Unit: HA31 \| Ratio i: 3.36 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 420.0 rpm \| Output torque M2: 24 Nm
	HA32 8,11 80B2	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 350.2 rpm \| Output torque M2: 28 Nm
	HA42 8,11 80B2	Unit: HA42 \| Ratio i: 8.11 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 350.2 rpm \| Output torque M2: 28 Nm
	HA41 4,75 80D4	Unit: HA41 \| Ratio i: 4.75 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 296.8 rpm \| Output torque M2: 34 Nm
	HA32 5,38 80D4	Unit: HA32 \| Ratio i: 5.38 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 262.1 rpm \| Output torque M2: 38 Nm
	HA42 5,38 80D4	Unit: HA42 \| Ratio i: 5.38 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 39 Nm
	HA42 5,38 90S4	Unit: HA42 \| Ratio i: 5.38 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 39 Nm
	HA32 10,94 80B2	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 38 Nm
	HA42 10,94 80B2	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 258.8 rpm \| Output torque M2: 38 Nm
	HA32 6,52 80D4	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 216.3 rpm \| Output torque M2: 47 Nm
	HA42 6,52 80D4	Unit: HA42 \| Ratio i: 6.52 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 216.3 rpm \| Output torque M2: 47 Nm
	HA42 6,52 90S4	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 216.3 rpm \| Output torque M2: 47 Nm
	HA32 13,25 80B2	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 46 Nm
	HA42 13,25 80B2	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 213.6 rpm \| Output torque M2: 46 Nm
	HA32 8,11 80D4	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 58 Nm
	HA42 8,11 80D4	Unit: HA42 \| Ratio i: 8.11 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 58 Nm
	HA42 8,11 90S4	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 173.9 rpm \| Output torque M2: 58 Nm
	HA42 5,38 90L6	Unit: HA42 \| Ratio i: 5.38 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 172.9 rpm \| Output torque M2: 59 Nm
	HA32 16,49 80B2	Unit: HA32 \| Ratio i: 16.49 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 172.2 rpm \| Output torque M2: 57 Nm
	HA42 16,49 80B2	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 172.2 rpm \| Output torque M2: 57 Nm
	HA42 6,52 90L6	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 144.2 rpm \| Output torque M2: 71 Nm
	HA42 20,26 80B2	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 139.7 rpm \| Output torque M2: 70 Nm
	HA32 10,94 80D4	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 128.9 rpm \| Output torque M2: 78 Nm
	HA42 10,94 80D4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 79 Nm
	HA42 10,94 90S4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 79 Nm
	HA42 24,55 80B2	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 115.7 rpm \| Output torque M2: 84 Nm
	HA42 8,11 90L6	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 114.7 rpm \| Output torque M2: 89 Nm
	HA32 13,25 80D4	Unit: HA32 \| Ratio i: 13.25 \| Motor: 80D4 (brake TBS only) \| Power P1: 1.10 kW \| Output speed n2: 106.4 rpm \| Output torque M2: 95 Nm
	HA42 13,25 80D4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 106.4 rpm \| Output torque M2: 95 Nm
	HA42 13,25 90S4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 106.4 rpm \| Output torque M2: 95 Nm
	HA42 30,55 80B2	Unit: HA42 \| Ratio i: 30.55 \| Motor: 80B2 \| Power P1: 1.10 kW \| Output speed n2: 93.0 rpm \| Output torque M2: 105 Nm
	HA42 10,94 90L6	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 85.0 rpm \| Output torque M2: 120 Nm
	HA42 16,49 80D4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 119 Nm
	HA42 16,49 90S4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 119 Nm
	HA42 13,25 90L6	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 70.2 rpm \| Output torque M2: 145 Nm
	HA42 20,26 80D4	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 146 Nm
	HA42 20,26 90S4	Unit: HA42 \| Ratio i: 20.26 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 69.1 rpm \| Output torque M2: 146 Nm
	HA42 24,55 80D4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80D4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 177 Nm
	HA42 24,55 90S4	Unit: HA42 \| Ratio i: 24.55 \| Motor: 90S4 (frame printed 80D/90S) \| Power P1: 1.10 kW \| Output speed n2: 57.0 rpm \| Output torque M2: 177 Nm
	HA42 16,49 90L6	Unit: HA42 \| Ratio i: 16.49 \| Motor: 90L6 \| Power P1: 1.10 kW \| Output speed n2: 56.4 rpm \| Output torque M2: 181 Nm
	HA41 1,45 80C2	Unit: HA41 \| Ratio i: 1.45 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 1940.2 rpm \| Output torque M2: 7 Nm
	HA31 2,55 80C2	Unit: HA31 \| Ratio i: 2.55 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 1102.0 rpm \| Output torque M2: 12 Nm
	HA31 2,94 80C2	Unit: HA31 \| Ratio i: 2.94 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 14 Nm
	HA41 2,94 80C2	Unit: HA41 \| Ratio i: 2.94 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 954.3 rpm \| Output torque M2: 14 Nm
	HA32 5,38 80C2	Unit: HA32 \| Ratio i: 5.38 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 522.4 rpm \| Output torque M2: 25 Nm
	HA32 6,52 80C2	Unit: HA32 \| Ratio i: 6.52 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 431.2 rpm \| Output torque M2: 31 Nm
	HA42 6,52 80C2	Unit: HA42 \| Ratio i: 6.52 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 431.2 rpm \| Output torque M2: 31 Nm
	HA42 6,52 90S2	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 431.2 rpm \| Output torque M2: 31 Nm
	HA32 8,11 80C2	Unit: HA32 \| Ratio i: 8.11 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 346.5 rpm \| Output torque M2: 38 Nm
	HA42 8,11 80C2	Unit: HA42 \| Ratio i: 8.11 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 346.5 rpm \| Output torque M2: 38 Nm
	HA42 8,11 90S2	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 346.5 rpm \| Output torque M2: 38 Nm
	HA42 5,38 90L4	Unit: HA42 \| Ratio i: 5.38 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 53 Nm
	HA42 5,38 90LA4	Unit: HA42 \| Ratio i: 5.38 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 53 Nm
	HA32 10,94 80C2	Unit: HA32 \| Ratio i: 10.94 \| Motor: 80C2 (brake TBS only) \| Power P1: 1.50 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 52 Nm
	HA42 10,94 80C2	Unit: HA42 \| Ratio i: 10.94 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 52 Nm
	HA42 10,94 90S2	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 256.9 rpm \| Output torque M2: 52 Nm
	HA42 6,52 90L4	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 64 Nm
	HA42 6,52 90LA4	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 64 Nm
	HA42 13,25 80C2	Unit: HA42 \| Ratio i: 13.25 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 212.1 rpm \| Output torque M2: 63 Nm
	HA42 13,25 90S2	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 212.1 rpm \| Output torque M2: 63 Nm
	HA42 8,11 90L4	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 80 Nm
	HA42 8,11 90LA4	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 80 Nm
	HA42 16,49 80C2	Unit: HA42 \| Ratio i: 16.49 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 78 Nm
	HA42 16,49 90S2	Unit: HA42 \| Ratio i: 16.49 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 170.4 rpm \| Output torque M2: 78 Nm
	HA42 20,26 80C2	Unit: HA42 \| Ratio i: 20.26 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 96 Nm
	HA42 20,26 90S2	Unit: HA42 \| Ratio i: 20.26 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 138.7 rpm \| Output torque M2: 96 Nm
	HA42 10,94 90L4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 107 Nm
	HA42 10,94 90LA4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 107 Nm
	HA42 24,55 80C2	Unit: HA42 \| Ratio i: 24.55 \| Motor: 80C2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 116 Nm
	HA42 24,55 90S2	Unit: HA42 \| Ratio i: 24.55 \| Motor: 90S2 (frame printed 80C/90S) \| Power P1: 1.50 kW \| Output speed n2: 114.5 rpm \| Output torque M2: 116 Nm
	HA42 13,25 90L4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 130 Nm
	HA42 13,25 90LA4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 130 Nm
	HA42 16,49 90L4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 90L4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 162 Nm
	HA42 16,49 90LA4	Unit: HA42 \| Ratio i: 16.49 \| Motor: 90LA4 (frame printed 90L/90LA) \| Power P1: 1.50 kW \| Output speed n2: 84.9 rpm \| Output torque M2: 162 Nm
	HA42 5,38 90LB4	Unit: HA42 \| Ratio i: 5.38 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 260.3 rpm \| Output torque M2: 65 Nm
	HA42 6,52 90LB4	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 214.8 rpm \| Output torque M2: 79 Nm
	HA42 8,11 90LB4	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 172.6 rpm \| Output torque M2: 98 Nm
	HA42 10,94 90LB4	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 128.0 rpm \| Output torque M2: 132 Nm
	HA42 13,25 90LB4	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90LB4 (brake TBS only) \| Power P1: 1.85 kW \| Output speed n2: 105.7 rpm \| Output torque M2: 161 Nm
	HA42 5,38 90L2	Unit: HA42 \| Ratio i: 5.38 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 531.7 rpm \| Output torque M2: 37 Nm
	HA42 6,52 90L2	Unit: HA42 \| Ratio i: 6.52 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 441.9 rpm \| Output torque M2: 44 Nm
	HA42 8,11 90L2	Unit: HA42 \| Ratio i: 8.11 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 355.1 rpm \| Output torque M2: 55 Nm
	HA42 10,94 90L2	Unit: HA42 \| Ratio i: 10.94 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 263.3 rpm \| Output torque M2: 74 Nm
	HA42 13,25 90L2	Unit: HA42 \| Ratio i: 13.25 \| Motor: 90L2 \| Power P1: 2.20 kW \| Output speed n2: 217.4 rpm \| Output torque M2: 90 Nm
	HA32 5.38 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 63A4
	HA32 6.52 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 63A4
	HA32 8.11 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 8.11 \| Motor: 63A4
	HA32 10.94 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 10.94 \| Motor: 63A4
	HA32 13.25 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 13.25 \| Motor: 63A4
	HA32 16.49 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 16.49 \| Motor: 63A4
	HA32 20.26 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 20.26 \| Motor: 63A4
	HA32 24.55 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 24.55 \| Motor: 63A4
	HA32 48.75 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 63A4
	HA32 60.67 63A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 63A4
	HA32 48.75 63B6	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 63B6
	HA32 60.67 63B6	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 63B6
	HA32 5.38 63B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 63B4
	HA32 6.52 63B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 63B4
	HA32 8.11 63B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 8.11 \| Motor: 63B4
	HA32 10.94 63B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 10.94 \| Motor: 63B4
	HA32 13.25 63B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 13.25 \| Motor: 63B4
	HA32 48.75 63B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 63B4
	HA32 60.67 63B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 63B4
	HA32 48.75 71A6	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 71A6
	HA32 60.67 71A6	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 71A6
	HA32 5.38 71A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 71A4
	HA32 6.52 71A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 71A4
	HA32 8.11 71A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 8.11 \| Motor: 71A4
	HA32 10.94 71A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 10.94 \| Motor: 71A4
	HA32 48.75 71A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 48.75 \| Motor: 71A4
	HA32 60.67 71A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 60.67 \| Motor: 71A4
	HA32 5.38 71B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 71B4
	HA32 6.52 71B4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 6.52 \| Motor: 71B4
	HA32 5.38 80A4	Legacy code (older catalogue edition) \| Unit: HA32 \| Ratio i: 5.38 \| Motor: 80A4
	HA33 166.61 63A4	Legacy code (older catalogue edition) \| Unit: HA33 \| Ratio i: 166.61 \| Motor: 63A4
	HA33 110.51 63B4	Legacy code (older catalogue edition) \| Unit: HA33 \| Ratio i: 110.51 \| Motor: 63B4
	HA41 1.45 71A4	Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 1.45 \| Motor: 71A4
	HA41 2.94 71A4	Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 2.94 \| Motor: 71A4
	HA41 1.45 71B4	Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 1.45 \| Motor: 71B4
	HA41 1.45 80A4	Legacy code (older catalogue edition) \| Unit: HA41 \| Ratio i: 1.45 \| Motor: 80A4
	HA42 48.75 63B4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 63B4
	HA42 60.67 63B4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 63B4
	HA42 48.75 71A6	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71A6
	HA42 60.67 71A6	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71A6
	HA42 48.75 71A4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71A4
	HA42 60.67 71A4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71A4
	HA42 48.75 71B6	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71B6
	HA42 60.67 71B6	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71B6
	HA42 48.75 71B4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 48.75 \| Motor: 71B4
	HA42 60.67 71B4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 60.67 \| Motor: 71B4
	HA42 5.38 90LL4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 5.38 \| Motor: 90LL4
	HA42 6.52 90LL4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 6.52 \| Motor: 90LL4
	HA42 8.11 90LL4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 8.11 \| Motor: 90LL4
	HA42 10.94 90LL4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 10.94 \| Motor: 90LL4
	HA42 13.25 90LL4	Legacy code (older catalogue edition) \| Unit: HA42 \| Ratio i: 13.25 \| Motor: 90LL4
	HA43 240.55 63A4	Legacy code (older catalogue edition) \| Unit: HA43 \| Ratio i: 240.55 \| Motor: 63A4
	HA43 166.61 63B4	Legacy code (older catalogue edition) \| Unit: HA43 \| Ratio i: 166.61 \| Motor: 63B4
	HA32	Legacy code (older catalogue edition) \| Unit: HA32
	HA33	Legacy code (older catalogue edition) \| Unit: HA33
	HA41	Legacy code (older catalogue edition) \| Unit: HA41
	HA43	Legacy code (older catalogue edition) \| Unit: HA43
	HA42	Legacy code (older catalogue edition) \| Unit: HA42

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

Motovario HA Helical Inline Gearmotors (HA31-HA43, 0.09-2.2 kW)
