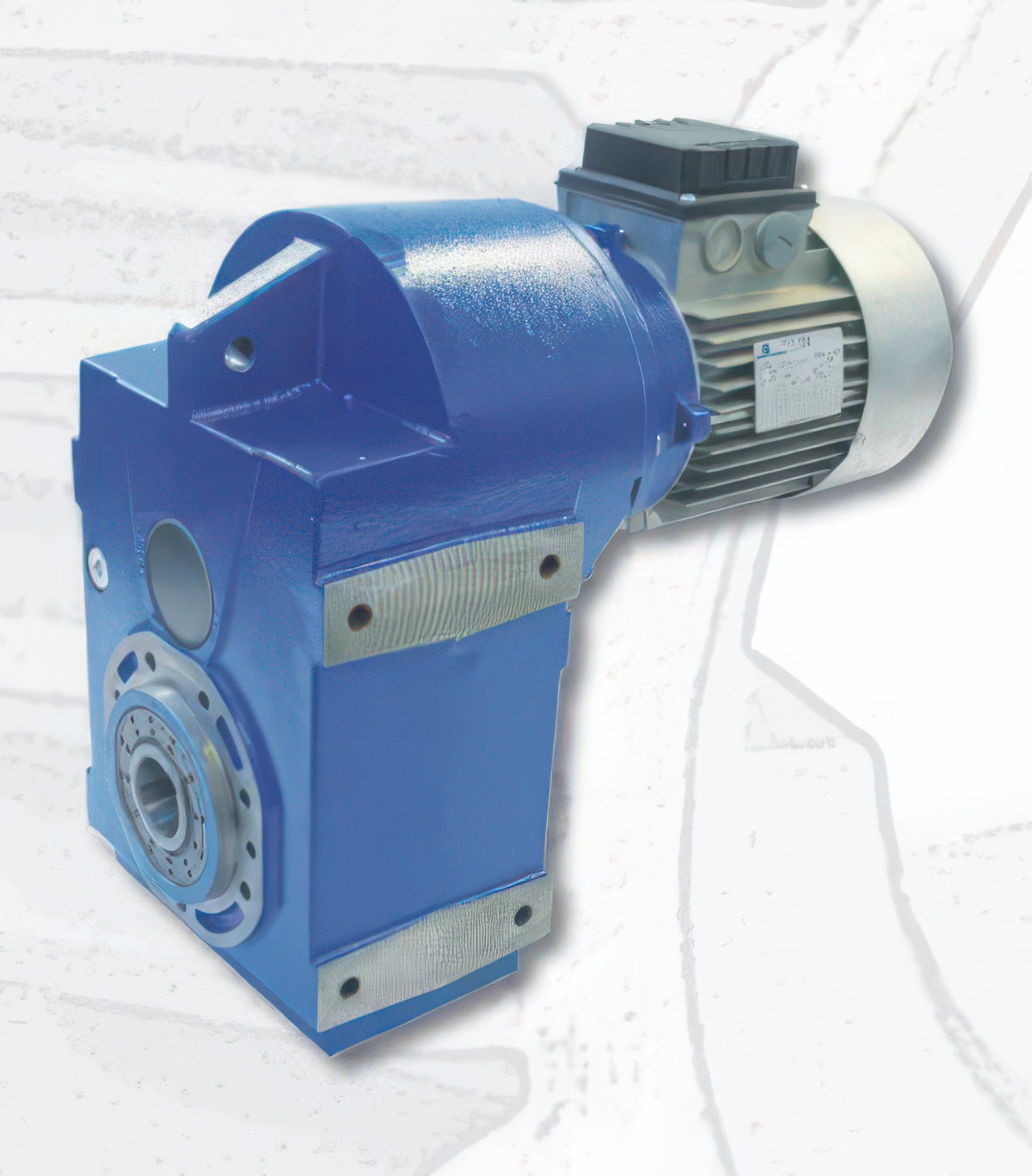

Motovario Shaft Mounted Helical Gear Reducer IS Series (Input Shaft Version)

Motovario Shaft Mounted Helical Gear Reducer IS Series (Input Shaft Version)

Shaft mounted helical gear reducers with solid input shaft, sizes 052 to 123 in two- and three-stage versions.

Key features

  • Performance tables at 1400 rpm input speed give output torque, ratio, input power, output speed and permissible radial loads on the input and output shafts
IS052 Ratio i: 8,63 - 72,83 | Max output torque M2 (Nm): 350 | Input power P1 (kW): 0,73 - 3,01 | Output speed n2 (rpm): 19,2 - 162,3 | Max output radial load Fr2 (N): 6000 | Listed ratings: 19
IS062 Ratio i: 8 - 67,47 | Max output torque M2 (Nm): 600 | Input power P1 (kW): 1,36 - 6,3 | Output speed n2 (rpm): 20,8 - 175 | Max output radial load Fr2 (N): 10000 | Listed ratings: 18
IS063 Ratio i: 81,43 - 267,16 | Max output torque M2 (Nm): 600 | Input power P1 (kW): 0,35 - 1,15 | Output speed n2 (rpm): 5,2 - 17,2 | Max output radial load Fr2 (N): 10000 | Listed ratings: 7
IS082 Ratio i: 7,34 - 61,98 | Max output torque M2 (Nm): 1000 | Input power P1 (kW): 2,46 - 11,44 | Output speed n2 (rpm): 22,6 - 190,8 | Max output radial load Fr2 (N): 18000 | Listed ratings: 19
IS053 Ratio i: 74,2 - 314,21 | Max output torque M2 (Nm): 350 | Input power P1 (kW): 0,17 - 0,74 | Output speed n2 (rpm): 4,5 - 18,9 | Max output radial load Fr2 (N): 6000 | Listed ratings: 9
IS083 Ratio i: 67,52 - 360,58 | Max output torque M2 (Nm): 1000 | Input power P1 (kW): 0,43 - 2,31 | Output speed n2 (rpm): 3,9 - 20,7 | Max output radial load Fr2 (N): 18000 | Listed ratings: 12
IS122 Ratio i: 8,48 - 66 | Max output torque M2 (Nm): 3000 | Input power P1 (kW): 6,94 - 27,92 | Output speed n2 (rpm): 21,2 - 165 | Max output radial load Fr2 (N): 30000 | Listed ratings: 18
IS102 Ratio i: 8,06 - 67,84 | Max output torque M2 (Nm): 1600 | Input power P1 (kW): 3,6 - 16,1 | Output speed n2 (rpm): 20,6 - 173,6 | Max output radial load Fr2 (N): 22000 | Listed ratings: 19
IS123 Ratio i: 71,07 - 238,93 | Max output torque M2 (Nm): 3000 | Input power P1 (kW): 1,96 - 5,92 | Output speed n2 (rpm): 5,9 - 19,7 | Max output radial load Fr2 (N): 30000 | Listed ratings: 9
IS103 Ratio i: 74,18 - 394,69 | Max output torque M2 (Nm): 1600 | Input power P1 (kW): 0,63 - 3,36 | Output speed n2 (rpm): 3,5 - 18,9 | Max output radial load Fr2 (N): 22000 | Listed ratings: 13
Shaft Mounted Gear ReducersMotovario
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Motovario Shaft Mounted Helical Gear Reducer IS Series (Input Shaft Version)

Brand Motovario·Shaft Mounted Gear Reducers

Available part numbers (10)

IS052, IS062, IS063, IS082, IS053, IS083, IS122, IS102, IS123, IS103

How to order

Send the Motovario part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IS052Ratio i: 8,63 - 72,83 | Max output torque M2 (Nm): 350 | Input power P1 (kW): 0,73 - 3,01 | Output speed n2 (rpm): 19,2 - 162,3 | Max output radial load Fr2 (N): 6000 | Listed ratings: 19
IS062Ratio i: 8 - 67,47 | Max output torque M2 (Nm): 600 | Input power P1 (kW): 1,36 - 6,3 | Output speed n2 (rpm): 20,8 - 175 | Max output radial load Fr2 (N): 10000 | Listed ratings: 18
IS063Ratio i: 81,43 - 267,16 | Max output torque M2 (Nm): 600 | Input power P1 (kW): 0,35 - 1,15 | Output speed n2 (rpm): 5,2 - 17,2 | Max output radial load Fr2 (N): 10000 | Listed ratings: 7
IS082Ratio i: 7,34 - 61,98 | Max output torque M2 (Nm): 1000 | Input power P1 (kW): 2,46 - 11,44 | Output speed n2 (rpm): 22,6 - 190,8 | Max output radial load Fr2 (N): 18000 | Listed ratings: 19
IS053Ratio i: 74,2 - 314,21 | Max output torque M2 (Nm): 350 | Input power P1 (kW): 0,17 - 0,74 | Output speed n2 (rpm): 4,5 - 18,9 | Max output radial load Fr2 (N): 6000 | Listed ratings: 9
IS083Ratio i: 67,52 - 360,58 | Max output torque M2 (Nm): 1000 | Input power P1 (kW): 0,43 - 2,31 | Output speed n2 (rpm): 3,9 - 20,7 | Max output radial load Fr2 (N): 18000 | Listed ratings: 12
IS122Ratio i: 8,48 - 66 | Max output torque M2 (Nm): 3000 | Input power P1 (kW): 6,94 - 27,92 | Output speed n2 (rpm): 21,2 - 165 | Max output radial load Fr2 (N): 30000 | Listed ratings: 18
IS102Ratio i: 8,06 - 67,84 | Max output torque M2 (Nm): 1600 | Input power P1 (kW): 3,6 - 16,1 | Output speed n2 (rpm): 20,6 - 173,6 | Max output radial load Fr2 (N): 22000 | Listed ratings: 19
IS123Ratio i: 71,07 - 238,93 | Max output torque M2 (Nm): 3000 | Input power P1 (kW): 1,96 - 5,92 | Output speed n2 (rpm): 5,9 - 19,7 | Max output radial load Fr2 (N): 30000 | Listed ratings: 9
IS103Ratio i: 74,18 - 394,69 | Max output torque M2 (Nm): 1600 | Input power P1 (kW): 0,63 - 3,36 | Output speed n2 (rpm): 3,5 - 18,9 | Max output radial load Fr2 (N): 22000 | Listed ratings: 13
