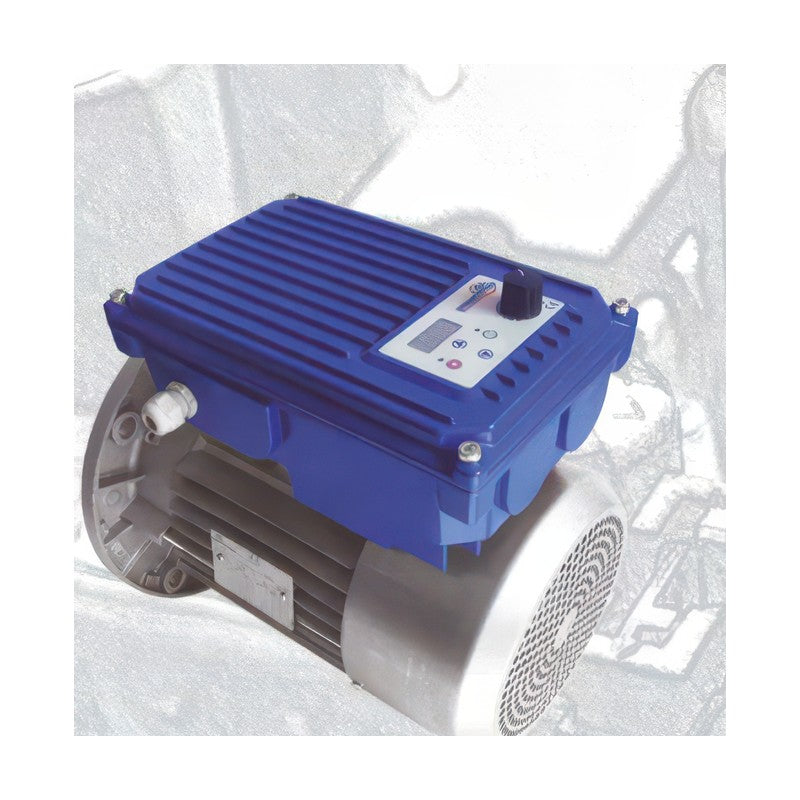

Motovario SMARTDRIVE Inverter Motors (IEC 63-112, 0.09-3 kW)

Motovario SMARTDRIVE Inverter Motors (IEC 63-112, 0.09-3 kW)

Motovario SMARTDRIVE combines a three-phase asynchronous T/TB motor with a motor-mounted frequency inverter for compact variable-speed drives from 0.09 to 3 kW.

Key features

  • Inverter mounted directly on IEC 63-112 asynchronous motors, 4 and 6 poles; brake motor (TB) version available
  • Single-phase 230 V supply (motor 63-80, up to 0.75 kW) or three-phase 400 V supply (motor 63-112, up to 3 kW)
  • Sensorless vector or scalar V/f control, 0-200 Hz output, 0.1 Hz resolution, 150% overload for 60 s
  • On-board keypad and potentiometer; remote keypad (K) or remote keypad plus potentiometer (P) options
  • Optional boards: I/O (relay, analogue in/out), RS485 (proprietary/Modbus), CANBus; brake resistor prearrangement on 3PH
  • Three-phase delta connection gives constant torque up to 87 Hz for extended speed range

Specifications

Brand Motovario
Motor type T (standard) / TB (brake motor)
Mounting B3, B5, B14, B34, B35
Control method Sensorless vector or scalar V/f
Output frequency 0 to 200 Hz
Input supply 230 V 1PH or 400 V 3PH, +/-15%, 47-63 Hz
EMC class C2 to EN 61800-3
Protection IP55 (IP54)
Ambient temperature -5 to +45 C
Options Brake supply D/S, IC416 force-vent., RP resin, BR
Source Motovario SMARTDRIVE Inverter Motor catalog, p. 13-33
SMARTDRIVE 1PH T 63 4 0,12 D Motor: 63A4 | Supply/connection: Single-phase D (delta) (opt.) | Power Pnom: 0.12 kW | Torque Mnom: 0.86 Nm | Speed S1 nmax-nmin: 1340-800 rpm | Current Inom: 0.85 A
SMARTDRIVE 1PH T 63 4 0,18 D Motor: 63B4 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.18 kW | Torque Mnom: 1.29 Nm | Speed S1 nmax-nmin: 1330-800 rpm | Current Inom: 1.16 A
SMARTDRIVE 1PH T 63 4 0,22 D Motor: 63C4 | Supply/connection: Single-phase D (delta) (opt.) | Power Pnom: 0.22 kW | Torque Mnom: 1.58 Nm | Speed S1 nmax-nmin: 1330-800 rpm | Current Inom: 1.52 A
SMARTDRIVE 1PH T 63 4 0,25 D Motor: 63D4 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.25 kW | Torque Mnom: 1.8 Nm | Speed S1 nmax-nmin: 1330-800 rpm | Current Inom: 1.37 A
SMARTDRIVE 1PH T 71 4 0,25 D Motor: 71A4 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.25 kW | Torque Mnom: 1.72 Nm | Speed S1 nmax-nmin: 1390-840 rpm | Current Inom: 1.35 A
SMARTDRIVE 1PH T 71 4 0,37 D Motor: 71B4 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.37 kW | Torque Mnom: 2.6 Nm | Speed S1 nmax-nmin: 1380-830 rpm | Current Inom: 1.91 A
SMARTDRIVE 1PH T 71 4 0,55 D Motor: 71C4 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.55 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 1370-820 rpm | Current Inom: 2.6 A
SMARTDRIVE 1PH T 80 4 0,55 D Motor: 80A4 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.55 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 1400-840 rpm | Current Inom: 2.56 A
SMARTDRIVE 1PH T 80 4 0,75 D Motor: 80B4 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.75 kW | Torque Mnom: 5.1 Nm | Speed S1 nmax-nmin: 1400-840 rpm | Current Inom: 3.33 A
SMARTDRIVE 1PH T 63 6 0,09 D Motor: 63A6 | Supply/connection: Single-phase D (delta) (opt.) | Power Pnom: 0.09 kW | Torque Mnom: 0.97 Nm | Speed S1 nmax-nmin: 890-530 rpm | Current Inom: 0.9 A
SMARTDRIVE 1PH T 63 6 0,12 D Motor: 63B6 | Supply/connection: Single-phase D (delta) (opt.) | Power Pnom: 0.12 kW | Torque Mnom: 1.29 Nm | Speed S1 nmax-nmin: 890-530 rpm | Current Inom: 1.13 A
SMARTDRIVE 1PH T 63 6 0,15 D Motor: 63C6 | Supply/connection: Single-phase D (delta) (opt.) | Power Pnom: 0.15 kW | Torque Mnom: 1.63 Nm | Speed S1 nmax-nmin: 880-530 rpm | Current Inom: 1.25 A
SMARTDRIVE 1PH T 71 6 0,18 D Motor: 71A6 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.18 kW | Torque Mnom: 1.87 Nm | Speed S1 nmax-nmin: 920-550 rpm | Current Inom: 1.08 A
SMARTDRIVE 1PH T 71 6 0,25 D Motor: 71B6 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.25 kW | Torque Mnom: 2.6 Nm | Speed S1 nmax-nmin: 920-550 rpm | Current Inom: 1.42 A
SMARTDRIVE 1PH T 71 6 0,37 D Motor: 71C6 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.37 kW | Torque Mnom: 3.9 Nm | Speed S1 nmax-nmin: 900-540 rpm | Current Inom: 1.91 A
SMARTDRIVE 1PH T 80 6 0,37 D Motor: 80A6 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.37 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 930-560 rpm | Current Inom: 2.25 A
SMARTDRIVE 1PH T 80 6 0,55 D Motor: 80B6 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.55 kW | Torque Mnom: 5.6 Nm | Speed S1 nmax-nmin: 930-560 rpm | Current Inom: 3.1 A
SMARTDRIVE 1PH T 80 6 0,75 D Motor: 80C6 | Supply/connection: Single-phase D (delta) | Power Pnom: 0.75 kW | Torque Mnom: 8 Nm | Speed S1 nmax-nmin: 900-540 rpm | Current Inom: 3.8 A
SMARTDRIVE 3PH T 71 4 0,37 Y Motor: 71B4 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 0.37 kW | Torque Mnom: 2.6 Nm | Speed S1 nmax-nmin: 1380-830 rpm | Current Inom: 1.09 A
SMARTDRIVE 3PH T 71 4 0,55 Y Motor: 71C4 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 0.55 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 1370-820 rpm | Current Inom: 1.5 A
SMARTDRIVE 3PH T 80 4 0,55 Y Motor: 80A4 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 0.55 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 1400-840 rpm | Current Inom: 1.48 A
SMARTDRIVE 3PH T 80 4 0,75 Y Motor: 80B4 | Supply/connection: Three-phase Y (star) | Power Pnom: 0.75 kW | Torque Mnom: 5.1 Nm | Speed S1 nmax-nmin: 1400-840 rpm | Current Inom: 1.92 A
SMARTDRIVE 3PH T 80 4 1,1 Y Motor: 80D4 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 1.1 kW | Torque Mnom: 7.5 Nm | Speed S1 nmax-nmin: 1410-850 rpm | Current Inom: 2.6 A
SMARTDRIVE 3PH T 90 4 1,1 Y Motor: 90S4 | Supply/connection: Three-phase Y (star) | Power Pnom: 1.1 kW | Torque Mnom: 7.5 Nm | Speed S1 nmax-nmin: 1400-840 rpm | Current Inom: 2.78 A
SMARTDRIVE 3PH T 90 4 1,5 Y Motor: 90LA4 | Supply/connection: Three-phase Y (star) | Power Pnom: 1.5 kW | Torque Mnom: 10.2 Nm | Speed S1 nmax-nmin: 1400-840 rpm | Current Inom: 3.5 A
SMARTDRIVE 3PH T 90 4 1,85 Y Motor: 90LB4 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 1.85 kW | Torque Mnom: 12.6 Nm | Speed S1 nmax-nmin: 1400-840 rpm | Current Inom: 4.3 A
SMARTDRIVE 3PH T 100 4 2,2 Y Motor: 100LA4 | Supply/connection: Three-phase Y (star) | Power Pnom: 2.2 kW | Torque Mnom: 14.8 Nm | Speed S1 nmax-nmin: 1420-850 rpm | Current Inom: 5 A
SMARTDRIVE 3PH T 100 4 3 Y Motor: 100LB4 | Supply/connection: Three-phase Y (star) | Power Pnom: 3 kW | Torque Mnom: 20.2 Nm | Speed S1 nmax-nmin: 1420-850 rpm | Current Inom: 6.7 A
SMARTDRIVE 3PH T 71 6 0,37 Y Motor: 71C6 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 0.37 kW | Torque Mnom: 3.9 Nm | Speed S1 nmax-nmin: 900-540 rpm | Current Inom: 1.1 A
SMARTDRIVE 3PH T 80 6 0,37 Y Motor: 80A6 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 0.37 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 930-560 rpm | Current Inom: 1.3 A
SMARTDRIVE 3PH T 80 6 0,55 Y Motor: 80B6 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 0.55 kW | Torque Mnom: 5.6 Nm | Speed S1 nmax-nmin: 930-560 rpm | Current Inom: 1.8 A
SMARTDRIVE 3PH T 80 6 0,75 Y Motor: 80C6 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 0.75 kW | Torque Mnom: 8 Nm | Speed S1 nmax-nmin: 900-540 rpm | Current Inom: 2.2 A
SMARTDRIVE 3PH T 90 6 0,75 Y Motor: 90S6 | Supply/connection: Three-phase Y (star) | Power Pnom: 0.75 kW | Torque Mnom: 7.7 Nm | Speed S1 nmax-nmin: 930-560 rpm | Current Inom: 2.2 A
SMARTDRIVE 3PH T 90 6 1,1 Y Motor: 90L6 | Supply/connection: Three-phase Y (star) | Power Pnom: 1.1 kW | Torque Mnom: 11.3 Nm | Speed S1 nmax-nmin: 930-560 rpm | Current Inom: 3.2 A
SMARTDRIVE 3PH T 100 6 1,5 Y Motor: 100LA6 | Supply/connection: Three-phase Y (star) | Power Pnom: 1.5 kW | Torque Mnom: 15.2 Nm | Speed S1 nmax-nmin: 940-560 rpm | Current Inom: 4 A
SMARTDRIVE 3PH T 100 6 1,85 Y Motor: 100LB6 | Supply/connection: Three-phase Y (star) (opt.) | Power Pnom: 1.85 kW | Torque Mnom: 18.7 Nm | Speed S1 nmax-nmin: 945-570 rpm | Current Inom: 4.7 A
SMARTDRIVE 3PH T 112 6 2,2 Y Motor: 112M6 | Supply/connection: Three-phase Y (star) | Power Pnom: 2.2 kW | Torque Mnom: 22.1 Nm | Speed S1 nmax-nmin: 950-570 rpm | Current Inom: 5.7 A
SMARTDRIVE 3PH T 112 6 3 Y Motor: 112MS6 | Supply/connection: Three-phase Y (star) | Power Pnom: 3 kW | Torque Mnom: 30.2 Nm | Speed S1 nmax-nmin: 950-570 rpm | Current Inom: 6.9 A
SMARTDRIVE 3PH T 71 4 0,40 D Motor: 71A4 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 0.40 kW | Torque Mnom: 1.72 Nm | Speed S1 nmax-nmin: 2420-840 rpm | Current Inom: 1.35 A
SMARTDRIVE 3PH T 71 4 0,60 D Motor: 71B4 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 0.60 kW | Torque Mnom: 2.6 Nm | Speed S1 nmax-nmin: 2400-830 rpm | Current Inom: 1.91 A
SMARTDRIVE 3PH T 71 4 0,9 D Motor: 71C4 | Supply/connection: Three-phase D (delta) | Power Pnom: 0.9 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 2380-820 rpm | Current Inom: 2.6 A
SMARTDRIVE 3PH T 80 4 0,9 D Motor: 80A4 | Supply/connection: Three-phase D (delta) | Power Pnom: 0.9 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 2430-840 rpm | Current Inom: 2.56 A
SMARTDRIVE 3PH T 80 4 1,2 D Motor: 80B4 | Supply/connection: Three-phase D (delta) | Power Pnom: 1.2 kW | Torque Mnom: 5.1 Nm | Speed S1 nmax-nmin: 2430-840 rpm | Current Inom: 3.3 A
SMARTDRIVE 3PH T 80 4 1,5 D Motor: 80C4 | Supply/connection: Three-phase D (delta) | Power Pnom: 1.5 kW | Torque Mnom: 6.3 Nm | Speed S1 nmax-nmin: 2430-840 rpm | Current Inom: 4.1 A
SMARTDRIVE 3PH T 80 4 1,9 D Motor: 80D4 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 1.9 kW | Torque Mnom: 7.5 Nm | Speed S1 nmax-nmin: 2450-850 rpm | Current Inom: 4.5 A
SMARTDRIVE 3PH T 90 4 1,9 D Motor: 90S4 | Supply/connection: Three-phase D (delta) | Power Pnom: 1.9 kW | Torque Mnom: 7.5 Nm | Speed S1 nmax-nmin: 2430-840 rpm | Current Inom: 4.8 A
SMARTDRIVE 3PH T 90 4 2,5 D Motor: 90LA4 | Supply/connection: Three-phase D (delta) | Power Pnom: 2.5 kW | Torque Mnom: 10.2 Nm | Speed S1 nmax-nmin: 2430-840 rpm | Current Inom: 6.1 A
SMARTDRIVE 3PH T 90 4 3 D Motor: 90LB4 | Supply/connection: Three-phase D (delta) | Power Pnom: 3 kW | Torque Mnom: 12.6 Nm | Speed S1 nmax-nmin: 2430-840 rpm | Current Inom: 7.4 A
SMARTDRIVE 3PH T 71 6 0,30 D Motor: 71A6 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 0.30 kW | Torque Mnom: 1.87 Nm | Speed S1 nmax-nmin: 1600-550 rpm | Current Inom: 1.08 A
SMARTDRIVE 3PH T 71 6 0,40 D Motor: 71B6 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 0.40 kW | Torque Mnom: 2.6 Nm | Speed S1 nmax-nmin: 1600-550 rpm | Current Inom: 1.42 A
SMARTDRIVE 3PH T 71 6 0,60 D Motor: 71C6 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 0.60 kW | Torque Mnom: 3.9 Nm | Speed S1 nmax-nmin: 1560-540 rpm | Current Inom: 1.91 A
SMARTDRIVE 3PH T 80 6 0,60 D Motor: 80A6 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 0.60 kW | Torque Mnom: 3.8 Nm | Speed S1 nmax-nmin: 1620-560 rpm | Current Inom: 2.25 A
SMARTDRIVE 3PH T 80 6 0,9 D Motor: 80B6 | Supply/connection: Three-phase D (delta) | Power Pnom: 0.9 kW | Torque Mnom: 5.6 Nm | Speed S1 nmax-nmin: 1620-560 rpm | Current Inom: 3.1 A
SMARTDRIVE 3PH T 80 6 1,3 D Motor: 80C6 | Supply/connection: Three-phase D (delta) (opt.) | Power Pnom: 1.3 kW | Torque Mnom: 8 Nm | Speed S1 nmax-nmin: 1560-540 rpm | Current Inom: 3.8 A
SMARTDRIVE 3PH T 90 6 1,3 D Motor: 90S6 | Supply/connection: Three-phase D (delta) | Power Pnom: 1.3 kW | Torque Mnom: 7.7 Nm | Speed S1 nmax-nmin: 1620-560 rpm | Current Inom: 3.8 A
SMARTDRIVE 3PH T 90 6 1,9 D Motor: 90L6 | Supply/connection: Three-phase D (delta) | Power Pnom: 1.9 kW | Torque Mnom: 11.3 Nm | Speed S1 nmax-nmin: 1620-560 rpm | Current Inom: 5.5 A
SMARTDRIVE 3PH T 100 6 2,5 D Motor: 100LA6 | Supply/connection: Three-phase D (delta) | Power Pnom: 2.5 kW | Torque Mnom: 15.2 Nm | Speed S1 nmax-nmin: 1630-560 rpm | Current Inom: 6.9 A
63A4 Legacy code | Motor: 63A4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
63B4 Legacy code | Motor: 63B4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
63C4 Legacy code | Motor: 63C4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
63D4 Legacy code | Motor: 63D4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
71A4 Legacy code | Motor: 71A4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
71B4 Legacy code | Motor: 71B4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
71C4 Legacy code | Motor: 71C4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
80A4 Legacy code | Motor: 80A4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
80B4 Legacy code | Motor: 80B4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
63A6 Legacy code | Motor: 63A6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
63B6 Legacy code | Motor: 63B6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
63C6 Legacy code | Motor: 63C6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
71A6 Legacy code | Motor: 71A6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
71B6 Legacy code | Motor: 71B6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
71C6 Legacy code | Motor: 71C6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
80A6 Legacy code | Motor: 80A6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
80B6 Legacy code | Motor: 80B6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
80C6 Legacy code | Motor: 80C6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
80D4 Legacy code | Motor: 80D4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
90S4 Legacy code | Motor: 90S4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
90LA4 Legacy code | Motor: 90LA4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
90LB4 Legacy code | Motor: 90LB4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
100LA4 Legacy code | Motor: 100LA4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
100LB4 Legacy code | Motor: 100LB4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
90S6 Legacy code | Motor: 90S6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
90L6 Legacy code | Motor: 90L6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
100LA6 Legacy code | Motor: 100LA6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
100LB6 Legacy code | Motor: 100LB6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
112M6 Legacy code | Motor: 112M6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
112MS6 Legacy code | Motor: 112MS6 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
80C4 Legacy code | Motor: 80C4 | Note: size-level code from previous listing; specify full SMARTDRIVE designation
