• MUNJU HARDWARE 938-3 Sink Hinge
1 1

MUNJU HARDWARE 938-3 Sink Hinge

MUNJU HARDWARE 938-3 Sink Hinge

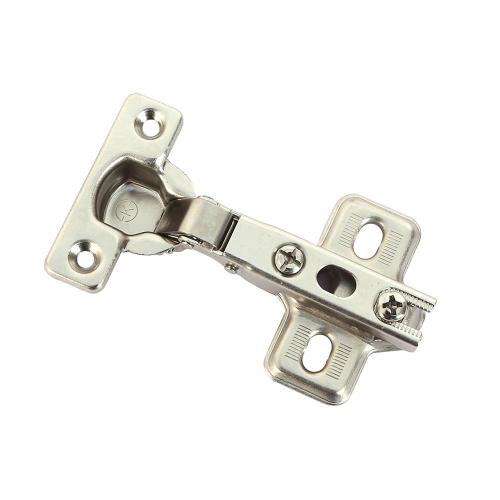

MUNJU HARDWARE 938-3 Sink Hinge is a cabinet and panel mounting hinge designed for reliable, concealed or surface-mounted door articulation, sourced direct from Korea.

Key features

  • Sink hinges of this type are commonly used in cabinetry, furniture assembly, and light enclosure fabrication where a flush, low-profile pivot point is required

Specifications

Depth 11.5
B 32
167-1407 90° 18T (938-3) | Depth: 11.5 | Method: - | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Specification: 26
167-1416 90° 15T (938-5) | Depth: 11.5 | Type: - | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Specification: 26
167-1425 MPN: M952-3 | 90 Degree 18T (M952-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Spec: 35
167-1434 MPN: M952-5 | 90° 15T (M952-5) | Depth: 11.5 | Method: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Drilling Specification: 35
167-1443 MPN: MC90-3 | 90° 18T (MC90-3) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Drilling Spec: 26
167-1452 MPN: H052M-3 | 105° 18T (H052M-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Hole Spec: 35
167-1461 MPN: H052M-5 | 105° 15T (H052M-5) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Drilling Spec: 35
167-1470 MPN: CC052-3 | 105° 18T (CC052-3) | Depth: 11.5 | Type: Quick Release MP | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Hole Specification: 35
167-1489 MPN: CC052-5 | 105° 15T (CC052-5) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Bore Spec: 35
167-1498 MPN: CC052N-3 | 105° 18T (CC052N-3) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 52 | B: 32 | Installation: Indoor | Opening Angle: 105 | Cup Hole Spec: 35
167-1513 MPN: M052-3 | 106° 18T (M052-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 106 | Cup Drilling Spec: 35
167-1522 MPN: M052-5 | 106° 15T (M052-5) | Depth: 11.5 | Method: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 106° | Cup Hole Specification: 35
167-1531 175° 18T (758-34) | Depth: 11.5 | Type: - | A: 48 | B: 32 | Installation: Outdoor | Opening Angle: 175 | Cup Hole Spec: 35
HardwareMUNJU HARDWARE
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MUNJU HARDWARE 938-3 Sink Hinge

Brand MUNJU HARDWARE·Hardware

Available part numbers (13)

167-1407, 167-1416, 167-1425, 167-1434, 167-1443, 167-1452, 167-1461, 167-1470, 167-1489, 167-1498 + 3 more — see full table ↓

How to order

Send the MUNJU HARDWARE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
167-140790° 18T (938-3) | Depth: 11.5 | Method: - | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Specification: 26
167-141690° 15T (938-5) | Depth: 11.5 | Type: - | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Specification: 26
167-1425MPN: M952-3 | 90 Degree 18T (M952-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Spec: 35
167-1434MPN: M952-5 | 90° 15T (M952-5) | Depth: 11.5 | Method: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Drilling Specification: 35
167-1443MPN: MC90-3 | 90° 18T (MC90-3) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 38 | B: 32 | Installation: Outdoor | Opening Angle: 90 | Cup Hole Drilling Spec: 26
167-1452MPN: H052M-3 | 105° 18T (H052M-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Hole Spec: 35
167-1461MPN: H052M-5 | 105° 15T (H052M-5) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Drilling Spec: 35
167-1470MPN: CC052-3 | 105° 18T (CC052-3) | Depth: 11.5 | Type: Quick Release MP | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Hole Specification: 35
167-1489MPN: CC052-5 | 105° 15T (CC052-5) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 105 | Cup Bore Spec: 35
167-1498MPN: CC052N-3 | 105° 18T (CC052N-3) | Depth: 11.5 | Type: One-Touch Detachable MP | A: 52 | B: 32 | Installation: Indoor | Opening Angle: 105 | Cup Hole Spec: 35
167-1513MPN: M052-3 | 106° 18T (M052-3) | Depth: 11.5 | Type: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 106 | Cup Drilling Spec: 35
167-1522MPN: M052-5 | 106° 15T (M052-5) | Depth: 11.5 | Method: - | A: 52 | B: 32 | Installation: Outdoor | Opening Angle: 106° | Cup Hole Specification: 35
167-1531175° 18T (758-34) | Depth: 11.5 | Type: - | A: 48 | B: 32 | Installation: Outdoor | Opening Angle: 175 | Cup Hole Spec: 35
