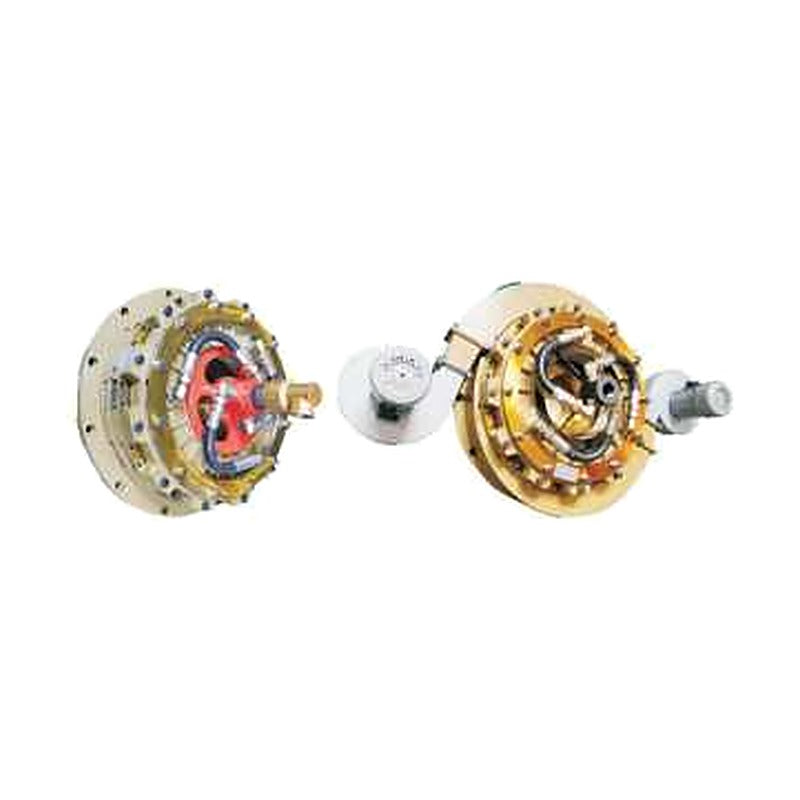

OMPI SK Pneumatic Multi-Plate Clutch (Separate Type, SK0195-SK01290)

OMPI SK Pneumatic Multi-Plate Clutch (Separate Type, SK0195-SK01290)

The SK series is a separate (stand-alone) pneumatic dry spring-engaged multi-plate air clutch. Single, two- or three-plate versions raise torque as needed; it is used on bolt formers, steel plate cutters and other heavy machinery.

Key features

  • Single (M), two-plate (B) or three-plate (T) friction versions
  • Excellent heat dissipation and low inertia mass
  • Suited to presses over 500 t with high inertia
  • Simple installation
  • Shim removal restores gap after wear, extending life

Specifications

Operation Pneumatic, dry, separate clutch
Plate types M single, B two-plate, T three-plate
Friction blocks F versions (B-F) for sizes 0505-1290
Spring pressure 1, 2 or 3 (torque columns (1)-(3))
Mounting Horizontal axis only
Code example SK-0915M-1/X
Source OMPI clutch & brake brochure (Daedong edition), SK/SB type
SK0195 Bore max: 55 mm | Max speed: 2800 rpm | Clutch M (1): 275 Nm | Clutch B (1): 546 Nm | Clutch T (1): 817 Nm | Weight M: 8 kg
SK0235 Bore max: 75 mm | Max speed: 2240 rpm | Clutch M (1): 505 Nm | Clutch B (1): 1011 Nm | Clutch T (1): 1499 Nm | Weight M: 13 kg
SK0300 Bore max: 100 mm | Max speed: 1700 rpm | Clutch M (1): 1045 Nm | Clutch B (1): 2088 Nm | Clutch T (1): 3126 Nm | Weight M: 23 kg
SK0360 Bore max: 130 mm | Max speed: 1450 rpm | Clutch M (1): 2065 Nm | Clutch B (1): 4129 Nm | Clutch T (1): 6194 Nm | Weight M: 38 kg
SK0405 Bore max: 155 mm | Max speed: 1250 rpm | Clutch M (1): 3242 Nm | Clutch B (1): 6524 Nm | Clutch T (1): 9773 Nm | Weight M: 54 kg
SK0455 Bore max: 170 mm | Max speed: 1120 rpm | Clutch M (1): 4309 Nm | Clutch B (1): 8569 Nm | Clutch T (1): 12757 Nm | Weight M: 67 kg
SK0505 Bore max: 205 mm | Max speed: 1000 rpm | Clutch M (1): 5718 Nm | Clutch B (1): 13319 Nm | Clutch T (1): 19892 Nm | Weight M: 101 kg
SK0590 Bore max: 225 mm | Max speed: 850 rpm | Clutch M (1): 9540 Nm | Clutch B (1): 18834 Nm | Clutch T (1): 28095 Nm | Weight M: 149 kg
SK0670 Bore max: 285 mm | Max speed: 750 rpm | Clutch M (1): 13023 Nm | Clutch B (1): 25732 Nm | Clutch T (1): 38598 Nm | Weight M: 209 kg
SK0740 Bore max: 285 mm | Max speed: 670 rpm | Clutch M (1): 17932 Nm | Clutch B (1): 35297 Nm | Clutch T (1): 52946 Nm | Weight M: 280 kg
SK0850 Bore max: 325 mm | Max speed: 590 rpm | Clutch M (1): 23069 Nm | Clutch B (1): 46137 Nm | Clutch T (1): 68785 Nm | Weight M: 419 kg
SK0950 Bore max: 355 mm | Max speed: 520 rpm | Clutch M (1): 35293 Nm | Clutch B (1): 71115 Nm | Clutch T (1): 106672 Nm | Weight M: 575 kg
SK01040 Bore max: 425 mm | Max speed: 480 rpm | Clutch M (1): 47207 Nm | Clutch B (1): 94415 Nm | Clutch T (1): 140599 Nm | Weight M: 688 kg
SK01160 Bore max: 515 mm | Max speed: 420 rpm | Clutch M (1): 66308 Nm | Clutch B (1): 132615 Nm | Clutch T (1): 196670 Nm | Weight M: 1167 kg
SK01290 Bore max: 555 mm | Max speed: 360 rpm | Clutch M (1): 104253 Nm | Clutch B (1): 208506 Nm | Clutch T (1): 310331 Nm | Weight M: 1515 kg
SK0505B-F Bore max: 205 mm | Max speed: 1000 rpm | Clutch M (1): 6718 Nm | Clutch B (1): 13319 Nm | Clutch T (1): - | Weight M: 105 kg
SK0590B-F Bore max: 225 mm | Max speed: 850 rpm | Clutch M (1): 9540 Nm | Clutch B (1): 18834 Nm | Clutch T (1): - | Weight M: 158 kg
SK0670B-F Bore max: 285 mm | Max speed: 750 rpm | Clutch M (1): 13023 Nm | Clutch B (1): 25732 Nm | Clutch T (1): - | Weight M: 237 kg
SK0740B-F Bore max: 285 mm | Max speed: 670 rpm | Clutch M (1): 17932 Nm | Clutch B (1): 35297 Nm | Clutch T (1): - | Weight M: 334 kg
SK0850B-F Bore max: 325 mm | Max speed: 590 rpm | Clutch M (1): 23069 Nm | Clutch B (1): 46137 Nm | Clutch T (1): - | Weight M: 511 kg
SK0950B-F Bore max: 355 mm | Max speed: 520 rpm | Clutch M (1): 35293 Nm | Clutch B (1): 71115 Nm | Clutch T (1): - | Weight M: 671 kg
SK1040B-F Bore max: 425 mm | Max speed: 480 rpm | Clutch M (1): 47207 Nm | Clutch B (1): 94415 Nm | Clutch T (1): - | Weight M: 840 kg
SK1160B-F Bore max: 515 mm | Max speed: 420 rpm | Clutch M (1): 66308 Nm | Clutch B (1): 132615 Nm | Clutch T (1): - | Weight M: 1278 kg
SK1290B-F Bore max: 555 mm | Max speed: 380 rpm | Clutch M (1): 104253 Nm | Clutch B (1): 208506 Nm | Clutch T (1): - | Weight M: 1652 kg
Clutch BrakeOMPI
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

OMPI SK Pneumatic Multi-Plate Clutch (Separate Type, SK0195-SK01290)

Brand OMPI·Clutch Brake

Available part numbers (24)

SK0195, SK0235, SK0300, SK0360, SK0405, SK0455, SK0505, SK0590, SK0670, SK0740 + 14 more — see full table ↓

How to order

Send the OMPI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SK0195Bore max: 55 mm | Max speed: 2800 rpm | Clutch M (1): 275 Nm | Clutch B (1): 546 Nm | Clutch T (1): 817 Nm | Weight M: 8 kg
SK0235Bore max: 75 mm | Max speed: 2240 rpm | Clutch M (1): 505 Nm | Clutch B (1): 1011 Nm | Clutch T (1): 1499 Nm | Weight M: 13 kg
SK0300Bore max: 100 mm | Max speed: 1700 rpm | Clutch M (1): 1045 Nm | Clutch B (1): 2088 Nm | Clutch T (1): 3126 Nm | Weight M: 23 kg
SK0360Bore max: 130 mm | Max speed: 1450 rpm | Clutch M (1): 2065 Nm | Clutch B (1): 4129 Nm | Clutch T (1): 6194 Nm | Weight M: 38 kg
SK0405Bore max: 155 mm | Max speed: 1250 rpm | Clutch M (1): 3242 Nm | Clutch B (1): 6524 Nm | Clutch T (1): 9773 Nm | Weight M: 54 kg
SK0455Bore max: 170 mm | Max speed: 1120 rpm | Clutch M (1): 4309 Nm | Clutch B (1): 8569 Nm | Clutch T (1): 12757 Nm | Weight M: 67 kg
SK0505Bore max: 205 mm | Max speed: 1000 rpm | Clutch M (1): 5718 Nm | Clutch B (1): 13319 Nm | Clutch T (1): 19892 Nm | Weight M: 101 kg
SK0590Bore max: 225 mm | Max speed: 850 rpm | Clutch M (1): 9540 Nm | Clutch B (1): 18834 Nm | Clutch T (1): 28095 Nm | Weight M: 149 kg
SK0670Bore max: 285 mm | Max speed: 750 rpm | Clutch M (1): 13023 Nm | Clutch B (1): 25732 Nm | Clutch T (1): 38598 Nm | Weight M: 209 kg
SK0740Bore max: 285 mm | Max speed: 670 rpm | Clutch M (1): 17932 Nm | Clutch B (1): 35297 Nm | Clutch T (1): 52946 Nm | Weight M: 280 kg
SK0850Bore max: 325 mm | Max speed: 590 rpm | Clutch M (1): 23069 Nm | Clutch B (1): 46137 Nm | Clutch T (1): 68785 Nm | Weight M: 419 kg
SK0950Bore max: 355 mm | Max speed: 520 rpm | Clutch M (1): 35293 Nm | Clutch B (1): 71115 Nm | Clutch T (1): 106672 Nm | Weight M: 575 kg
SK01040Bore max: 425 mm | Max speed: 480 rpm | Clutch M (1): 47207 Nm | Clutch B (1): 94415 Nm | Clutch T (1): 140599 Nm | Weight M: 688 kg
SK01160Bore max: 515 mm | Max speed: 420 rpm | Clutch M (1): 66308 Nm | Clutch B (1): 132615 Nm | Clutch T (1): 196670 Nm | Weight M: 1167 kg
SK01290Bore max: 555 mm | Max speed: 360 rpm | Clutch M (1): 104253 Nm | Clutch B (1): 208506 Nm | Clutch T (1): 310331 Nm | Weight M: 1515 kg
SK0505B-FBore max: 205 mm | Max speed: 1000 rpm | Clutch M (1): 6718 Nm | Clutch B (1): 13319 Nm | Clutch T (1): - | Weight M: 105 kg
SK0590B-FBore max: 225 mm | Max speed: 850 rpm | Clutch M (1): 9540 Nm | Clutch B (1): 18834 Nm | Clutch T (1): - | Weight M: 158 kg
SK0670B-FBore max: 285 mm | Max speed: 750 rpm | Clutch M (1): 13023 Nm | Clutch B (1): 25732 Nm | Clutch T (1): - | Weight M: 237 kg
SK0740B-FBore max: 285 mm | Max speed: 670 rpm | Clutch M (1): 17932 Nm | Clutch B (1): 35297 Nm | Clutch T (1): - | Weight M: 334 kg
SK0850B-FBore max: 325 mm | Max speed: 590 rpm | Clutch M (1): 23069 Nm | Clutch B (1): 46137 Nm | Clutch T (1): - | Weight M: 511 kg
SK0950B-FBore max: 355 mm | Max speed: 520 rpm | Clutch M (1): 35293 Nm | Clutch B (1): 71115 Nm | Clutch T (1): - | Weight M: 671 kg
SK1040B-FBore max: 425 mm | Max speed: 480 rpm | Clutch M (1): 47207 Nm | Clutch B (1): 94415 Nm | Clutch T (1): - | Weight M: 840 kg
SK1160B-FBore max: 515 mm | Max speed: 420 rpm | Clutch M (1): 66308 Nm | Clutch B (1): 132615 Nm | Clutch T (1): - | Weight M: 1278 kg
SK1290B-FBore max: 555 mm | Max speed: 380 rpm | Clutch M (1): 104253 Nm | Clutch B (1): 208506 Nm | Clutch T (1): - | Weight M: 1652 kg
