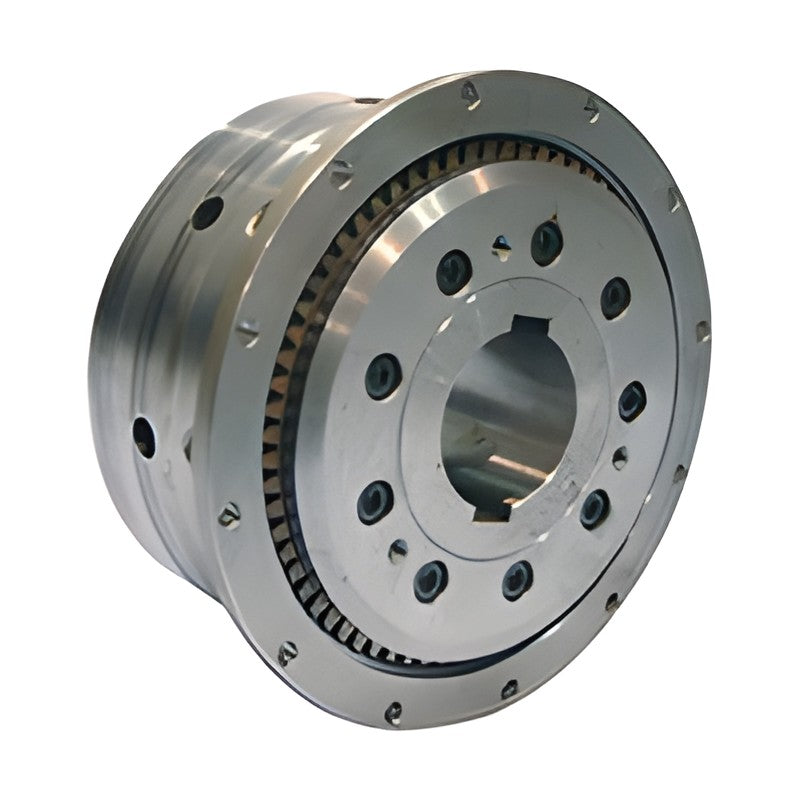

OMPI WO Hydraulic Wet Multi-Disc Clutch-Brake (WO012-WO3200)

OMPI WO Hydraulic Wet Multi-Disc Clutch-Brake (WO012-WO3200)

The WO series is a hydraulically operated wet multi-disc clutch-brake: springs apply the brake, and oil pressure clamps the friction discs to drive. It is used on presses, steel plate cutters and bolt formers.

Key features

  • Low operating noise
  • Low maintenance
  • High torque from small volume and low inertia
  • Runs under high-temperature conditions
  • Custom clutch/brake design available

Specifications

Operation Hydraulic, wet multi-disc
Versions Standard or increased clutch and brake
Operating pressure 60 to 87 bar
Clutch static torque 1,020 to 321,550 Nm
Brake dynamic torque 560 to 150,000 Nm (max springs)
Max speed 2,000 to 415 rpm
Code example WO-012-020-13/X
Source OMPI clutch & brake brochure (Daedong edition), WO type
WO012-005 Version: Std clutch / std brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: 1020 Nm | Brake dynamic: 560 Nm
WO020-005 Version: Inc. clutch / std brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: 1630 Nm | Brake dynamic: 560 Nm
WO012-010 Version: Std clutch / inc. brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: on request | Brake dynamic: on request
WO020-010 Version: Inc. clutch / inc. brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: on request | Brake dynamic: on request
WO025-010 Version: Std clutch / std brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: 2490 Nm | Brake dynamic: 1000 Nm
WO040-010 Version: Inc. clutch / std brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: 3980 Nm | Brake dynamic: 1000 Nm
WO025-016 Version: Std clutch / inc. brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: on request | Brake dynamic: on request
WO040-016 Version: Inc. clutch / inc. brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: on request | Brake dynamic: on request
WO050-024 Version: Std clutch / std brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: 6560 Nm | Brake dynamic: 2400 Nm
WO080-024 Version: Inc. clutch / std brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: 9840 Nm | Brake dynamic: 2400 Nm
WO050-036 Version: Std clutch / inc. brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: on request | Brake dynamic: on request
WO080-036 Version: Inc. clutch / inc. brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: on request | Brake dynamic: on request
WO100-056 Version: Std clutch / std brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: 12390 Nm | Brake dynamic: 4800 Nm
WO160-056 Version: Inc. clutch / std brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: 18590 Nm | Brake dynamic: 4800 Nm
WO100-072 Version: Std clutch / inc. brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: on request | Brake dynamic: on request
WO160-072 Version: Inc. clutch / inc. brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: on request | Brake dynamic: on request
WO200-112 Version: Std clutch / std brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: 25700 Nm | Brake dynamic: 9600 Nm
WO320-112 Version: Inc. clutch / std brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: 42830 Nm | Brake dynamic: 9600 Nm
WO200-144 Version: Std clutch / inc. brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: on request | Brake dynamic: on request
WO320-144 Version: Inc. clutch / inc. brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: on request | Brake dynamic: on request
WO400-224 Version: Std clutch / std brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: 52080 Nm | Brake dynamic: 23100 Nm
WO640-224 Version: Inc. clutch / std brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: 74400 Nm | Brake dynamic: 23100 Nm
WO400-330 Version: Std clutch / inc. brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: on request | Brake dynamic: on request
WO640-330 Version: Inc. clutch / inc. brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: on request | Brake dynamic: on request
WO1100-0840 Version: Std clutch / std brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: 113800 Nm | Brake dynamic: 84000 Nm
WO1600-0840 Version: Inc. clutch / std brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: 162560 Nm | Brake dynamic: 84000 Nm
WO1100-1200 Version: Std clutch / inc. brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: on request | Brake dynamic: on request
WO1600-1200 Version: Inc. clutch / inc. brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: on request | Brake dynamic: on request
WO2300-1500 Version: Std clutch / std brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: 225080 Nm | Brake dynamic: 150000 Nm
WO3200-1500 Version: Inc. clutch / std brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: 321550 Nm | Brake dynamic: 150000 Nm
WO2300-2100 Version: Std clutch / inc. brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: on request | Brake dynamic: on request
WO3200-2100 Version: Inc. clutch / inc. brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: on request | Brake dynamic: on request
Clutch BrakeOMPI
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

OMPI WO Hydraulic Wet Multi-Disc Clutch-Brake (WO012-WO3200)

Brand OMPI·Clutch Brake

Available part numbers (32)

WO012-005, WO020-005, WO012-010, WO020-010, WO025-010, WO040-010, WO025-016, WO040-016, WO050-024, WO080-024 + 22 more — see full table ↓

How to order

Send the OMPI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WO012-005Version: Std clutch / std brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: 1020 Nm | Brake dynamic: 560 Nm
WO020-005Version: Inc. clutch / std brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: 1630 Nm | Brake dynamic: 560 Nm
WO012-010Version: Std clutch / inc. brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: on request | Brake dynamic: on request
WO020-010Version: Inc. clutch / inc. brake | Bore max: 60 mm | Max speed: 2000 rpm | Clutch static: on request | Brake dynamic: on request
WO025-010Version: Std clutch / std brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: 2490 Nm | Brake dynamic: 1000 Nm
WO040-010Version: Inc. clutch / std brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: 3980 Nm | Brake dynamic: 1000 Nm
WO025-016Version: Std clutch / inc. brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: on request | Brake dynamic: on request
WO040-016Version: Inc. clutch / inc. brake | Bore max: 75 mm | Max speed: 1700 rpm | Clutch static: on request | Brake dynamic: on request
WO050-024Version: Std clutch / std brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: 6560 Nm | Brake dynamic: 2400 Nm
WO080-024Version: Inc. clutch / std brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: 9840 Nm | Brake dynamic: 2400 Nm
WO050-036Version: Std clutch / inc. brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: on request | Brake dynamic: on request
WO080-036Version: Inc. clutch / inc. brake | Bore max: 95 mm | Max speed: 1300 rpm | Clutch static: on request | Brake dynamic: on request
WO100-056Version: Std clutch / std brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: 12390 Nm | Brake dynamic: 4800 Nm
WO160-056Version: Inc. clutch / std brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: 18590 Nm | Brake dynamic: 4800 Nm
WO100-072Version: Std clutch / inc. brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: on request | Brake dynamic: on request
WO160-072Version: Inc. clutch / inc. brake | Bore max: 130 mm | Max speed: 1000 rpm | Clutch static: on request | Brake dynamic: on request
WO200-112Version: Std clutch / std brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: 25700 Nm | Brake dynamic: 9600 Nm
WO320-112Version: Inc. clutch / std brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: 42830 Nm | Brake dynamic: 9600 Nm
WO200-144Version: Std clutch / inc. brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: on request | Brake dynamic: on request
WO320-144Version: Inc. clutch / inc. brake | Bore max: 160 mm | Max speed: 850 rpm | Clutch static: on request | Brake dynamic: on request
WO400-224Version: Std clutch / std brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: 52080 Nm | Brake dynamic: 23100 Nm
WO640-224Version: Inc. clutch / std brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: 74400 Nm | Brake dynamic: 23100 Nm
WO400-330Version: Std clutch / inc. brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: on request | Brake dynamic: on request
WO640-330Version: Inc. clutch / inc. brake | Bore max: 200 mm | Max speed: 700 rpm | Clutch static: on request | Brake dynamic: on request
WO1100-0840Version: Std clutch / std brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: 113800 Nm | Brake dynamic: 84000 Nm
WO1600-0840Version: Inc. clutch / std brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: 162560 Nm | Brake dynamic: 84000 Nm
WO1100-1200Version: Std clutch / inc. brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: on request | Brake dynamic: on request
WO1600-1200Version: Inc. clutch / inc. brake | Bore max: 250 mm | Max speed: 500 rpm | Clutch static: on request | Brake dynamic: on request
WO2300-1500Version: Std clutch / std brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: 225080 Nm | Brake dynamic: 150000 Nm
WO3200-1500Version: Inc. clutch / std brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: 321550 Nm | Brake dynamic: 150000 Nm
WO2300-2100Version: Std clutch / inc. brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: on request | Brake dynamic: on request
WO3200-2100Version: Inc. clutch / inc. brake | Bore max: 310 mm | Max speed: 415 rpm | Clutch static: on request | Brake dynamic: on request
