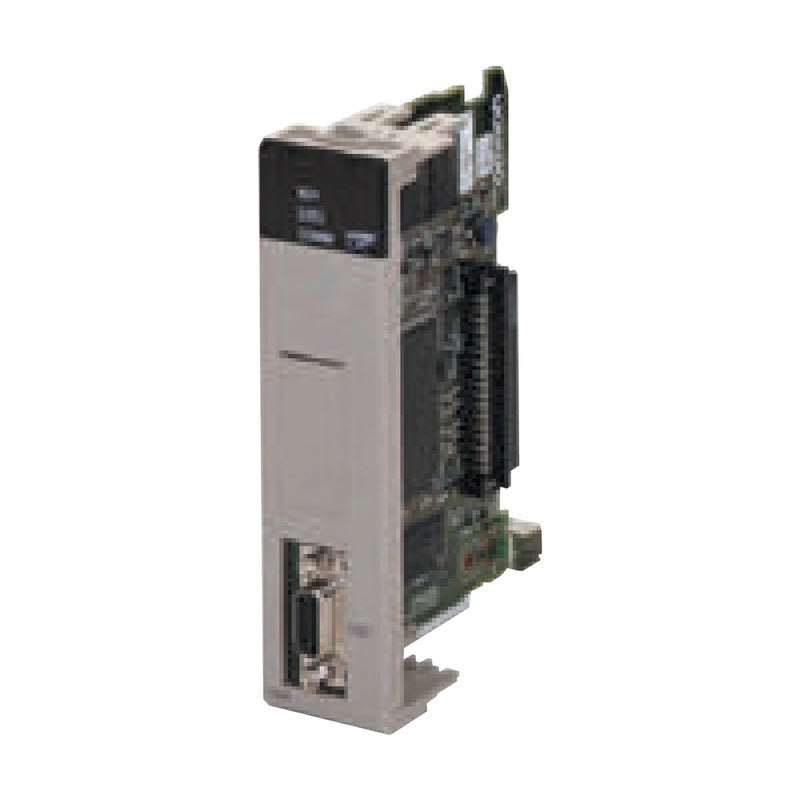

Omron CS1W-LCB01/LCB05 Loop Control Board

Omron CS1W-LCB01/LCB05 Loop Control Board

CS-series Inner Board loop controller for temperature, pressure and flow process control.

Key features

  • DCS-type loop control functions in a CPU Inner Board
  • LCB01: up to 50 control and operation blocks; LCB05: up to 500
  • RS-232C port for ES100X external controllers
  • Super-capacitor and flash memory backup of function block data

Specifications

Series CS1
Mounting CS1 CPU Unit Inner Board slot
Applicable CPU CS1G/H-CPU@@H, CS1D-CPU@@S/SA
Current consumption 0.22 A (5 V)
Support software CX-One (CX-Process Tool)
Source Omron CSM_CS1W-LCB_DS_J_1_22 (Japanese ed.), p. 3-4
CS1W-LCB01 Function blocks: 50 max. | Type: Loop Control Board | Current: 0.22 A (5 V)
CS1W-LCB05 Function blocks: 500 max. | Type: Loop Control Board | Current: 0.22 A (5 V)
PLC Special UnitsOmron
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron CS1W-LCB01/LCB05 Loop Control Board

Brand Omron·PLC Special Units

Available part numbers (2)

CS1W-LCB01, CS1W-LCB05

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CS1W-LCB01Function blocks: 50 max. | Type: Loop Control Board | Current: 0.22 A (5 V)
CS1W-LCB05Function blocks: 500 max. | Type: Loop Control Board | Current: 0.22 A (5 V)
