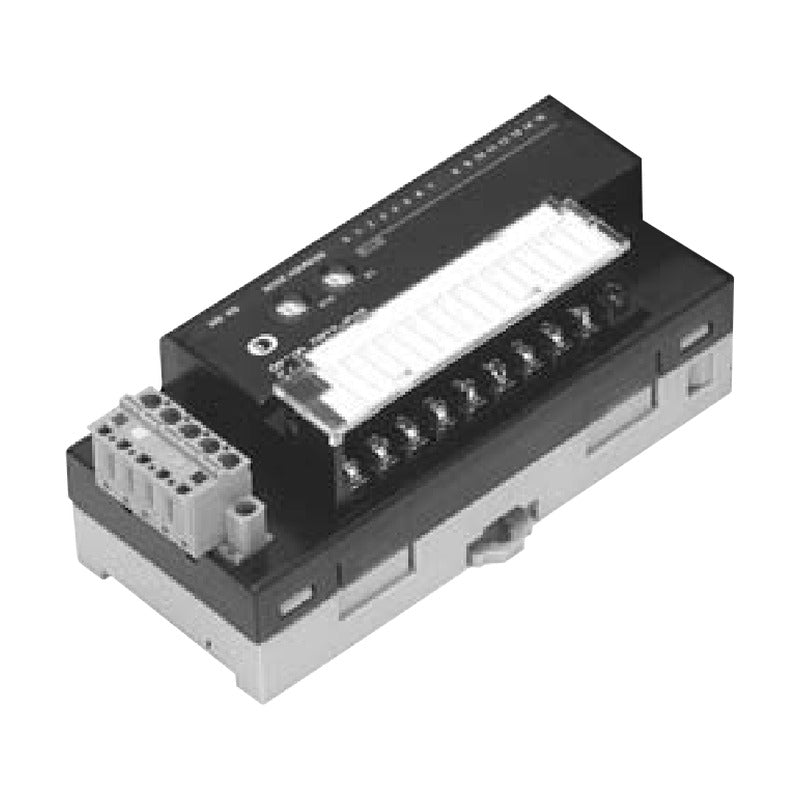

Omron DRT2 DeviceNet Remote I/O Terminal (Transistor, 8/16-point)

Omron DRT2 DeviceNet Remote I/O Terminal (Transistor, 8/16-point)

DRT2-series DeviceNet Smart Slave remote I/O terminals with transistor inputs/outputs and detachable M3 terminal blocks.

Key features

  • Smart Slave functions: network power voltage monitor, contact operation counter and total ON time monitor
  • Maintenance data collected over DeviceNet without affecting control performance
  • No baud rate setting required; detachable terminal block for easy maintenance
  • 16-point models accept one XWT Expansion Unit (not 8-point or DRT2-MD16 models)
  • NPN and PNP versions of every model

Specifications

Series DRT2 Smart Slave
Network DeviceNet
I/O connection M3 screw terminal block (detachable)
I/O power supply 24 VDC
Internal power Supplied from communications connector
Source Omron DeviceNet Catalog Cat. No. Q102-E1-40 (English ed.), p. 18-21, 161
DRT2-ID16 I/O: 16 inputs | Polarity: NPN | Common: + common | Expansion: XWT unit supported
DRT2-ID16-1 I/O: 16 inputs | Polarity: PNP | Common: - common | Expansion: XWT unit supported
DRT2-OD16 I/O: 16 outputs | Polarity: NPN | Common: - common | Expansion: XWT unit supported
DRT2-OD16-1 I/O: 16 outputs | Polarity: PNP | Common: + common | Expansion: XWT unit supported
DRT2-ID08 I/O: 8 inputs | Polarity: NPN | Common: + common | Expansion: Not supported
DRT2-ID08-1 I/O: 8 inputs | Polarity: PNP | Common: - common | Expansion: Not supported
DRT2-OD08 I/O: 8 outputs | Polarity: NPN | Common: - common | Expansion: Not supported
DRT2-OD08-1 I/O: 8 outputs | Polarity: PNP | Common: + common | Expansion: Not supported
DRT2-MD16 I/O: 8 inputs/8 outputs | Polarity: NPN | Common: IN + / OUT - common | Expansion: Not supported
DRT2-MD16-1 I/O: 8 inputs/8 outputs | Polarity: PNP | Common: IN - / OUT + common | Expansion: Not supported
Industrial NetworkingOmron
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron DRT2 DeviceNet Remote I/O Terminal (Transistor, 8/16-point)

Brand Omron·Industrial Networking

Available part numbers (10)

DRT2-ID16, DRT2-ID16-1, DRT2-OD16, DRT2-OD16-1, DRT2-ID08, DRT2-ID08-1, DRT2-OD08, DRT2-OD08-1, DRT2-MD16, DRT2-MD16-1

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DRT2-ID16I/O: 16 inputs | Polarity: NPN | Common: + common | Expansion: XWT unit supported
DRT2-ID16-1I/O: 16 inputs | Polarity: PNP | Common: - common | Expansion: XWT unit supported
DRT2-OD16I/O: 16 outputs | Polarity: NPN | Common: - common | Expansion: XWT unit supported
DRT2-OD16-1I/O: 16 outputs | Polarity: PNP | Common: + common | Expansion: XWT unit supported
DRT2-ID08I/O: 8 inputs | Polarity: NPN | Common: + common | Expansion: Not supported
DRT2-ID08-1I/O: 8 inputs | Polarity: PNP | Common: - common | Expansion: Not supported
DRT2-OD08I/O: 8 outputs | Polarity: NPN | Common: - common | Expansion: Not supported
DRT2-OD08-1I/O: 8 outputs | Polarity: PNP | Common: + common | Expansion: Not supported
DRT2-MD16I/O: 8 inputs/8 outputs | Polarity: NPN | Common: IN + / OUT - common | Expansion: Not supported
DRT2-MD16-1I/O: 8 inputs/8 outputs | Polarity: PNP | Common: IN - / OUT + common | Expansion: Not supported
