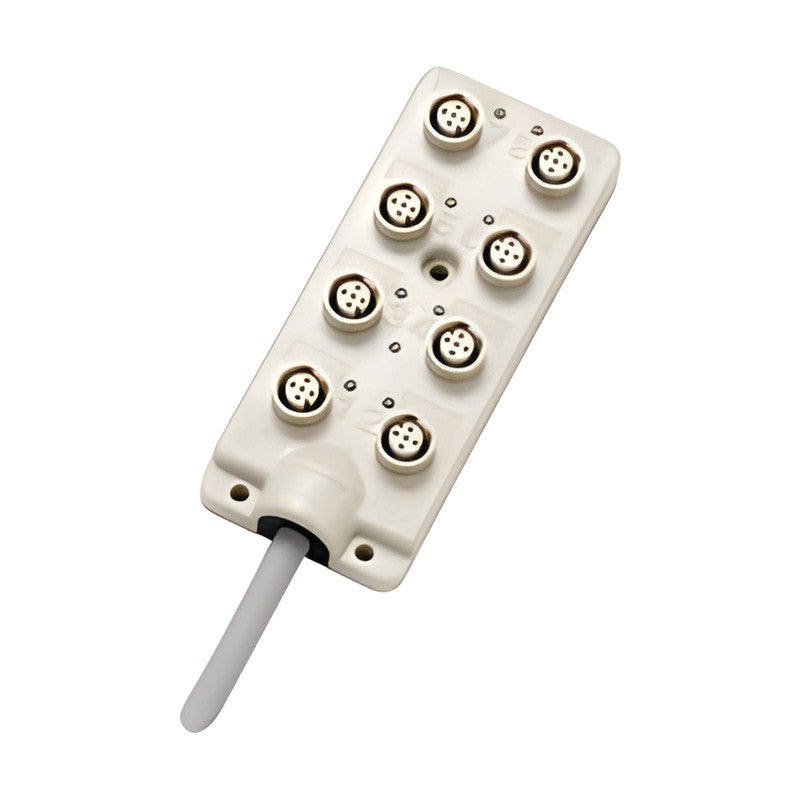

Omron XW3B M12 Screw Connector Terminal Box (4/6/8 Ports)

Omron XW3B M12 Screw Connector Terminal Box (4/6/8 Ports)

XW3B connector relay boxes collect sensor and actuator M12 connectors and route them to the panel through one cable.

Key features

  • 4, 6 or 8 M12 screw-type ports
  • NPN, PNP and 2-wire sensor versions
  • Power and operation LED per port
  • 5 m pre-wired cable
  • Dust cover supplied; XS2Z-22 for IP67

Specifications

Connector M12 screw (XS2)
Cable length 5 m
Ports 4 / 6 / 8
Indicators Power (green), operation (red)
Waterproof cover XS2Z-22 (order separately)
Mounting Screw mounting
Source Omron CSM_XW3B_DS_J_3_12 (Japanese ed.), p. 2-3
XW3B-P455-G11 Ports: 4 | Sensor wiring: 3-wire NPN / 2-wire (3-4) | Cable: 5 m
XW3B-P452-G11 Ports: 4 | Sensor wiring: 2-wire (1-4) / non-polar | Cable: 5 m
XW3B-P453-G11 Ports: 4 | Sensor wiring: 3-wire PNP / 2-wire (1-4) | Cable: 5 m
XW3B-P655-G11 Ports: 6 | Sensor wiring: 3-wire NPN / 2-wire (3-4) | Cable: 5 m
XW3B-P652-G11 Ports: 6 | Sensor wiring: 2-wire (1-4) / non-polar | Cable: 5 m
XW3B-P653-G11 Ports: 6 | Sensor wiring: 3-wire PNP / 2-wire (1-4) | Cable: 5 m
XW3B-P855-G11 Ports: 8 | Sensor wiring: 3-wire NPN / 2-wire (3-4) | Cable: 5 m
XW3B-P852-G11 Ports: 8 | Sensor wiring: 2-wire (1-4) / non-polar | Cable: 5 m
XW3B-P853-G11 Ports: 8 | Sensor wiring: 3-wire PNP / 2-wire (1-4) | Cable: 5 m
ConnectivityOmron
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron XW3B M12 Screw Connector Terminal Box (4/6/8 Ports)

Brand Omron·Connectivity

Available part numbers (9)

XW3B-P455-G11, XW3B-P452-G11, XW3B-P453-G11, XW3B-P655-G11, XW3B-P652-G11, XW3B-P653-G11, XW3B-P855-G11, XW3B-P852-G11, XW3B-P853-G11

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XW3B-P455-G11Ports: 4 | Sensor wiring: 3-wire NPN / 2-wire (3-4) | Cable: 5 m
XW3B-P452-G11Ports: 4 | Sensor wiring: 2-wire (1-4) / non-polar | Cable: 5 m
XW3B-P453-G11Ports: 4 | Sensor wiring: 3-wire PNP / 2-wire (1-4) | Cable: 5 m
XW3B-P655-G11Ports: 6 | Sensor wiring: 3-wire NPN / 2-wire (3-4) | Cable: 5 m
XW3B-P652-G11Ports: 6 | Sensor wiring: 2-wire (1-4) / non-polar | Cable: 5 m
XW3B-P653-G11Ports: 6 | Sensor wiring: 3-wire PNP / 2-wire (1-4) | Cable: 5 m
XW3B-P855-G11Ports: 8 | Sensor wiring: 3-wire NPN / 2-wire (3-4) | Cable: 5 m
XW3B-P852-G11Ports: 8 | Sensor wiring: 2-wire (1-4) / non-polar | Cable: 5 m
XW3B-P853-G11Ports: 8 | Sensor wiring: 3-wire PNP / 2-wire (1-4) | Cable: 5 m
