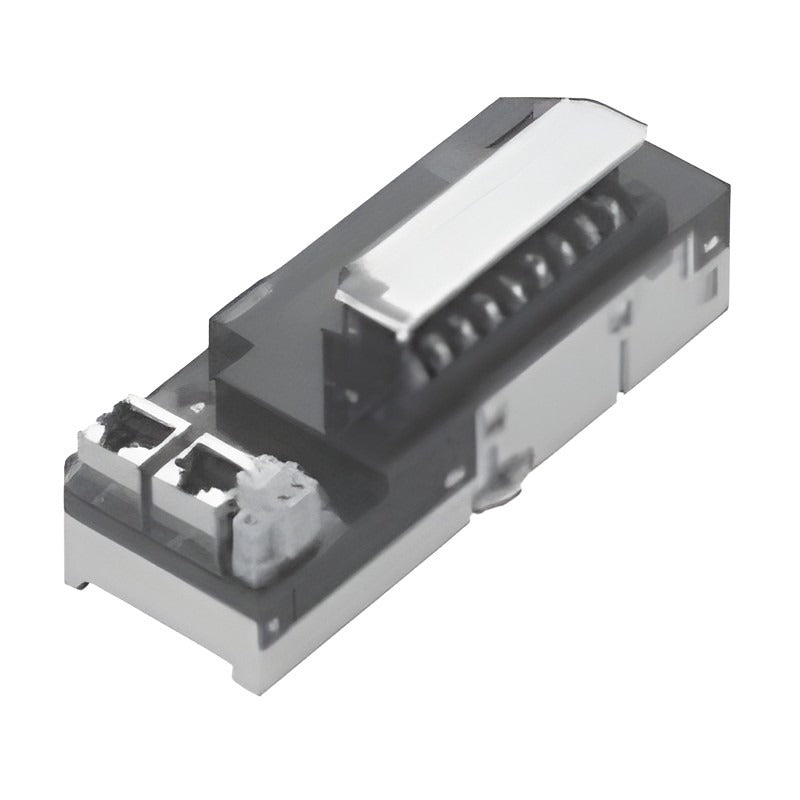

• Omron GX Digital I/O Terminal (EtherCAT, 2-Tier Terminal Block)
1 1

Omron GX Digital I/O Terminal (EtherCAT, 2-Tier Terminal Block)

Omron GX Digital I/O Terminal (EtherCAT, 2-Tier Terminal Block)

GX-series EtherCAT digital I/O terminals with 16 points on a 2-tier screw terminal block (common type); expansion units can be added.

Key features

  • 16 inputs, 16 outputs, 8 in/8 out or 16 relay outputs
  • NPN or PNP versions
  • 2-tier screw terminal block with common terminals
  • One XWT expansion unit can be connected per terminal
  • Detachable screw terminal block; switchable input response time
  • Node address by rotary switches or tool software

Specifications

Series GX-series EtherCAT Remote I/O Terminal
Network EtherCAT
Standards UC1, N, L, CE
Connection 2-tier screw terminal block (common)
Expansion One XWT expansion unit
Source Omron CSM_GX_DS_E_9_16 (English ed.), p. 4-8, 42
GX-ID1611 I/O: 16 inputs | Polarity: NPN
GX-ID1621 I/O: 16 inputs | Polarity: PNP
GX-OD1611 I/O: 16 outputs | Polarity: NPN
GX-OD1621 I/O: 16 outputs | Polarity: PNP
GX-OC1601 I/O: 16 outputs | Polarity: Relay
GX-MD1611 I/O: 8 inputs / 8 outputs | Polarity: NPN
GX-MD1621 I/O: 8 inputs / 8 outputs | Polarity: PNP
PLC I/O UnitsOmron
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron GX Digital I/O Terminal (EtherCAT, 2-Tier Terminal Block)

Brand Omron·PLC I/O Units

Available part numbers (7)

GX-ID1611, GX-ID1621, GX-OD1611, GX-OD1621, GX-OC1601, GX-MD1611, GX-MD1621

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GX-ID1611I/O: 16 inputs | Polarity: NPN
GX-ID1621I/O: 16 inputs | Polarity: PNP
GX-OD1611I/O: 16 outputs | Polarity: NPN
GX-OD1621I/O: 16 outputs | Polarity: PNP
GX-OC1601I/O: 16 outputs | Polarity: Relay
GX-MD1611I/O: 8 inputs / 8 outputs | Polarity: NPN
GX-MD1621I/O: 8 inputs / 8 outputs | Polarity: PNP
