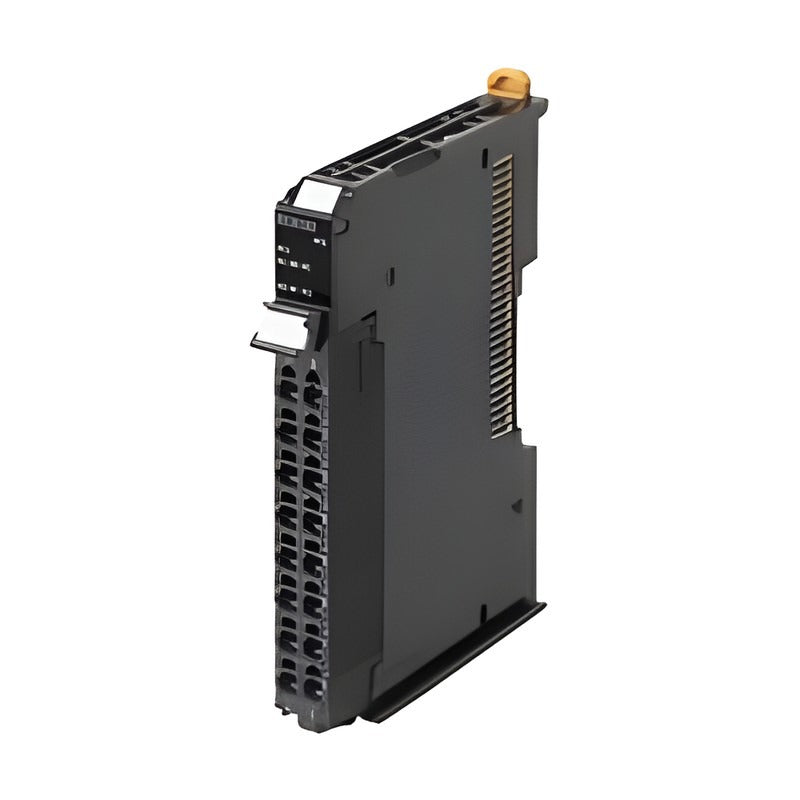

Omron NX-ECS SSI Input Unit (NX Series, RS-422-A, 1/2 Ch)

NX-series SSI (Synchronous Serial Interface) input units for connecting absolute encoders and external axes to a Sysmac system.

Key features

1- or 2-channel SSI input
EIA RS-422-A input/output form
Data length up to 32 bits
Encoder power supply 24 VDC, 0.3 A per channel
Screwless push-in terminal block (12 terminals)

Specifications

Series	NX-series Position Interface Unit
Interface	EIA standard RS-422-A
Max. data length	32 bits
Encoder power	24 VDC, 0.3 A/CH
Connection	Screwless push-in terminal block (12 terminals)
Mounting	DIN rail, panel-mounted (NX bus)
Ambient temperature	0 to 55 C
Source	Omron CSM_NX-EC0_ECS_PG0_DS_E_3_5 (English ed.), p. 4

NX-ECS112		Channels: 1 \| Interface: RS-422-A \| Data length: 32 bits
NX-ECS212		Channels: 2 \| Interface: RS-422-A \| Data length: 32 bits

PLC Special UnitsOmron

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron NX-ECS SSI Input Unit (NX Series, RS-422-A, 1/2 Ch)

Brand Omron·PLC Special Units

Available part numbers (2)

NX-ECS112, NX-ECS212

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
