• OSG 682106K Lapping End Mill (Coated)
1 1

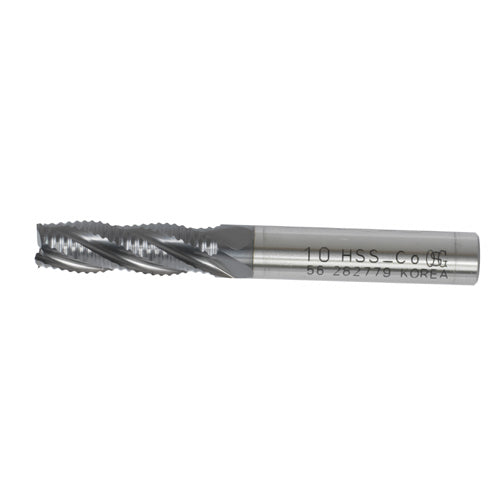

OSG 682106K Lapping End Mill (Coated)

OSG 682106K Lapping End Mill (Coated)

OSG 682106K Lapping End Mill (Coated) is a coated rotary cutting tool designed for precision lapping and finishing operations, sourced direct from Korea.

Key features

  • Lapping end mills are used in applications requiring fine surface finishing on hardened or difficult-to-machine materials, making them a common choice for mold and die shops, aerospace component manufacturers, and precision parts producers
311-7790 MPN: 682106K | 6MM(TICN-REEN)(682106K) | Spec: 6 | Flute Length: 16 | Overall Length: 60 | Product Name: Coated (TiCN) | Shank Diameter: 6
311-7806 MPN: 682107K | 7MM(TICN-REEN)(682107K) | Spec: 7 | Flute Length: 20 | Overall Length: 70 | Product Name: Coating (TiCN) | Shank d: 10
311-7815 MPN: 682108K | 8MM(TICN-REEN)(682108K) | Spec: 8 | Flute Length: 25 | Overall Length: 75 | Product: Coated (TiCN) | Shank d: 10
311-7824 MPN: 682109K | 9MM(TICN-REEN)(682109K) | Spec: 9 | Flute Length: 25 | Overall Length: 75 | Product Name: Coating (TiCN) | Shank Diameter: 10
311-7833 MPN: 682110K | 10MM(TICN-REEN)(682110K) | Spec: 10 | Flute Length: 32 | Overall Length: 82 | Product Name: Coating (TiCN) | Shank Diameter: 10
311-7842 MPN: 682111K | 11MM(TICN-REEN)(682111K) | Spec: 11 | Flute Length: 32 | Overall Length: 89 | Product Name: Coated (TiCN) | Shank Diameter: 12
311-7851 MPN: 682112K | 12MM(TICN-REEN)(682112K) | Spec: 12 | Flute Length: 40 | Overall Length: 97 | Product Name: Coating (TiCN) | Shank Diameter: 12
311-7860 MPN: 682113K | 13MM(TICN-REEN)(682113K) | Spec: 13 | Flute Length: 40 | Overall Length: 97 | Product Name: Coating (TiCN) | Shank d: 12
311-7879 MPN: 682114K | 14MM(TICN-REEN)(682114K) | Spec: 14 | Flute Length: 40 | Overall Length: 97 | Type: Coating (TiCN) | Shank d: 12
311-7888 MPN: 682115K | 15MM(TICN-REEN)(682115K) | Spec: 15 | Flute Length: 40 | Overall Length: 97 | Product Name: Coated (TiCN) | Shank Diameter: 12
311-7897 MPN: 682116K | 16MM(TICN-REEN)(682116K) | Spec: 16 | Flute Length: 48 | Overall Length: 108 | Product Name: Coating (TiCN) | Shank d: 16
311-7903 MPN: 682117K | 17MM(TICN-REEN)(682117K) | Spec: 17 | Flute Length: 48 | Overall Length: 108 | Product Name: Coated (TiCN) | Shank Diameter: 16
311-7912 MPN: 682118K | 18MM(TICN-REEN)(682118K) | Spec: 18 | Flute Length: 48 | Overall Length: 108 | Product Name: Coated (TiCN) | Shank Dia: 16
311-7921 MPN: 682119K | 19MM(TICN-REEN)(682119K) | Spec: 19 | Flute Length: 48 | Overall Length: 108 | Product Name: Coating (TiCN) | Shank Diameter: 16
311-7930 MPN: 682120K | 20MM(TICN-REEN)(682120K) | Spec: 20 | Flute Length: 56 | Overall Length: 122 | Product Name: Coating (TiCN) | Shank Diameter: 20
311-7949 MPN: 682122K | 22MM(TICN-REEN)(682122K) | Spec: 22 | Flute Length: 56 | Overall Length: 122 | Product Name: Coating (TiCN) | Shank Diameter: 20
311-7976 MPN: 682125K | 25MM(TICN-REEN)(682125K) | Spec: 25 | Flute Length: 67 | Overall Length: 143 | Type: Coating (TiCN) | Shank d: 25
311-7985 MPN: 682126K | 26MM(TICN-REEN)(682126K) | Spec: 26 | Flute Length: 67 | Overall Length: 143 | Description: Coating (TiCN) | Shank Diameter: 25
311-8009 MPN: 682128K | 28MM(TICN-REEN)(682128K) | Spec: 28 | Flute Length: 67 | Overall Length: 143 | Description: Coated (TiCN) | Shank d: 25
311-8018 MPN: 682129K | 29MM(TICN-REEN)(682129K) | Spec: 29 | Flute Length: 67 | Overall Length: 143 | Product Name: Coating (TiCN) | Shank Diameter: 25
311-8027 MPN: 682130K | 30MM(TICN-REEN)(682130K) | Spec: 30 | Flute Length: 67 | Overall Length: 143 | Product Name: Coating (TiCN) | Shank Diameter: 25
311-8045 MPN: 682132K | 32MM(TICN-REEN)(682132K) | Spec: 32 | Flute Length: 80 | Overall Length: 160 | Product Name: Coating (TiCN) | Shank Diameter: 32
311-8081 MPN: 682140K | 40MM(TICN-REEN)(682140K) | Spec: 40 | Flute Length: 95 | Overall Length: 175 | Type: Coating (TiCN) | Shank d: 32
313-8890 MPN: 682121K | 21MM(TICN-REEN)(682121K) | Spec: 21 | Flute Length: 56 | Overall Length: 122 | Description: Coating(TiCN) | Shank d: 20
313-8915 MPN: 682134K | 34MM(TICN-REEN)(682134K) | Spec: 34 | Flute Length: 80 | Overall Length: 160 | Product Name: Coating (TiCN) | Shank Diameter: 32
313-8933 MPN: 682137K | 37MM(TICN-REEN)(682137K) | Spec: 37 | Flute Length: 80 | Overall Length: 160 | Product Name: Coating (TiCN) | Shank Diameter: 32
313-8942 MPN: 682141K | 41MM(TICN-REEN)(682141K) | Spec: 41 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8951 MPN: 682143K | 43MM(TICN-REEN)(682143K) | Spec: 43 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8960 MPN: 682144K | 44MM(TICN-REEN)(682144K) | Spec: 44 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8979 MPN: 682145K | 45MM(TICN-REEN)(682145K) | Spec: 45 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8988 MPN: 682147K | 47MM(TICN-REEN)(682147K) | Spec: 47 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8997 MPN: 682148K | 48MM(TICN-REEN)(682148K) | Spec: 48 | Flute Length: 112 | Overall Length: 214 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-9002 MPN: 682149K | 49MM(TICN-REEN)(682149K) | Spec: 49 | Flute Length: 112 | Overall Length: 214 | Product Name: Coating (TiCN) | Shank D: 42
End MillsOSG
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

OSG 682106K Lapping End Mill (Coated)

Brand OSG·End Mills

Available part numbers (33)

311-7790, 311-7806, 311-7815, 311-7824, 311-7833, 311-7842, 311-7851, 311-7860, 311-7879, 311-7888 + 23 more — see full table ↓

How to order

Send the OSG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
311-7790MPN: 682106K | 6MM(TICN-REEN)(682106K) | Spec: 6 | Flute Length: 16 | Overall Length: 60 | Product Name: Coated (TiCN) | Shank Diameter: 6
311-7806MPN: 682107K | 7MM(TICN-REEN)(682107K) | Spec: 7 | Flute Length: 20 | Overall Length: 70 | Product Name: Coating (TiCN) | Shank d: 10
311-7815MPN: 682108K | 8MM(TICN-REEN)(682108K) | Spec: 8 | Flute Length: 25 | Overall Length: 75 | Product: Coated (TiCN) | Shank d: 10
311-7824MPN: 682109K | 9MM(TICN-REEN)(682109K) | Spec: 9 | Flute Length: 25 | Overall Length: 75 | Product Name: Coating (TiCN) | Shank Diameter: 10
311-7833MPN: 682110K | 10MM(TICN-REEN)(682110K) | Spec: 10 | Flute Length: 32 | Overall Length: 82 | Product Name: Coating (TiCN) | Shank Diameter: 10
311-7842MPN: 682111K | 11MM(TICN-REEN)(682111K) | Spec: 11 | Flute Length: 32 | Overall Length: 89 | Product Name: Coated (TiCN) | Shank Diameter: 12
311-7851MPN: 682112K | 12MM(TICN-REEN)(682112K) | Spec: 12 | Flute Length: 40 | Overall Length: 97 | Product Name: Coating (TiCN) | Shank Diameter: 12
311-7860MPN: 682113K | 13MM(TICN-REEN)(682113K) | Spec: 13 | Flute Length: 40 | Overall Length: 97 | Product Name: Coating (TiCN) | Shank d: 12
311-7879MPN: 682114K | 14MM(TICN-REEN)(682114K) | Spec: 14 | Flute Length: 40 | Overall Length: 97 | Type: Coating (TiCN) | Shank d: 12
311-7888MPN: 682115K | 15MM(TICN-REEN)(682115K) | Spec: 15 | Flute Length: 40 | Overall Length: 97 | Product Name: Coated (TiCN) | Shank Diameter: 12
311-7897MPN: 682116K | 16MM(TICN-REEN)(682116K) | Spec: 16 | Flute Length: 48 | Overall Length: 108 | Product Name: Coating (TiCN) | Shank d: 16
311-7903MPN: 682117K | 17MM(TICN-REEN)(682117K) | Spec: 17 | Flute Length: 48 | Overall Length: 108 | Product Name: Coated (TiCN) | Shank Diameter: 16
311-7912MPN: 682118K | 18MM(TICN-REEN)(682118K) | Spec: 18 | Flute Length: 48 | Overall Length: 108 | Product Name: Coated (TiCN) | Shank Dia: 16
311-7921MPN: 682119K | 19MM(TICN-REEN)(682119K) | Spec: 19 | Flute Length: 48 | Overall Length: 108 | Product Name: Coating (TiCN) | Shank Diameter: 16
311-7930MPN: 682120K | 20MM(TICN-REEN)(682120K) | Spec: 20 | Flute Length: 56 | Overall Length: 122 | Product Name: Coating (TiCN) | Shank Diameter: 20
311-7949MPN: 682122K | 22MM(TICN-REEN)(682122K) | Spec: 22 | Flute Length: 56 | Overall Length: 122 | Product Name: Coating (TiCN) | Shank Diameter: 20
311-7976MPN: 682125K | 25MM(TICN-REEN)(682125K) | Spec: 25 | Flute Length: 67 | Overall Length: 143 | Type: Coating (TiCN) | Shank d: 25
311-7985MPN: 682126K | 26MM(TICN-REEN)(682126K) | Spec: 26 | Flute Length: 67 | Overall Length: 143 | Description: Coating (TiCN) | Shank Diameter: 25
311-8009MPN: 682128K | 28MM(TICN-REEN)(682128K) | Spec: 28 | Flute Length: 67 | Overall Length: 143 | Description: Coated (TiCN) | Shank d: 25
311-8018MPN: 682129K | 29MM(TICN-REEN)(682129K) | Spec: 29 | Flute Length: 67 | Overall Length: 143 | Product Name: Coating (TiCN) | Shank Diameter: 25
311-8027MPN: 682130K | 30MM(TICN-REEN)(682130K) | Spec: 30 | Flute Length: 67 | Overall Length: 143 | Product Name: Coating (TiCN) | Shank Diameter: 25
311-8045MPN: 682132K | 32MM(TICN-REEN)(682132K) | Spec: 32 | Flute Length: 80 | Overall Length: 160 | Product Name: Coating (TiCN) | Shank Diameter: 32
311-8081MPN: 682140K | 40MM(TICN-REEN)(682140K) | Spec: 40 | Flute Length: 95 | Overall Length: 175 | Type: Coating (TiCN) | Shank d: 32
313-8890MPN: 682121K | 21MM(TICN-REEN)(682121K) | Spec: 21 | Flute Length: 56 | Overall Length: 122 | Description: Coating(TiCN) | Shank d: 20
313-8915MPN: 682134K | 34MM(TICN-REEN)(682134K) | Spec: 34 | Flute Length: 80 | Overall Length: 160 | Product Name: Coating (TiCN) | Shank Diameter: 32
313-8933MPN: 682137K | 37MM(TICN-REEN)(682137K) | Spec: 37 | Flute Length: 80 | Overall Length: 160 | Product Name: Coating (TiCN) | Shank Diameter: 32
313-8942MPN: 682141K | 41MM(TICN-REEN)(682141K) | Spec: 41 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8951MPN: 682143K | 43MM(TICN-REEN)(682143K) | Spec: 43 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8960MPN: 682144K | 44MM(TICN-REEN)(682144K) | Spec: 44 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8979MPN: 682145K | 45MM(TICN-REEN)(682145K) | Spec: 45 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8988MPN: 682147K | 47MM(TICN-REEN)(682147K) | Spec: 47 | Flute Length: 95 | Overall Length: 197 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-8997MPN: 682148K | 48MM(TICN-REEN)(682148K) | Spec: 48 | Flute Length: 112 | Overall Length: 214 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-9002MPN: 682149K | 49MM(TICN-REEN)(682149K) | Spec: 49 | Flute Length: 112 | Overall Length: 214 | Product Name: Coating (TiCN) | Shank D: 42
