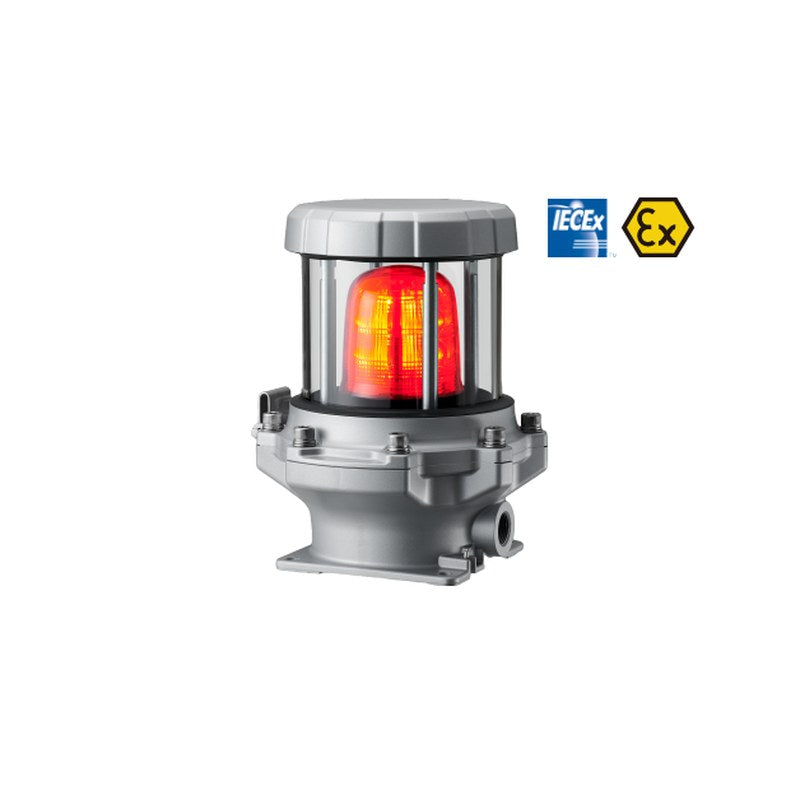

PATLITE REF Explosion-Proof LED Beacon (ATEX / IECEx, Zone 1/2)

PATLITE REF Explosion-Proof LED Beacon (ATEX / IECEx, Zone 1/2)

Flame-proof LED multi-function beacon certified ATEX / IECEx for gas Zone 1 and Zone 2 hazardous areas.

Key features

  • Flame-proof enclosure Ex db IIB+H2 T6 Gb (IECEx / ATEX II 2 G)
  • Triple-flash (120 per minute), continuous or rotating (120 rpm) patterns via wiring
  • Maintenance-free LEDs, no motors; red or amber
  • Aluminum die-cast housing with hard glass; IP65
  • Certified Ex cable gland (Ex db IIC Gb) required per EN/IEC 60079-14

Specifications

Diameter 228 mm
Ambient Temperature -20 to +55 C
Mass 7.06kg
Protection IP65
Mounting Upright, indoor / outdoor
Availability Limited countries
Source patlite.com product page REF
REF-M1-R-E Voltage: 12-24V DC | Color: Red | Certification: ATEX / IECEx
REF-M1-Y-E Voltage: 12-24V DC | Color: Amber | Certification: ATEX / IECEx
REF-M2-R-E Voltage: 100-240V AC | Color: Red | Certification: ATEX / IECEx
REF-M2-Y-E Voltage: 100-240V AC | Color: Amber | Certification: ATEX / IECEx
Explosion-Proof Signal LightsPATLITE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PATLITE REF Explosion-Proof LED Beacon (ATEX / IECEx, Zone 1/2)

Brand PATLITE·Explosion-Proof Signal Lights

Available part numbers (4)

REF-M1-R-E, REF-M1-Y-E, REF-M2-R-E, REF-M2-Y-E

How to order

Send the PATLITE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
REF-M1-R-EVoltage: 12-24V DC | Color: Red | Certification: ATEX / IECEx
REF-M1-Y-EVoltage: 12-24V DC | Color: Amber | Certification: ATEX / IECEx
REF-M2-R-EVoltage: 100-240V AC | Color: Red | Certification: ATEX / IECEx
REF-M2-Y-EVoltage: 100-240V AC | Color: Amber | Certification: ATEX / IECEx
