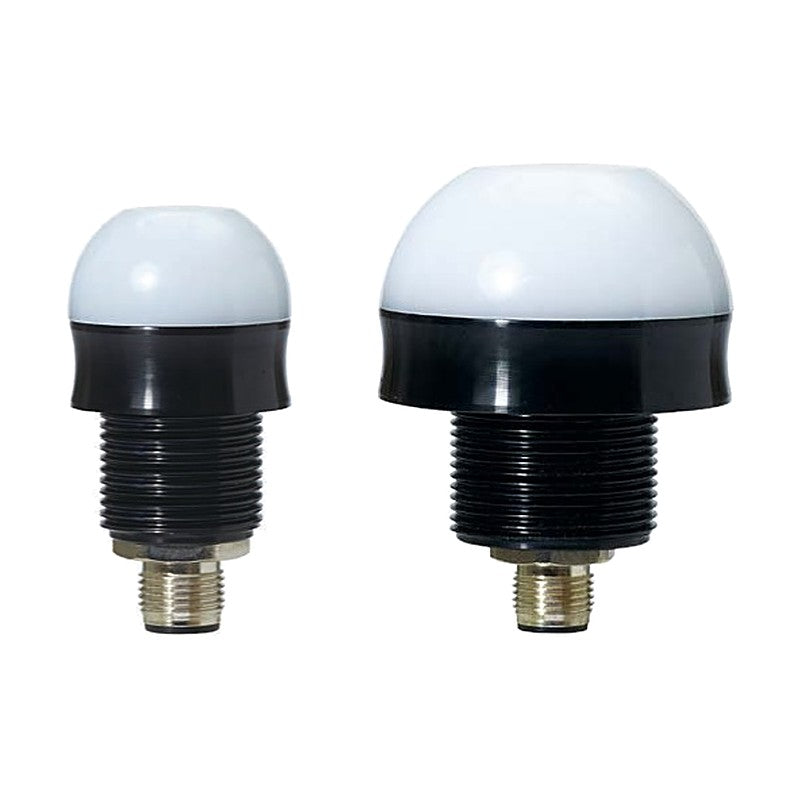

Qlight EMCL Series Ø30-90mm Multi-Color LED Indicator Light, IP69K

Small multi-color LED indicator light in Ø30, Ø50, Ø70 and Ø90mm sizes with fully sealed IP69K construction.

Key features

Three signal colors from one indicator light
Translucent lens for subtle LED color
Outer diameters of 30, 50, 70 and 90mm
Fully sealed IP69K standard type; buzzer type IP20
External contact lead or M12 5-pin connector
Built-in buzzer type available

Specifications

Voltage	DC24V
Materials	Housing-Al, Lens-PC
Ambient temperature	-25 to +55 °C
Buzzer volume	Max. 85dB at 1m (BZ types)
Protection rating	IP69K (standard), IP20 (built-in buzzer type)
Transistor wiring	PNP (NPN on request)
Colors	R-Red, A-Amber, G-Green
Certificates	CE

EMCL30		Function: Steady \| Diameter: Ø30 \| Mounting: M22, Φ23.5 hole \| Current: 40mA \| Weight: 0.05kg \| Cable: external contact lead or M12 5-pin connector type
EMCL30-BZ		Function: Steady with built-in buzzer \| Diameter: Ø30 \| Mounting: M22, Φ23.5 hole \| Current: 40mA \| Weight: 0.05kg \| Cable: external contact lead or M12 5-pin connector type
EMCL50		Function: Steady \| Diameter: Ø50 \| Mounting: M30, Φ32 hole \| Current: 40mA \| Weight: 0.09kg \| Cable: external contact lead or M12 5-pin connector type
EMCL50-BZ		Function: Steady with built-in buzzer \| Diameter: Ø50 \| Mounting: M30, Φ32 hole \| Current: 40mA \| Weight: 0.09kg \| Cable: external contact lead or M12 5-pin connector type
EMCL70		Function: Steady \| Diameter: Ø70 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.16kg \| Cable: external contact lead or M12 5-pin connector type
EMCL70-BZ		Function: Steady with built-in buzzer \| Diameter: Ø70 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.16kg \| Cable: external contact lead or M12 5-pin connector type
EMCL90		Function: Steady \| Diameter: Ø90 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.21kg \| Cable: external contact lead or M12 5-pin connector type
EMCL90-BZ		Function: Steady with built-in buzzer \| Diameter: Ø90 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.21kg \| Cable: external contact lead or M12 5-pin connector type

Signal BeaconsQlight

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight EMCL Series Ø30-90mm Multi-Color LED Indicator Light, IP69K

Brand Qlight·Signal Beacons

Available part numbers (8)

EMCL30, EMCL30-BZ, EMCL50, EMCL50-BZ, EMCL70, EMCL70-BZ, EMCL90, EMCL90-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EMCL30	Function: Steady \| Diameter: Ø30 \| Mounting: M22, Φ23.5 hole \| Current: 40mA \| Weight: 0.05kg \| Cable: external contact lead or M12 5-pin connector type
	EMCL30-BZ	Function: Steady with built-in buzzer \| Diameter: Ø30 \| Mounting: M22, Φ23.5 hole \| Current: 40mA \| Weight: 0.05kg \| Cable: external contact lead or M12 5-pin connector type
	EMCL50	Function: Steady \| Diameter: Ø50 \| Mounting: M30, Φ32 hole \| Current: 40mA \| Weight: 0.09kg \| Cable: external contact lead or M12 5-pin connector type
	EMCL50-BZ	Function: Steady with built-in buzzer \| Diameter: Ø50 \| Mounting: M30, Φ32 hole \| Current: 40mA \| Weight: 0.09kg \| Cable: external contact lead or M12 5-pin connector type
	EMCL70	Function: Steady \| Diameter: Ø70 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.16kg \| Cable: external contact lead or M12 5-pin connector type
	EMCL70-BZ	Function: Steady with built-in buzzer \| Diameter: Ø70 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.16kg \| Cable: external contact lead or M12 5-pin connector type
	EMCL90	Function: Steady \| Diameter: Ø90 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.21kg \| Cable: external contact lead or M12 5-pin connector type
	EMCL90-BZ	Function: Steady with built-in buzzer \| Diameter: Ø90 \| Mounting: M30, Φ32 hole \| Current: 61mA \| Weight: 0.21kg \| Cable: external contact lead or M12 5-pin connector type
