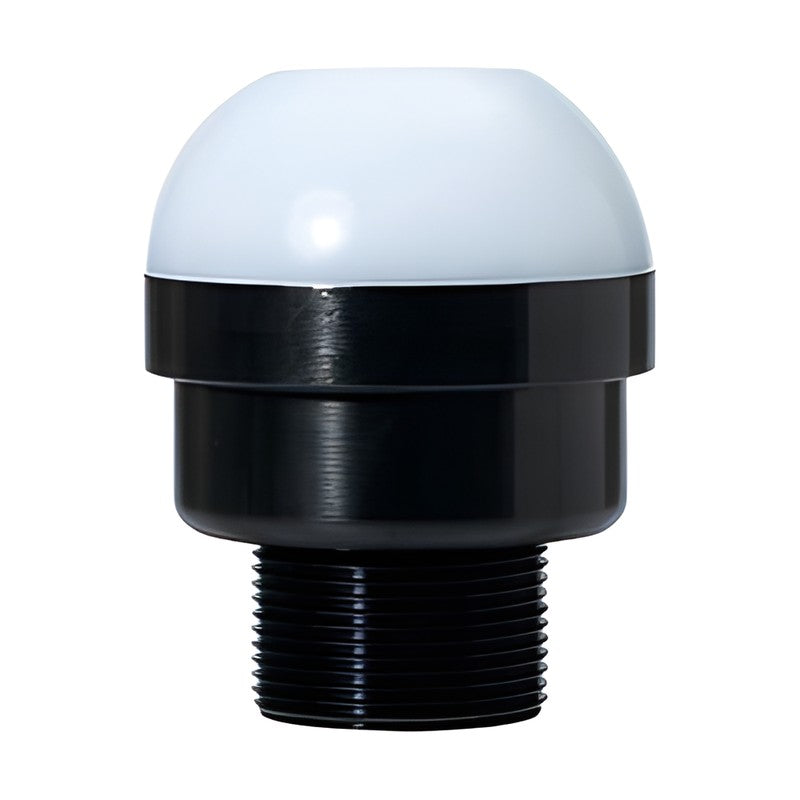

Qlight EMCL50A / EMCL50B Ø50mm Multi-Color LED Indicator Light
Qlight EMCL50A / EMCL50B Ø50mm Multi-Color LED Indicator Light
Ø50mm M30-thread small indicator light that shows three signal colors in one translucent lens, in two housing designs (A and B).
Key features
- Three signal colors from one indicator light
- Translucent lens for subtle LED color
- IP69 standard type, IP20 built-in buzzer type
- M30 thread mounting, Φ32 hole; wall-mount bracket available
- External contact lead or M12 5-pin connector
- Built-in buzzer type available
Specifications
| Voltage | DC24V |
|---|---|
| Materials | Housing-Al, Lens-PC |
| Ambient temperature | -25 to +55 °C |
| Buzzer volume | Max. 85dB at 1m (BZ types) |
| Protection rating | IP69 (standard), IP20 (built-in buzzer type) |
| Transistor wiring | PNP (NPN on request) |
| Colors | R-Red, A-Amber, G-Green |
| Current | 41mA |
| Mounting hole | Φ32 |
| Certificates | CE |
| EMCL50A | Function: Steady | Weight: 0.14kg | Height: 48mm | Cable: external contact lead or M12 5-pin connector type | |
| EMCL50A-BZ | Function: Steady with built-in buzzer | Weight: 0.14kg | Height: 48mm | Cable: external contact lead or M12 5-pin connector type | |
| EMCL50B | Function: Steady | Weight: 0.21kg | Height: 61mm | Cable: external contact lead or M12 5-pin connector type | |
| EMCL50B-BZ | Function: Steady with built-in buzzer | Weight: 0.21kg | Height: 61mm | Cable: external contact lead or M12 5-pin connector type |
Signal BeaconsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight EMCL50A / EMCL50B Ø50mm Multi-Color LED Indicator Light
Available part numbers (4)
EMCL50A, EMCL50A-BZ, EMCL50B, EMCL50B-BZ
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Signal Beacons
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| EMCL50A | Function: Steady | Weight: 0.14kg | Height: 48mm | Cable: external contact lead or M12 5-pin connector type | ||
| EMCL50A-BZ | Function: Steady with built-in buzzer | Weight: 0.14kg | Height: 48mm | Cable: external contact lead or M12 5-pin connector type | ||
| EMCL50B | Function: Steady | Weight: 0.21kg | Height: 61mm | Cable: external contact lead or M12 5-pin connector type | ||
| EMCL50B-BZ | Function: Steady with built-in buzzer | Weight: 0.21kg | Height: 61mm | Cable: external contact lead or M12 5-pin connector type |
Need a different model, or a part not listed here? Send us your parts list →
