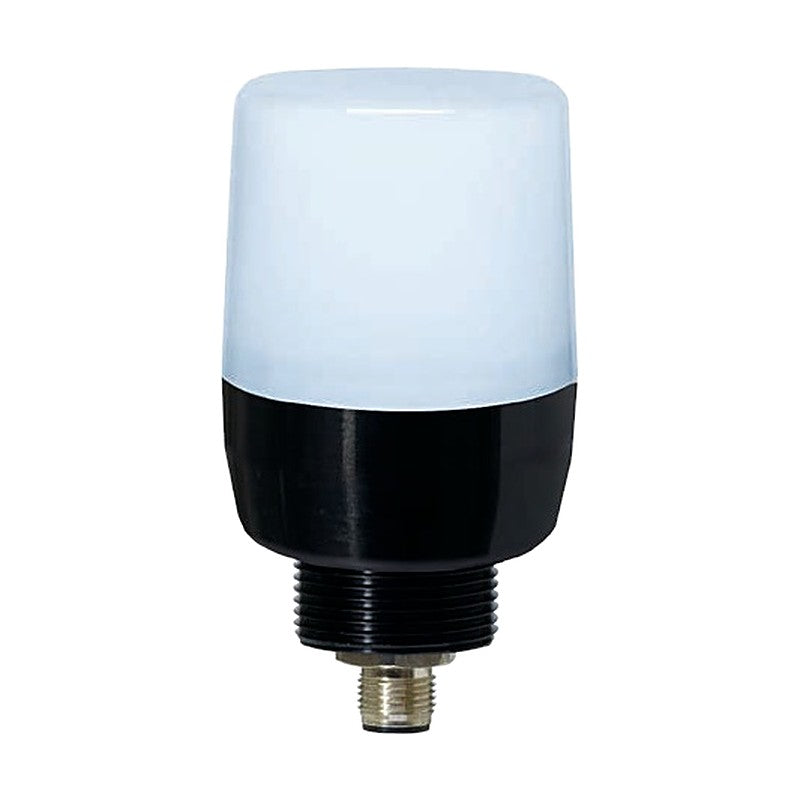

• Qlight EMCL50U-3C / EMCL50U-7C Ø50mm 3-Color / 7-Color LED Indicator Light
1 1

Qlight EMCL50U-3C / EMCL50U-7C Ø50mm 3-Color / 7-Color LED Indicator Light

Qlight EMCL50U-3C / EMCL50U-7C Ø50mm 3-Color / 7-Color LED Indicator Light

Ø50mm M30-thread LED indicator light available with 3 signal colors (3C) or 7 signal colors (7C) from one lens.

Key features

  • Multiple signal colors from one indicator light
  • 7C version provides 7 signal colors by pin combination
  • Translucent lens for subtle LED color
  • M30 thread mounting, Φ32 hole; wall-mount bracket available
  • External contact lead or M12 5-pin connector

Specifications

Voltage DC24V
Current 65mA
Weight 0.12kg
Materials Housing-Al, Lens-PC
Ambient temperature -25 to +55 °C
Protection rating IP20
Mounting hole Φ32
Transistor wiring PNP (NPN on request)
Certificates CE
EMCL50U-3C Function: Steady | Colors: 3 (R, A, G) | Cable: external contact lead or M12 5-pin connector type
EMCL50U-7C Function: Steady | Colors: 7 (R, G, B, A, Cyan, Purple, White) | Cable: external contact lead or M12 5-pin connector type
Signal BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight EMCL50U-3C / EMCL50U-7C Ø50mm 3-Color / 7-Color LED Indicator Light

Brand Qlight·Signal Beacons

Available part numbers (2)

EMCL50U-3C, EMCL50U-7C

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EMCL50U-3CFunction: Steady | Colors: 3 (R, A, G) | Cable: external contact lead or M12 5-pin connector type
EMCL50U-7CFunction: Steady | Colors: 7 (R, G, B, A, Cyan, Purple, White) | Cable: external contact lead or M12 5-pin connector type
