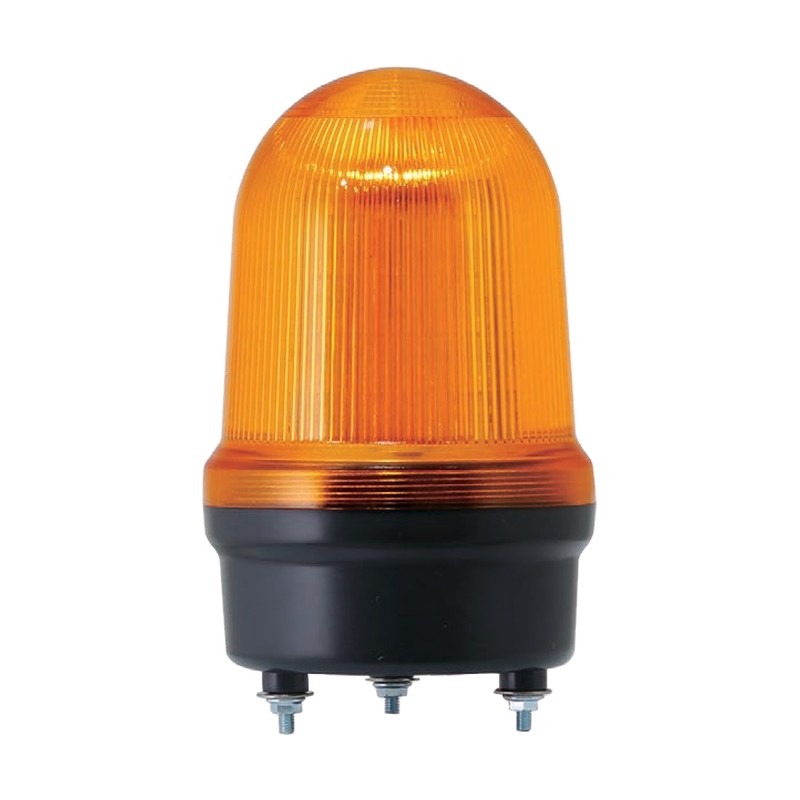

Qlight EQ100 Ø100mm Simulated Revolving, Flashing, Strobe LED Beacon

Qlight EQ100 Ø100mm Simulated Revolving, Flashing, Strobe LED Beacon

100 mm LED beacon with switch-selectable simulated revolving or strobe operation and optional buzzer.

Key features

  • Light function selection switch inside: LED strobe or LED simulated revolving
  • Direct mount with three bolts on the bottom
  • Shock and vibration resistant long-life LED
  • Special diffusive lens with direct LED light distribution

Specifications

Diameter Ø97mm
Height 153mm
Protection rating IP44
Ambient temperature -30 to +50 °C
Material Lens PC, Housing ABS
Weight 0.30kg
Light source LED
RoHS Compliant
EQ100 Voltage: DC24V, AC220V | Current: 95mA (DC24V), 160mA (AC220V) | Buzzer: none | Colors: R, A, G, B
EQ100-BZ Voltage: DC24V, AC220V | Current: 95mA (DC24V), 160mA (AC220V) | Buzzer: built-in, max.90dB at 1m | Colors: R, A, G, B
Signal BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight EQ100 Ø100mm Simulated Revolving, Flashing, Strobe LED Beacon

Brand Qlight·Signal Beacons

Available part numbers (2)

EQ100, EQ100-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EQ100Voltage: DC24V, AC220V | Current: 95mA (DC24V), 160mA (AC220V) | Buzzer: none | Colors: R, A, G, B
EQ100-BZVoltage: DC24V, AC220V | Current: 95mA (DC24V), 160mA (AC220V) | Buzzer: built-in, max.90dB at 1m | Colors: R, A, G, B
