• Qlight EST56L Ø56mm Economy LED Steady/Flashing Tower Light, Pole Mount
1 1

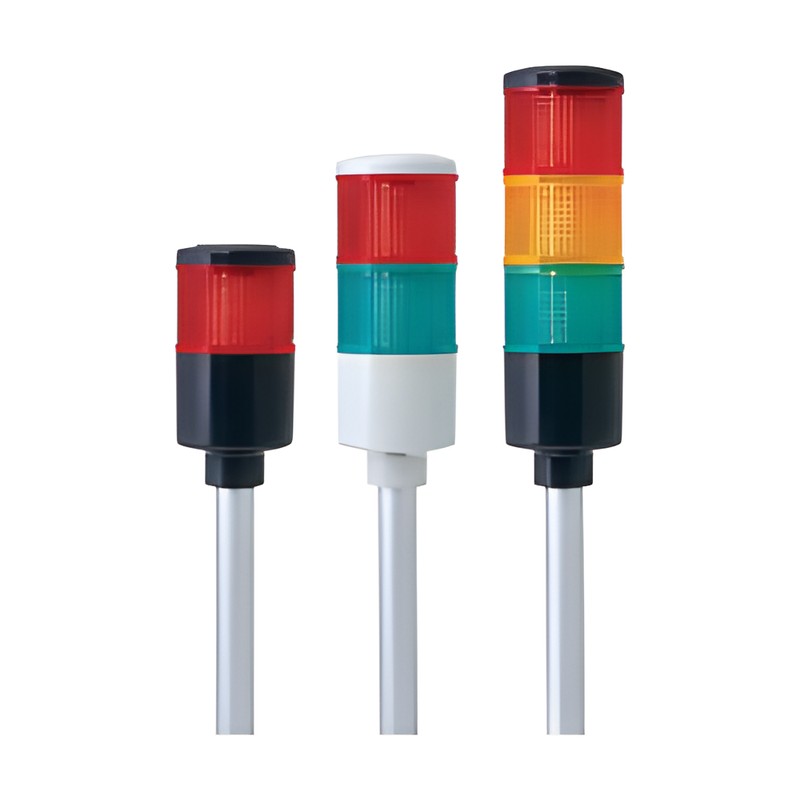

Qlight EST56L Ø56mm Economy LED Steady/Flashing Tower Light, Pole Mount

Qlight EST56L Ø56mm Economy LED Steady/Flashing Tower Light, Pole Mount

Ø56mm pole-mount LED steady/flashing tower light with 1 to 3 layers, DC24V or AC220V.

Key features

  • Ø56mm LED steady/flashing tower light
  • Built-in buzzer available on request
  • Transistor connection for direct PLC operation (DC type: steady NPN/PNP, flashing PNP)
  • Base module and cover available in ivory or black

Specifications

Lens diameter Ø56mm
Mount Pole mount
Materials Lens AS, housing ABS, pole Al
Ambient temperature -30 to +50 °C
Protection rating IP23
Sound volume Max. 90dB at 1m (buzzer type)
Flashing rate 60-80/min
Light source current DC24V 55mA, AC220V 25mA
RoHS Compliant
EST56L Function: Steady | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
EST56L-BZ Function: Steady with built-in buzzer | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
EST56LF Function: Steady/Flashing | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
EST56LF-BZ Function: Steady/Flashing with built-in buzzer | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
Signal Tower LightsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight EST56L Ø56mm Economy LED Steady/Flashing Tower Light, Pole Mount

Brand Qlight·Signal Tower Lights

Available part numbers (4)

EST56L, EST56L-BZ, EST56LF, EST56LF-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EST56LFunction: Steady | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
EST56L-BZFunction: Steady with built-in buzzer | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
EST56LFFunction: Steady/Flashing | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
EST56LF-BZFunction: Steady/Flashing with built-in buzzer | Layers: 1-3 | Voltage: DC24V, AC220V | Colors: R, A, G | Base/cover color: Ivory, Black | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18, FB18
