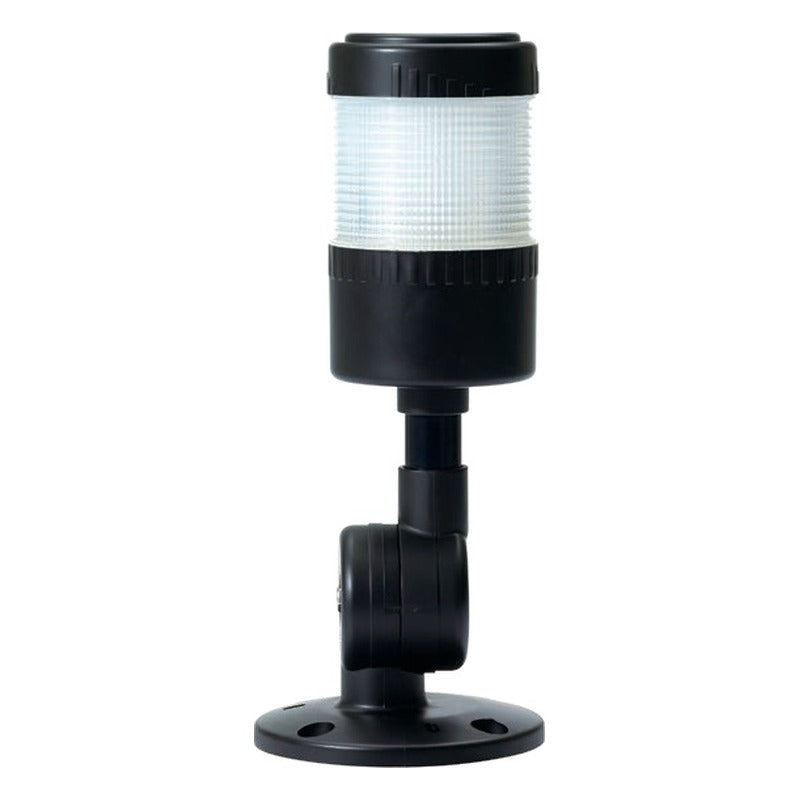

Qlight ET64MCL Ø64mm Single-Layer Multi-Color LED Beacon

Qlight ET64MCL Ø64mm Single-Layer Multi-Color LED Beacon

Ø64mm Performance Line LED beacon that shows red, amber and green signals in a single translucent layer.

Key features

  • Transmits 3 signal colors with one layer
  • Translucent lens emits soft signal light
  • Foldable mounting bracket
  • Steady and flashing versions
  • Built-in buzzer type available

Specifications

Voltage DC24V
Materials Housing-ABS, Lens-PC
Ambient temperature -25 to +55 °C
Buzzer volume Max. 85dB at 1m (BZ types)
Protection rating IP20
Transistor wiring PNP (NPN on request)
Colors R-Red, A-Amber, G-Green
Current 67mA
Weight 0.23kg
Height 213mm
Certificates CE
ET64MCL Function: Steady
ET64MCL-BZ Function: Steady with built-in buzzer
ET64MCLF Function: Flashing
ET64MCLF-BZ Function: Flashing with built-in buzzer
Signal BeaconsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight ET64MCL Ø64mm Single-Layer Multi-Color LED Beacon

Brand Qlight·Signal Beacons

Available part numbers (4)

ET64MCL, ET64MCL-BZ, ET64MCLF, ET64MCLF-BZ
