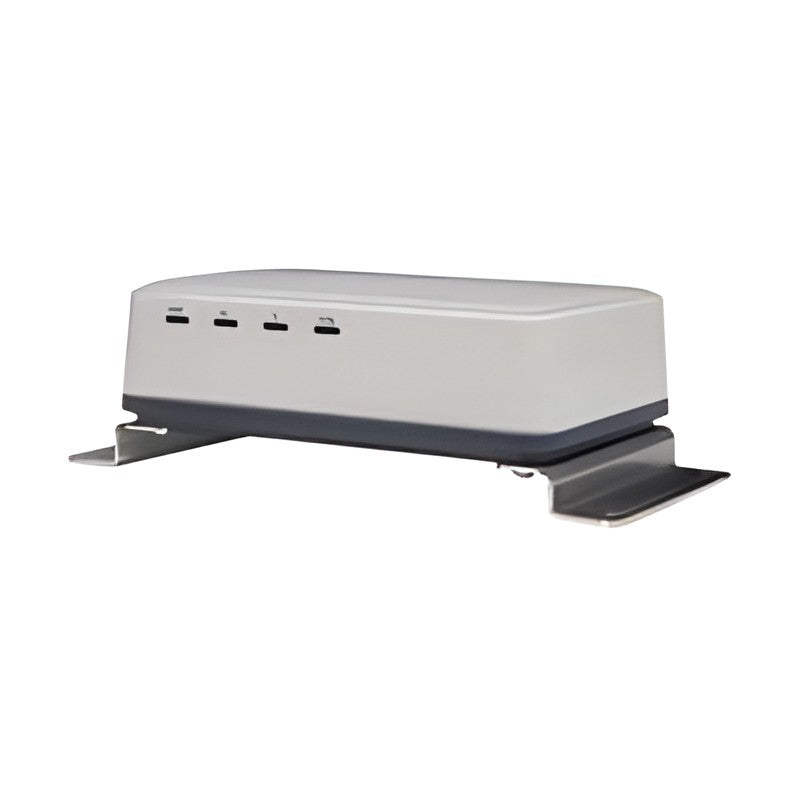

Qlight GW768 Wireless Network Gateway

Gateway that connects Zigbee wireless signal towers to a PC or LAN, for networks of up to 768 devices.

Key features

Up to 32 wireless signaling devices per gateway
Up to 24 gateways over Ethernet LAN for a maximum of 768 devices
USB 2.0 and Ethernet (RJ45) interfaces
Mobile app for real-time information and control
IEEE 802.15.4, 2405-2480 MHz (16 channels), 250 kbps

Specifications

Interface	USB2.0 / Ethernet
Wireless standard	IEEE 802.15.4
Radio frequency	2405MHz-2480MHz (16ch)
Weight	0.25kg
Size	151 x 80 x 48 mm
Material	ABS
Ambient temperature	-25 to +50 °C
Certificates	KC (DC12V), CE, FCC

GW768

Voltage: DC12V-24V (max.510mA) or AC110V-220V (max.115mA)

Wireless Signal TowersQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight GW768 Wireless Network Gateway

Brand Qlight·Wireless Signal Towers

Available part numbers (1)

GW768

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
