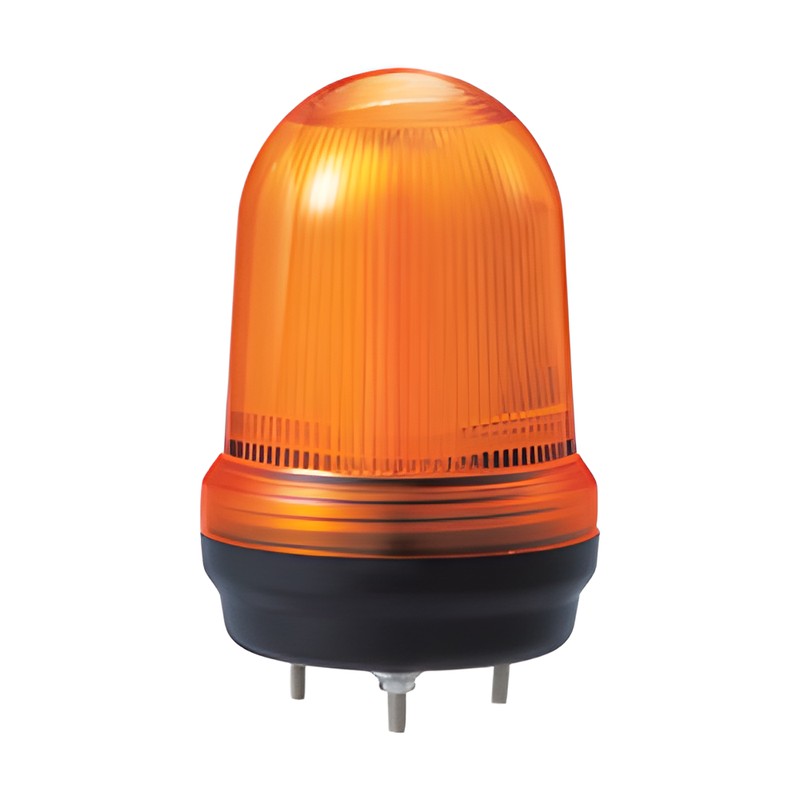

Qlight MFL80 Ø80mm Multiple Function LED Signal Light

Qlight MFL80 Ø80mm Multiple Function LED Signal Light

80 mm multi-function LED signal light with switch-selectable steady, flashing, strobe and simulated revolving modes.

Key features

  • Four functions selectable by DIP switch or external connection: steady, flashing, strobe, simulated revolving
  • Shock and vibration resistant long-life LED
  • Standard or built-in buzzer type
  • Optional M12 connector type (female connector not provided)
  • Wall mount brackets TWS80/TWA80

Specifications

Protection rating IP65
Ambient temperature -30 to +50 °C
Material Lens PC, Housing ABS
Sound level Max.80dB at 1m (BZ type)
Light source LED
RoHS Compliant
Functions Steady, flashing (60-80/min), strobe (70-80/min), simulated revolving (120-140 RPM)
Diameter Ø83mm
Height 120mm
MFL80 Voltage: DC12V-24V, AC110V-220V | Current: Max.118mA (DC), Max.75mA (AC) | Weight: 0.28kg (DC), 0.51kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | UL: DC12V-24V
Signal BeaconsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight MFL80 Ø80mm Multiple Function LED Signal Light

Brand Qlight·Signal Beacons

Available part numbers (1)

MFL80

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFL80Voltage: DC12V-24V, AC110V-220V | Current: Max.118mA (DC), Max.75mA (AC) | Weight: 0.28kg (DC), 0.51kg (AC) | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | UL: DC12V-24V
