Qlight MTG50 / MTC50 / MTR50 Pole Type Terminal Base Module

Qlight MTG50 / MTC50 / MTR50 Pole Type Terminal Base Module

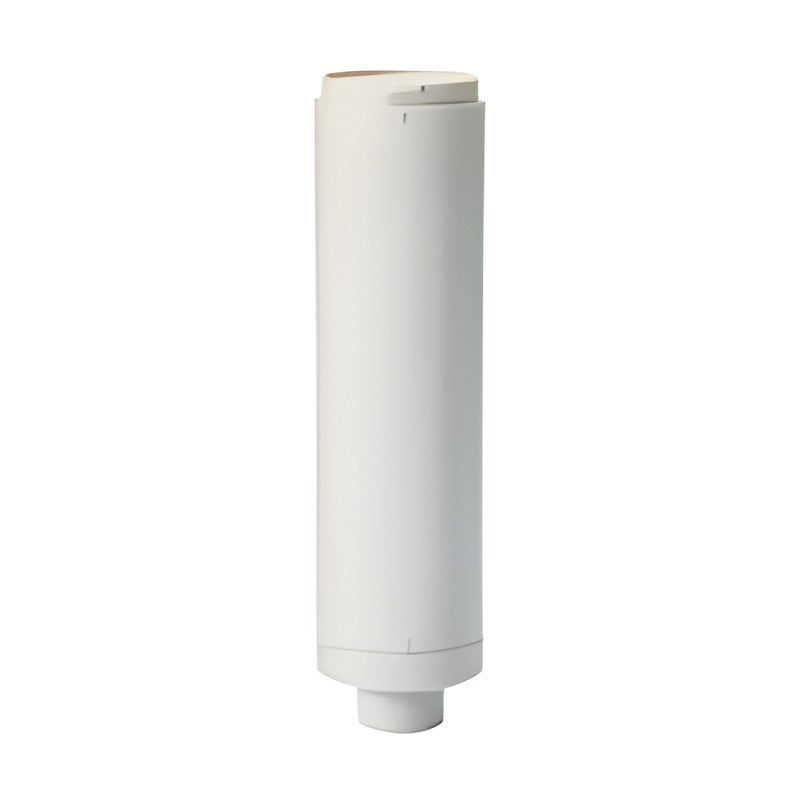

Pole-type base module with built-in terminal block for MTG/MTC/MTR50 modular signal towers.

Key features

  • Built-in terminal block for tool-free wiring by push-button release
  • Used with an M18 pole and mounting bracket; height adjustable by pole length
  • DC24V and AC110V-220V versions
  • Available in ivory, silver and black

Specifications

Material ABS
Protection rating IP65 (assembled)
MG50-BS-DC Voltage: DC24V | Current: 400mA | Color: Ivory | Size: Ø50 x 86 mm | Weight: 0.07kg
MG50-BS-DC-SV Voltage: DC24V | Current: 400mA | Color: Silver | Size: Ø50 x 86 mm | Weight: 0.07kg
MG50-BS-DC-BK Voltage: DC24V | Current: 400mA | Color: Black | Size: Ø50 x 86 mm | Weight: 0.07kg
MG50-BS-AC Voltage: AC110V-220V | Current: Max. 250mA | Color: Ivory | Size: Ø50 x 196 mm | Weight: 0.22kg
MG50-BS-AC-SV Voltage: AC110V-220V | Current: Max. 250mA | Color: Silver | Size: Ø50 x 196 mm | Weight: 0.22kg
MG50-BS-AC-BK Voltage: AC110V-220V | Current: Max. 250mA | Color: Black | Size: Ø50 x 196 mm | Weight: 0.22kg
Signal Light AccessoriesQlight
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight MTG50 / MTC50 / MTR50 Pole Type Terminal Base Module

Brand Qlight·Signal Light Accessories

Available part numbers (6)

MG50-BS-DC, MG50-BS-DC-SV, MG50-BS-DC-BK, MG50-BS-AC, MG50-BS-AC-SV, MG50-BS-AC-BK

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MG50-BS-DCVoltage: DC24V | Current: 400mA | Color: Ivory | Size: Ø50 x 86 mm | Weight: 0.07kg
MG50-BS-DC-SVVoltage: DC24V | Current: 400mA | Color: Silver | Size: Ø50 x 86 mm | Weight: 0.07kg
MG50-BS-DC-BKVoltage: DC24V | Current: 400mA | Color: Black | Size: Ø50 x 86 mm | Weight: 0.07kg
MG50-BS-ACVoltage: AC110V-220V | Current: Max. 250mA | Color: Ivory | Size: Ø50 x 196 mm | Weight: 0.22kg
MG50-BS-AC-SVVoltage: AC110V-220V | Current: Max. 250mA | Color: Silver | Size: Ø50 x 196 mm | Weight: 0.22kg
MG50-BS-AC-BKVoltage: AC110V-220V | Current: Max. 250mA | Color: Black | Size: Ø50 x 196 mm | Weight: 0.22kg
