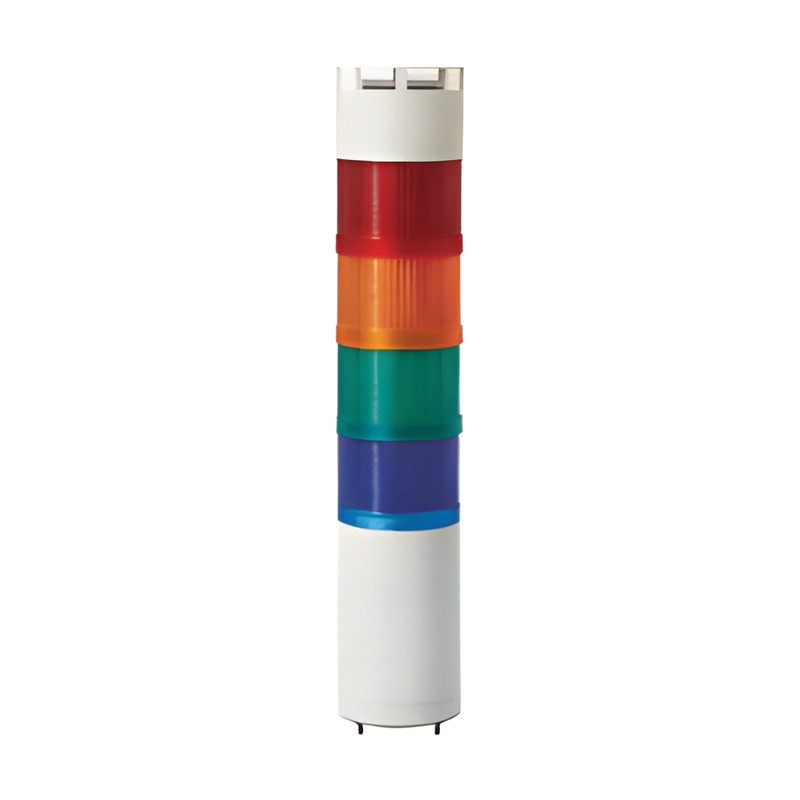

Qlight MTG70 Modular LED Signal Tower with Built-in Terminal Ø70

Modular Ø70 mm LED signal tower with built-in terminal block, assembled from cover/buzzer, LED, base and pole modules.

Key features

Up to 5 LED layers in red, amber, green, blue and white
Direct mount, pole mount and M12 connector base versions
Optional standard, high-volume or waterproof buzzer module (then max. 4 layers)
Wiring by external contact or NPN / PNP transistor
IP65, operating temperature -30 to +50 °C

Specifications

Protection rating	IP65
Ambient temperature	-30 to +50 °C
Diameter	Ø70

Qlight MTG70 Modular LED Signal Tower with Built-in Terminal Ø70 - reference 2

MTG70ML-DC		Mount: Direct \| Function: Steady \| Voltage: DC
MTG70ML-AC		Mount: Direct \| Function: Steady \| Voltage: AC
MTG70MLF-DC		Mount: Direct \| Function: Steady/Flashing \| Voltage: DC
MTG70MLF-AC		Mount: Direct \| Function: Steady/Flashing \| Voltage: AC
MTG70ML-BZ-AC		Mount: Direct \| Function: Steady \| Buzzer: Yes \| Voltage: AC
MTG70MLF-BZ-AC		Mount: Direct \| Function: Steady/Flashing \| Buzzer: Yes \| Voltage: AC
MTG70L-DC		Mount: Pole \| Function: Steady \| Voltage: DC
MTG70L-AC		Mount: Pole \| Function: Steady \| Voltage: AC
MTG70LF-DC		Mount: Pole \| Function: Steady/Flashing \| Voltage: DC
MTG70LF-AC		Mount: Pole \| Function: Steady/Flashing \| Voltage: AC
MTG70L-BZ-AC		Mount: Pole \| Function: Steady \| Buzzer: Yes \| Voltage: AC
MTG70LF-BZ-AC		Mount: Pole \| Function: Steady/Flashing \| Buzzer: Yes \| Voltage: AC
MTG70L-DC-M12		Mount: M12 connector \| Function: Steady \| Voltage: DC24V
MTG70LF-DC-M12		Mount: M12 connector \| Function: Steady/Flashing \| Voltage: DC24V
MTG70L-BZ-DC-M12		Mount: M12 connector \| Function: Steady \| Buzzer: Yes \| Voltage: DC24V
MTG70LF-BZ-DC-M12		Mount: M12 connector \| Function: Steady/Flashing \| Buzzer: Yes \| Voltage: DC24V

Signal Tower LightsQlight

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight MTG70 Modular LED Signal Tower with Built-in Terminal Ø70

Brand Qlight·Signal Tower Lights

Available part numbers (16)

MTG70ML-DC, MTG70ML-AC, MTG70MLF-DC, MTG70MLF-AC, MTG70ML-BZ-AC, MTG70MLF-BZ-AC, MTG70L-DC, MTG70L-AC, MTG70LF-DC, MTG70LF-AC + 6 more — see full table ↓

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
