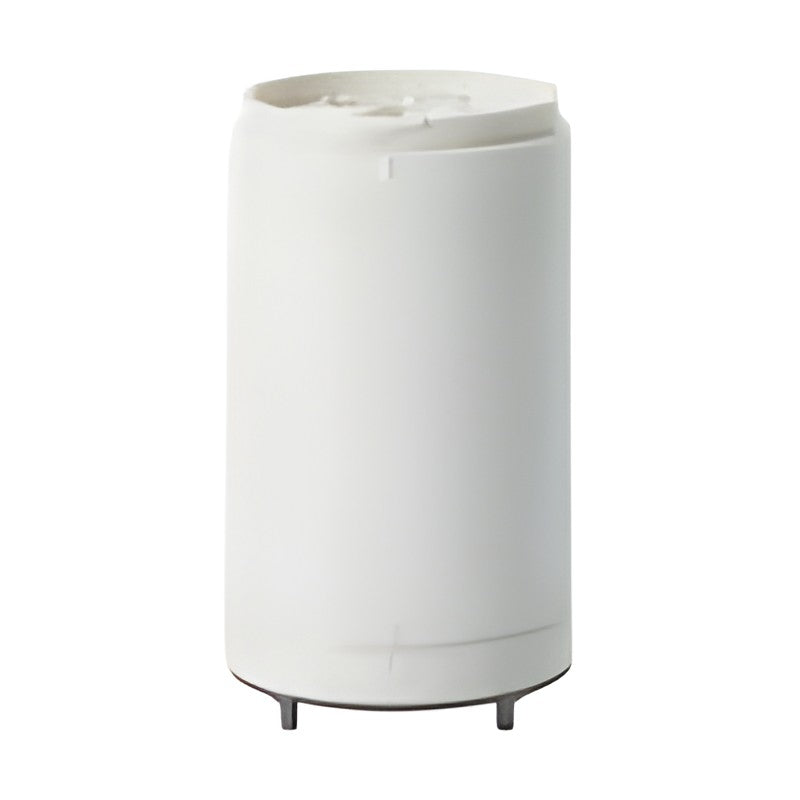

Qlight MTG70 Series Self Stand Base Module Ø70

Qlight MTG70 Series Self Stand Base Module Ø70

Self stand (direct mount) type base module with built-in terminal for the MTG70 / MTC70 / MTR70 modular LED signal towers with built-in terminal.

Key features

  • DC24V and AC110V-220V versions
  • Available in ivory, silver and black
  • IP65 when assembled

Specifications

Material ABS
Protection rating IP65 (assembled)
MG70-MBS-DC Voltage: DC24V | Current: 400mA | Color: Ivory | Weight: 0.17kg | Size: Ø70 x 120 mm
MG70-MBS-DC-SV Voltage: DC24V | Current: 400mA | Color: Silver | Weight: 0.17kg | Size: Ø70 x 120 mm
MG70-MBS-DC-BK Voltage: DC24V | Current: 400mA | Color: Black | Weight: 0.17kg | Size: Ø70 x 120 mm
MG70-MBS-AC Voltage: AC110V-220V | Current: Max.250mA | Color: Ivory | Weight: 0.28kg | Size: Ø70 x 160 mm
MG70-MBS-AC-SV Voltage: AC110V-220V | Current: Max.250mA | Color: Silver | Weight: 0.28kg | Size: Ø70 x 160 mm
MG70-MBS-AC-BK Voltage: AC110V-220V | Current: Max.250mA | Color: Black | Weight: 0.28kg | Size: Ø70 x 160 mm
Signal Light AccessoriesQlight
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight MTG70 Series Self Stand Base Module Ø70

Brand Qlight·Signal Light Accessories

Available part numbers (6)

MG70-MBS-DC, MG70-MBS-DC-SV, MG70-MBS-DC-BK, MG70-MBS-AC, MG70-MBS-AC-SV, MG70-MBS-AC-BK

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MG70-MBS-DCVoltage: DC24V | Current: 400mA | Color: Ivory | Weight: 0.17kg | Size: Ø70 x 120 mm
MG70-MBS-DC-SVVoltage: DC24V | Current: 400mA | Color: Silver | Weight: 0.17kg | Size: Ø70 x 120 mm
MG70-MBS-DC-BKVoltage: DC24V | Current: 400mA | Color: Black | Weight: 0.17kg | Size: Ø70 x 120 mm
MG70-MBS-ACVoltage: AC110V-220V | Current: Max.250mA | Color: Ivory | Weight: 0.28kg | Size: Ø70 x 160 mm
MG70-MBS-AC-SVVoltage: AC110V-220V | Current: Max.250mA | Color: Silver | Weight: 0.28kg | Size: Ø70 x 160 mm
MG70-MBS-AC-BKVoltage: AC110V-220V | Current: Max.250mA | Color: Black | Weight: 0.28kg | Size: Ø70 x 160 mm
