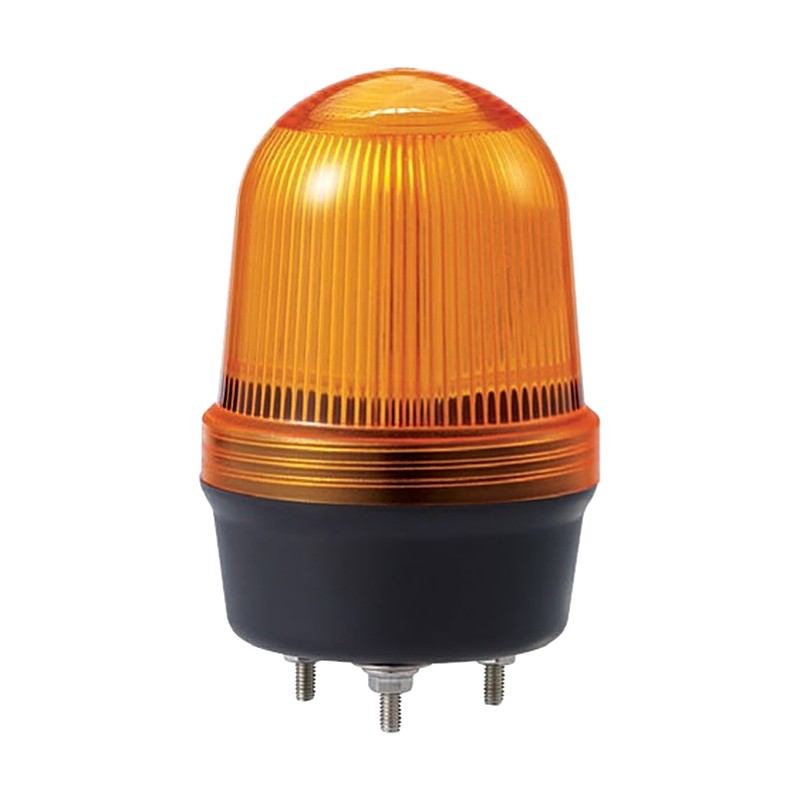

Qlight Q60L Series Ø60mm LED Steady/Flashing Signal Light

Qlight Q60L Series Ø60mm LED Steady/Flashing Signal Light

60 mm LED steady/flashing signal light available in direct, wall and pole mount versions.

Key features

  • Shock and vibration resistant long-life LED
  • Direct mount (L), wall mount (LW) or pole mount (LP) versions
  • Special diffusive lens with direct LED light distribution
  • Built-in switch for steady or flashing mode
  • Standard or built-in buzzer type
  • DC 10-30V / AC 100-240V free-voltage range

Specifications

Protection rating IP65
Ambient temperature -30 to +50 °C
Material Lens PC, Housing ABS, Bracket PC
Flashing rate 60-80/min
Sound level Max.80dB at 1m (BZ type)
Light source LED
RoHS Compliant
Certificates CE, UL (DC24V)
Qlight Q60L Series Ø60mm LED Steady/Flashing Signal Light - reference 2Qlight Q60L Series Ø60mm LED Steady/Flashing Signal Light - reference 3
Q60L Mount: direct | Voltage: DC12V-24V, AC110V-220V | Current: Max.155mA (DC), Max.60mA (AC) | Weight: 0.13kg | Height: 100mm | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
Q60LW Mount: wall | Voltage: DC12V-24V, AC110V-220V | Current: Max.155mA (DC), Max.60mA (AC) | Weight: 0.45kg | Height: 129mm | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
Q60LP Mount: pole | Voltage: DC12V-24V, AC110V-220V | Current: Max.155mA (DC), Max.60mA (AC) | Weight: 1.06kg | Height: 334mm | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | Pole brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
Signal BeaconsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight Q60L Series Ø60mm LED Steady/Flashing Signal Light

Brand Qlight·Signal Beacons

Available part numbers (3)

Q60L, Q60LW, Q60LP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight Q60L Series Ø60mm LED Steady/Flashing Signal Light - reference 2Qlight Q60L Series Ø60mm LED Steady/Flashing Signal Light - reference 3
0 selected
RFQ List (0)
Product codeSpec
Q60LMount: direct | Voltage: DC12V-24V, AC110V-220V | Current: Max.155mA (DC), Max.60mA (AC) | Weight: 0.13kg | Height: 100mm | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
Q60LWMount: wall | Voltage: DC12V-24V, AC110V-220V | Current: Max.155mA (DC), Max.60mA (AC) | Weight: 0.45kg | Height: 129mm | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B
Q60LPMount: pole | Voltage: DC12V-24V, AC110V-220V | Current: Max.155mA (DC), Max.60mA (AC) | Weight: 1.06kg | Height: 334mm | Buzzer option: none or BZ (built-in buzzer) | Colors: R, A, G, B | Pole brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
