• Qlight QAD Wall Mount Dome LED Signal Light with Electric Horn (QAD80H/100H/125H)
1 1

Qlight QAD Wall Mount Dome LED Signal Light with Electric Horn (QAD80H/100H/125H)

Qlight QAD Wall Mount Dome LED Signal Light with Electric Horn (QAD80H/100H/125H)

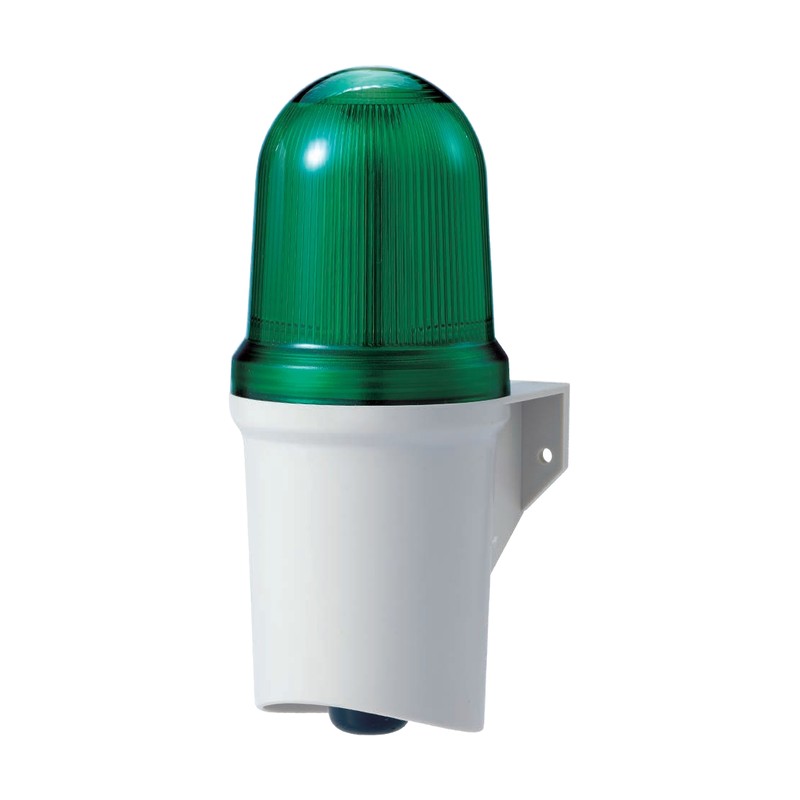

Wall-mounted dome type LED steady/flashing signal light combined with a multi-tone electric horn, available with SD card MP3 playback or built-in sounds only (-N).

Key features

  • Visual and audible signal from one wall-mounted unit
  • 30 built-in sound tones with bit (5 ch) and binary (30 ch) input modes
  • QAD100H/QAD125H play user MP3 files from an SD card (up to 32 GB)
  • Front sound selector and volume control
  • Built-in steady/flashing selection switch, flashing rate 60-80/min

Specifications

Protection rating IP65
Ambient temperature -30 to +60 °C (spec table), icons show -30 to +50 °C
Materials Lens PC, housing ABS
Colors R-Red, A-Amber, G-Green, B-Blue
Mounting Wall mount
Compliance RoHS
Qlight QAD Wall Mount Dome LED Signal Light with Electric Horn (QAD80H/100H/125H) - reference 2
QAD80H Diameter: Ø83mm | Voltage: DC12V-24V (max. 990mA) | Sound: 30 built-in, max. 100dB | Weight: 0.70kg
QAD100H Diameter: Ø97mm | Voltage: DC12V-24V (max. 1A), AC110V-220V (max. 360mA) | Sound: 30 built-in max. 100dB, MP3 max. 95dB (SD card) | Weight: 0.92kg
QAD125H Diameter: Ø116mm | Voltage: DC12V-24V (max. 2.15A), AC110V-220V (max. 360mA) | Sound: 30 built-in max. 115dB, MP3 max. 100dB (SD card) | Weight: 1.12kg
QAD100H-N Diameter: Ø97mm | Voltage: DC12V-24V (max. 1.25A), AC110V-220V (max. 250mA) | Sound: 30 built-in only, max. 100dB | Weight: 0.92kg
QAD125H-N Diameter: Ø116mm | Voltage: DC12V-24V (max. 1.15A), AC110V-220V (max. 275mA) | Sound: 30 built-in only, max. 115dB | Weight: 1.12kg
Sounder BeaconsQlight
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QAD Wall Mount Dome LED Signal Light with Electric Horn (QAD80H/100H/125H)

Brand Qlight·Sounder Beacons

Available part numbers (5)

QAD80H, QAD100H, QAD125H, QAD100H-N, QAD125H-N

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QAD Wall Mount Dome LED Signal Light with Electric Horn (QAD80H/100H/125H) - reference 2
0 selected
RFQ List (0)
Product codeSpec
QAD80HDiameter: Ø83mm | Voltage: DC12V-24V (max. 990mA) | Sound: 30 built-in, max. 100dB | Weight: 0.70kg
QAD100HDiameter: Ø97mm | Voltage: DC12V-24V (max. 1A), AC110V-220V (max. 360mA) | Sound: 30 built-in max. 100dB, MP3 max. 95dB (SD card) | Weight: 0.92kg
QAD125HDiameter: Ø116mm | Voltage: DC12V-24V (max. 2.15A), AC110V-220V (max. 360mA) | Sound: 30 built-in max. 115dB, MP3 max. 100dB (SD card) | Weight: 1.12kg
QAD100H-NDiameter: Ø97mm | Voltage: DC12V-24V (max. 1.25A), AC110V-220V (max. 250mA) | Sound: 30 built-in only, max. 100dB | Weight: 0.92kg
QAD125H-NDiameter: Ø116mm | Voltage: DC12V-24V (max. 1.15A), AC110V-220V (max. 275mA) | Sound: 30 built-in only, max. 115dB | Weight: 1.12kg
