• Qlight QAP Wall Mount Multifunctional Electric Horn (QAP80H/100H/125H)
1 1

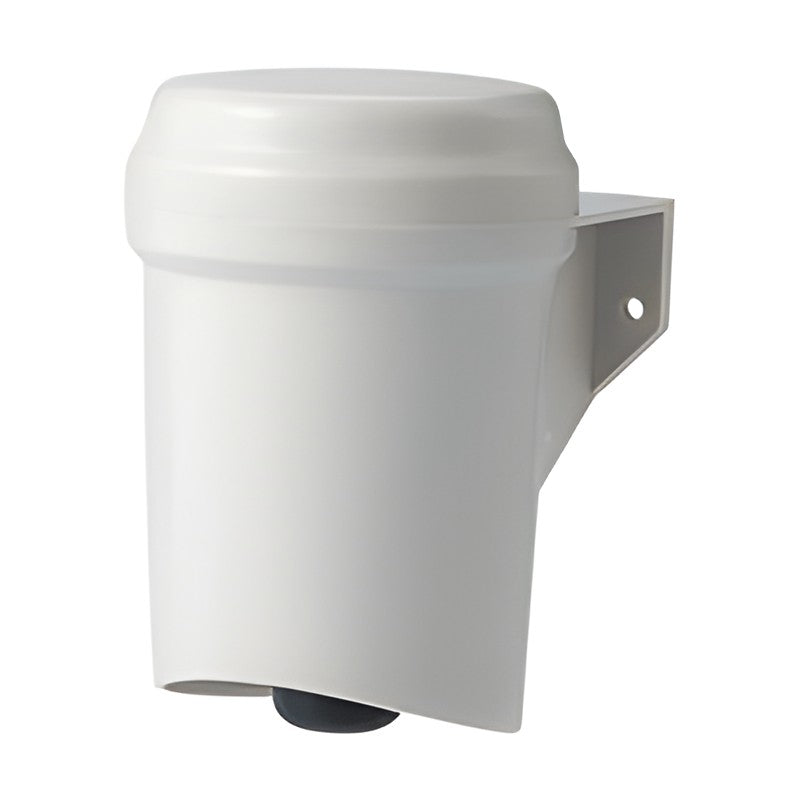

Qlight QAP Wall Mount Multifunctional Electric Horn (QAP80H/100H/125H)

Qlight QAP Wall Mount Multifunctional Electric Horn (QAP80H/100H/125H)

Wall-mounted multifunctional electric horn with 30 built-in sounds; QAP100H/QAP125H also play user MP3 files from an SD card, -N versions have built-in sounds only.

Key features

  • 30 built-in sounds with bit (5 ch, 6 groups) and binary (30 ch) input modes
  • QAP100H/QAP125H support SD card MP3 playback (up to 32 GB)
  • Volume control and tone selector switches inside the unit
  • Resonance chamber gives rich, clear sound
  • Wall mount sound-diffusing structure

Specifications

Protection rating IP65
Ambient temperature -25 to +50 °C
Materials Housing ABS, resonance chamber ABS
Mounting Wall mount
Compliance RoHS
Qlight QAP Wall Mount Multifunctional Electric Horn (QAP80H/100H/125H) - reference 2
QAP80H Diameter: Ø83mm | Voltage: DC12V-24V (max. 850mA) | Sound: built-in max. 100dB | Weight: 0.51kg
QAP100H Diameter: Ø97mm | Voltage: DC12V-24V (max. 850mA), AC110V-220V (max. 175mA) | Sound: built-in max. 100dB, MP3 max. 95dB (SD card) | Weight: 0.60kg DC, 0.63kg AC
QAP125H Diameter: Ø116mm | Voltage: DC12V-24V (max. 1A), AC110V-220V (max. 190mA) | Sound: built-in max. 115dB, MP3 max. 100dB (SD card) | Weight: 0.70kg DC, 0.73kg AC
QAP100H-N Diameter: Ø97mm | Voltage: DC12V-24V (max. 850mA), AC110V-220V (max. 175mA) | Sound: built-in only, max. 100dB | Weight: 0.60kg DC, 0.63kg AC
QAP125H-N Diameter: Ø116mm | Voltage: DC12V-24V (max. 1A), AC110V-220V (max. 190mA) | Sound: built-in only, max. 115dB | Weight: 0.70kg DC, 0.73kg AC
Signal HornsQlight
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QAP Wall Mount Multifunctional Electric Horn (QAP80H/100H/125H)

Brand Qlight·Signal Horns

Available part numbers (5)

QAP80H, QAP100H, QAP125H, QAP100H-N, QAP125H-N

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QAP Wall Mount Multifunctional Electric Horn (QAP80H/100H/125H) - reference 2
0 selected
RFQ List (0)
Product codeSpec
QAP80HDiameter: Ø83mm | Voltage: DC12V-24V (max. 850mA) | Sound: built-in max. 100dB | Weight: 0.51kg
QAP100HDiameter: Ø97mm | Voltage: DC12V-24V (max. 850mA), AC110V-220V (max. 175mA) | Sound: built-in max. 100dB, MP3 max. 95dB (SD card) | Weight: 0.60kg DC, 0.63kg AC
QAP125HDiameter: Ø116mm | Voltage: DC12V-24V (max. 1A), AC110V-220V (max. 190mA) | Sound: built-in max. 115dB, MP3 max. 100dB (SD card) | Weight: 0.70kg DC, 0.73kg AC
QAP100H-NDiameter: Ø97mm | Voltage: DC12V-24V (max. 850mA), AC110V-220V (max. 175mA) | Sound: built-in only, max. 100dB | Weight: 0.60kg DC, 0.63kg AC
QAP125H-NDiameter: Ø116mm | Voltage: DC12V-24V (max. 1A), AC110V-220V (max. 190mA) | Sound: built-in only, max. 115dB | Weight: 0.70kg DC, 0.73kg AC
