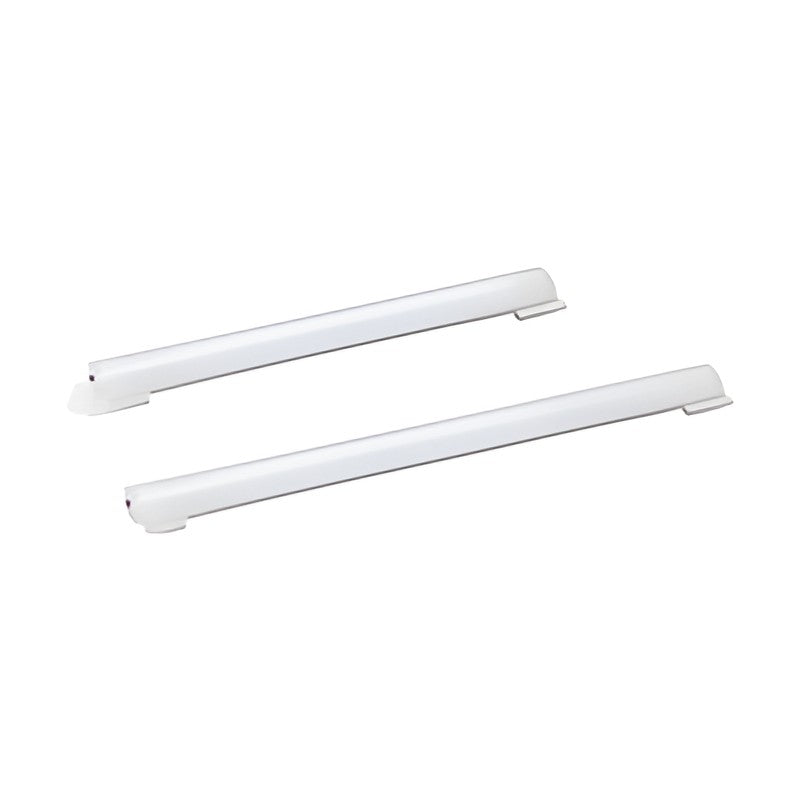

Qlight QCML-3C 3-Color Waterproof LED Light Bar IP67/IP69K

Qlight QCML-3C 3-Color Waterproof LED Light Bar IP67/IP69K

Compact IP67/IP69K LED light bar with three selectable colors (red, amber, green) for machine status indication, lengths 100 to 400 mm.

Key features

  • Three configurable colors in one light bar saves installation cost and space
  • Lens and side cover integrated with multi silicone rubber sealing
  • IP67/IP69K standard side-cover cable outlet
  • Detachable sliding mounting brackets
  • Custom options: lens rear cable outlet (non-waterproof), M12 connector outlet, foldable bracket

Specifications

Voltage DC24V
Operating voltage range DC21.6V-26.4V
Lens Translucent
Light colors Red 618-635nm, Amber 590-595nm, Green 510-530nm
Protection rating IP67/IP69K
Ambient temperature -20 to +50 °C
Materials Lens-PC, Side cover-PC, Heatsink-STS, Bracket-PC
Width x Height 33 x 26 mm
Certificates CE
QCML-100-3C Length: 123 mm | Power: 1W | Weight: 0.10kg
QCML-200-3C Length: 228 mm | Power: 1.7W | Weight: 0.20kg
QCML-300-3C Length: 328 mm | Power: 2.5W | Weight: 0.24kg
QCML-400-3C Length: 428 mm | Power: 3.5W | Weight: 0.30kg
LED Light BarsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QCML-3C 3-Color Waterproof LED Light Bar IP67/IP69K

Brand Qlight·LED Light Bars

Available part numbers (4)

QCML-100-3C, QCML-200-3C, QCML-300-3C, QCML-400-3C

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QCML-100-3CLength: 123 mm | Power: 1W | Weight: 0.10kg
QCML-200-3CLength: 228 mm | Power: 1.7W | Weight: 0.20kg
QCML-300-3CLength: 328 mm | Power: 2.5W | Weight: 0.24kg
QCML-400-3CLength: 428 mm | Power: 3.5W | Weight: 0.30kg
