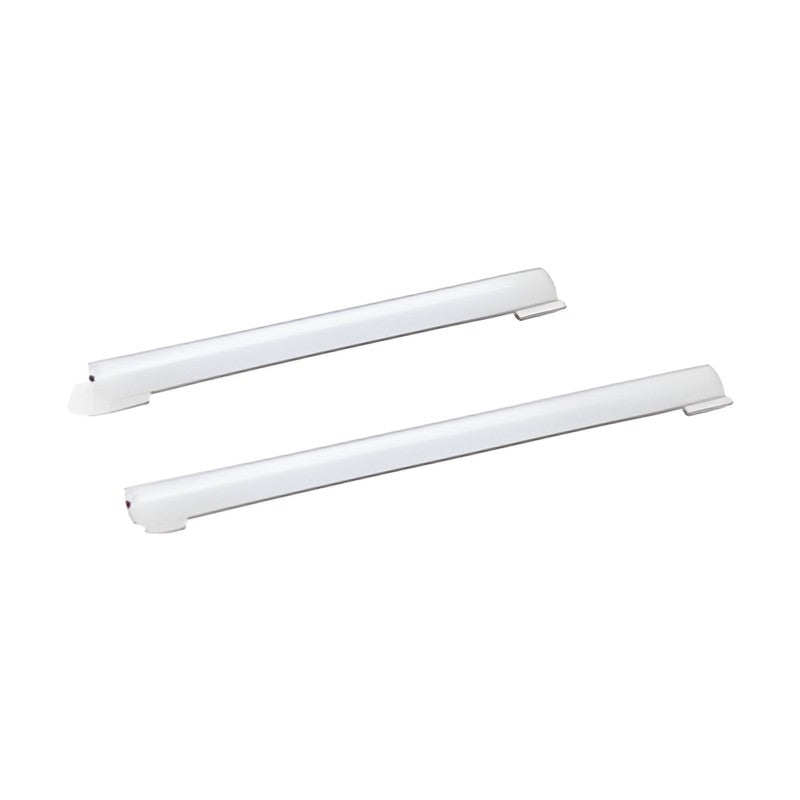

Qlight QCML-7C 7-Color Waterproof LED Light Bar IP67/IP69K

Qlight QCML-7C 7-Color Waterproof LED Light Bar IP67/IP69K

Single IP67/IP69K LED light bar that produces 7 selectable colors (red, green, blue, amber, violet, cyan, white) via 3 control wires.

Key features

  • Seven configurable colors in one light bar saves installation cost and space
  • Lens and side cover integrated with multi silicone rubber sealing
  • IP67/IP69K for hot wash-down in food, pharmaceutical and beverage machines
  • Polycarbonate body with superior heat and shock resistance
  • Detachable sliding mounting brackets
  • Cable standard; M12 connector or foldable bracket on request

Specifications

Voltage DC24V
Operating voltage range DC21V-30V
Lens Translucent
Light colors Red, Green, Blue, Amber, Violet, Cyan, White
Protection rating IP67/IP69K
Ambient temperature -20 to +50 °C
Materials Lens-PC, Side cover-PC, Heatsink-Al, Bracket-PC
Width x Height 33 x 26 mm
Power cable UL2464 AWG22 0.3sq x 4C 450mm
Certificates CE, UL
QCML-200-7C Length: 228 mm | Power: 4.7W | Weight: 0.16kg
QCML-300-7C Length: 328 mm | Power: 5.6W | Weight: 0.20kg
QCML-400-7C Length: 428 mm | Power: 9.4W | Weight: 0.26kg
QCML-500-7C Length: 528 mm | Power: 10.3W | Weight: 0.33kg
QCML-600-7C Length: 628 mm | Power: 11.4W | Weight: 0.40kg
QCML-900-7C Length: 928 mm | Power: 17W | Weight: 0.56kg
QCML-1200-7C Length: 1228 mm | Power: 22.2W | Weight: 0.76kg
QCML-1500-7C Length: 1528 mm | Power: 28W | Weight: 0.94kg
LED Light BarsQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QCML-7C 7-Color Waterproof LED Light Bar IP67/IP69K

Brand Qlight·LED Light Bars

Available part numbers (8)

QCML-200-7C, QCML-300-7C, QCML-400-7C, QCML-500-7C, QCML-600-7C, QCML-900-7C, QCML-1200-7C, QCML-1500-7C

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
