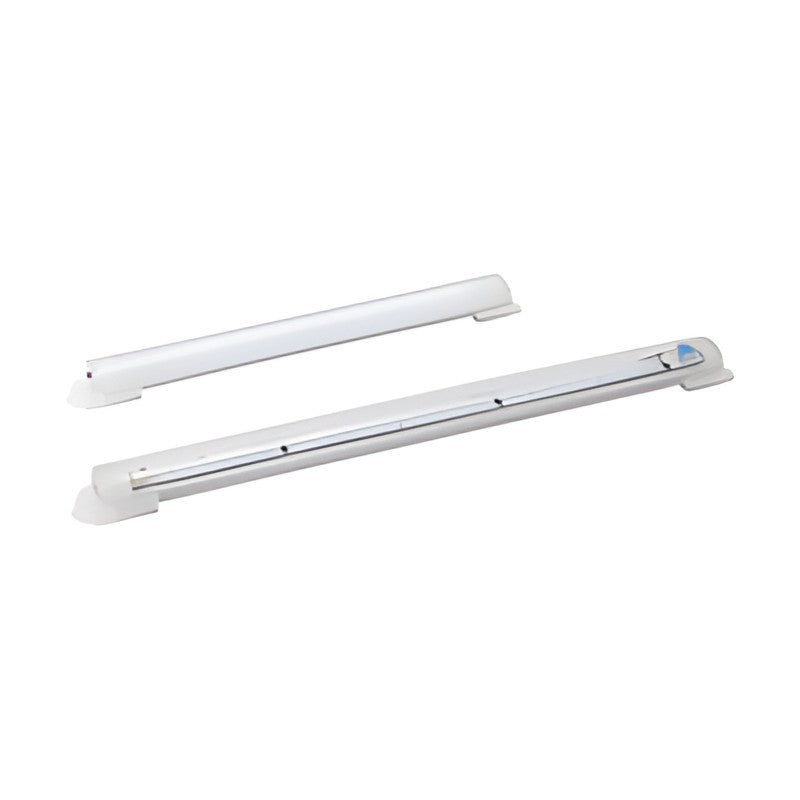

Qlight QCML / QCMLC Multi-use Waterproof LED Light Bar IP67/IP69K

Qlight QCML / QCMLC Multi-use Waterproof LED Light Bar IP67/IP69K

Slim polycarbonate LED light bar sealed to IP67/IP69K for high-temperature wash-down, in cooldaylight, warm white, red or amber, lengths 200 to 1500 mm.

Key features

  • Lens and side cover integrated with multi silicone rubber sealing
  • IP67/IP69K for food, pharmaceutical and beverage machines with hot wash-down
  • Polycarbonate body with superior heat and shock resistance
  • Cooldaylight, warm white, red or amber light colors
  • Detachable sliding mounting brackets with adjustable hole spacing
  • Cable standard; M12 connector or foldable 0-180° bracket on request

Specifications

Voltage DC24V
Operating voltage range DC21.5V-26.5V
Protection rating IP67/IP69K
Ambient temperature -30 to +50 °C
Materials Lens-PC, Side cover-PC, Heatsink-Al, Bracket-PC
Width x Height 33 x 26 mm
Power cable UL2464 AWG22 0.3sq x 2C 450mm
Certificates CE, UL
QCML-200-W Lens: Translucent | Length: 228 mm | Light color: Cooldaylight 6,000-7,000K | Power: 5.5W | Weight: 0.16kg
QCML-200-PY Lens: Translucent | Length: 228 mm | Light color: Warm white 2,500-3,500K | Power: 5.5W | Weight: 0.16kg
QCML-200-R Lens: Translucent | Length: 228 mm | Light color: Red 618-632nm | Power: 5.5W | Weight: 0.16kg
QCML-200-A Lens: Translucent | Length: 228 mm | Light color: Amber 585-595nm | Power: 5.5W | Weight: 0.16kg
QCML-300-W Lens: Translucent | Length: 328 mm | Light color: Cooldaylight 6,000-7,000K | Power: 6W | Weight: 0.20kg
QCML-300-PY Lens: Translucent | Length: 328 mm | Light color: Warm white 2,500-3,500K | Power: 6W | Weight: 0.20kg
QCML-300-R Lens: Translucent | Length: 328 mm | Light color: Red 618-632nm | Power: 6W | Weight: 0.20kg
QCML-300-A Lens: Translucent | Length: 328 mm | Light color: Amber 585-595nm | Power: 6W | Weight: 0.20kg
QCML-400-W Lens: Translucent | Length: 428 mm | Light color: Cooldaylight 6,000-7,000K | Power: 11W | Weight: 0.26kg
QCML-400-PY Lens: Translucent | Length: 428 mm | Light color: Warm white 2,500-3,500K | Power: 11W | Weight: 0.26kg
QCML-400-R Lens: Translucent | Length: 428 mm | Light color: Red 618-632nm | Power: 11W | Weight: 0.26kg
QCML-400-A Lens: Translucent | Length: 428 mm | Light color: Amber 585-595nm | Power: 11W | Weight: 0.26kg
QCML-500-W Lens: Translucent | Length: 528 mm | Light color: Cooldaylight 6,000-7,000K | Power: 11.5W | Weight: 0.33kg
QCML-500-PY Lens: Translucent | Length: 528 mm | Light color: Warm white 2,500-3,500K | Power: 11.5W | Weight: 0.33kg
QCML-500-R Lens: Translucent | Length: 528 mm | Light color: Red 618-632nm | Power: 11.5W | Weight: 0.33kg
QCML-500-A Lens: Translucent | Length: 528 mm | Light color: Amber 585-595nm | Power: 11.5W | Weight: 0.33kg
QCML-600-W Lens: Translucent | Length: 628 mm | Light color: Cooldaylight 6,000-7,000K | Power: 11.5W | Weight: 0.40kg
QCML-600-PY Lens: Translucent | Length: 628 mm | Light color: Warm white 2,500-3,500K | Power: 11.5W | Weight: 0.40kg
QCML-600-R Lens: Translucent | Length: 628 mm | Light color: Red 618-632nm | Power: 11.5W | Weight: 0.40kg
QCML-600-A Lens: Translucent | Length: 628 mm | Light color: Amber 585-595nm | Power: 11.5W | Weight: 0.40kg
QCML-900-W Lens: Translucent | Length: 928 mm | Light color: Cooldaylight 6,000-7,000K | Power: 17W | Weight: 0.56kg
QCML-900-PY Lens: Translucent | Length: 928 mm | Light color: Warm white 2,500-3,500K | Power: 17W | Weight: 0.56kg
QCML-900-R Lens: Translucent | Length: 928 mm | Light color: Red 618-632nm | Power: 17W | Weight: 0.56kg
QCML-900-A Lens: Translucent | Length: 928 mm | Light color: Amber 585-595nm | Power: 17W | Weight: 0.56kg
QCML-1200-W Lens: Translucent | Length: 1228 mm | Light color: Cooldaylight 6,000-7,000K | Power: 22W | Weight: 0.76kg
QCML-1200-PY Lens: Translucent | Length: 1228 mm | Light color: Warm white 2,500-3,500K | Power: 22W | Weight: 0.76kg
QCML-1200-R Lens: Translucent | Length: 1228 mm | Light color: Red 618-632nm | Power: 22W | Weight: 0.76kg
QCML-1200-A Lens: Translucent | Length: 1228 mm | Light color: Amber 585-595nm | Power: 22W | Weight: 0.76kg
QCML-1500-W Lens: Translucent | Length: 1528 mm | Light color: Cooldaylight 6,000-7,000K | Power: 28W | Weight: 0.94kg
QCML-1500-PY Lens: Translucent | Length: 1528 mm | Light color: Warm white 2,500-3,500K | Power: 28W | Weight: 0.94kg
QCML-1500-R Lens: Translucent | Length: 1528 mm | Light color: Red 618-632nm | Power: 28W | Weight: 0.94kg
QCML-1500-A Lens: Translucent | Length: 1528 mm | Light color: Amber 585-595nm | Power: 28W | Weight: 0.94kg
QCMLC-200-W Lens: Transparent | Length: 228 mm | Light color: Cooldaylight 6,000-7,000K | Power: 5.5W | Weight: 0.16kg
QCMLC-200-PY Lens: Transparent | Length: 228 mm | Light color: Warm white 2,500-3,500K | Power: 5.5W | Weight: 0.16kg
QCMLC-200-R Lens: Transparent | Length: 228 mm | Light color: Red 618-632nm | Power: 5.5W | Weight: 0.16kg
QCMLC-200-A Lens: Transparent | Length: 228 mm | Light color: Amber 585-595nm | Power: 5.5W | Weight: 0.16kg
QCMLC-300-W Lens: Transparent | Length: 328 mm | Light color: Cooldaylight 6,000-7,000K | Power: 6W | Weight: 0.20kg
QCMLC-300-PY Lens: Transparent | Length: 328 mm | Light color: Warm white 2,500-3,500K | Power: 6W | Weight: 0.20kg
QCMLC-300-R Lens: Transparent | Length: 328 mm | Light color: Red 618-632nm | Power: 6W | Weight: 0.20kg
QCMLC-300-A Lens: Transparent | Length: 328 mm | Light color: Amber 585-595nm | Power: 6W | Weight: 0.20kg
QCMLC-400-W Lens: Transparent | Length: 428 mm | Light color: Cooldaylight 6,000-7,000K | Power: 11W | Weight: 0.26kg
QCMLC-400-PY Lens: Transparent | Length: 428 mm | Light color: Warm white 2,500-3,500K | Power: 11W | Weight: 0.26kg
QCMLC-400-R Lens: Transparent | Length: 428 mm | Light color: Red 618-632nm | Power: 11W | Weight: 0.26kg
QCMLC-400-A Lens: Transparent | Length: 428 mm | Light color: Amber 585-595nm | Power: 11W | Weight: 0.26kg
QCMLC-500-W Lens: Transparent | Length: 528 mm | Light color: Cooldaylight 6,000-7,000K | Power: 11.5W | Weight: 0.33kg
QCMLC-500-PY Lens: Transparent | Length: 528 mm | Light color: Warm white 2,500-3,500K | Power: 11.5W | Weight: 0.33kg
QCMLC-500-R Lens: Transparent | Length: 528 mm | Light color: Red 618-632nm | Power: 11.5W | Weight: 0.33kg
QCMLC-500-A Lens: Transparent | Length: 528 mm | Light color: Amber 585-595nm | Power: 11.5W | Weight: 0.33kg
QCMLC-600-W Lens: Transparent | Length: 628 mm | Light color: Cooldaylight 6,000-7,000K | Power: 11.5W | Weight: 0.40kg
QCMLC-600-PY Lens: Transparent | Length: 628 mm | Light color: Warm white 2,500-3,500K | Power: 11.5W | Weight: 0.40kg
QCMLC-600-R Lens: Transparent | Length: 628 mm | Light color: Red 618-632nm | Power: 11.5W | Weight: 0.40kg
QCMLC-600-A Lens: Transparent | Length: 628 mm | Light color: Amber 585-595nm | Power: 11.5W | Weight: 0.40kg
QCMLC-900-W Lens: Transparent | Length: 928 mm | Light color: Cooldaylight 6,000-7,000K | Power: 17W | Weight: 0.56kg
QCMLC-900-PY Lens: Transparent | Length: 928 mm | Light color: Warm white 2,500-3,500K | Power: 17W | Weight: 0.56kg
QCMLC-900-R Lens: Transparent | Length: 928 mm | Light color: Red 618-632nm | Power: 17W | Weight: 0.56kg
QCMLC-900-A Lens: Transparent | Length: 928 mm | Light color: Amber 585-595nm | Power: 17W | Weight: 0.56kg
QCMLC-1200-W Lens: Transparent | Length: 1228 mm | Light color: Cooldaylight 6,000-7,000K | Power: 22W | Weight: 0.76kg
QCMLC-1200-PY Lens: Transparent | Length: 1228 mm | Light color: Warm white 2,500-3,500K | Power: 22W | Weight: 0.76kg
QCMLC-1200-R Lens: Transparent | Length: 1228 mm | Light color: Red 618-632nm | Power: 22W | Weight: 0.76kg
QCMLC-1200-A Lens: Transparent | Length: 1228 mm | Light color: Amber 585-595nm | Power: 22W | Weight: 0.76kg
QCMLC-1500-W Lens: Transparent | Length: 1528 mm | Light color: Cooldaylight 6,000-7,000K | Power: 28W | Weight: 0.94kg
QCMLC-1500-PY Lens: Transparent | Length: 1528 mm | Light color: Warm white 2,500-3,500K | Power: 28W | Weight: 0.94kg
QCMLC-1500-R Lens: Transparent | Length: 1528 mm | Light color: Red 618-632nm | Power: 28W | Weight: 0.94kg
QCMLC-1500-A Lens: Transparent | Length: 1528 mm | Light color: Amber 585-595nm | Power: 28W | Weight: 0.94kg
