• Qlight QDT50L-IOL Ø50mm Multi-Color Programmable LED Tower Light with IO-Link
1 1

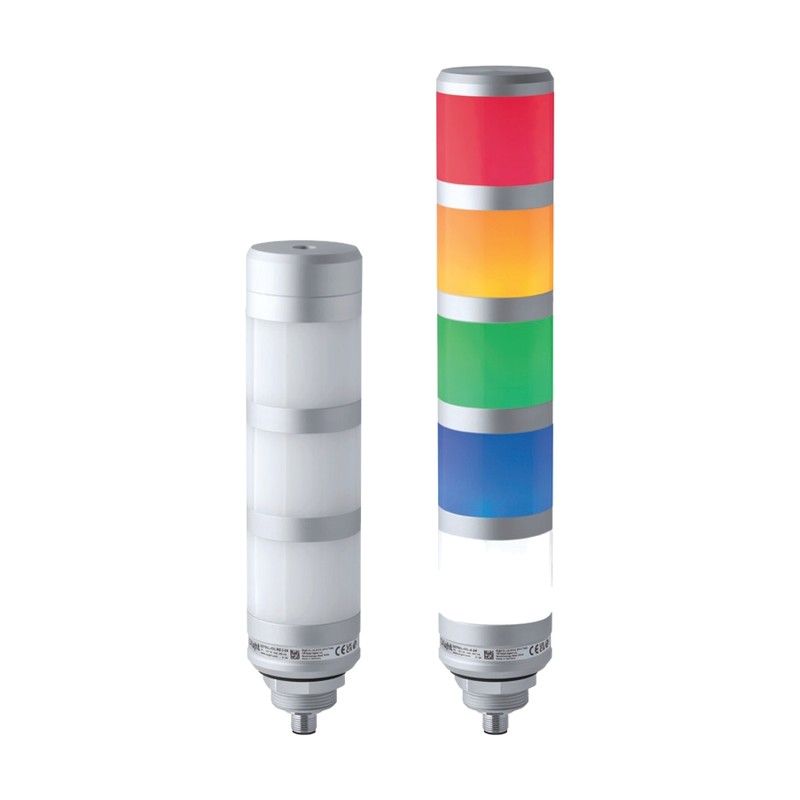

Qlight QDT50L-IOL Ø50mm Multi-Color Programmable LED Tower Light with IO-Link

Qlight QDT50L-IOL Ø50mm Multi-Color Programmable LED Tower Light with IO-Link

Ø50 mm aluminum multi-color programmable LED signal tower light with IO-Link, in 3 or 5 layers, with optional 80 dB buzzer.

Key features

  • IO-Link V1.1 communication, data transmission rate 38,400 bps (COM2)
  • Plug & play operation via international standard M12 connector
  • Signaling device optimized for Industry 4.0 smart manufacturing
  • 8 preset color modes plus user-defined settings, configurable via IO-Link
  • Supports external trigger mode (3 trigger inputs) and IO-Link mode
  • Optional 80 dB built-in buzzer

Specifications

Voltage DC24V
Diameter Ø50.6 mm
Material Housing-Al, Lens-PC
Ambient temperature 0 to +50 °C
Connector M12x1 5-pin, M30x1.5 mount thread
Colors Red, Green, Yellow, Blue, White, Orange, Pink, custom
Certificates IO-Link, CE, UKCA
Mounting Direct mount, wall mount, pole mount
Brackets QZ30, QZ302, LB35 (poles R25, PE35-100, PE35-400)
QDT50L-IOL Type: Standard | Layers: 3, 5 | Height: 165 mm (3), 259 mm (5) | Weight: 0.27kg (3), 0.31kg (5) | Protection: IP65
QDT50L-IOL-BZ Type: Built-in buzzer, Max. 80dB | Layers: 3, 5 | Height: 184 mm (3), 278 mm (5) | Weight: 0.35kg (3), 0.39kg (5) | Protection: IP20
IO-Link Signal TowersQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QDT50L-IOL Ø50mm Multi-Color Programmable LED Tower Light with IO-Link

Brand Qlight·IO-Link Signal Towers

Available part numbers (2)

QDT50L-IOL, QDT50L-IOL-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QDT50L-IOLType: Standard | Layers: 3, 5 | Height: 165 mm (3), 259 mm (5) | Weight: 0.27kg (3), 0.31kg (5) | Protection: IP65
QDT50L-IOL-BZType: Built-in buzzer, Max. 80dB | Layers: 3, 5 | Height: 184 mm (3), 278 mm (5) | Weight: 0.35kg (3), 0.39kg (5) | Protection: IP20
