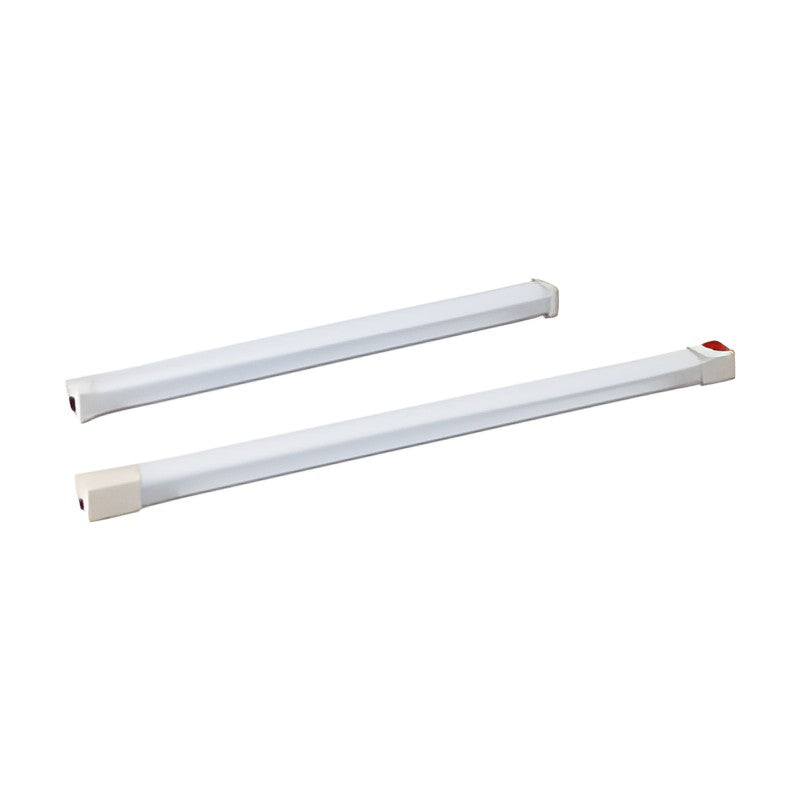

Qlight QEL / QELT / QELS / QELTS LED Light Bar for Distribution Panels

Indoor LED light bar for distribution panels with wide direct light distribution, in cable, terminal box, switch and terminal-plus-switch versions.

Key features

Wide direct light distribution for high illumination inside distribution panels
Cable, terminal box or on/off switch equipped versions
LED direct AC connect system; no other power device needed
Constant current circuit for stable illumination under unstable power
Lengths 200/300/400/500 mm with removable adjustable mount bracket
M12 connector on request

Specifications

Voltage	DC24V, AC110V, AC220V
Operating voltage range	DC21.5V-26.5V, AC98V-121V, AC198V-245V
Lens	Translucent
Light color	Cooldaylight
Color temperature	6,000-7,000K
Protection rating	Non-waterproof (indoor use)
Ambient temperature	-30 to +50 °C
Materials	Lens-PC, Side cover-ABS, Bracket-STS201
Certificates	CE, KC

QEL-200		Type: External power line \| Overall length: 220 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
QEL-300		Type: External power line \| Overall length: 320 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
QEL-400		Type: External power line \| Overall length: 420 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
QEL-500		Type: External power line \| Overall length: 520 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W
QELT-200		Type: Terminal box equipped \| Overall length: 249 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
QELT-300		Type: Terminal box equipped \| Overall length: 349 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
QELT-400		Type: Terminal box equipped \| Overall length: 449 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
QELT-500		Type: Terminal box equipped \| Overall length: 549 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W
QELS-200		Type: External power line, on/off switch \| Overall length: 249 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
QELS-300		Type: External power line, on/off switch \| Overall length: 349 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
QELS-400		Type: External power line, on/off switch \| Overall length: 449 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
QELS-500		Type: External power line, on/off switch \| Overall length: 549 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W
QELTS-200		Type: Terminal box and on/off switch \| Overall length: 278 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
QELTS-300		Type: Terminal box and on/off switch \| Overall length: 378 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
QELTS-400		Type: Terminal box and on/off switch \| Overall length: 478 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
QELTS-500		Type: Terminal box and on/off switch \| Overall length: 578 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W

LED Light BarsQlight

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QEL / QELT / QELS / QELTS LED Light Bar for Distribution Panels

Brand Qlight·LED Light Bars

Available part numbers (16)

QEL-200, QEL-300, QEL-400, QEL-500, QELT-200, QELT-300, QELT-400, QELT-500, QELS-200, QELS-300 + 6 more — see full table ↓

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	QEL-200	Type: External power line \| Overall length: 220 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
	QEL-300	Type: External power line \| Overall length: 320 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
	QEL-400	Type: External power line \| Overall length: 420 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
	QEL-500	Type: External power line \| Overall length: 520 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W
	QELT-200	Type: Terminal box equipped \| Overall length: 249 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
	QELT-300	Type: Terminal box equipped \| Overall length: 349 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
	QELT-400	Type: Terminal box equipped \| Overall length: 449 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
	QELT-500	Type: Terminal box equipped \| Overall length: 549 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W
	QELS-200	Type: External power line, on/off switch \| Overall length: 249 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
	QELS-300	Type: External power line, on/off switch \| Overall length: 349 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
	QELS-400	Type: External power line, on/off switch \| Overall length: 449 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
	QELS-500	Type: External power line, on/off switch \| Overall length: 549 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W
	QELTS-200	Type: Terminal box and on/off switch \| Overall length: 278 mm \| Luminous flux: 180lm \| Illumination at 1m: DC 80Lux, AC 75Lux \| Power: DC24V 4W, AC110V 3W, AC220V 3.5W
	QELTS-300	Type: Terminal box and on/off switch \| Overall length: 378 mm \| Luminous flux: 300lm \| Illumination at 1m: DC 100Lux, AC 100Lux \| Power: DC24V 5.5W, AC110V 3.5W, AC220V 5W
	QELTS-400	Type: Terminal box and on/off switch \| Overall length: 478 mm \| Luminous flux: 420lm \| Illumination at 1m: DC 150Lux, AC 150Lux \| Power: DC24V 8W, AC110V 4.5W, AC220V 6.5W
	QELTS-500	Type: Terminal box and on/off switch \| Overall length: 578 mm \| Luminous flux: 500lm \| Illumination at 1m: DC 200Lux, AC 190Lux \| Power: DC24V 9.5W, AC110V 5.5W, AC220V 8.5W
