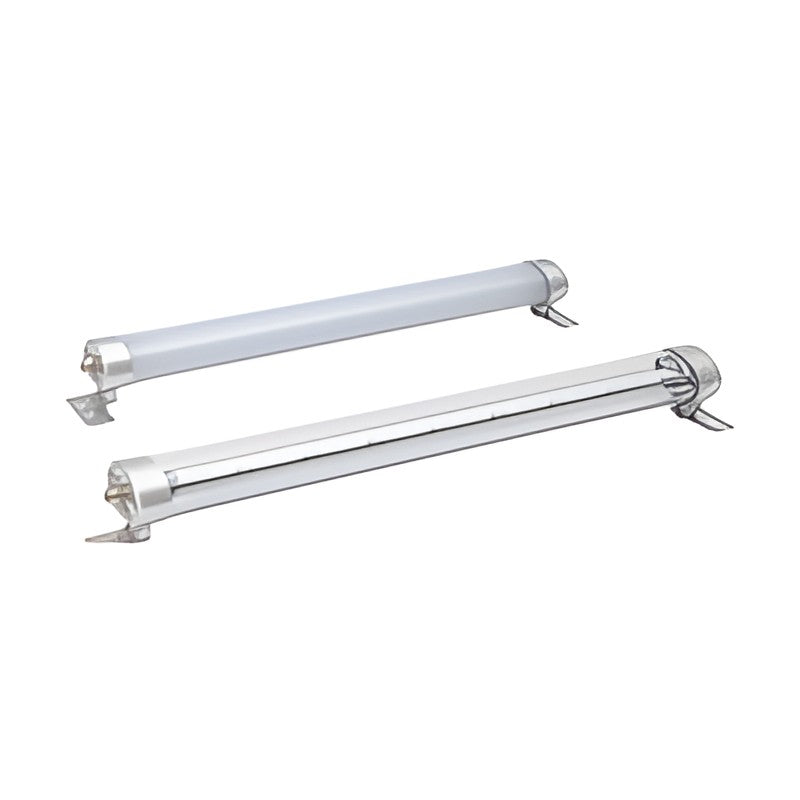

Qlight QFLC Water and Vibration Resistant LED Light Bar IP67, Transparent Lens

Qlight QFLC Water and Vibration Resistant LED Light Bar IP67, Transparent Lens

IP67 aluminum LED light bar with transparent high-luminance polycarbonate oval lens for DC24V or AC220V, lengths 200 to 1200.

Key features

  • Oval lens with special light-distributing surface for excellent front and side light distribution
  • AC types connect directly to AC220V without an external power supply
  • Heat-dissipative material connected to the outer cover
  • IP67 water and vibration proof for outdoor, dusty and moist locations
  • Tilt bracket with 130° adjustment
  • Wired type or M12 connector type

Specifications

Light color Cooldaylight
Color temperature 6,000-7,000K
Operating voltage range DC21.5V-26.5V, AC198V-245V
Protection rating IP67
Ambient temperature -30 to +50 °C
Materials Lens-PC, Side cover-Al, Heatsink-Al, Bracket-SPC-1
Width x Height 60 x 63 mm
Connector option Cable (standard) or M12 connector (-M12)
Certificates CE
Lens Transparent
QFLC-200 Length: 240 mm | Voltage: DC24V | Luminous flux: DC 400lm | Illumination at 1m: DC 150Lux | Power: DC 6W | Weight: DC 0.44kg
QFLC-300 Length: 340 mm | Voltage: DC24V | Luminous flux: DC 800lm | Illumination at 1m: DC 300Lux | Power: DC 10W | Weight: DC 0.51kg
QFLC-400 Length: 440 mm | Voltage: DC24V, AC220V | Luminous flux: DC 1,200lm, AC 1,400lm | Illumination at 1m: DC 460Lux, AC 550Lux | Power: DC 15W, AC 25W | Weight: DC 0.66kg, AC 0.68kg
QFLC-500 Length: 540 mm | Voltage: DC24V, AC220V | Luminous flux: DC 1,500lm, AC 2,000lm | Illumination at 1m: DC 600Lux, AC 800Lux | Power: DC 20W, AC 30W | Weight: DC 0.74kg, AC 0.77kg
QFLC-600 Length: 640 mm | Voltage: DC24V, AC220V | Luminous flux: DC 2,000lm, AC 2,500lm | Illumination at 1m: DC 780Lux, AC 900Lux | Power: DC 25W, AC 35W | Weight: DC 0.85kg, AC 0.87kg
QFLC-1200 Length: 1190 mm | Voltage: DC24V, AC220V | Luminous flux: DC 4,200lm, AC 5,000lm | Illumination at 1m: DC 1,500Lux, AC 1,800Lux | Power: DC 50W, AC 70W | Weight: DC 1.38kg, AC 1.49kg
LED Light BarsQlight
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QFLC Water and Vibration Resistant LED Light Bar IP67, Transparent Lens

Brand Qlight·LED Light Bars

Available part numbers (6)

QFLC-200, QFLC-300, QFLC-400, QFLC-500, QFLC-600, QFLC-1200
