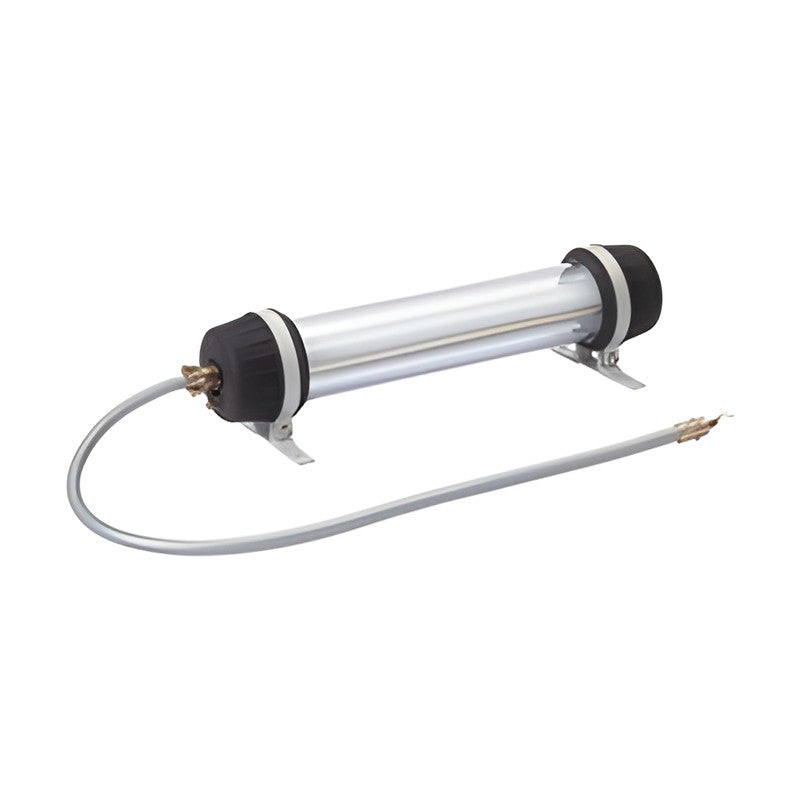

Qlight QLEX-350 Explosion-Proof LED Luminaire, 350 mm, DC24V

350 mm flameproof LED luminaire/work light with adjustable light angle for Zone 1/2.

Key features

Ex d IIC rated LED luminaire / work light for explosive gas areas
Aluminum housing with polycarbonate lens tube
Long-life LED light source
Light angle adjustable by rotating the tube

Specifications

Voltage	DC24V (DC21.6-26.4V)
Power consumption	8.6W
Luminous flux	650 lm
Illumination	230 Lux at 1 m
Color temperature	6,000-7,000K
Explosion protection	KCs Ex d IIC T6; NEPSI Ex db IIC T6 Gb
Protection rating	IP66/IP67
Ambient temperature	-40 to +60 °C
Materials	Side cover Al, lens PC, bracket Al
Dimensions	350 x 110 x 93 mm
Weight	1.12 kg
Certificates	KCs, NEPSI, CE

QLEX-350

Length: 350mm | Voltage: DC24V | Lens: transparent/translucent | Cable entry: M12xP1.5

Industrial LED LightsQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QLEX-350 Explosion-Proof LED Luminaire, 350 mm, DC24V

Brand Qlight·Industrial LED Lights

Available part numbers (1)

QLEX-350

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
