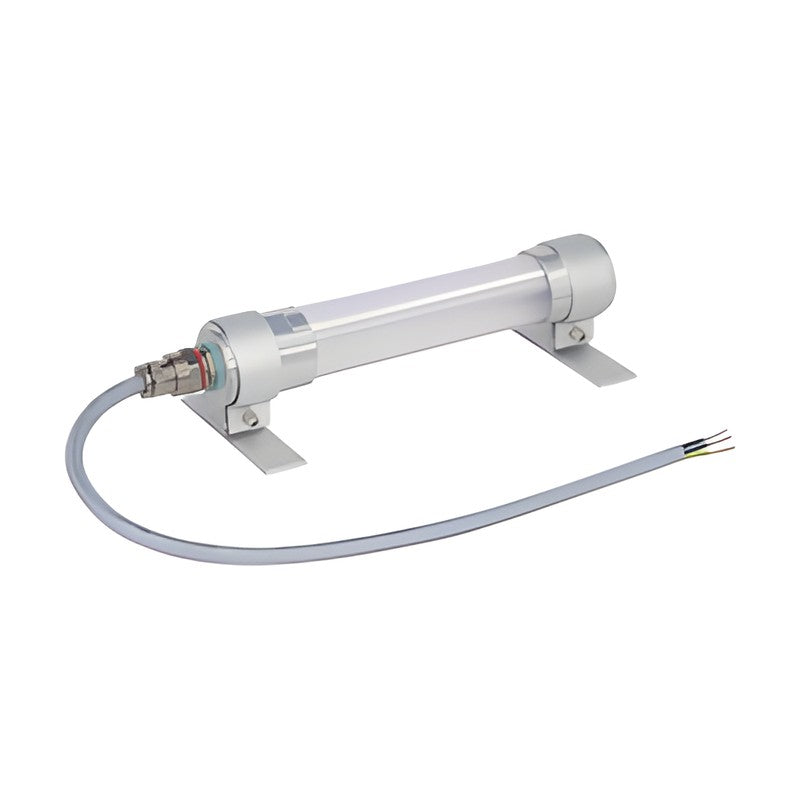

Qlight QLEX-NEC-250 Class I Div 2 Explosion-Proof LED Luminaire, 250 mm

Slim 250 mm NRTL/IECEx certified explosion-proof LED luminaire for Class I Div 2 and Zone 1 areas.

Key features

Ex d IIC rated LED luminaire / work light for explosive gas areas
Aluminum housing with polycarbonate lens tube
Long-life LED light source
Class I Div 2 Groups ABCD T6; Class I Zone 1 AEx db IIC T6 Gb
Light angle adjustable by rotating the tube

Specifications

Voltage	DC24V (DC21.6-26.4V)
Power consumption	8.6W
Illumination	310 Lux at 1 m
Color temperature	6,000-7,000K
Explosion protection	Class I Div 2 ABCD T6; AEx db / Ex db IIC T6 Gb
Protection rating	IP66/IP67
Ambient temperature	-20 to +40 °C (NRTL); -40 to +60 °C (IECEx)
Materials	Side cover Al, lens PC, bracket Al
Cable entry	M20xP1.5 or 1/2" NPT
Weight	0.50 kg
Certificates	INTERTEK (NRTL), IECEx, CE

QLEX-NEC-250

Length: 250mm | Voltage: DC24V
