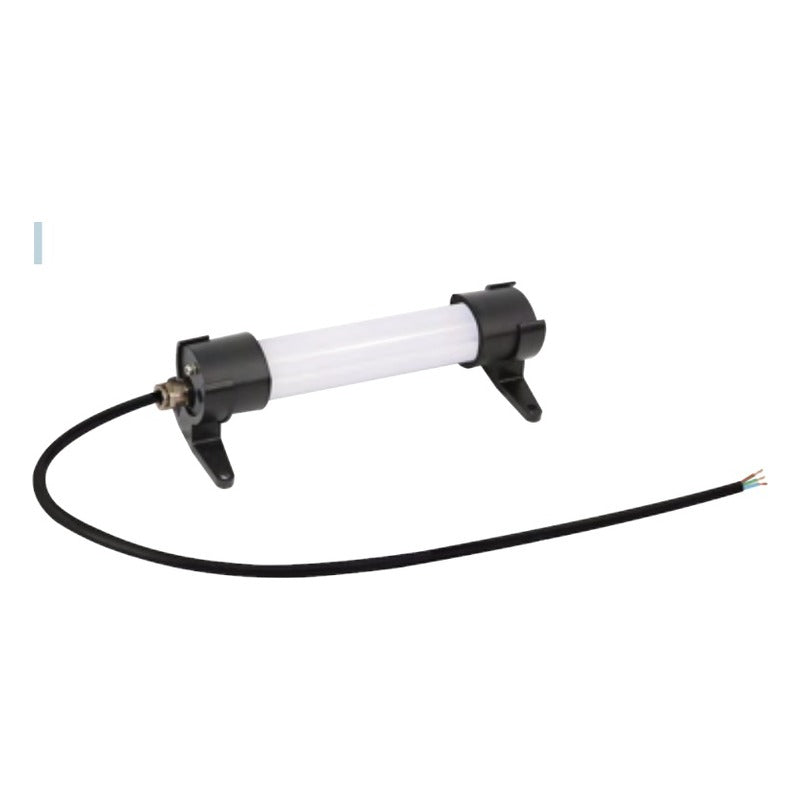

Qlight QLEX-TRI-240(PL) Explosion-Proof LED Luminaire, 240 mm

Slim 240 mm flameproof LED luminaire/work light with PC bracket for explosive gas areas.

Key features

Ex d IIC rated LED luminaire / work light for explosive gas areas
Aluminum housing with polycarbonate lens tube
Long-life LED light source
Slim, compact design

Specifications

Voltage	DC24V (DC21.5-26.5V)
Power consumption	8.6W
Luminous flux	650 lm
Illumination	310 Lux at 1 m
Color temperature	6,000-7,000K
Explosion protection	Ex d IIC T6
Protection rating	IP66/IP67
Ambient temperature	-40 to +60 °C
Materials	Side cover Al, lens PC, bracket PC
Cable entry	M12xP1.5 cable gland
Weight	0.62 kg
Certificates	KCs, NEPSI

QLEX-TRI-240(PL)

Length: 240mm | Voltage: DC24V

Industrial LED LightsQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QLEX-TRI-240(PL) Explosion-Proof LED Luminaire, 240 mm

Brand Qlight·Industrial LED Lights

Available part numbers (1)

QLEX-TRI-240(PL)

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
