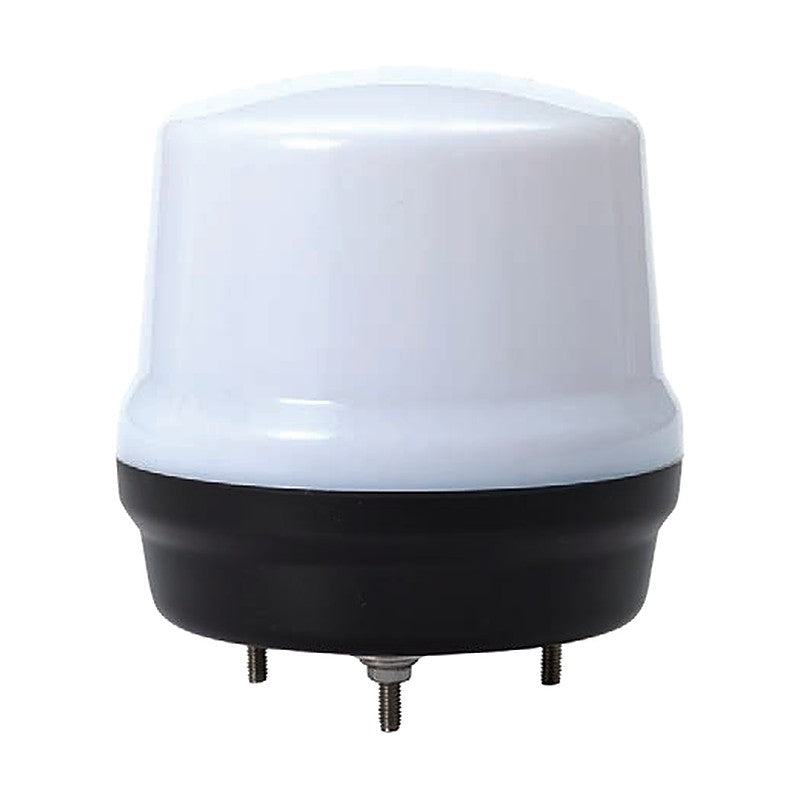

Qlight QMCL Multiple Color LED Steady Signal Light, 7 Colors (Ø60/80/100/125 mm)

Qlight QMCL Multiple Color LED Steady Signal Light, 7 Colors (Ø60/80/100/125 mm)

Compact LED signal light that produces up to seven signal colors from one lens by combining red, green and blue LED circuits.

Key features

  • Seven color signals (red, green, blue, amber, cyan, purple, white) from one light
  • Translucent lens when off; LED illuminates the selected color when on
  • Standard or built-in buzzer type (max. 80 dB at 1 m)
  • M12 connector type optionally available (female connector not included)
  • Wiring by external contact, NPN or PNP transistor

Specifications

Protection rating IP65
Ambient temperature -30 to +50 °C
Lens material PC
Body material ABS
Colors 7 colors: Red, Green, Blue, Amber, Cyan, Purple, White
Buzzer option BZ - built-in buzzer, max. 80 dB at 1 m
Buzzer current 45mA (DC12V), 65mA (DC24V)
Compliance RoHS
Qlight QMCL Multiple Color LED Steady Signal Light, 7 Colors (Ø60/80/100/125 mm) - reference 2
QMCL60 Diameter: Ø60mm | Voltage: DC12V (170mA), DC24V (70mA) | Weight: 0.12kg
QMCL80 Diameter: Ø80mm | Voltage: DC12V (190mA), DC24V (135mA) | Weight: 0.17kg
QMCL100 Diameter: Ø100mm | Voltage: DC12V (225mA), DC24V (135mA) | Weight: 0.24kg
QMCL125 Diameter: Ø125mm | Voltage: DC12V (235mA), DC24V (190mA) | Weight: 0.31kg
Signal BeaconsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QMCL Multiple Color LED Steady Signal Light, 7 Colors (Ø60/80/100/125 mm)

Brand Qlight·Signal Beacons

Available part numbers (4)

QMCL60, QMCL80, QMCL100, QMCL125

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
