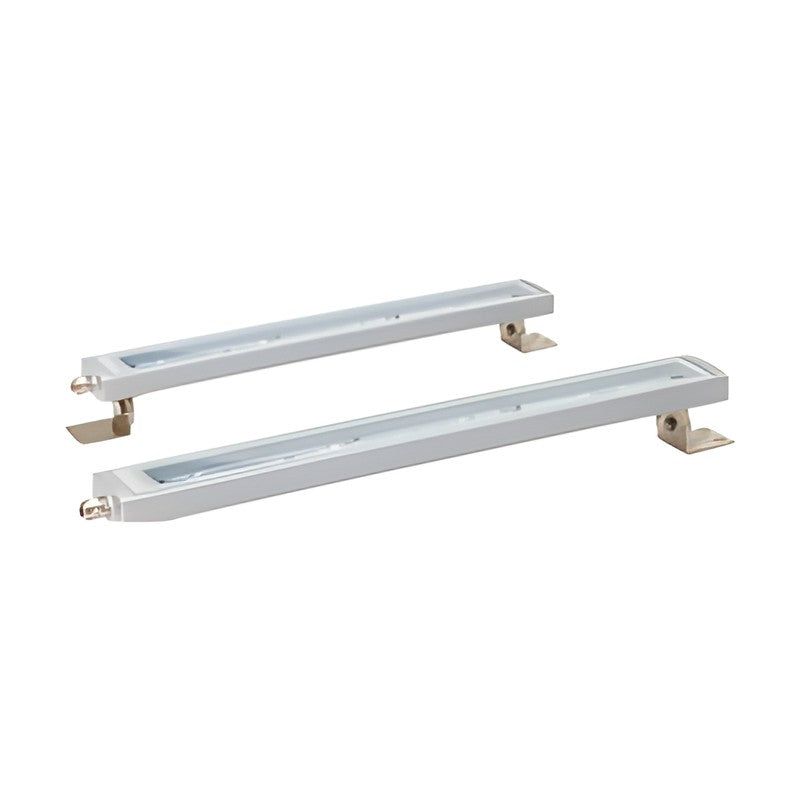

Qlight QMFLN / QMFHLN Oil Resistant LED Machine Light Bar IP67/IP69K

Qlight QMFLN / QMFHLN Oil Resistant LED Machine Light Bar IP67/IP69K

Aluminum LED light bar with chemically tempered glass, sealed to IP67/IP69K for machine tools with high-temperature cutting oil; QMFHLN is the high-intensity version.

Key features

  • Special sealing structure gives superior resistance to high-temperature cutting oil
  • IP69K rated for high-pressure, high-temperature wash-down
  • Chemically tempered glass prevents damage from machine tool chips
  • Included K bracket with 120° tilt adjustment
  • Body lengths 200/300/400/500/600 mm; transparent or translucent (TLC) lens
  • Wired type or M12 connector type

Specifications

Voltage DC24V
Operating voltage range DC22V-30V
Light color Cooldaylight
Color temperature 6,000-7,000K
Protection rating IP67/IP69K
Ambient temperature -30 to +60 °C
Materials Housing-Al, Lens-Tempered glass, Bracket-SPC-1
Width x Height 56 x 67 mm
Lens option Transparent (standard) or translucent (-TLC)
Connector option Cable (standard) or M12 connector (-M12)
Certificates CE, UL
QMFLN-200 Type: Standard | Body length: 190 mm | Luminous flux: 400lm (transparent), 350lm (TLC translucent) | Illumination at 1m: 240Lux (transparent), 200Lux (TLC) | Power: 5.7W | Weight: 0.57kg
QMFHLN-200 Type: High intensity | Body length: 190 mm | Luminous flux: 500lm (transparent), 480lm (TLC translucent) | Illumination at 1m: 1,100Lux (transparent), 775Lux (TLC) | Power: 5.7W | Weight: 0.57kg
QMFLN-300 Type: Standard | Body length: 290 mm | Luminous flux: 900lm (transparent), 750lm (TLC translucent) | Illumination at 1m: 500Lux (transparent), 400Lux (TLC) | Power: 12.4W | Weight: 0.80kg
QMFHLN-300 Type: High intensity | Body length: 290 mm | Luminous flux: 940lm (transparent), 910lm (TLC translucent) | Illumination at 1m: 2,050Lux (transparent), 1,500Lux (TLC) | Power: 12.4W | Weight: 0.80kg
QMFLN-400 Type: Standard | Body length: 400 mm | Luminous flux: 1,400lm (transparent), 1,100lm (TLC translucent) | Illumination at 1m: 850Lux (transparent), 650Lux (TLC) | Power: 19.5W | Weight: 1.03kg
QMFHLN-400 Type: High intensity | Body length: 400 mm | Luminous flux: 1,450lm (transparent), 1,460lm (TLC translucent) | Illumination at 1m: 3,350Lux (transparent), 2,000Lux (TLC) | Power: 19.5W | Weight: 1.03kg
QMFLN-500 Type: Standard | Body length: 500 mm | Luminous flux: 1,700lm (transparent), 1,500lm (TLC translucent) | Illumination at 1m: 1,000Lux (transparent), 800Lux (TLC) | Power: 19.5W | Weight: 1.26kg
QMFHLN-500 Type: High intensity | Body length: 500 mm | Luminous flux: 1,630lm (transparent), 1,670lm (TLC translucent) | Illumination at 1m: 3,730Lux (transparent), 2,270Lux (TLC) | Power: 19.5W | Weight: 1.26kg
QMFLN-600 Type: Standard | Body length: 600 mm | Luminous flux: 1,700lm (transparent), 1,500lm (TLC translucent) | Illumination at 1m: 1,200Lux (transparent), 950Lux (TLC) | Power: 28.8W | Weight: 1.49kg
QMFHLN-600 Type: High intensity | Body length: 600 mm | Luminous flux: 2,490lm (transparent), 2,300lm (TLC translucent) | Illumination at 1m: 5,550Lux (transparent), 3,270Lux (TLC) | Power: 28.8W | Weight: 1.49kg
LED Work LightsQlight
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QMFLN / QMFHLN Oil Resistant LED Machine Light Bar IP67/IP69K

Brand Qlight·LED Work Lights

Available part numbers (10)

QMFLN-200, QMFHLN-200, QMFLN-300, QMFHLN-300, QMFLN-400, QMFHLN-400, QMFLN-500, QMFHLN-500, QMFLN-600, QMFHLN-600

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
