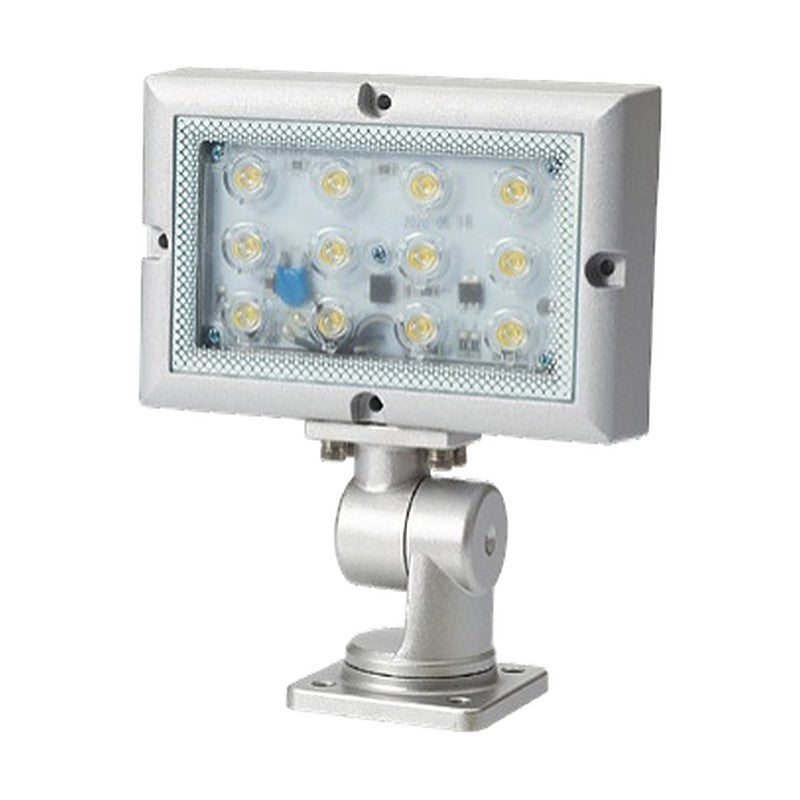

Qlight QML / QMHL Water, Vibration and Oil Resistant LED Work Light IP67/IP69K
Qlight QML / QMHL Water, Vibration and Oil Resistant LED Work Light IP67/IP69K
Aluminum LED machine work light with tempered glass lens, IP67/IP69K sealed for machine tools with cutting fluids and high-pressure hot wash-down; QML is anti-glare, QMHL high-luminance.
Key features
- Special sealing structure gives excellent oil resistance for machine tools with cutting fluids
- IP69K rated for high-pressure, high-temperature wash-down
- Tempered flat glass resists damage from machine tool chips
- QML anti-glare filter type or QMHL high-intensity condenser lens type
- Direct mount (D), tilt K bracket or tilt/pan MF bracket options
- Wired type or M12 connector type; oil-resistant cable type on request
Specifications
| Voltage | DC24V |
|---|---|
| Operating voltage range | DC21.5V-26.5V |
| Light color | Cooldaylight |
| Color temperature | 6,000-7,000K |
| Protection rating | IP67/IP69K |
| Ambient temperature | -30 to +60 °C |
| Materials | Housing-Al, Lens-Tempered glass, Bracket-K Type-STS430/MF Type-Al |
| Connector option | Cable (standard) or M12 connector (-M12) |
| Power cable | Dura & Flex-F VU 0.5sq x 2C 450mm |
| QML-150-D | Type: Anti-glare | Lens: Translucent | Length: 155 mm | Mount: Direct mount (self stand) | Luminous flux: 850lm | Illumination at 1m: 700Lux | Power: 15W | Weight: 0.82kg | Certificates: CE, UL | |
| QML-150-K | Type: Anti-glare | Lens: Translucent | Length: 155 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 850lm | Illumination at 1m: 700Lux | Power: 15W | Weight: 0.88kg | Certificates: CE, UL | |
| QML-150-MF | Type: Anti-glare | Lens: Translucent | Length: 155 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 850lm | Illumination at 1m: 700Lux | Power: 15W | Weight: 1.09kg | Certificates: CE, UL | |
| QML-250-D | Type: Anti-glare | Lens: Translucent | Length: 255 mm | Mount: Direct mount (self stand) | Luminous flux: 1,900lm | Illumination at 1m: 1,200Lux | Power: 32.4W | Weight: 1.31kg | Certificates: CE, UL | |
| QML-250-K | Type: Anti-glare | Lens: Translucent | Length: 255 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 1,900lm | Illumination at 1m: 1,200Lux | Power: 32.4W | Weight: 1.37kg | Certificates: CE, UL | |
| QML-250-MF | Type: Anti-glare | Lens: Translucent | Length: 255 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 1,900lm | Illumination at 1m: 1,200Lux | Power: 32.4W | Weight: 1.58kg | Certificates: CE, UL | |
| QMHL-150-D | Type: High illumination | Lens: Transparent | Length: 155 mm | Mount: Direct mount (self stand) | Luminous flux: 900lm | Illumination at 1m: 1,100Lux | Power: 15W | Weight: 0.84kg | Certificates: CE | |
| QMHL-150-K | Type: High illumination | Lens: Transparent | Length: 155 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 900lm | Illumination at 1m: 1,100Lux | Power: 15W | Weight: 0.99kg | Certificates: CE | |
| QMHL-150-MF | Type: High illumination | Lens: Transparent | Length: 155 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 900lm | Illumination at 1m: 1,100Lux | Power: 15W | Weight: 1.11kg | Certificates: CE | |
| QMHL-250-D | Type: High illumination | Lens: Transparent | Length: 255 mm | Mount: Direct mount (self stand) | Luminous flux: 1,800lm | Illumination at 1m: 2,500Lux | Power: 25W | Weight: 1.32kg | Certificates: CE | |
| QMHL-250-K | Type: High illumination | Lens: Transparent | Length: 255 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 1,800lm | Illumination at 1m: 2,500Lux | Power: 25W | Weight: 1.39kg | Certificates: CE | |
| QMHL-250-MF | Type: High illumination | Lens: Transparent | Length: 255 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 1,800lm | Illumination at 1m: 2,500Lux | Power: 25W | Weight: 1.60kg | Certificates: CE |
LED Work LightsQlight
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight QML / QMHL Water, Vibration and Oil Resistant LED Work Light IP67/IP69K
Available part numbers (12)
QML-150-D, QML-150-K, QML-150-MF, QML-250-D, QML-250-K, QML-250-MF, QMHL-150-D, QMHL-150-K, QMHL-150-MF, QMHL-250-D + 2 more — see full table ↓
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
LED Work Lights
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| QML-150-D | Type: Anti-glare | Lens: Translucent | Length: 155 mm | Mount: Direct mount (self stand) | Luminous flux: 850lm | Illumination at 1m: 700Lux | Power: 15W | Weight: 0.82kg | Certificates: CE, UL | ||
| QML-150-K | Type: Anti-glare | Lens: Translucent | Length: 155 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 850lm | Illumination at 1m: 700Lux | Power: 15W | Weight: 0.88kg | Certificates: CE, UL | ||
| QML-150-MF | Type: Anti-glare | Lens: Translucent | Length: 155 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 850lm | Illumination at 1m: 700Lux | Power: 15W | Weight: 1.09kg | Certificates: CE, UL | ||
| QML-250-D | Type: Anti-glare | Lens: Translucent | Length: 255 mm | Mount: Direct mount (self stand) | Luminous flux: 1,900lm | Illumination at 1m: 1,200Lux | Power: 32.4W | Weight: 1.31kg | Certificates: CE, UL | ||
| QML-250-K | Type: Anti-glare | Lens: Translucent | Length: 255 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 1,900lm | Illumination at 1m: 1,200Lux | Power: 32.4W | Weight: 1.37kg | Certificates: CE, UL | ||
| QML-250-MF | Type: Anti-glare | Lens: Translucent | Length: 255 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 1,900lm | Illumination at 1m: 1,200Lux | Power: 32.4W | Weight: 1.58kg | Certificates: CE, UL | ||
| QMHL-150-D | Type: High illumination | Lens: Transparent | Length: 155 mm | Mount: Direct mount (self stand) | Luminous flux: 900lm | Illumination at 1m: 1,100Lux | Power: 15W | Weight: 0.84kg | Certificates: CE | ||
| QMHL-150-K | Type: High illumination | Lens: Transparent | Length: 155 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 900lm | Illumination at 1m: 1,100Lux | Power: 15W | Weight: 0.99kg | Certificates: CE | ||
| QMHL-150-MF | Type: High illumination | Lens: Transparent | Length: 155 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 900lm | Illumination at 1m: 1,100Lux | Power: 15W | Weight: 1.11kg | Certificates: CE | ||
| QMHL-250-D | Type: High illumination | Lens: Transparent | Length: 255 mm | Mount: Direct mount (self stand) | Luminous flux: 1,800lm | Illumination at 1m: 2,500Lux | Power: 25W | Weight: 1.32kg | Certificates: CE | ||
| QMHL-250-K | Type: High illumination | Lens: Transparent | Length: 255 mm | Mount: K bracket (vertical angle adjustment) | Luminous flux: 1,800lm | Illumination at 1m: 2,500Lux | Power: 25W | Weight: 1.39kg | Certificates: CE | ||
| QMHL-250-MF | Type: High illumination | Lens: Transparent | Length: 255 mm | Mount: MF bracket (tilt/pan adjustment) | Luminous flux: 1,800lm | Illumination at 1m: 2,500Lux | Power: 25W | Weight: 1.60kg | Certificates: CE |
