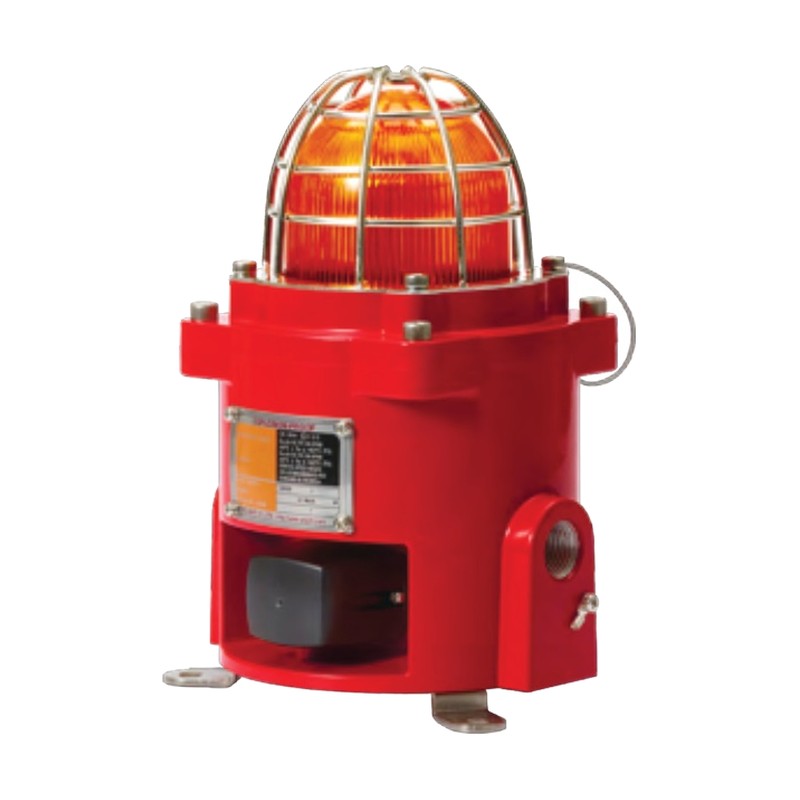

Qlight QNES-CR Explosion-Proof LED Beacon and Sounder, Cold Resistant to -52 °C, 110 dB
Qlight QNES-CR Explosion-Proof LED Beacon and Sounder, Cold Resistant to -52 °C, 110 dB
Cold-resistant flameproof LED beacon and electronic sounder combination for use down to -52 °C.
Key features
- Operates down to -52 °C with cold-resistant parts
- Flameproof Ex d IIC LED beacon and electronic sounder in one unit
- Steady, flashing, strobe or simulated revolving light by switch
- 25 selectable sounds: warning, special warning, melodies, alarms, custom voices
- Customization: 2 cable entries, M20x1.5 or 3/4" NPT entry
Specifications
| Light source | LED steady/flashing, strobe, simulated revolving (switch selectable) |
|---|---|
| Protection rating | IP66 |
| Cable entry | 1/2" NPT |
| Materials | Lens tempered glass, cage STS316L, housing Al or STS316L (-SUS) |
| Colors | R, A, G, B |
| Housing color | Red or Munsell 7.5BG 7/2 |
| Usage area | Zone 1, Zone 2 |
| Sound level | WS/WP max. 110 dB, WM/WA max. 105 dB, WV 99-106 dB |
| Explosion protection | Ex db IIC T6/T5 Gb; Ex tb IIIC T85/T100°C Db |
| Ambient temperature | -52 to +60 °C (T5), +45 °C (T6) |
| Voltage | DC12V-24V (max. 1.6A), AC110V-230V (max. 300mA) |
| Certificates | IECEx, ATEX |
| QNES-CR | Housing: Al | Weight: 3.15kg | |
| QNES-CR-SUS | Housing: STS316L | Weight: 7.60kg |
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Qlight QNES-CR Explosion-Proof LED Beacon and Sounder, Cold Resistant to -52 °C, 110 dB
Available part numbers (2)
QNES-CR, QNES-CR-SUS
How to order
Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Qlight
Sounder Beacons
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| QNES-CR | Housing: Al | Weight: 3.15kg | ||
| QNES-CR-SUS | Housing: STS316L | Weight: 7.60kg |
Need a different model, or a part not listed here? Send us your parts list →
