Qlight QNVS / QNVS-H Explosion-Proof LED Beacon and Electronic Sounder, 118 / 123 dB, Wall Mount

Qlight QNVS / QNVS-H Explosion-Proof LED Beacon and Electronic Sounder, 118 / 123 dB, Wall Mount

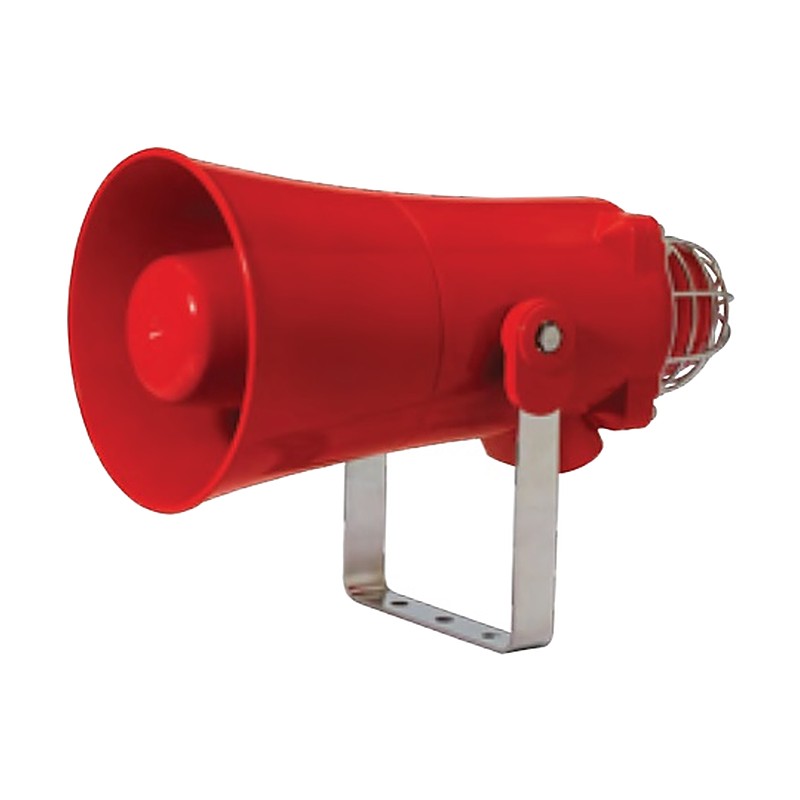

Flameproof LED signal beacon and high-output electronic sounder (up to 123 dB) for Zone 1/2.

Key features

  • Steady, flashing, strobe or simulated revolving light by switch
  • 25 selectable sounds; volume adjustable
  • Aluminum housing, IP66 fully enclosed
  • Customization: external sound selection (-LC), 2 entries, 3/4" NPT/M20/M25 entry

Specifications

Explosion protection Ex db IIC T6/T5 Gb
Protection rating IP66
Ambient temperature -40 to +70 °C (T5), +55 °C (T6)
Cable entry 1/2" NPT
Housing color Red
Certificates ATEX, IECEx, NEPSI, CCC, KCs
Usage area Zone 1, Zone 2
Transistor input NPN
Light source LED steady/flashing, strobe, simulated revolving (switch selectable)
Materials Housing Al, horn PC, lens tempered glass
Mounting Wall mount
Colors R, A, G, B
Qlight QNVS / QNVS-H Explosion-Proof LED Beacon and Electronic Sounder, 118 / 123 dB, Wall Mount - reference 2
QNVS Sound: WS/WP/WM max. 118 dB, WA 116 dB, WV 110-115 dB | Voltage: DC12V-24V (max. 1.4A), AC110V-230V (max. 390mA) | Weight: 7.50-7.65kg
QNVS-H Sound: WS/WP/WM max. 123 dB, WA 121 dB, WV 115-120 dB | Voltage: DC12V-24V (max. 3.4A), AC110V-230V (max. 560mA) | Weight: 7.50-7.65kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QNVS / QNVS-H Explosion-Proof LED Beacon and Electronic Sounder, 118 / 123 dB, Wall Mount

Brand Qlight·Sounder Beacons

Available part numbers (2)

QNVS, QNVS-H

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QNVS / QNVS-H Explosion-Proof LED Beacon and Electronic Sounder, 118 / 123 dB, Wall Mount - reference 2
0 selected
RFQ List (0)
Product codeSpec
QNVSSound: WS/WP/WM max. 118 dB, WA 116 dB, WV 110-115 dB | Voltage: DC12V-24V (max. 1.4A), AC110V-230V (max. 390mA) | Weight: 7.50-7.65kg
QNVS-HSound: WS/WP/WM max. 123 dB, WA 121 dB, WV 115-120 dB | Voltage: DC12V-24V (max. 3.4A), AC110V-230V (max. 560mA) | Weight: 7.50-7.65kg
