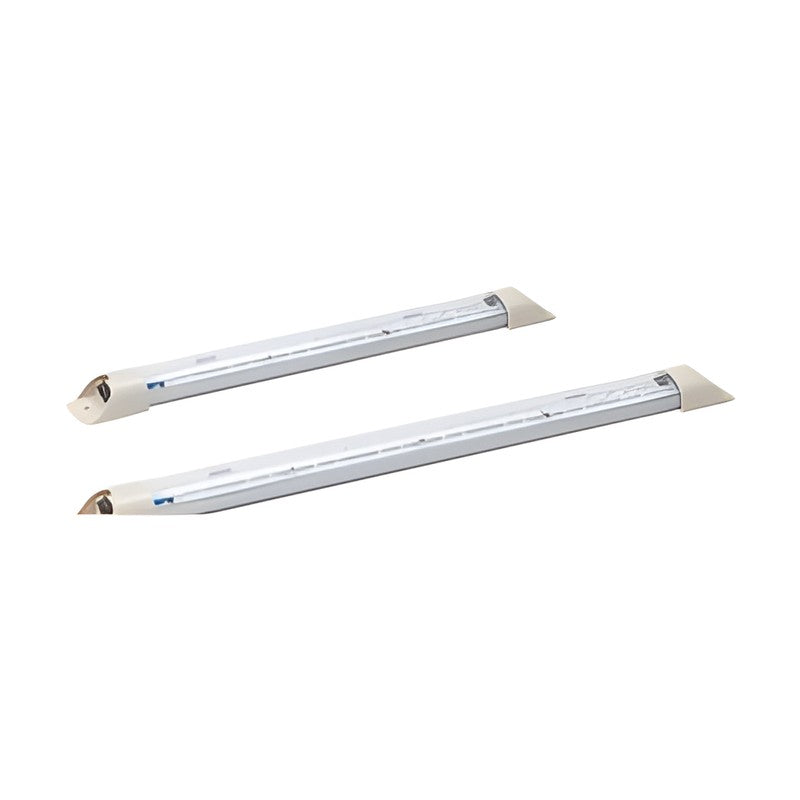

Qlight QPHL / QPHLC High Illumination Slim Waterproof LED Light Bar IP65

Qlight QPHL / QPHLC High Illumination Slim Waterproof LED Light Bar IP65

High-illumination version of the slim 24 mm IP65 LED light bar for DC24V, AC110V or AC220V; QPHL translucent, QPHLC transparent lens.

Key features

  • Fully enclosed IP65 structure for environments with lingering dust or moisture
  • Dust-resistant dome lens maintains bright illumination
  • Slim 24 mm profile with AC direct LED control
  • Lengths 200/300/400/500 mm
  • Translucent or transparent lens
  • Cable standard; M12 connector on request

Specifications

Operating voltage range DC21.5V-26.5V, AC98V-121V, AC198V-245V
Light color Cooldaylight
Color temperature 6,000-7,000K
Protection rating IP65
Ambient temperature -30 to +50 °C
Materials Lens-PC, Side cover-ABS, Heatsink-Al
Width x Height 39 x 24 mm
Mounting Direct mount
Power cable DC: UL2464 AWG22 0.3sq x 2C 450mm; AC: VCTFK 0.75sq x 2C 450mm
Certificates CE, UL
QPHL-200 Lens: Translucent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 320lm | Illumination at 1m: DC 200Lux | Power: DC24V 4.8W | Weight: 0.13kg
QPHLC-200 Lens: Transparent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 340lm | Illumination at 1m: DC 800Lux | Power: DC24V 4.8W | Weight: 0.13kg
QPHL-300 Lens: Translucent | Length: 300 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 450lm, AC 440lm | Illumination at 1m: DC 300Lux, AC 250Lux | Power: DC24V 5.5W, AC110V 5W, AC220V 8W | Weight: 0.18kg
QPHLC-300 Lens: Transparent | Length: 300 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 480lm, AC 440lm | Illumination at 1m: DC 1,000Lux, AC 1,000Lux | Power: DC24V 5.5W, AC110V 5W, AC220V 8W | Weight: 0.18kg
QPHL-400 Lens: Translucent | Length: 400 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 650lm, AC 650lm | Illumination at 1m: DC 400Lux, AC 400Lux | Power: DC24V 8W, AC110V 8W, AC220V 11W | Weight: 0.25kg
QPHLC-400 Lens: Transparent | Length: 400 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 640lm, AC 640lm | Illumination at 1m: DC 1,500Lux, AC 1,500Lux | Power: DC24V 8W, AC110V 8W, AC220V 11W | Weight: 0.25kg
QPHL-500 Lens: Translucent | Length: 500 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 900lm, AC 900lm | Illumination at 1m: DC 550Lux, AC 550Lux | Power: DC24V 10W, AC110V 12W, AC220V 15W | Weight: 0.30kg
QPHLC-500 Lens: Transparent | Length: 500 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 1,000lm, AC 900lm | Illumination at 1m: DC 2,000Lux, AC 2,300Lux | Power: DC24V 10W, AC110V 12W, AC220V 15W | Weight: 0.30kg
LED Light BarsQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QPHL / QPHLC High Illumination Slim Waterproof LED Light Bar IP65

Brand Qlight·LED Light Bars

Available part numbers (8)

QPHL-200, QPHLC-200, QPHL-300, QPHLC-300, QPHL-400, QPHLC-400, QPHL-500, QPHLC-500
