Qlight QPL / QPLC Slim Waterproof LED Light Bar IP65

Qlight QPL / QPLC Slim Waterproof LED Light Bar IP65

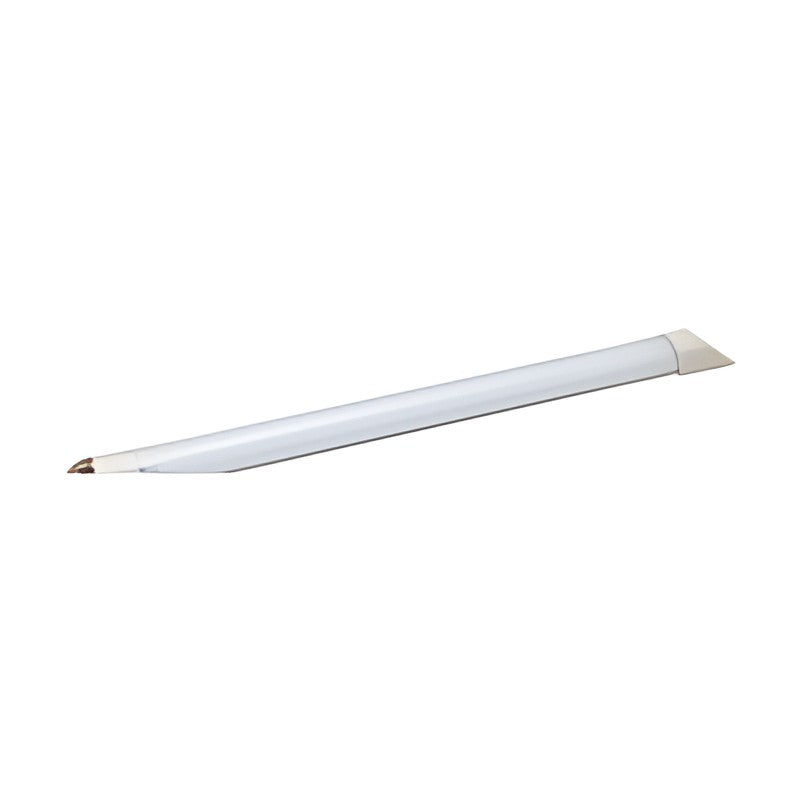

Slim 24 mm IP65 LED light bar with dome lens for DC24V, AC110V or AC220V; QPL translucent, QPLC transparent lens.

Key features

  • Fully enclosed IP65 structure for environments with lingering dust or moisture
  • Dust-resistant dome lens maintains bright illumination
  • Slim 24 mm profile with AC direct LED control
  • Lengths 200/300/400/500 mm
  • Translucent or transparent lens
  • Cable standard; M12 connector on request

Specifications

Operating voltage range DC21.5V-26.5V, AC98V-121V, AC198V-245V
Light color Cooldaylight
Color temperature 6,000-7,000K
Protection rating IP65
Ambient temperature -30 to +50 °C
Materials Lens-PC, Side cover-ABS, Heatsink-Al
Width x Height 39 x 24 mm
Mounting Direct mount
Power cable DC: UL2464 AWG22 0.3sq x 2C 450mm; AC: VCTFK 0.75sq x 2C 450mm
Certificates CE, UL
QPL-200 Lens: Translucent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 150lm | Illumination at 1m: DC 50Lux | Power: DC24V 3.7W | Weight: 0.13kg
QPLC-200 Lens: Transparent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 180lm | Illumination at 1m: DC 65Lux | Power: DC24V 3.7W | Weight: 0.13kg
QPL-300 Lens: Translucent | Length: 300 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 240lm, AC 380lm | Illumination at 1m: DC 80Lux, AC 130Lux | Power: DC24V 3.7W, AC110V 4.5W, AC220V 6.5W | Weight: 0.18kg
QPLC-300 Lens: Transparent | Length: 300 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 250lm, AC 440lm | Illumination at 1m: DC 100Lux, AC 150Lux | Power: DC24V 3.7W, AC110V 4.5W, AC220V 6.5W | Weight: 0.18kg
QPL-400 Lens: Translucent | Length: 400 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 350lm, AC 550lm | Illumination at 1m: DC 120Lux, AC 200Lux | Power: DC24V 5.5W, AC110V 7.5W, AC220V 9.5W | Weight: 0.23kg
QPLC-400 Lens: Transparent | Length: 400 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 440lm, AC 650lm | Illumination at 1m: DC 150Lux, AC 240Lux | Power: DC24V 5.5W, AC110V 7.5W, AC220V 9.5W | Weight: 0.23kg
QPL-500 Lens: Translucent | Length: 500 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 480lm, AC 840lm | Illumination at 1m: DC 150Lux, AC 300Lux | Power: DC24V 7.3W, AC110V 10W, AC220V 13W | Weight: 0.29kg
QPLC-500 Lens: Transparent | Length: 500 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 600lm, AC 900lm | Illumination at 1m: DC 200Lux, AC 350Lux | Power: DC24V 7.3W, AC110V 10W, AC220V 13W | Weight: 0.29kg
LED Light BarsQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QPL / QPLC Slim Waterproof LED Light Bar IP65

Brand Qlight·LED Light Bars

Available part numbers (8)

QPL-200, QPLC-200, QPL-300, QPLC-300, QPL-400, QPLC-400, QPL-500, QPLC-500

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QPL-200Lens: Translucent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 150lm | Illumination at 1m: DC 50Lux | Power: DC24V 3.7W | Weight: 0.13kg
QPLC-200Lens: Transparent | Length: 200 mm | Voltage: DC24V | Luminous flux: DC 180lm | Illumination at 1m: DC 65Lux | Power: DC24V 3.7W | Weight: 0.13kg
QPL-300Lens: Translucent | Length: 300 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 240lm, AC 380lm | Illumination at 1m: DC 80Lux, AC 130Lux | Power: DC24V 3.7W, AC110V 4.5W, AC220V 6.5W | Weight: 0.18kg
QPLC-300Lens: Transparent | Length: 300 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 250lm, AC 440lm | Illumination at 1m: DC 100Lux, AC 150Lux | Power: DC24V 3.7W, AC110V 4.5W, AC220V 6.5W | Weight: 0.18kg
QPL-400Lens: Translucent | Length: 400 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 350lm, AC 550lm | Illumination at 1m: DC 120Lux, AC 200Lux | Power: DC24V 5.5W, AC110V 7.5W, AC220V 9.5W | Weight: 0.23kg
QPLC-400Lens: Transparent | Length: 400 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 440lm, AC 650lm | Illumination at 1m: DC 150Lux, AC 240Lux | Power: DC24V 5.5W, AC110V 7.5W, AC220V 9.5W | Weight: 0.23kg
QPL-500Lens: Translucent | Length: 500 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 480lm, AC 840lm | Illumination at 1m: DC 150Lux, AC 300Lux | Power: DC24V 7.3W, AC110V 10W, AC220V 13W | Weight: 0.29kg
QPLC-500Lens: Transparent | Length: 500 mm | Voltage: DC24V, AC110V, AC220V | Luminous flux: DC 600lm, AC 900lm | Illumination at 1m: DC 200Lux, AC 350Lux | Power: DC24V 7.3W, AC110V 10W, AC220V 13W | Weight: 0.29kg
