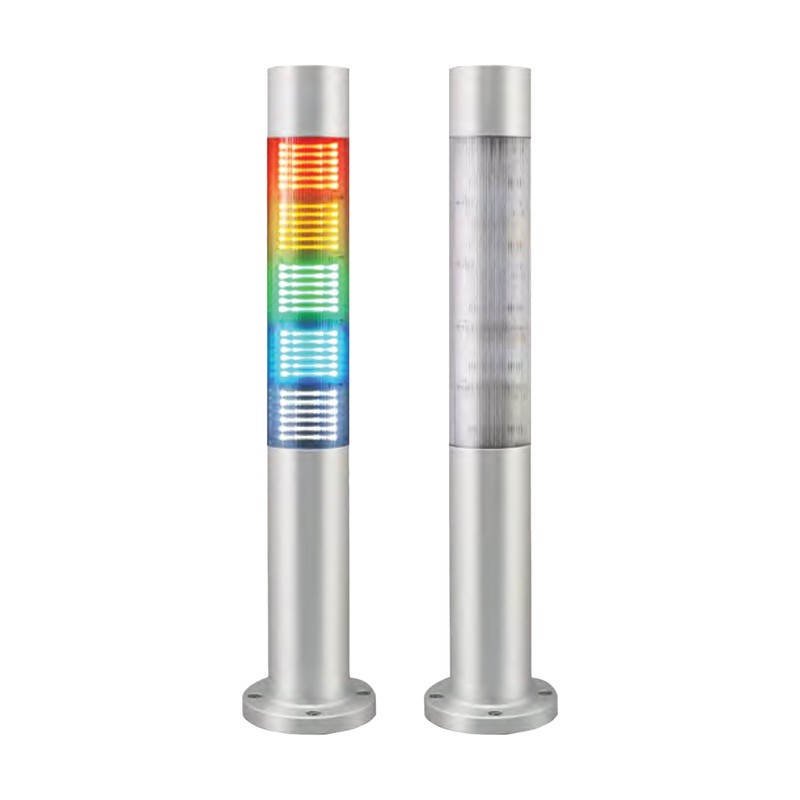

Qlight QST50-Ex Flame/Dust Ignition Proof Slim LED Signal Tower Light

Slim Ø55 mm aluminium flame and dust ignition proof LED signal tower light for explosive gas and dust areas.

Key features

Ex db IIC T6 Gb / Ex tb IIIC T85°C Db rated
Light diffusion tube for long-distance visibility
Aluminium housing, silver standard color
1 to 5 layers, DC24V or AC110V-230V
Wiring by external contact or NPN / PNP transistor

Specifications

Ambient temperature	-40 to +60 °C
Material	PC lens and diffusion lens, aluminium housing and cover
Explosion protection	IECEx/ATEX Ex db IIC T6 Gb, Ex tb IIIC T85°C Db; KCs Ex db IIC T6 Gb
Certificates	IECEx, ATEX, KCs, NEPSI, CCC
Housing color	Silver
Flashing rate	60-80 flashes/min
Light source current (1 layer)	75mA (DC24V), Max.55mA (AC110V-230V)
Protection rating	IP66/IP67
Cable entry	M16xP1.5
Weight	1.13kg

QST50-Ex

Layers: 1-5 | Voltage: DC24V, AC110V-230V | Colors: R, A, G, B, W | Certificates: IECEx, ATEX, KCs, CCC (NEPSI)

Explosion-Proof Signal LightsQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QST50-Ex Flame/Dust Ignition Proof Slim LED Signal Tower Light

Brand Qlight·Explosion-Proof Signal Lights

Available part numbers (1)

QST50-Ex

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
