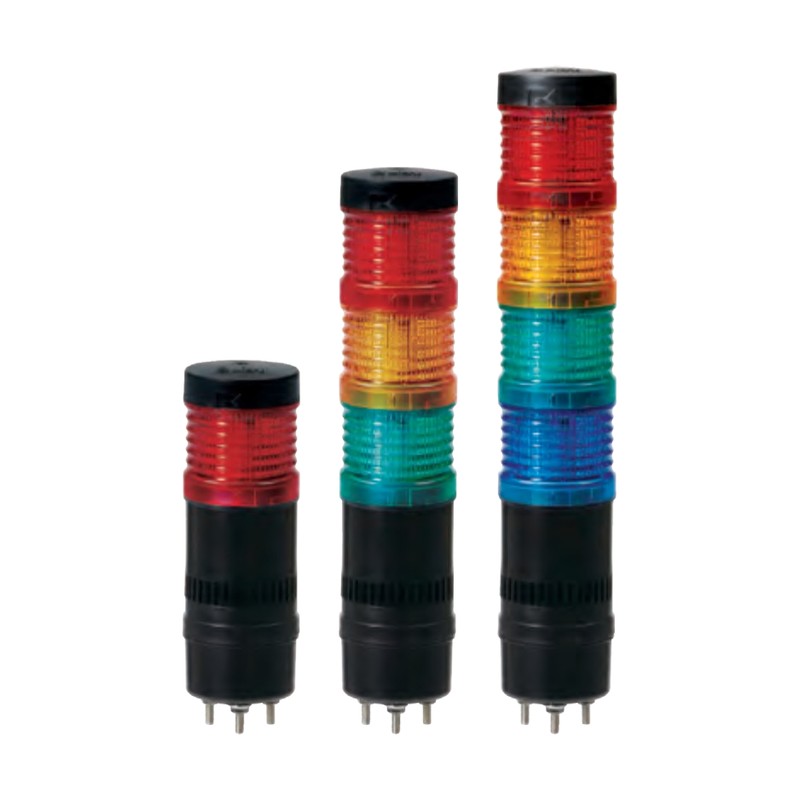

Qlight QT50ML-BZ Ø50 Modular Multi-Functional LED Tower Light, Direct Mount with Buzzer

Qlight QT50ML-BZ Ø50 Modular Multi-Functional LED Tower Light, Direct Mount with Buzzer

Ø50 mm modular multi-functional LED tower light for direct mounting, with built-in buzzer module.

Key features

  • Modular construction from cover, LED modules and base module; assembled without tools
  • Up to 4 LED layers in red, amber, green and blue plus a built-in buzzer module
  • Steady or steady/flashing LED modules; strobe and simulated revolving versions (DC only)
  • Wiring by external contact or NPN / PNP transistor
  • Black housing; beige color available on request
  • Built-in bip buzzer up to 90 dB

Specifications

Protection rating IP54
Ambient temperature -30 to +50 °C
Light source current (1 layer) 100mA (DC12V), 55mA (DC24V), 25mA (AC110V/AC220V)
Diameter Ø50
Sound level Max.90dB
Buzzer current 30mA (DC12V), 55mA (DC24V), 110mA (AC110V), 130mA (AC220V)
CE compliant DC12V, DC24V, AC220V
QT50ML-BZ Function: Steady | Layers: 1-4 | Voltage: DC12V, DC24V, AC110V, AC220V | Colors: R, A, G, B
QT50MLF-BZ Function: Steady/Flashing | Layers: 1-4 | Voltage: DC12V, DC24V, AC110V, AC220V | Colors: R, A, G, B
QT50MLS-BZ Function: LED strobe (customization, DC only)
QT50MLR-BZ Function: LED simulated revolving (customization, DC only)
Signal Tower LightsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QT50ML-BZ Ø50 Modular Multi-Functional LED Tower Light, Direct Mount with Buzzer

Brand Qlight·Signal Tower Lights

Available part numbers (4)

QT50ML-BZ, QT50MLF-BZ, QT50MLS-BZ, QT50MLR-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
QT50ML-BZFunction: Steady | Layers: 1-4 | Voltage: DC12V, DC24V, AC110V, AC220V | Colors: R, A, G, B
QT50MLF-BZFunction: Steady/Flashing | Layers: 1-4 | Voltage: DC12V, DC24V, AC110V, AC220V | Colors: R, A, G, B
QT50MLS-BZFunction: LED strobe (customization, DC only)
QT50MLR-BZFunction: LED simulated revolving (customization, DC only)
