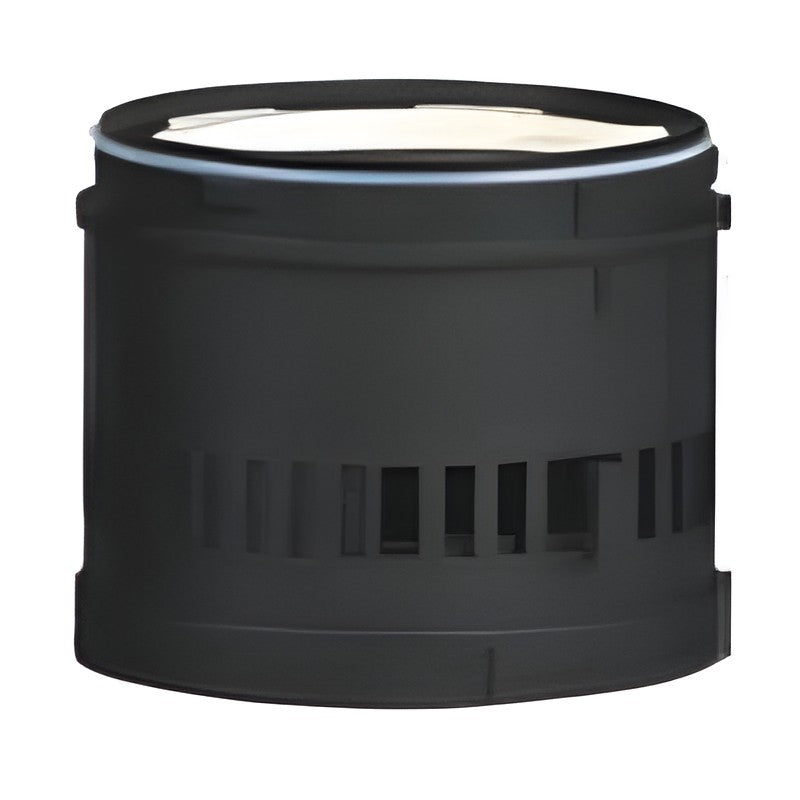

Qlight QT70 Series Buzzer Module Ø70

Qlight QT70 Series Buzzer Module Ø70

Bip-sound and siren-sound buzzer modules for the QT70 modular multi-functional LED tower lights.

Key features

  • Bip sound buzzer with volume adjustable by side lever
  • Siren sound buzzer with fixed sound
  • Up to 90 dB
  • Can be placed at any position in the tower

Specifications

Material PC
Protection rating IP54 (assembled)
Size Ø70 x 65 mm
Sound level Max.90dB
Qlight QT70 Series Buzzer Module Ø70 - reference 2
Q70L-BZ-12 Type: Bip buzzer | Voltage: DC12V | Current: 30mA
Q70L-BZ-24 Type: Bip buzzer | Voltage: DC24V | Current: 55mA
Q70L-BZ-110 Type: Bip buzzer | Voltage: AC110V | Current: 110mA
Q70L-BZ-220 Type: Bip buzzer | Voltage: AC220V | Current: 130mA
Q70L-BZS-12 Type: Siren buzzer | Voltage: DC12V | Current: 240mA
Q70L-BZS-24 Type: Siren buzzer | Voltage: DC24V | Current: 150mA
Q70L-BZS-110 Type: Siren buzzer | Voltage: AC110V | Current: 10mA
Q70L-BZS-220 Type: Siren buzzer | Voltage: AC220V | Current: 20mA
Signal Light AccessoriesQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight QT70 Series Buzzer Module Ø70

Brand Qlight·Signal Light Accessories

Available part numbers (8)

Q70L-BZ-12, Q70L-BZ-24, Q70L-BZ-110, Q70L-BZ-220, Q70L-BZS-12, Q70L-BZS-24, Q70L-BZS-110, Q70L-BZS-220

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight QT70 Series Buzzer Module Ø70 - reference 2
0 selected
RFQ List (0)
Product codeSpec
Q70L-BZ-12Type: Bip buzzer | Voltage: DC12V | Current: 30mA
Q70L-BZ-24Type: Bip buzzer | Voltage: DC24V | Current: 55mA
Q70L-BZ-110Type: Bip buzzer | Voltage: AC110V | Current: 110mA
Q70L-BZ-220Type: Bip buzzer | Voltage: AC220V | Current: 130mA
Q70L-BZS-12Type: Siren buzzer | Voltage: DC12V | Current: 240mA
Q70L-BZS-24Type: Siren buzzer | Voltage: DC24V | Current: 150mA
Q70L-BZS-110Type: Siren buzzer | Voltage: AC110V | Current: 10mA
Q70L-BZS-220Type: Siren buzzer | Voltage: AC220V | Current: 20mA
